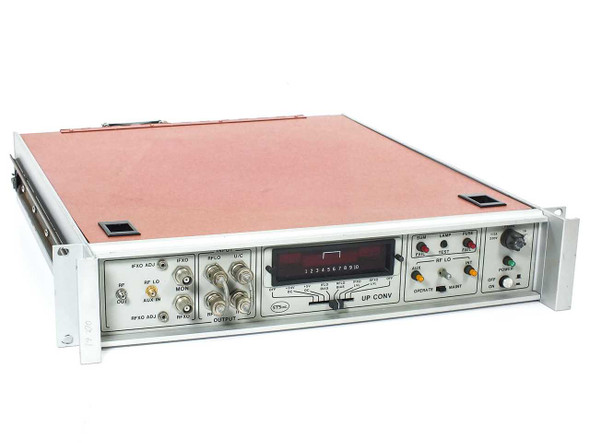

STS Inc Statcom RF Upconverter 13 GHz Ku-Band Satellite 19" Rackmount 2U

SKU:

49836

Availability:

Usually ships within 1-2 business days.

Weight:

33.00 LBS

Brand:

STS Inc

Model:

Statcom Upconverter

MPN:

Statcom Upconverter

Type:

RF Upconverter

SKU:

49836

Frequency Band:

Ku-Band

Frequency Range:

12.85 – 13.35 GHz

Application:

Satellite Uplink / Earth Station

Form Factor:

19" Rackmount, 2U

Dimensions:

23 x 19 x 3.5 in

Power Requirements:

AC Input (IEC connector); fuse 1/2A 220V

Mixer / Upconverter Module:

MACOM PLK-12-01 (12.85–13.35 GHz)

Crystal Oscillator 1:

Vectron 108 MHz

Crystal Oscillator 2:

Vectron 101.99603 MHz

Bandpass Filter:

K&L Microwave 9FV-1150/60-00

Internal Assembly:

ASS-Y C1663 (visible on RF amp assembly)

Rear Connectors:

2x DB44 parallel connectors (J4 area), IEC AC inlet, SMA RF port

Front Panel Connectors:

RF OUT (SMA), RF LO / AUX IN (SMA), MON (SMA), IFXO, RFXO BNC/SMA

Front Panel Indicators:

10-segment LED bar graph, SUM/FAIL, LAMP/TEST, FUSE/FAIL LEDs, POWER LED

Front Panel Controls:

OPERATE/MAINT switch, OFF/ON switch, IFXO ADJ, RFXO ADJ trimpots

Cooling:

Internal cooling fan (Paramotor brand)

Condition:

Used – Inspected

Seller Notes:

Unit only; no external cables included. Inspected, good cosmetic condition.

Country/Region of Manufacture:

United States

Condition Notes:

This STS Inc Statcom RF Upconverter has been inspected and is in good used condition with normal wear. Internal assemblies including MACOM PLK-12-01 module, Vectron oscillators, and K&L filter are visually intact.

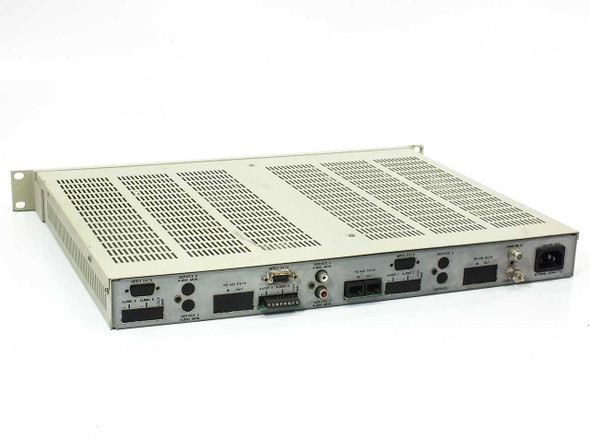

Wegener Communications 1851-01-0 Auxiliary Mainframe 19" 1U Rackmount Satcom

Wegener Communications

SKU:

49831

Availability:

Usually ships within 1-2 business days.

Weight:

12.00 LBS

Brand:

Wegener Communications

Model:

1851-01-0

MPN:

1851-01-0

SKU:

49831

Type:

Auxiliary Mainframe

Form Factor:

19" 1U Rackmount

Dimensions:

19" x 15" x 1.75"

Power Requirements:

85-230V AC, 50/60Hz, 40W

Interface Type:

RS-422, MPEG Data, Audio Monitor

Number of Channels:

6 (CH1–CH6)

Rear Connectors:

MPEG Data (DB9), RS-422 Data In/Out, Audio Mon, BNC

Country/Region of Manufacture:

United States

Condition:

Used – Powers On, Not Fully Tested

Seller Notes:

Unit only — no accessories. Powers on and front indicators light.

Date of Manufacture:

July 1994 (94-07)

Compatible With:

Wegener satellite receiver/modulator systems

Condition Notes:

Wegener Communications 1851-01-0 Auxiliary Mainframe. Inspected, good cosmetic condition. Powers on and front indicators light up; not fully tested at our facility. Light surface wear. Please contact us with any questions.

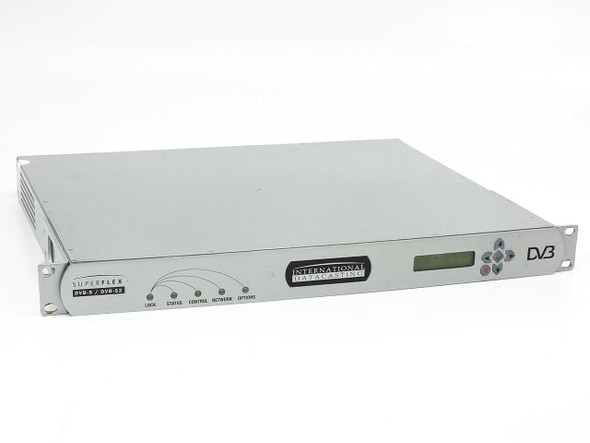

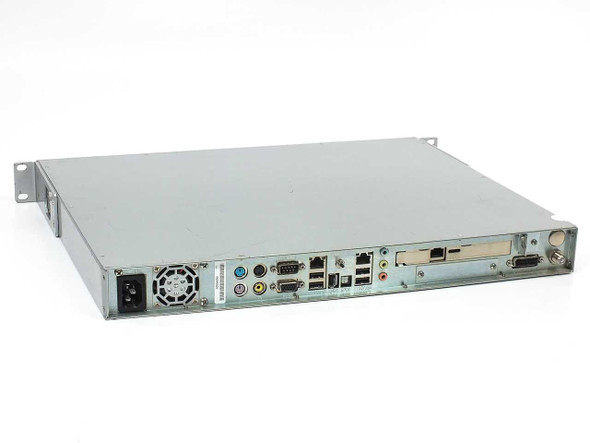

International Datacasting SFX3101R 92080190 SuperFlex DVB-S/S2 Pro Audio

International Datacasting

SKU:

49830

Availability:

Usually ships within 1-2 business days.

Weight:

16.00 LBS

Brand:

International Datacasting

Model:

SFX3101R

MPN:

92080190 V1.2

Secondary Model:

DA-604

Type:

DVB-S/DVB-S2 Satellite Audio Receiver

Series:

SuperFlex SFX Series

SKU:

49830

Condition:

Used – Powers On, Not Fully Tested

Seller Notes:

Unit only; powers on. Please view photos and contact us with questions.

Country/Region of Manufacture:

Canada

Form Factor:

1U Rackmount

Rack Size:

1U

Dimensions:

19" x 14.5" x 1.75"

Power Requirements:

100-240V AC, 4A Max, 60-50Hz

Tuner:

Single Tuner

Number of Audio Channels:

4

Standard:

DVB-S / DVB-S2

Interface:

DVB-S / DVB-S2

Ethernet Ports:

2x RJ-45 (ETH0, ETH1)

SAT Input:

F-type coaxial (rear panel)

Video Output:

Composite, S-Video, VGA (DB-15)

Audio Output:

Analog RCA stereo, additional audio outputs on rear

Serial Port:

DB-9 RS-232

USB Ports:

Multiple USB ports on rear panel

FireWire:

1x FireWire (IEEE 1394) port visible on rear

Display:

LCD alphanumeric display with navigation buttons

Front Panel Indicators:

Lock, Status, Control, Network, Options LEDs

Date of Manufacture:

09/2006

Compatible With:

DVB-S/DVB-S2 satellite broadcast systems

Application:

Broadcast audio distribution, satellite content delivery

Condition Notes:

International Datacasting SFX3101R SuperFlex satellite receiver. Inspected, good used condition. Powers on; not fully tested beyond power-up. Light cosmetic wear. View photos and contact us with questions.

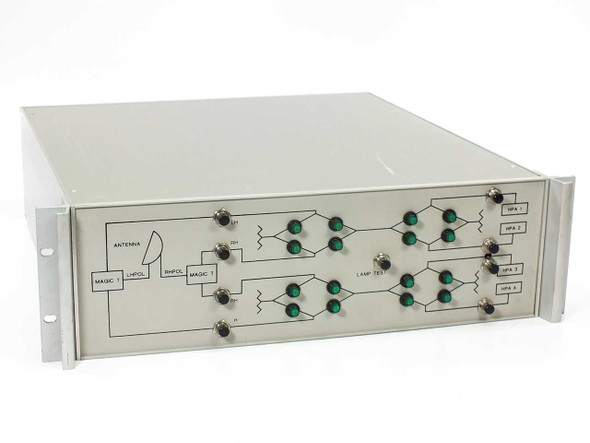

Telecomm Engineering 142001-1 Network Mimic Panel RF Satcom 4-HPA Rackmount

Telecomm Engineering Corp

SKU:

49800

Availability:

Usually ships within 1–2 business days.

Weight:

36.00 LBS

Brand:

Telecomm Engineering Corp

Model:

142001-1

MPN:

142001-1

SKU:

49800

Type:

Network Mimic Panel

Application:

RF Satcom HPA Switching & Status Monitoring

Form Factor:

Rackmount, 3U

Dimensions:

20" W x 19" D x 5.5" H

Power Requirements:

28VDC

Number of HPA Outputs:

4 (HPA 1, HPA 2, HPA 3, HPA 4)

Antenna Paths:

LHPOL (Left-Hand Polarization), RHPOL (Right-Hand Polarization)

RF Switching Components:

Magic T combiners, LH/RH waveguide path indicators

Status Indicators:

Green LED lamp indicators per HPA path; Lamp Test button

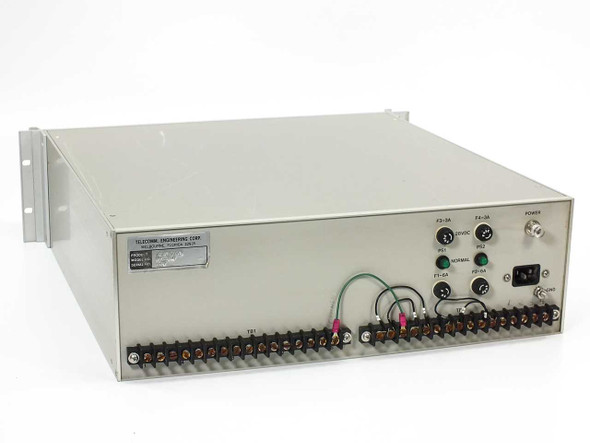

Power Supplies:

Dual: PS1, PS2 (redundant); NORMAL status indicator

Fuses:

F1-6A, F2-6A, F3-3A, F4-3A

Terminal Blocks:

TB1 (rear, 16-position), TB2 (rear, 16-position)

Connector - Power:

IEC C14 AC inlet (rear panel)

Grounding:

GND lug on rear panel

Country/Region of Manufacture:

United States

Manufacturer Location:

Melbourne, Florida 32935

Condition:

Used – Pulled from Working Environment

Seller Notes:

Unit only; no accessories. Pulled from a working RF satcom ground station environment.

Condition Notes:

Telecomm Engineering 142001-1 Network Mimic Panel in good used condition. Inspected; pulled from a working RF satcom environment. Front panel and rear terminals intact, normal wear. Please contact us with any questions.

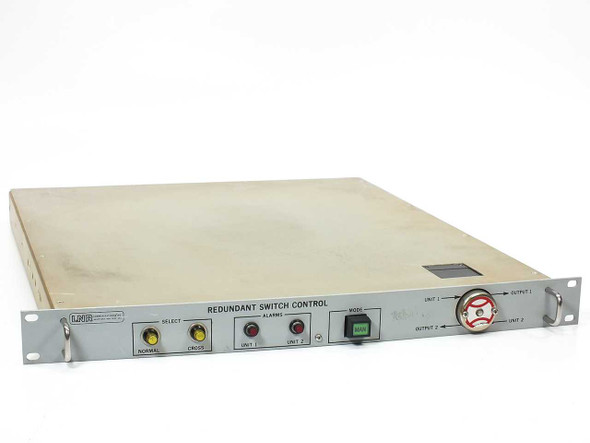

LNR 506011300-2 Redundant Baseball Switch Control RF Satcom 1U Rackmount

LNR

SKU:

49790

Availability:

Usually ships within 1-2 business days.

Weight:

9.00 LBS

Brand:

LNR Communications

Model:

506011300-2

MPN:

506011300-2

SKU:

49790

Type:

Redundant Baseball Switch Controller

Application:

RF Satellite Communications (Satcom) Redundancy Switching

Form Factor:

1U Rackmount

Rack Size:

19-inch

Dimensions:

22" x 19" x 2" (D x W x H)

Front Panel Controls:

SELECT (Normal/Cross), ALARMS (Unit 1/Unit 2), MODE switch

Switch Positions:

Normal, Cross (baseball-style waveguide/coax switch)

Alarm Indicators:

Unit 1 and Unit 2 LED alarm indicators

Mode:

Manual (MAN) mode switch on front panel

RF Connector Type:

BNC (Inputs: Unit 1, Unit 2; Outputs: Unit 1, Unit 2)

Number of RF Ports:

4 BNC (2 inputs, 2 outputs)

Rear Interfaces:

Remote Control and Monitor (D-Sub), Conv 1 (DB-15), Conv 2 (DB-9)

Remote Control Interface:

D-Sub multi-pin connector (Remote Control and Monitor)

Converter Interfaces:

Conv 1 (DB-15), Conv 2 (DB-9)

Condition:

Used – Pulled from Working Environment

Seller Notes:

Unit only; pulled from working satcom system. No accessories included.

Country/Region of Manufacture:

United States

Condition Notes:

LNR 506011300-2 Redundant Baseball Switch Control, inspected and in good used condition. Pulled from a working satcom environment. Shows light rack wear; front panel, switch, and connectors intact. Photos available.

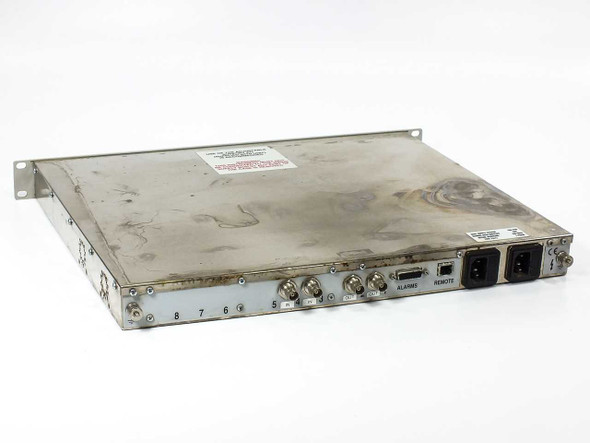

ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch 44.736 Mbps 1U

ARG

SKU:

49782

Availability:

Usually ships within 1-2 business days.

Weight:

16.00 LBS

Brand:

ARG

Model:

2400 Series

MPN:

2402-EQ48K-BOM

Type:

G.703 DS3 Protection Switch

SKU:

49782

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Sold as-is for parts; front panel LEDs do not illuminate

Country/Region of Manufacture:

United Kingdom

Form Factor:

1U Rackmount

Standards Compliance:

ITU-T G.703

Signal Type:

DS3

Data Rate:

44.736 Mb/s

Number of Inputs:

2 (Input A, Input B)

Number of Outputs:

2 (Output 1, Output 2)

Input Signal:

44.736 Mb/s DS3 via Relay Bypass Module

Protection Type:

1+1 DS3 Path Protection with Relay Bypass

Power Fail Behavior:

Input A to Output 1 and Input B to Output 2 continue under power fail

Key Switch Feature:

Channel Override Key Switch included

Web Board Option:

Fitted

Power Requirements:

100-240V AC, 50/60Hz, 1 Phase, Fuse 2A(T)

Power Supply:

Dual redundant IEC power supplies

Rear Connectors:

BNC coaxial (numbered 1-8), D-sub Alarms, IEC Remote

Front Panel Indicators:

PSU 1, PSU 2, Alarm, I/P A, I/P Active, I/P B, L.O.S., L.F.A., A.I.S.

Serial Number:

333

Factory Code:

2402-EQ48K-BOM

Certifications:

CE

Condition Notes:

ARG 2400 Series 2402-EQ48K-BOM G.703 DS3 Protection Switch operating at 44.736 Mbps in 1U rackmount form. This used unit includes dual IEC AC power supply, BNC coaxial ports, D-sub Alarms connector, and Remote port.

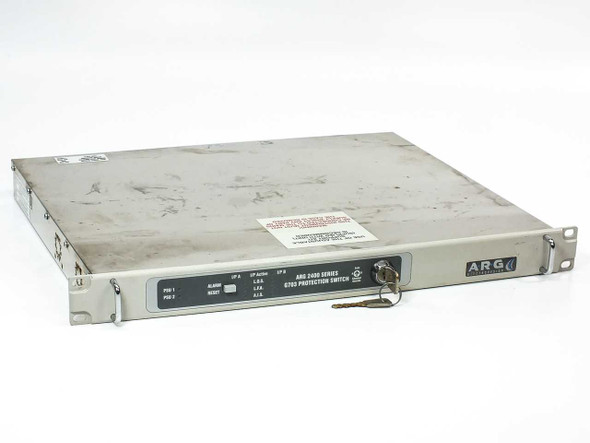

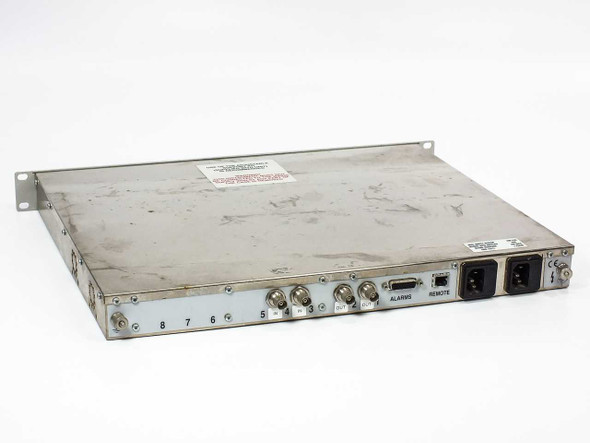

ARG 2400 Series 2402-EQ49K-BOM G.703 DS3 Protection Switch Dual Output

ARG

SKU:

49781

Availability:

Usually ships within 1–2 business days.

Weight:

16.00 LBS

Brand:

ARG

Model:

2400 Series

MPN:

2402-EQ49K-BOM

Type:

G.703 DS3 Protection Switch

SKU:

49781

Data Rate:

45.368 Mb/s (DS3)

Standards Compliance:

ITU-T G.703

Number of Inputs:

2 (Input A and Input B)

Number of Outputs:

2 (Output 1 and Output 2)

Input Signal:

DS3 (45.368 Mb/s) via Relay Bypass Module

Output Signal:

Dual DS3; Input A to Output 1 continues under power fail

Channel Override:

Keyswitch Channel Override

Bypass Module:

Relay Bypass Module

Alarm Interface:

ALARMS port (DB-15 connector, rear panel)

Remote Interface:

REMOTE port (rear panel); Web Server Option Fitted

Connector Type:

BNC (coaxial), DB-15, IEC AC inlet

Power Supply:

Dual redundant PSUs (PSU 1 and PSU 2)

Power Requirements:

100-250V AC, 50/60Hz (per rear label)

Form Factor:

1U Rackmount

Front Panel Indicators:

ALARM, RESET, I/P A Active, I/P B, L.O.S., L.F.A., A.I.S. LEDs; PSU 1 & PSU 2 indicators

Condition:

Used – Pulled from Working Environment

Seller Notes:

Unit includes keys for keyswitch. No accessories listed.

Country/Region of Manufacture:

United Kingdom

Condition Notes:

ARG 2400 Series G.703 DS3 Protection Switch 2402-EQ49K-BOM. Inspected, good used condition. Pulled from an active working telecom environment. Surface wear on chassis. Keys present. Please view photos and contact us with questions.

ARG 2400 Series G.703 DS3 Protection Switch Dual Output 34.568 Mbps 1U Rackmount

ARG

SKU:

49780

Availability:

Usually ships within 1-2 business days.

Weight:

16.00 LBS

Brand:

ARG

Model:

2400 Series

MPN:

2400-EQ49K-BOM

Type:

G.703 DS3 Protection Switch

SKU:

49780

Condition:

Used – Pulled from Working Environment

Seller Notes:

Includes key. Pulled from working environment.

Country/Region of Manufacture:

United Kingdom

Form Factor:

1U Rackmount

Power Requirements:

100-250V AC, 50/60Hz, dual IEC inlets

Standards Compliance:

ITU-T G.703

Data Rate:

34.568 Mbps (DS3)

Interface Type:

DS3 / BNC

Number of Inputs:

2 (Input A and Input B)

Number of Outputs:

2 (Dual DS3 Outputs)

Signal Type:

DS3 34.568 Mb/s

Protection Type:

1+1 Protection Switching with Relay Bypass

Override:

Key Switch Channel Override

Power Fail Continuity:

Channel 1 continues under power fail

Alarm Interface:

DB-15 Alarms connector (rear)

Remote Interface:

RJ-45 Remote connector (rear)

Power Supply:

Dual redundant IEC power inlets (PSU 1 / PSU 2)

Front Panel Indicators:

PSU 1, PSU 2, Alarm, Reset, I/P A, I/P Active, I/P B, LOS, LFA, AIS

Compatible With:

G.703 DS3 telecom / satcom transmission systems

Condition Notes:

ARG 2400 Series G.703 DS3 Protection Switch, pulled from a working environment. Inspected and in good condition. Shows light surface wear typical of rack-deployed equipment. Key included.
