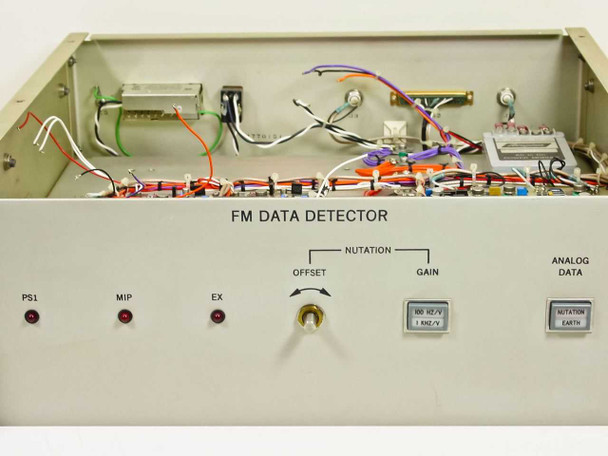

  • Hughes Galaxy FM Data Detector front panel closeup — PS1, MIP, EX LED indicators; Nutation Offset and Gain controls; Analog Data output

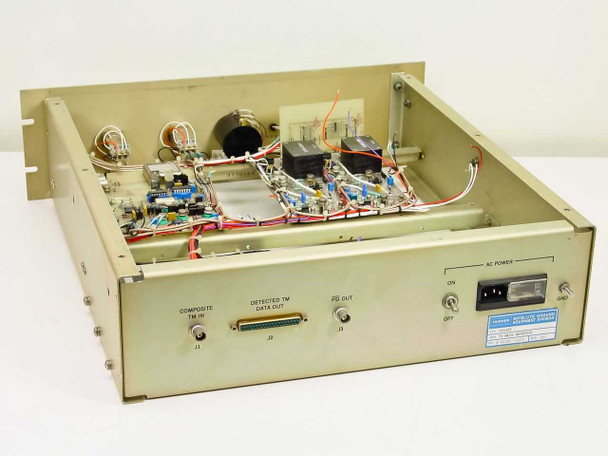

  • Hughes 3814120-100 FM Data Detector — rear panel and open chassis view showing internal boards, transformer, and wiring harness

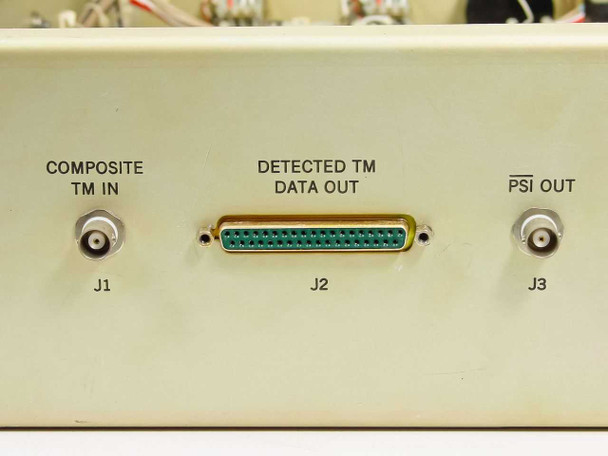

  • Hughes Galaxy FM Data Detector rear panel closeup — J1 Composite TM In BNC, J2 Detected TM Data Out D-sub connector, J3 PSI Out BNC

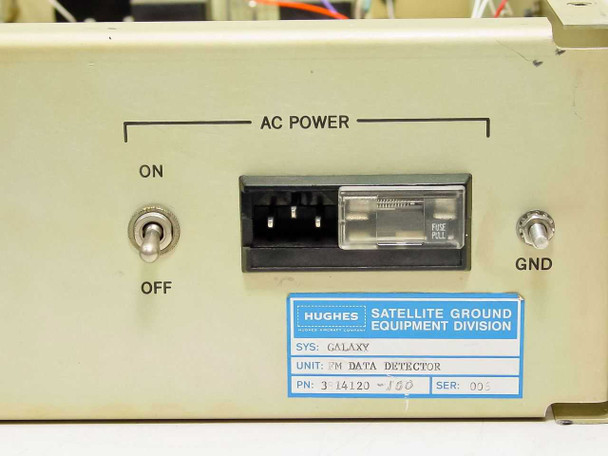

  • Hughes Galaxy FM Data Detector rear panel — AC Power section with ON/OFF toggle, IEC power inlet, fuse, and GND terminal

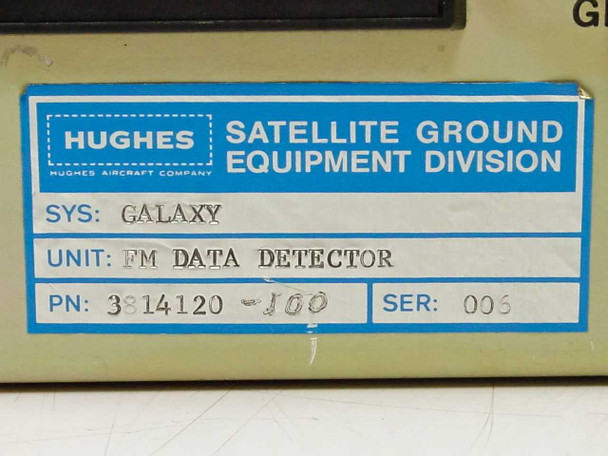

  • Hughes Aircraft Satellite Ground Equipment Division label — SYS: Galaxy, UNIT: FM Data Detector, PN: 3814120-100, SER: 006

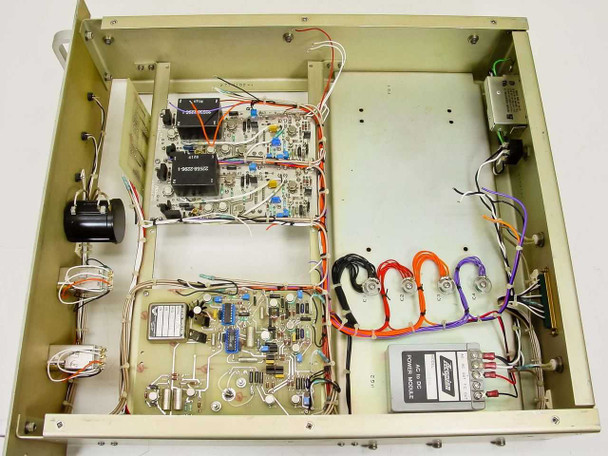

  • Hughes 3814120-100 FM Data Detector — top-down interior view showing multiple populated PCBs, Acopian power module, and wiring

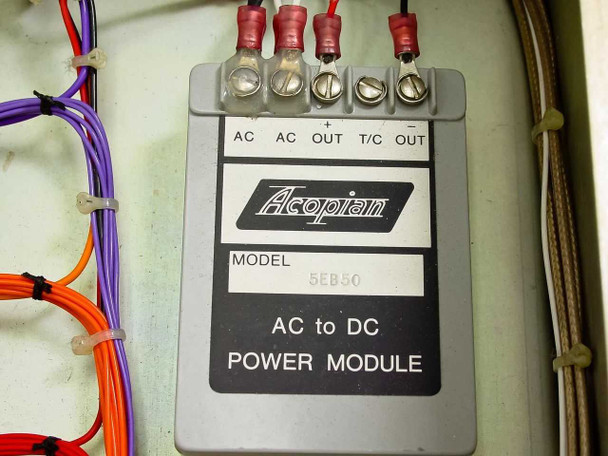

  • Acopian Model 5EB50 AC to DC Power Module installed inside Hughes FM Data Detector chassis

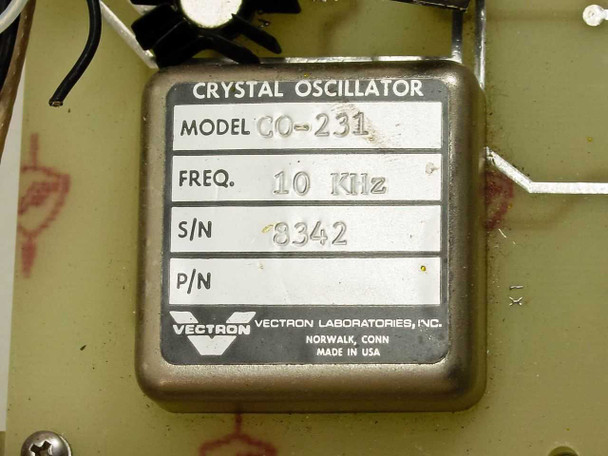

  • Vectron Laboratories CO-231 Crystal Oscillator — 10 KHz frequency, S/N 8342, installed inside Hughes FM Data Detector

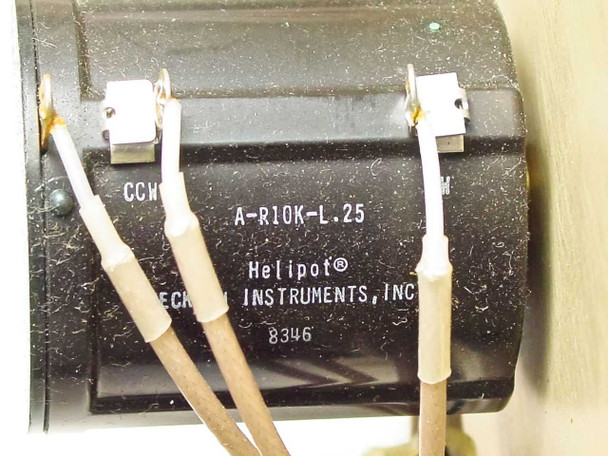

  • Helipot A-R10K-L.25 precision potentiometer installed inside Hughes 3814120-100 FM Data Detector chassis
  • Hughes 3814120-100-b Galaxy System FM Data Detector Rackmount - AS IS
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Hughes 3814120-100 Galaxy System FM Data Detector Rackmount Satcom

FM data detector unit designed for satellite ground station telemetry applications. Processes composite telemetry signals and outputs detected data for Galaxy satellite system operations.

Specifications & What's Included

  • Model: Hughes 3814120-100 Galaxy FM Data Detector
  • Form Factor: 19-inch rack mount
  • Front Panel: PS1, MIP, EX LED indicators; Nutation Offset and Gain controls
  • Connectors: BNC inputs/outputs for analog data and nutation earth; D-Sub detected data output; rear composite TM input
  • Internal Components: Acopian 5EB50 power module; Vectron CO-231 10 KHz crystal oscillator; Helipot precision potentiometer
  • Power: AC inlet with ON/OFF switch and fuse

Applications

FM data detectors were used in Hughes Galaxy satellite ground stations to demodulate and extract telemetry data from satellite downlink signals. This equipment type supported command and control operations for commercial and government satellite systems during the Galaxy era. Typically integrated into larger ground station racks alongside other RF and baseband processing equipment.

Condition: For Parts or Not Working
This Hughes Aircraft 3814120-100 Galaxy System FM Data Detector is being sold as-is for parts or repair. The unit has not been powered or tested at our facility. Due to its age and the specialized nature of this satcom ground equipment, we cannot make any claims about its functionality. Cosmetically the unit looks to be in decent shape — the front panel and chassis show typical age-related wear consistent with rack use, and the internal boards appear intact with no obvious physical damage visible in our photos. The rear panel connectors (J1, J2, J3) and AC power section appear present and intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes Aircraft
Model:
3814120-100
MPN:
3814120-100
Type:
FM Data Detector
SKU:
39454
System:
Galaxy Satellite Ground System
Division:
Hughes Satellite Ground Equipment Division
Form Factor:
Rack Mount
Front Panel Indicators:
PS1, MIP, EX LED indicators
Front Panel Controls:
Nutation Offset, Nutation Gain knobs
Front Panel Outputs:
Analog Data (BNC), Nutation Earth (BNC)
Rear Connectors:
J1 Composite TM In (BNC), J2 Detected TM Data Out (D-Sub), J3 PSI Out (BNC)
Rear Power:
AC Power inlet with ON/OFF toggle switch and fuse
Internal Power Module:
Acopian Model 5EB50 AC to DC Power Module
Internal Crystal Oscillator:
Vectron CO-231, 10 KHz
Internal Potentiometer:
Helipot A-R10K-L.25 precision potentiometer
Condition:
As-Is / For Parts or Not Working
Country/Region of Manufacture:
United States
Application:
Satellite telemetry FM signal detection, ground station
Seller Notes:
Sold as-is for parts or repair. No functionality guarantee.
Condition Notes:
Hughes 3814120-100 Galaxy FM Data Detector sold as-is for parts or repair. Not powered or tested. No functionality guarantee. Cosmetically shows age-related wear. Please view photos and contact us with questions.
