Hot Plates
Hot plates are portable cooking devices that generate heat through electricity and are commonly used in small kitchens, dorm rooms, and camping trips. These appliances typically consist of a heating element that is activated by a control panel to quickly heat up a flat surface for cooking. Hot plates are ideal for cooking meals that require quick and direct heat, such as boiling water, sautéing vegetables, or searing meat. They come in various sizes and designs, ranging from single-burner models to double-burner options. Hot plates are a convenient and efficient solution for cooking on the go or in tight spaces.
-

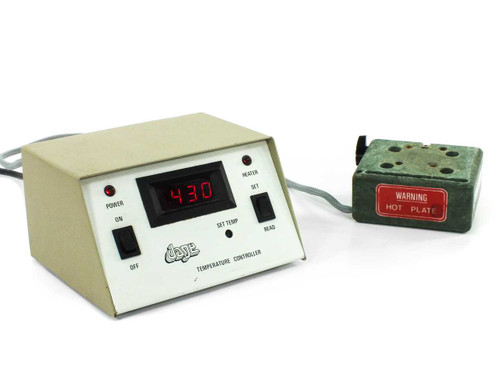

Dage BT22-AP13U Temperature Controller with Hot Plate For Parts
Dage
$150.00Was: $400.00Dage BT22-AP13U Temperature Controller with Hot Plate For Parts Benchtop temperature controller with integrated hot plate assembly, designed for laboratory heating and temperature monitoring applications. Unit powers on but requires repair...50493- SKU:
- 50493
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Dage
- Model:
- BT22-AP13U
- MPN:
- BT22-AP13U
- Type:
- Temperature Controller with Hot Plate
- SKU:
- 50493
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes controller unit and attached hot plate assembly. Sold as-is.
- Country/Region of Manufacture:
- United Kingdom
- Form Factor:
- Benchtop
- Power Requirements:
- 100/110V, 2.5 Amp Anti-Surge (visible on rear label)
- Display Type:
- LED Digital Readout
- Controls:
- Power On/Off switch, Heater Set/Read toggle, Set Temp adjust
- Application:
- Laboratory temperature control, hot plate heating
- Functionality Status:
- Powers on; heater non-functional; READ temp stuck at 430
- Condition Notes:
- Dage BT22-AP13U Temperature Controller w/ hot plate sold AS-IS for parts/repair. Powers on, SET temp adjustable. Heater non-functional; READ temp stuck at 430. Possible probe fault or circuit issue. Not guaranteed functional.
$150.00Was: $400.00 -
Custom Heavy Duty Hot Plate 5.75in Dia 750°F 250V 30A w/ Cover & Thermocouple
Custom
$275.00Was: $550.00Custom Heavy Duty Hot Plate 5.75in Dia 750°F 250V 30A w/ Cover & ThermocoupleThis is a custom-built, heavy-duty hot plate designed for semiconductor wafer processing and high-temperature lab applications. It features a 5.75-inch diameter circular...22582- SKU:
- 22582
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 80.00 LBS
- Brand:
- Unbranded
- Model:
- Custom Heavy Duty Hot Plate
- Type:
- Semiconductor Wafer Hot Plate
- SKU:
- 22582
- Condition:
- Used – Inspected and Tested
- Heating Element Diameter:
- 5.75 in (circular)
- Upper Surface Plate Dimensions:
- 7.75 x 11.5 in
- Maximum Temperature:
- 750°F
- Internal Resistance:
- 15.4 Ohms
- Voltage Rating:
- 250V
- Current Rating:
- 30A
- Phase:
- Single Phase
- Power Connector:
- 30A 250V Locking Plug (NEMA L6-30 style)
- Temperature Sensor:
- Thermocouple with braided cable and connector
- Includes:
- Custom gas-containment cover, thermocouple with cable
- Application:
- Silicon wafer curing, semiconductor processing
- Form Factor:
- Benchtop
- Cover Included:
- Yes – custom cover to hold gas over heating surface
- Seller Notes:
- Includes custom gas-containment cover and thermocouple. Resistance checked prior to shipment.
- Condition Notes:
- Custom heavy-duty semiconductor hot plate, inspected and confirmed heating under power. Resistance checked at 15.4Ω, no short circuits. Normal lab wear. Includes gas-containment cover and thermocouple. Please contact us with any questions.
$275.00Was: $550.00 -
Electrothermal MG7802 100mL Heating Mantle 110/120V 60W 450°C Round Bottom Flask
MG
$55.00Was: $100.00Electrothermal MG7802 100mL Heating Mantle 110/120V 60W 450°C Round Bottom FlaskThe Electrothermal MG7802 is a 100mL electrothermal heating mantle designed for laboratory use with round bottom and flat bottom flasks. The mantle uses a flexible knitted...27047- SKU:
- 27047
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Electrothermal
- Model:
- MG7802
- MPN:
- MG7802
- Type:
- Electrothermal Heating Mantle
- SKU:
- 27047
- Capacity:
- 100 mL
- Power:
- 60W
- Voltage:
- 110/120V
- Maximum Temperature:
- 450°C
- Flask Compatibility:
- Round Bottom and Flat Bottom Flasks
- Power Requirements:
- 110/120V AC, 60Hz
- Country/Region of Manufacture:
- England
- Form Factor:
- Benchtop
- Application:
- Laboratory Heating, Chemistry, Distillation
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Unit only — no accessories. Power cord attached.
- Condition Notes:
- Electrothermal MG7802 100mL heating mantle inspected and in good used condition. Mesh intact, some discoloration and minor soiling on underside from normal lab use. Power cord and plug intact. Rating plate legible.
$55.00Was: $100.00
