Solar Power Inverters
Solar Power Inverters are essential components in solar energy systems, converting DC electricity generated by solar panels into AC electricity for powering homes and businesses. These devices play a crucial role in maximizing the efficiency of solar energy production by ensuring a smooth transition from solar panels to the energy grid. Reliable and high-quality Solar Power Inverters are crucial for optimizing energy output and reducing electricity costs. They come in various sizes and types, such as string inverters, microinverters, and power optimizers, catering to different solar panel setups. Investing in Solar Power Inverters is key to harnessing the full potential of solar energy systems.
-
SMA SB 3800-US-10 Sunny Boy 3.8kW Solar Inverter 240VAC 250-480VDC For Parts
SMA
$389.00Was: $2,500.00SMA SB 3800-US-10 Sunny Boy 3.8kW Solar Inverter 240VAC 250-480VDC For Parts The SMA Sunny Boy SB 3800-US-10 is a 3.8kW single-phase grid-tie solar inverter designed for residential photovoltaic systems. It converts DC power from a solar panel array...52966- SKU:
- 52966
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 102.00 LBS
- Brand:
- SMA
- Model:
- SB 3800-US-10
- MPN:
- SB 3800-US-10
- Type:
- Grid-Tie Solar Inverter
- SKU:
- 52966
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts/repair. Green connector detached from board.
- Country/Region of Manufacture:
- Germany
- Output Voltage:
- 240VAC
- Output Frequency:
- 60 Hz
- Max Continuous Output Power:
- 3800 W AC
- DC Input Voltage Range:
- 250–480 VDC
- Max Open Circuit Input Voltage:
- 600 VDC
- Max Output Current:
- 16A
- Phase:
- Single Phase
- Manufacture Date:
- 06/2012
- Form Factor:
- Wall Mount / Outdoor Enclosure
- Certifications:
- UL Listed, FCC
- Transformer Type:
- 168V / 240V / 4000VA (DTW)
- Compatible With:
- Residential PV solar systems, SolarCity installations
- Communication Module:
- XBee PRO 825 wireless module visible on board
- Condition Notes:
- This SMA Sunny Boy SB 3800-US-10 3.8kW grid-tie solar inverter is being sold AS-IS for parts or repair. A green plug connector has detached from the main control board — this fault is clearly visible in the internal photos.
$389.00Was: $2,500.00 -
Stahlin J1614HW Solar Combiner Box NEMA 4X Fiberglass 11-Circuit 30A USM1
Stahlin Enclosures
$250.00Was: $500.00Stahlin J1614HW Solar Combiner Box NEMA 4X Fiberglass 11-Circuit 30A USM1The Stahlin J1614HW is a NEMA 4X rated fiberglass enclosure configured as a solar PV combiner box, pre-fitted with 11 Ferraz Shawmut ULTRASAFE USM1 30-amp circuit breaker holders on...50062- SKU:
- 50062
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Stahlin Enclosures
- Model:
- J1614HW
- MPN:
- J1614HW
- Type:
- Solar PV Combiner Box / NEMA 4X Fiberglass Enclosure
- SKU:
- 50062
- Enclosure Type Rating:
- NEMA 4X
- UL Listing:
- UL Listed C — Industrial Control Panel Enclosure
- Material:
- Hot compression molded fiberglass reinforced polyester
- Internal Dimensions:
- 15 x 14 x 6 in
- Number of Circuits:
- 11
- Breaker Holder Model:
- Ferraz Shawmut ULTRASAFE USM1
- Breaker Holder Amperage:
- 30A per circuit
- Breaker Holder Voltage Rating:
- 690V
- Mounting:
- DIN rail mounted interior panel
- Application:
- Solar PV array combiner / junction box
- Grounding:
- Grounding bus bar included (DIN rail mounted)
- Conduit Entry:
- Cable gland / conduit fitting (installed on side)
- Country/Region of Manufacture:
- United States
- Manufacturer:
- Stahlin Enclosures, Division of Robroy Industries
- Condition:
- New – Open Box
- Seller Notes:
- Includes 11 Ferraz Shawmut ULTRASAFE USM1 30A breaker holders on DIN rail; grounding bus bar and cable gland installed
- Condition Notes:
- Stahlin J1614HW NEMA 4X Solar Combiner Box — new, unused, open box. May be out of original packaging. All 11 USM1 30A breaker holders, DIN rail, and grounding bus bar included. Multiple units in stock; unit may vary from photo.
$250.00Was: $500.00 -

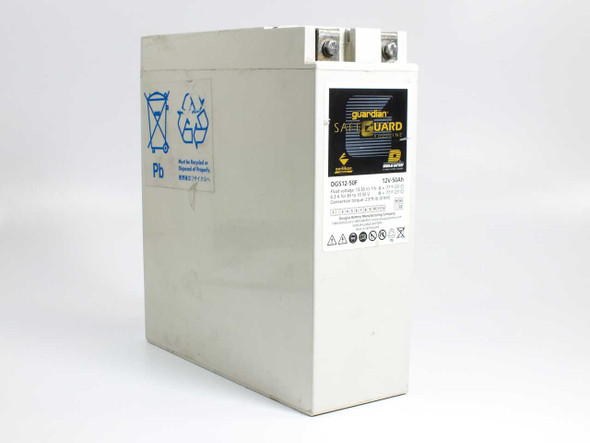

Douglas DGS12-50F Guardian SafeGuard Rackline 12V 50Ah Lead-Acid Battery
Douglas
$70.00Was: $175.00Douglas DGS12-50F Guardian SafeGuard Rackline 12V 50Ah Lead-Acid BatterySealed lead-acid (VRLA) standby battery for industrial and telecom applications. 12V nominal voltage with 50Ah capacity and bolt-down bus bar terminals.Specifications & What's...49661- SKU:
- 49661
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 53.00 LBS
- Brand:
- Douglas Battery
- Model:
- DGS12-50F
- MPN:
- DGS12-50F
- Type:
- Sealed Lead-Acid (VRLA) Standby Battery
- SKU:
- 49661
- Product Line:
- Guardian SafeGuard Rackline
- Voltage:
- 12V
- Capacity:
- 50Ah
- Float Voltage:
- 13.50V ± 1% @ 77°F (25°C)
- Discharge Rate:
- 6.3A for 8h to 10.50V @ 77°F (25°C)
- Connection Torque:
- 2.9 ft-lb (4 Nm)
- Terminal Type:
- Bolt-down bus bar terminals
- Spillable:
- No — Non-Spillable
- Chemistry:
- Lead-Acid (VRLA / AGM)
- Country/Region of Manufacture:
- Switzerland
- Dimensions:
- 11.5 x 10.875 x 4.875 in
- Form Factor:
- Rackmount / Upright Standby
- Condition:
- Used – Inspected
- Seller Notes:
- Battery only; no cables or accessories included.
- Compatible With:
- UPS systems, telecom power plants, standby power applications
- Condition Notes:
- Douglas DGS12-50F Guardian SafeGuard Rackline 12V 50Ah lead-acid battery in used condition. Case intact with light scuffing; terminals show oxidation. Not load-tested. Please review photos and contact us with questions.
$70.00Was: $175.00 -

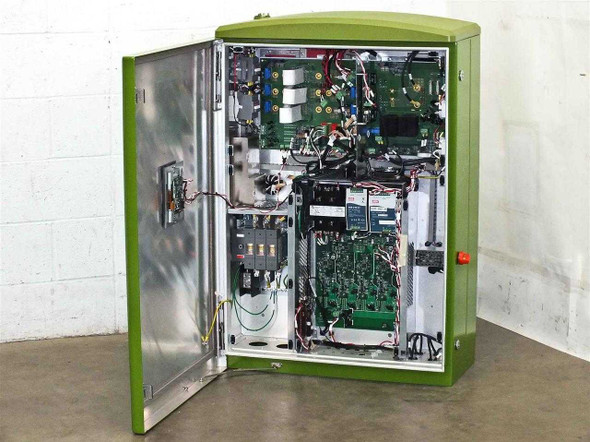

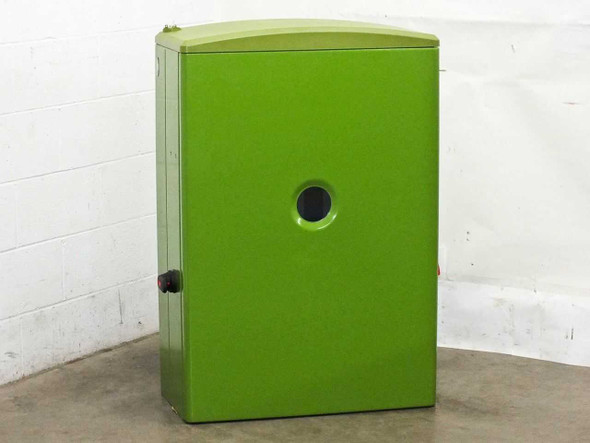

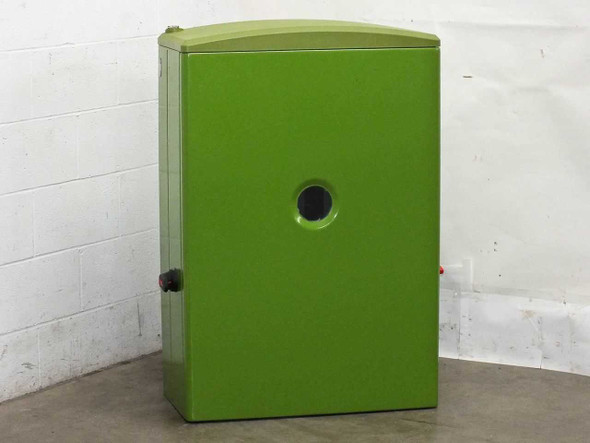

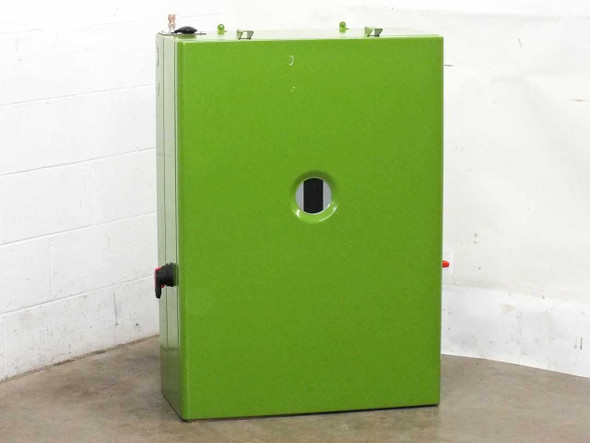

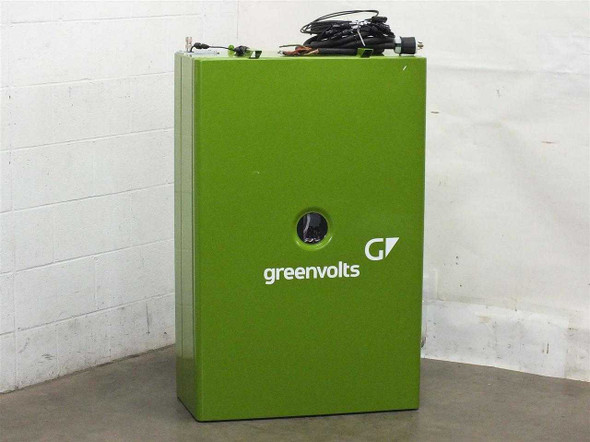

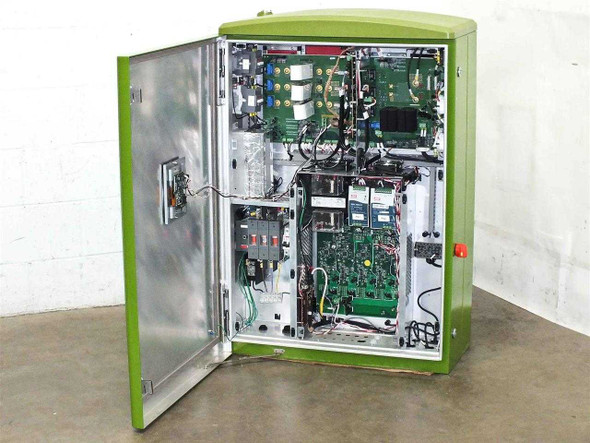

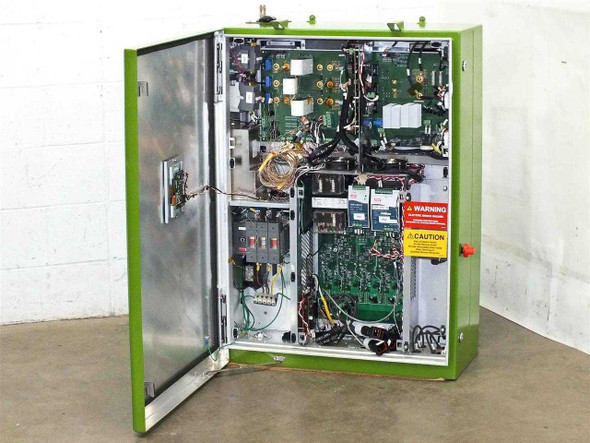

GreenVolts GV-SCP001 16kW 480VAC 3-Phase Utility-Interactive Grid-Tie Solar
GreenVolts
$900.00Was: $1,800.00GreenVolts GV-SCP001 16kW 480VAC 3-Phase Utility-Interactive Grid-Tie Solar InverterA three-phase grid-tie solar inverter designed to convert DC power from solar arrays into 480VAC three-phase AC power for direct utility grid interconnection. Typical...44997- SKU:
- 44997
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 277.00 LBS
- Brand:
- GreenVolts
- Model:
- GV-SCP001
- MPN:
- GV-SCP001
- Type:
- Utility-Interactive Grid-Tie Solar Inverter
- SKU:
- 44997
- Power Output:
- 16 kW (16,000W)
- Input Voltage (AC Output):
- 480VAC
- Phase:
- Three Phase
- Inverter Topology:
- Utility-Interactive (Grid-Tie)
- Input Connection:
- MC4 Solar Connectors
- Enclosure Color:
- Green
- Enclosure Type:
- Floor-Standing Cabinet
- Dimensions:
- 32" W x 15" D x 42" H
- Internal Power Supplies:
- Mean Well SDR-240-24 (PS1), Mean Well SDR-480-36 (PS2)
- Internal Contactors:
- ABB A26-30-10 (CR1, CR2)
- Internal Board:
- GreenVolts Single Inverter Gate Driver, P/N 104460
- Top Panel Board:
- GreenVolts P/N 104548 REV 01.00
- Included Accessories:
- GPS Receiver GlobalSat BU-353, MC4 cable harness
- GPS Model Included:
- GlobalSat BU-353
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is from manufacturer liquidation; includes GPS BU-353 and MC4 cable harness. Not tested.
- Condition Notes:
- GreenVolts GV-SCP001 16kW 480VAC grid-tie inverter sold as-is for parts or repair. Came from manufacturer liquidation; not tested, no support available. Appears complete. Includes GPS BU-353 and MC4 cable harness.
$900.00Was: $1,800.00 -
GreenVolts GV-SCP001 16kW 480VAC 3-Phase Grid-Tie Solar Inverter For Parts
GreenVolts
$750.00Was: $1,500.00GreenVolts GV-SCP001 16kW 480VAC 3-Phase Grid-Tie Solar Inverter For Parts The GreenVolts GV-SCP001 is a 16kW, 480VAC three-phase grid-tie solar inverter housed in a distinctive green freestanding cabinet. Designed to convert DC power from photovoltaic...44996- SKU:
- 44996
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 267.00 LBS
- Brand:
- GreenVolts
- Model:
- GV-SCP001
- MPN:
- GV-SCP001
- Type:
- Grid-Tie Solar Inverter
- SKU:
- 44996
- Power Output:
- 16kW
- Output Voltage:
- 480VAC
- Phase:
- Three Phase
- Grid Connection:
- Grid-Tie
- Input Source:
- Solar PV (Photovoltaic)
- Enclosure Color:
- Green (GreenVolts branded)
- Internal Transformer:
- Hammond Power Solutions PH500MQMJ, 500 VA
- DC Power Supply 1:
- Mean Well SDR-240-24
- DC Power Supply 2:
- Mean Well SDR-480-36
- Contactors:
- ABB A26-30-10 (qty 2 visible)
- Fusing:
- Bussmann Low-Peak LPJ-300SP (3-pole fuse block)
- Control Board:
- GreenVolts Single Inverter Motion Board 104460 Rev 0100
- Gate Driver Board:
- GreenVolts Single Inverter Gate Driver (54391 Rev 0100)
- Communication Interface:
- RS-232 / DB9 (TS-CAN1 red controller board visible)
- DC Input Connectors:
- 4x panel-mount DC connectors (exterior, red/blue coded)
- Main Disconnect:
- Rotary ON/OFF switch on enclosure exterior
- Hi-Pot Test:
- PASS (6-8-12 per unit label)
- System Good Date:
- 6-12-12 (per unit label)
- Output Filter:
- 3-phase output inductors/chokes (visible in lower compartment)
- Cooling:
- Multiple internal cooling fans
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is; missing lower backside panel; no manual available
- Form Factor:
- Freestanding Cabinet / Floor Mount
- Country/Region of Manufacture:
- United States
- Condition Notes:
- GreenVolts GV-SCP001 16kW solar inverter sold as-is for parts or repair. Not tested — came from manufacturer liquidation, no support available. Missing lower backside panel. Internal components appear present visually.
$750.00Was: $1,500.00 -
GreenVolts GV-SCP001 16kW 480VAC 3-Phase Utility-Interactive Grid-Tie Solar
GreenVolts
$1,300.00Was: $2,600.00GreenVolts GV-SCP001 16kW 480VAC 3-Phase Utility-Interactive Grid-Tie Solar InverterA three-phase grid-tie inverter designed to convert DC power from photovoltaic arrays into 480VAC three-phase AC power for direct injection into utility distribution...44995- SKU:
- 44995
- Availability:
- Usually ships within 1-2 business days of cleared payment.
- Weight:
- 263.00 LBS
- Brand:
- GreenVolts
- Model:
- GV-SCP001
- MPN:
- GV-SCP001
- Type:
- Utility-Interactive Grid-Tie Solar Inverter
- SKU:
- 44995
- Power Output:
- 16 kW
- Output Voltage:
- 480VAC
- Phase:
- Three Phase
- Grid Connection:
- Utility-Interactive (Grid-Tie)
- Application:
- Photovoltaic (PV) Solar Power Systems
- Internal Power Supplies:
- Mean Well SDR-240-24 (PS1), Mean Well SDR-480-36 (PS2)
- Contactors:
- ABB A26-30-10 (CR1, CR2)
- Main Disconnect:
- ABB 3-pole fused disconnect switch (phases A, B, C)
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes DC input cable harness and 3-phase AC power cable w/ twist-lock plug. Missing lower rear panel. Includes GPS Model BU-353. No manuals.
- Form Factor:
- Floor-Standing Enclosure
- Enclosure Color:
- Green
- Includes GPS:
- Yes – Globalsat BU-353
- Country/Region of Manufacture:
- United States
- Condition Notes:
- GreenVolts GV-SCP001 16kW 480VAC solar inverter sold AS-IS, untested. From manufacturer liquidation — no support or docs available. Physically complete except missing lower rear panel.
$1,300.00Was: $2,600.00 -
GreenVolts GV-SCP001 16kW 480VAC 3-Phase Grid-Tie Solar Inverter w/ MC4 Cables
GreenVolts
$950.00Was: $1,900.00GreenVolts GV-SCP001 16kW 480VAC 3-Phase Grid-Tie Solar Inverter w/ MC4 Cables Grid-tie inverter rated for 16 kW output at 480 VAC 3-phase. Converts DC power from photovoltaic arrays to AC power for direct interconnection with utility grids...44994- SKU:
- 44994
- Availability:
- Usually ships within 3-5 business days due to size and weight.
- Weight:
- 278.00 LBS
- Brand:
- GreenVolts
- Model:
- GV-SCP001
- MPN:
- GV-SCP001
- Serial Number / Unit ID:
- CAD1112000101
- Type:
- Grid-Tie Solar Inverter
- SKU:
- 44994
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes MC4 solar input cables, GPS receiver (BU-353), and input wiring harness
- Output Voltage:
- 480 VAC, 3-Phase
- Power Rating:
- 16 kW
- Phase:
- Three Phase
- Inverter Type:
- Grid-Tie / Grid-Connected
- Input Connector:
- MC4 (photovoltaic solar connectors)
- Output Connector:
- Twist-lock plug (AC output harness visible)
- Form Factor:
- Floor-Standing Cabinet
- Dimensions:
- 32" W x 19" D x 46" H
- Internal Components:
- Multiple inverter PCBs, Schneider Electric contactors, PULS DIN rail power supplies
- Choke Unit:
- Powertronix 3-Phase Choke, P/N AA-109268 Rev E
- Control Interface:
- CAN bus controller board (TS-CAN1 module visible), DB9 and USB connectors
- Motor Controller Board:
- GreenVolts AXIS Motor Controller (label visible on internal PCB)
- GPS Receiver Included:
- GlobalSat BU-353 USB GPS receiver
- Control Power Supply 1:
- PULS Dimension CS10 DIN rail power supply
- Control Power Supply 2:
- PULS Dimension QS20 DIN rail power supply
- Transformer:
- Hammond Power Solutions 500VA, 50/60Hz industrial control transformer
- Fusing:
- Ferraz Shawmut UltraSafe 3-pole fused disconnect visible internally
- Contactors:
- Schneider Electric TeSys LC1 series (ECR1, ECR2, WCR1, WCR2 labeled)
- Application:
- Utility-scale / commercial solar PV grid interconnection
- Country/Region of Manufacture:
- United States
- Condition Notes:
- GreenVolts GV-SCP001 16kW 480V solar inverter sold as-is from manufacturer liquidation. Untested — no functionality guaranteed. Appears physically complete. Includes MC4 cables and GPS receiver. No documentation available.
$950.00Was: $1,900.00
