Semiconductor Tools
Semiconductor tools are specialized equipment used in the manufacturing and testing of semiconductor devices. These tools are vital for the production of integrated circuits and other electronic components. Common examples include wafer fabrication tools, semiconductor metrology tools, and packaging equipment. Semiconductor tools are designed to ensure precision, accuracy, and efficiency in the semiconductor manufacturing process. They help in etching, deposition, patterning, and testing of semiconductor materials. These tools play a crucial role in the semiconductor industry, enabling the development of cutting-edge technology. Investing in high-quality semiconductor tools is essential for achieving optimal results in semiconductor manufacturing.
-
Unbranded Wafer Semiconductor Process Chuck Assembly w/ Mesh Gas Dist Fittings
Unbranded
$3,000.00Was: $6,000.00Semiconductor Wafer Process Chuck Assembly w/ Mesh Gas Dist Fittings Thermocouple This is a wafer process chuck assembly used in semiconductor fabrication equipment. The unit features a circular...53378- SKU:
- 53378
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Unbranded
- Model:
- Unknown – see photos
- Type:
- Wafer Process Chuck Assembly
- SKU:
- 53378
- Condition:
- Used – Pulled from Working Environment
- Application:
- Semiconductor wafer processing – plasma etch, CVD, RIE
- Gas Distribution:
- Circular fine wire mesh face for backside gas or showerhead
- Number of Fittings:
- 3 tube fittings visible (fluid/gas ports)
- Fitting Type:
- Threaded tube fittings, compression style
- Wiring / Sensors:
- Thermocouple and/or signal wiring attached (black and white)
- Housing Material:
- Stainless steel or hard-anodized aluminum
- Form Factor:
- D-shaped / tombstone enclosure
- Fasteners:
- Multiple perimeter screws securing top plate and body
- Compatible With:
- Semiconductor process chamber – specific tool unknown
- Seller Notes:
- Chuck assembly with attached tubing and wiring; no mounting hardware or documentation included.
- Condition Notes:
- Used wafer process chuck pulled from working environment. Enclosure shows normal surface scuffing. Mesh face intact. Three fittings and wiring included. No legible brand or model. Review photos carefully.
$3,000.00Was: $6,000.00 -
Advanced Energy Navigator II 3155999-175 RF Match Network 13.56 MHz Plasma
Advanced Energy
$5,000.00Was: $10,000.00Advanced Energy Navigator II 3155999-175 RF Match Network 13.56 MHz Plasma RF impedance matching network for 13.56 MHz plasma systems. Standalone benchtop module that interfaces with Advanced Energy...53326- SKU:
- 53326
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 26.00 LBS
- Brand:
- Advanced Energy
- Model:
- Navigator II
- MPN:
- 3155999-175
- Secondary Model / Part Number:
- 1335752
- SKU:
- 53326
- Condition:
- Used – Inspected
- Seller Notes:
- Unit only; inspected. Pulled from a working semiconductor process environment.
- Country of Manufacture:
- China
- Form Factor:
- Benchtop / Standalone Module
- Frequency:
- 13.56 MHz
- Application:
- RF Impedance Matching – Plasma Etch / CVD / PVD
- Hardware Revision:
- Rev A
- Interface – Configuration:
- DIP Switch (Configuration Header)
- Interface – Host:
- DB-9 (J1) + RJ-45 EtherCAT (Act/In/Link)
- Interface – Service:
- RJ-45 Ethernet (Out/Link/Error)
- Interface – RF Input:
- Coaxial RF IN (J2)
- Interface – Pulse Sync In:
- SMA / BNC (J5)
- Interface – Interlock:
- DB-9 (J4)
- Interface – DC Power:
- Circular Power Input Connector
- Status Indicators:
- Power, Tuned, Fault LEDs
- Network Protocol:
- EtherCAT
- Compatible With:
- Advanced Energy RF Generators, Plasma Etch / CVD Systems
- Condition Notes:
- Advanced Energy Navigator II 3155999-175 RF Match Network, 13.56 MHz — used, inspected. Pulled from an active semiconductor process environment. Chassis shows light surface wear. All I/O connectors present and intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$5,000.00Was: $10,000.00 -

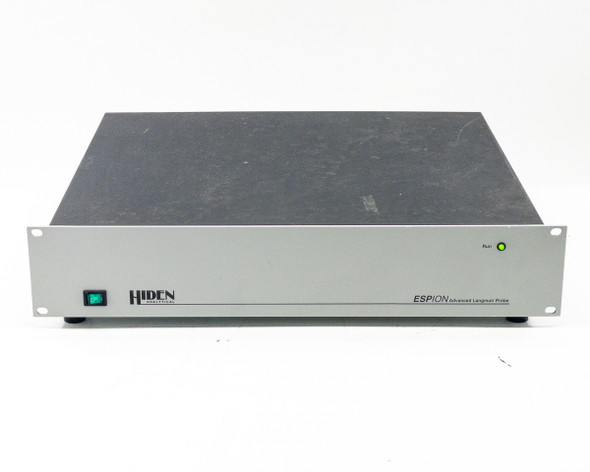

Hiden Analytical EPIU ESPion Advanced Langmuir Probe 115V Plasma Diagnostics
Hiden Analytical
$2,600.00Was: $5,200.00Hiden Analytical EPIU ESPion Advanced Langmuir Probe 115V Plasma Diagnostics Rackmount plasma diagnostics controller for Langmuir probe measurements. The ESPion unit processes probe data and...53321- SKU:
- 53321
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Hiden Analytical
- Model:
- ESPion
- MPN:
- EPIU
- SKU:
- 53321
- Condition:
- Used – Inspected
- Seller Notes:
- Unit only; no probe tip or cables included unless shown in photos
- Form Factor:
- Rackmount, 2U
- Power Requirements:
- 115V AC, 300VA Max, 6.3AT 250V Fuse
- Application / Use Case:
- Plasma diagnostics, Langmuir probe measurements
- Interface Type:
- RS232 (MC-04), RS485/RS422 (MC-03), 10 BASE 2 (MC-02)
- I/O Ports:
- Trigger (ESP-01), Z-Drive (ESP-02), AUX I/O (ESP-03)
- Probe Port:
- ESP-04 (DB9), Analogue Input ESP-07 (DIN connector)
- Standards:
- CE Marked
- Country of Manufacture:
- United Kingdom
- Condition Notes:
- This Hiden Analytical EPIU ESPion Advanced Langmuir Probe has been inspected and is in good used cosmetic condition. It was pulled from a working plasma diagnostics environment where it was previously in active use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$2,600.00Was: $5,200.00 -

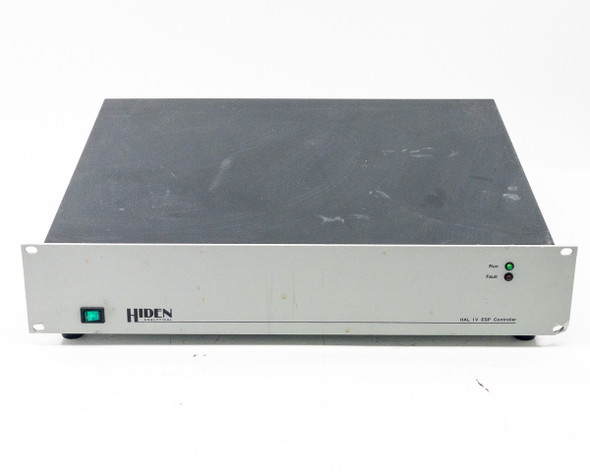

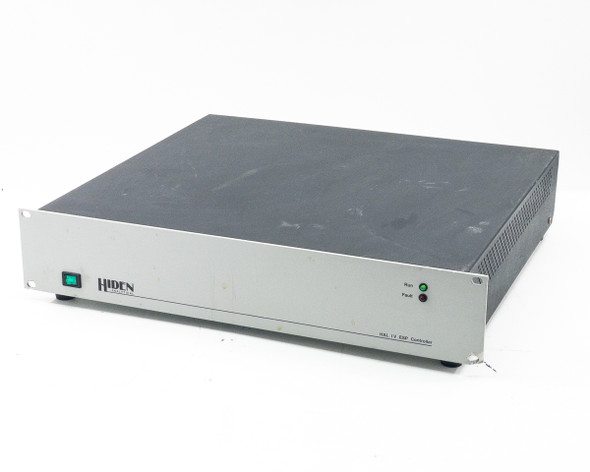

Hiden Analytical HAL RC ESP HAL IV Plasma Probe Controller 100-240V 300VA
Hiden Analytical
$1,500.00Was: $2,999.99Hiden Analytical HAL RC ESP HAL IV Plasma Probe Controller 100-240V 300VA Rackmount controller for Hiden Analytical electrostatic plasma probe (ESP) systems. Manages probe operation and data...53318- SKU:
- 53318
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Hiden Analytical
- Model:
- HAL RC ESP
- Secondary Model:
- HAL IV ESP
- MPN:
- HAL RC ESP
- SKU:
- 53318
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Controller only; no probe or accessories confirmed included. Please contact us with questions before purchasing.
- Form Factor:
- Rackmount, 2U
- Power Requirements:
- 100-240V AC, 50-60Hz, 300VA Max
- Fuse Rating:
- 6.3AT 250V
- Interface Type:
- RS-232, RS-485
- Connector Types:
- BNC (Probe ESP-01, Guard ESP-02, Drive ESP-11), DB9 RS-232, DB15 RS-485, DB25 AUX I/O, DB15 Trips, DB15 Limit Switch, Multi-pin Motor connector
- Application / Use Case:
- Electrostatic plasma probe (ESP) control for plasma etch, CVD, and semiconductor process diagnostics
- Indicator Lights:
- Run (green LED), Fault (red LED) on front panel
- Compatible With:
- Hiden Analytical HAL series electrostatic plasma probe systems
- Country of Manufacture:
- United Kingdom
- Condition Notes:
- Hiden Analytical HAL IV Plasma Probe Controller pulled from working environment. Shows normal wear from active use. 100-240V, 300VA. Ready to use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,500.00Was: $2,999.99 -
Entegris NOWPak NL-200-NS60G-1 NDTV-T200 200L Liner Diptube NS60 FEP Qty 20
Entegris
$650.00Was: $1,300.00Entegris NOWPak NL-200-NS60G-1 NDTV-T200 200L Liner Diptube NS60 FEP Qty 20This lot includes 20 new Entegris NOWPak consumables: 10 NL-200-NS60G-1 NS60 conformal replacement liners (200L) and 10...53176- SKU:
- 53176
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 28.00 LBS
- Brand:
- Entegris
- Model:
- NL-200-NS60G-1
- Secondary Model:
- NDTV-T200
- MPN:
- NL-200-NS60G-1
- SKU:
- 53176
- Type:
- NOWPak Canister Replacement Liner & Diptube Kit
- Quantity:
- 20 pieces (10 liners NL-200-NS60G-1, 10 diptubes NDTV-T200)
- Liner Part Number:
- NL-200-NS60G-1
- Diptube Part Number:
- NDTV-T200
- Liner Capacity:
- 200 Liter
- Liner Type:
- NS60 Conformal Replacement Liner, HDSP, CERT, TFE/P
- Diptube Type:
- High Viscosity Connector, FEP
- Liner Material:
- PE barrier film with translucent color; fitment natural HDPE
- Diptube Material:
- FEP (fluorinated ethylene propylene)
- O-Ring Material:
- EPDM, Chemraz, or semi-perfluoroelastomer
- Fill Opening (200L):
- 2 inch Fitment; 50.7 mm (2.00 inch)
- Manufacturing Standard:
- Class 5 Cleanroom per ISO 14644-1:2005
- Particle Certification:
- Certificate of Analysis included; tested with ultrapure DI water
- Batch Number:
- W3M995440
- Country/Region of Manufacture:
- South Korea
- Compatible With:
- Entegris NOWPak liner-based canister systems
- Application:
- High-purity chemical dispensing; semiconductor fabrication
- Condition:
- New
- Seller Notes:
- Factory-sealed. Qty 20: 10x NL-200-NS60G-1 liners + 10x NDTV-T200 diptubes.
- Condition Notes:
- New, factory-sealed. Entegris NOWPak NL-200-NS60G-1 200L NS60 liner & NDTV-T200 FEP diptube — qty 20 (10 each). Batch W3M995440, mfg 2023, made in South Korea. Carton undamaged.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$650.00Was: $1,300.00 -
Entegris NOWPak NP-10-A1-T420-1 10L HDPE Bottle PTFE T420 Liner Semiconductor
Entegris
$185.00Was: $375.00Entegris NOWPak NP-10-A1-T420-1 10L HDPE Bottle PTFE T420 Liner SemiconductorHigh-purity chemical dispensing bottle designed for semiconductor manufacturing and industrial fluid handling. The...53167- SKU:
- 53167
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Entegris
- Model:
- NP-10-A1-T420-1
- MPN:
- NP-10-A1-T420-1
- Secondary Model:
- U8E500698B
- SKU:
- 53167
- Type:
- High-Purity Chemical Dispensing Bottle
- Capacity:
- 10 Liters (10LTR)
- Liner Material:
- PTFE T420
- Outer Shell Material:
- HDPE
- Liner Type:
- T420 Liner Based
- Application / Use Case:
- Semiconductor chemical dispensing, high-purity liquid handling
- Compatible With:
- Entegris NOWPak dispensing systems
- Condition:
- New – Unused, sealed, from closed facility
- Seller Notes:
- New and unused bottle from a closed window laminating facility. Sealed.
- Country/Region of Manufacture:
- United States
- Barcode / Label Number:
- U8D488758
- Condition Notes:
- New, unused Entegris NOWPak NP-10-A1-T420-1 10L PTFE T420 liner bottle from a closed window laminating facility. Cap in place, never filled or used. No wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$185.00Was: $375.00 -
Atecom 100mm P-Type Silicon Wafers 525±25µm 1250±20% Ωcm B/100 Epi Qty 50
Atecom Technology
$500.00Was: $1,000.00Atecom 100mm P-Type Silicon Wafers 525±25µm 1250±20% Ωcm B/100 Epi Qty 50Lot of 50 epitaxial polished silicon wafers manufactured by Atecom Technology. P-type boron-doped substrate with epitaxial...53137- SKU:
- 53137
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Atecom Technology
- Model:
- 03-09-009
- MPN:
- 03-09-009
- Type:
- Epitaxial Polished Silicon Wafer
- SKU:
- 53137
- Quantity:
- 50 wafers (2 cassettes of 25)
- Diameter:
- 100mm (4 inch)
- Thickness:
- 525 ±25 µm (substrate)
- Resistivity:
- 1250 ±20% Ωcm (epi layer)
- Conductivity Type:
- P-Type
- Dopant:
- Boron (B₂H₆)
- Crystal Orientation:
- (100) / 1-0-0
- Dopant/Orient (Sub Spec):
- P/Boron/(100)
- Epi Type/Dopant:
- P/B₂H₆
- Epi Layer Thickness:
- 85 ±10% µm
- Sub Spec Resistivity (Ωcm):
- 0.01-0.02
- Sub Spec Diameter:
- 100 ±1.0 mm
- Epi Run Numbers:
- 06-II-B1078 (Cassette 1B), 06-II-B1081 (Cassette 2B)
- Date of Manufacture:
- July 11, 2006
- PO Number:
- O200605081003
- Surface:
- Polished
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Lot of 50 wafers in two plastic cassettes of 25 each with original Atecom spec labels
- Country/Region of Manufacture:
- Taiwan
- Application:
- Semiconductor research, MEMS, photovoltaics, epitaxial device fabrication
- Form Factor:
- Wafer / Substrate
- Compatible With:
- Standard 100mm (4-inch) wafer process equipment and cassettes
- Condition Notes:
- Atecom 100mm P-type epi silicon wafers, lot of 50. Inspected and in good condition. Stored in original plastic cassettes with spec labels intact. Pulled from a working environment. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$500.00Was: $1,000.00 -

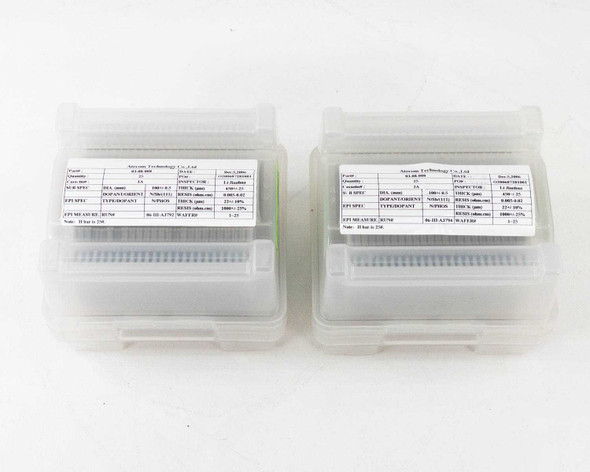

Atecom 100mm Silicon Wafer N/PHOS 450µm 1000 Ohm-cm (111) 03-08-008 Qty 50
Atecom Technology
$675.00Was: $1,400.00Atecom 100mm Silicon Wafer N/PHOS 450µm 1000 Ohm-cm (111) 03-08-008 Qty 50Lot of 50 polished 100mm silicon wafers with N-type phosphorus doping. These epitaxial substrates feature a highly doped...53136- SKU:
- 53136
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Atecom Technology
- Model:
- 03-08-008
- MPN:
- 03-08-008
- Type:
- Polished Silicon Wafer
- SKU:
- 53136
- Quantity:
- 50 wafers (2 cassettes of 25)
- Diameter:
- 100mm (+/-0.5mm)
- Thickness (Substrate):
- 450 µm +/-25 µm
- Thickness (Epi Layer):
- 22 µm +/-10%
- Resistivity (Substrate):
- 0.005–0.02 ohm-cm
- Resistivity (Epi Layer):
- 1000 +/-25% ohm-cm
- Dopant / Conductivity Type:
- N-Type / Phosphorus (N/PHOS)
- Orientation:
- (111) — N/Sb/(111) substrate
- Wafer Surface:
- Polished
- EPI Run#:
- 06-111-A3792 (Cassette 1A), 06-111-A3794 (Cassette 2A)
- Wafer # Range:
- 1–25 per cassette
- Date of Manufacture:
- December 5, 2006
- Inspector:
- Li Jianhua
- PO Number:
- O200607281001
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Lot of 50 wafers in two sealed plastic cassettes of 25 each
- Country/Region of Manufacture:
- Taiwan
- Application / Use Case:
- Epitaxial substrate, semiconductor R&D, device fabrication
- Form Factor:
- 100mm (4-inch) wafer cassette
- Condition Notes:
- Atecom 100mm N/PHOS silicon wafers (03-08-008), lot of 50. Inspected and in good condition. Stored in original cassettes, polished surfaces appear clean and intact. Pulled from a working semiconductor environment.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$675.00Was: $1,400.00 -
Silicon Quest 4in 100mm N-Type Polished Silicon Wafers 525±25µm 320-480Ω·cm Qty
Silicon Quest International
$550.00Was: $1,100.00Silicon Quest 4in 100mm N-Type Polished Silicon Wafers 525±25µm 320-480Ω·cm Qty 50This lot consists of 50 Silicon Quest International (SQI) 4-inch (100mm) single-side polished N-Type silicon wafers,...53135- SKU:
- 53135
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 8.00 LBS
- Brand:
- Silicon Quest International
- Model:
- 03-08-007
- MPN:
- 03-08-007
- Type:
- Polished Silicon Wafer
- SKU:
- 53135
- Quantity:
- 50 wafers
- Diameter:
- 4 inches (100mm)
- Thickness:
- 525 ± 25 µm
- Resistivity:
- 320 – 480 Ω·cm
- Dopant / Type:
- N-Type / Phosphorus (N/PHOS)
- Orientation:
- <1-0-0>
- Surface:
- DSP 1 Flat, 80/50 Surface
- Lot Number:
- 4N0320-480PRM/FZ
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Includes 50 wafers stored in three original wafer carrier trays
- Country/Region of Manufacture:
- United States
- Application / Use Case:
- Semiconductor fabrication, R&D, MEMS, photolithography
- Form Factor:
- 4-inch (100mm) round wafer, 1 flat
- Condition Notes:
- Silicon Quest International 4in N-Type polished silicon wafers inspected and in good condition. Pulled from a working semiconductor environment. Stored in original carrier trays with labels and ACCEPT QC stamps intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$550.00Was: $1,100.00 -
SEH America 100mm Polished Silicon Wafers N/PHOS 500-550μm 320-480 Ω-cm 1-1-1
SEH America Inc.
$500.00Was: $1,000.00SEH America 100mm Polished Silicon Wafers N/PHOS 500-550μm 320-480 Ω-cm 1-1-1 Qty 50Lot of 50 polished silicon wafers from SEH America. N-type phosphorus-doped material with 111 crystal orientation,...53134- SKU:
- 53134
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- SEH America
- Model:
- SE001-1
- MPN:
- 5700630-502
- Type:
- Polished Silicon Wafer
- SKU:
- 53134
- Wafer Diameter:
- 100mm (4 inch)
- Dopant Type:
- N-Type / Phosphorus (N/PHOS)
- Thickness:
- 500-550 μm
- Resistivity:
- 320-480 Ω-cm
- Crystal Orientation:
- <111>
- Quantity:
- 50 wafers (2 carriers of 25 each)
- Buyer Spec:
- 03-08-015 REV. A
- Lot Number:
- 5700630-502
- Condition:
- Used – Inspected and Tested
- Country/Region of Manufacture:
- Japan
- Seller Notes:
- 50 wafers total; 2 carriers of 25 each in clear plastic wafer holders
- Application / Use Case:
- Semiconductor fabrication, R&D, MEMS, epitaxy, device research
- Surface Finish:
- Polished (single or double side — per label)
- Vendor Code:
- SE
- Condition Notes:
- SEH America 100mm N/PHOS polished silicon wafers inspected and in good condition. Stored in original plastic wafer carriers (2x25). No visible chips or cracks. Pulled from a working semiconductor environment.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$500.00Was: $1,000.00 -
SEH America 100mm Polished Silicon Wafers N/PHOS 500-550μm 320-480Ω-cm 1-1-1 Qty
SEH America Inc.
$175.00Was: $350.00SEH America 100mm Polished Silicon Wafers N/PHOS 500-550μm 320-480Ω-cm 1-1-1 Qty 10This listing is for a lot of 10 SEH America 100mm (4-inch) polished silicon wafers, stored in a clear plastic wafer...53133- SKU:
- 53133
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- SEH America
- Model:
- 100mm N/PHOS Polished Silicon Wafer
- MPN:
- 4103-06-075 REV. R4
- Type:
- Polished Silicon Wafer
- SKU:
- 53133
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Lot of 10 polished silicon wafers in plastic wafer carrier/holder
- Country/Region of Manufacture:
- Japan
- Wafer Diameter:
- 100mm (4 inch)
- Wafer Type:
- N/PHOS (N-type, Phosphorus doped)
- Thickness:
- 500-550 μm
- Resistivity:
- 320-480 Ω-cm
- Crystal Orientation:
- <111>
- Dopant:
- Phosphorus (PHOS)
- Conductivity Type:
- N-Type
- Surface Finish:
- Polished
- Quantity:
- 10
- Lot / Package:
- 10 wafers in plastic wafer carrier
- Application:
- Semiconductor research, device fabrication, epitaxy
- Form Factor:
- 150mm round wafer (4-inch)
- Condition Notes:
- SEH America 100mm N/PHOS polished silicon wafers, lot of 10. Inspected and in good condition; all wafers present in carrier. No visible chips or cracks. Pulled from a working semiconductor environment.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$175.00Was: $350.00 -
MACOM 100mm Polished Silicon Wafers N-Type 1000 Ω-cm 14.5µm Thick Qty 25
MACOM Semiconductor
$600.00Was: $1,200.00MACOM 100mm Polished Silicon Wafers N-Type 1000 Ω-cm 14.5µm Thick Qty 25Lot of 25 polished silicon wafers used in semiconductor fabrication, research, and epitaxy applications. N-type conductivity...53132- SKU:
- 53132
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 6.00 LBS
- Brand:
- MACOM
- Model:
- 100mm Polished Silicon Wafer
- MPN:
- N/A
- Type:
- Polished Silicon Wafer
- SKU:
- 53132
- Quantity:
- 25 wafers
- Wafer Diameter:
- 100mm (4 inch)
- Wafer Thickness:
- 14.5 µm ±10%
- Resistivity:
- 1000 Ω-cm
- Conductivity Type:
- N-Type / N+
- Surface Finish:
- Polished
- Material:
- Silicon (Si)
- Application:
- Semiconductor fabrication, R&D, epitaxy
- Storage:
- Stored in wafer carrier boxes
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Lot of 25 wafers stored in wafer carrier containers
- Country/Region of Manufacture:
- United States
- Condition Notes:
- These MACOM 100mm polished N-type silicon wafers (lot of 25) have been inspected and appear to be in good condition, stored in wafer carrier boxes. Minor handling marks typical of used wafers may be present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00 -
Siltronic 100mm FZ Silicon Wafer N-Type 1-1-1 525±20μm 1725-2875Ω·cm Lot of 50
Siltronic AG
$1,800.00Was: $3,600.00Siltronic 100mm FZ Silicon Wafer N-Type 1-1-1 525±20μm 1725-2875Ω·cm Lot of 50This listing is for a lot of 50 Siltronic AG 100mm float-zone (FZ) polished silicon wafers, N-type conductivity, (111)...53131- SKU:
- 53131
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Siltronic
- Model:
- FZ214N Z300 OHNCM
- MPN:
- FZ214N Z300 OHNCM
- SKU:
- 53131
- Type:
- Polished Silicon Wafer
- Wafer Grade:
- Semiconductor Grade
- Crystal Growth Method:
- Float Zone (FZ)
- Diameter:
- 100mm (4 inch)
- Thickness:
- 525 ± 20 μm
- Orientation:
- (111) / 1-1-1
- Conductivity Type:
- N-Type
- Dopant:
- Phosphorus (PH)
- Resistivity:
- 1725–2875 Ω·cm
- Surface Finish:
- Polished One Side (SSP)
- Quantity in Lot:
- 50 wafers
- Packaging:
- Original plastic wafer carriers (4 boxes visible)
- Condition:
- New – Never Used, Inspected
- Country/Region of Manufacture:
- Germany
- Seller Notes:
- 50 wafers in original carriers; never used; sourced from a closed semiconductor lab
- Condition Notes:
- Siltronic 100mm FZ silicon wafers — never used. Sourced from a semiconductor lab that closed 10+ years ago. Wafers remain in original carriers with Siltronic lot labels intact. Inspected and in good condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,800.00Was: $3,600.00 -
Siltronic AG 100mm FZ Polished Silicon Wafer 525±25µm 320-480Ω·cm <100> Lot of 6
Siltronic AG
$275.00Was: $550.00Siltronic AG 100mm FZ Polished Silicon Wafer 525±25µm 320-480Ω·cm <100> Lot of 6Float Zone polished silicon wafers for semiconductor research and device fabrication. These N-type phosphorus-doped...53130- SKU:
- 53130
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Siltronic
- Model:
- MOP00002 REV A1
- MPN:
- 03-08-007 REV A
- Type:
- Polished Float Zone (FZ) Silicon Wafer
- SKU:
- 53130
- Diameter:
- 100mm (4 inch)
- Thickness:
- 525 ± 25 µm
- Crystal Growth Method:
- Float Zone (FZ)
- Orientation:
- <100>
- Resistivity:
- 320–480 Ω·cm
- Dopant Type:
- N-type (Phosphorus)
- Surface Finish:
- Polished (CMP — Chemical Mechanical Polished)
- Quantity in Lot:
- 6 wafers
- Lot Number:
- R2HTD
- Customer Spec Number:
- MOP00002 REV A1
- Customer Part Number:
- 03-08-007 REV A
- Seller Notes:
- Lot of 6 wafers in original Siltronic slotted wafer carrier/cassette.
- Country/Region of Manufacture:
- Germany
- Application:
- Semiconductor R&D, photovoltaics, MEMS, RF devices, physics research
- Condition:
- Used – Inspected and in Good Condition
- Condition Notes:
- Lot of 6 Siltronic AG 100mm FZ polished silicon wafers. Inspected and in good condition. Stored in original slotted carrier cassette. Minor handling marks possible. Please view photos and contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -
C&D Semiconductor 8838A 6" Wafer Alloy Annealer H2/N2 Watlow 988 115V
C&D Semi Conductor Services
$1,500.00Was: $3,000.00C&D Semiconductor 8838A 6" Wafer Alloy Annealer H2/N2 Watlow 988 115VFloor-standing wafer alloy annealer for 6-inch (150mm) semiconductor processing. Used for ohmic contact formation and alloy...52809- SKU:
- 52809
- Availability:
- Usually ships within 5-10 business days due to size and freight requirements.
- Weight:
- 350.00 LBS
- Brand:
- C&D Semiconductor Services
- Model:
- 8838A
- MPN:
- 8838A
- Secondary Model:
- 8838 VP
- TOP Assembly:
- 026529 / 000907
- Type:
- Wafer Alloy Annealer
- SKU:
- 52809
- Wafer Size:
- 6 inch (150mm)
- Process Gas 1:
- 10% Hydrogen / 90% Nitrogen (H2/N2) – Flammable
- Process Gas 2:
- Compressed Air (CDA) – Inert
- Process Gas 3:
- Nitrogen (N2) – Inert
- Gas Handling:
- Multiple gas capability with pump-out
- Process Controller:
- Watlow Series 988
- Voltage:
- 115V
- Current Rating:
- 15 Amps
- Phase:
- Single Phase
- Frequency:
- 60 Hz
- Power Requirements:
- 115V AC, Single Phase, 15A, 60Hz
- Hot Plate Type:
- 6.5 inch Annealing Hot Plate
- Form Factor:
- Floor-standing, mobile (caster-mounted)
- Enclosure Material:
- Stainless Steel
- Flow Meters:
- Dwyer rotameter bank (4-channel, LPM Air)
- Solenoid Valves:
- 24 VDC solenoid valves (Fluid Dynamics Inc.)
- Application:
- Semiconductor wafer alloy annealing, ohmic contact formation
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit includes Watlow 988 controller, Dwyer flow meters, solenoid valve bank, and internal gas manifold
- Condition Notes:
- C&D Semiconductor 8838A wafer alloy annealer inspected and in good condition. Pulled from a working fab environment where it was in active use. Watlow 988 controller, flow meters, and solenoid valve bank all appear intact. 115V single phase.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,500.00Was: $3,000.00 -
Fluoroware E124-60 150mm 6in Silicon Wafer Case Box Robox A182-60MU Cassette
Fluoroware
$75.00Was: $150.00Fluoroware E124-60 150mm 6in Silicon Wafer Case Box Robox A182-60MU CassetteThe Fluoroware E124-60 is a hard-shell polypropylene wafer transport and storage case designed for 150mm (6-inch) silicon...52722- SKU:
- 52722
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Fluoroware
- Model:
- E124-60
- MPN:
- E124-60
- Secondary Model:
- A182-60MU
- Type:
- Silicon Wafer Transport Case with Cassette
- SKU:
- 52722
- Wafer Size:
- 150mm / 6 inch
- Cassette Part Number:
- A182-60MU
- Cassette Type:
- No-Latch Robox Wafer Cassette
- Material:
- Polypropylene (yellow outer case, natural/white insert)
- Application / Use Case:
- Semiconductor wafer transport and storage
- Compatible Wafer Size:
- 150mm (6 inch) silicon wafers
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes E124-60 outer case and A182-60MU no-latch cassette insert
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Fluoroware E124-60 wafer case inspected and in good used condition. Pulled from a working semiconductor environment. Minor surface marks from normal use. Yellow outer case intact, no cracks. A182-60MU cassette insert included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$75.00Was: $150.00 -
Aurion B-MBT-48 Matchbox Prodik T300 30kW RF Sputtering Impedance Matching
Aurion
$2,000.00Was: $4,000.00Aurion B-MBT-48 Matchbox Prodik T300 30kW RF Sputtering Impedance Matching Network RF impedance matching network designed for 30 kW sputtering and PVD deposition systems. Matches source impedance to...52215- SKU:
- 52215
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 75.00 LBS
- Brand:
- Aurion Anlagentechnik
- Model:
- B-MBT-48
- MPN:
- B-MBT-48
- Type:
- RF Impedance Matching Network (Matchbox)
- SKU:
- 52215
- Product Family:
- Matchbox Prodik T300
- Order Number:
- 301253
- Customer Order Ref:
- 61109881
- Power Rating:
- 30 kW
- Application:
- RF Sputtering / PVD Deposition
- Input Voltage (X3):
- Up to 277V
- Control Voltage (X4):
- 24V
- Interface / Control:
- RS-232 (X5), P-Bus (X7)
- Cooling:
- Water-cooled (SW3.14 Flow & Return fittings)
- RF Output Connector:
- Large coaxial flange (cathode side)
- Tune Capacitor:
- Comet CVHI-2500AW/15-ADUB, 200-2500pF, 15/9kV
- Load Capacitor:
- Comet CVBA-500BC/7-BEA-L, 5-500pF, 7/4.2kV
- Country/Region of Manufacture:
- Germany
- Form Factor:
- Standalone Enclosure / Benchtop
- Dimensions:
- 23" x 20" x 13"
- Seller Notes:
- Includes mounting hardware, copper probe rod, and water cooling push-fit fittings.
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- This Aurion B-MBT-48 Matchbox Prodik T300 30kW RF impedance matching network has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional operation.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$2,000.00Was: $4,000.00 -
Trumpf Huttinger 0372600 MOP 2-Ch Master Oscillator 13.56 MHz RF Plasma Etch
Trumpf Huttinger
$1,350.00Was: $2,700.00Trumpf Huttinger 0372600 MOP 2-Ch Master Oscillator 13.56 MHz RF Plasma EtchTwo-channel master oscillator generating 13.56 MHz RF signals for plasma processing. Used in RF plasma etch, PVD...52209- SKU:
- 52209
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 15.00 LBS
- Brand:
- Trumpf Huttinger
- Model:
- MOP
- MPN:
- 0372600
- SKU:
- 52209
- Type:
- 2-Channel Master Oscillator
- Frequency:
- 13.56 MHz
- Number of Channels:
- 2
- Power Requirements:
- 85–264V N/PE, 50/60Hz
- Fuse Rating:
- 3.15A (F1/F2)
- Form Factor:
- Rackmount, 2U
- Dimensions:
- 19" x 15" x 3.5"
- Application:
- RF Plasma Etch, PVD Sputtering, RF Deposition
- Display:
- Backlit LCD — shows Ch0 and Ch1 frequency and phase
- Rear Connectors:
- IEC AC inlet, BNC, DB9 (x3), DB25
- Status Code:
- Status 00
- Condition:
- Used – Powers On, Further Testing Limited
- Seller Notes:
- Unit powers on; further testing not available at our facility
- Country/Region of Manufacture:
- Germany
- Condition Notes:
- Trumpf Huttinger 0372600 MOP 2-Ch 13.56MHz. Powers on, LCD shows both channels at 13.560MHz. Light wear from lab use. All controls intact. No damage.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,350.00Was: $2,700.00 -
Finetech Fineplacer PCB Rework Station Leica MZ6 Microscope SHOT-102 Stage
Finetech
$8,000.00Was: $16,000.00Finetech Fineplacer PCB Rework Station Leica MZ6 Microscope SHOT-102 Stage Benchtop PCB rework and die placement station combining Finetech Fineplacer control system with Leica MZ6 stereomicroscope...52060- SKU:
- 52060
- Availability:
- Usually ships within 3-5 business days due to size and packaging requirements.
- Weight:
- 145.00 LBS
- Brand:
- Finetech
- Model:
- Fineplacer
- Secondary Model:
- Leica MZ6
- MPN:
- Fineplacer Code 145/27
- SKU:
- 52060
- Type:
- Manual PCB Rework & Die Placement Station
- Condition:
- As-Is / For Parts or Not Working
- Form Factor:
- Benchtop
- Power Requirements:
- 230V, 100W (Fineplacer); TC-2000E up/down converter included
- Microscope Brand:
- Leica
- Microscope Model:
- MZ6
- Microscope Part Number:
- Leica 10445302
- Eyepieces:
- Leica 10445111 (2x, visible on units)
- Camera:
- Watec WAT-202B CCD Color Camera
- Stage Controller:
- Sigma Koki SHOT-102 Two-Axis Stepping Motor Drive
- Illumination:
- Finetech Euromex EK-1 Fiber Optic Light Source (x2)
- Up/Down Converter:
- TC-2000E, 110/220V, Max 2000W
- Placer Control Unit:
- Finetech Placer Control (front panel: illumination, vacuum, pipette mode)
- Joystick Controller:
- Saitek Action Pad
- Included Software:
- Finetech Software CD
- Included Computer:
- PC, Monitor, Keyboard (Windows XP, Fineplacer software installed)
- Main Unit Dimensions:
- 20" x 26" x 20"
- Application / Use Case:
- PCB rework, die attach, flip-chip placement, microelectronics
- Country/Region of Manufacture:
- Germany
- Seller Notes:
- Sold as-is from closed electrical engineering lab; may not be complete. Review photo set for included items.
- Condition Notes:
- Finetech Fineplacer PCB Rework Station w/ Leica MZ6 Microscope, Sigma Koki SHOT-102 stage & accessories. Used, from closed lab. See photos for complete contents & cosmetic condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$8,000.00Was: $16,000.00 -
Tegal PlasmaLine 200 Plasma Barrel Etcher w/ Comdel CPS-200AX RF Power Supply
Tegal
$3,500.00Was: $7,000.00Tegal PlasmaLine 200 Plasma Barrel Etcher w/ Comdel CPS-200AX RF Power SupplyBenchtop plasma barrel etcher with cylindrical quartz chamber designed for semiconductor processing applications. Unit...52023- SKU:
- 52023
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 100.00 LBS
- Brand:
- Tegal
- Model:
- PlasmaLine 200
- MPN:
- 200
- Type:
- Plasma Barrel Etcher / Plasma Asher
- SKU:
- 52023
- Included RF Power Supply Brand:
- Comdel
- Included RF Power Supply Model:
- CPS-200AX
- RF Power Supply Serial Number (Comdel):
- AX-86
- RF Power Supply Date of Manufacture:
- 1/3/94
- Main Unit Serial Number:
- 0238
- Main Unit Date of Manufacture:
- 5/79
- Country/Region of Manufacture:
- United States
- Power Requirements (Comdel RF Supply):
- 115V AC
- RF Section Configuration:
- OEM RF section disconnected; rewired for Comdel CPS-200AX RF supply
- Control Power Source:
- Original Tegal supply (control power only)
- Application:
- Plasma barrel etching, photoresist ashing, semiconductor processing
- Form Factor:
- Benchtop / Tabletop
- Chamber Type:
- Barrel/Tunnel — cylindrical quartz chamber with wafer rack
- Front Panel Controls:
- Power On, PWR Supply Enable, Power Adjust, Start/Stop, Tuning, Flow Adj
- Gas Flow Control:
- Flow meter / flow adjustment knob visible on front
- Meter:
- Analog FWD/REF/PRES/FLOW meter on front panel
- Rear Panel:
- DANGER HIGH VOLTAGE section, SENS MIN/MAX, PROC MONITOR, fuse holders, J2 connector
- FCC Certification:
- FCC Regulation 18 (ISM band)
- Seller Notes:
- Includes Comdel CPS-200AX RF power supply (interconnected). Tegal RF section disconnected; Tegal supply provides control power only.
- Condition Notes:
- This Tegal PlasmaLine 200 Plasma Barrel Etcher has been tested with the included Comdel CPS-200AX RF power supply and is working as intended. Note that the original RF section of the Tegal power supply has been disconnected and the system has been
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$3,500.00Was: $7,000.00
