Logic Analyzers
Logic analyzers are electronic devices used to capture and analyze digital signals in various electronic systems. They provide real-time data acquisition and display waveforms, timing diagrams, and other information to help engineers debug and optimize hardware designs. Logic analyzers can decode different signal protocols, such as I2C, SPI, UART, and CAN, making them essential tools for designing and troubleshooting digital circuits. These instruments are commonly used in embedded systems development, communications testing, and hardware debugging. With their high-speed sampling rates and advanced triggering capabilities, Logic Analyzers offer detailed insights into the behavior of digital signals, enabling efficient problem-solving and system optimization.
-

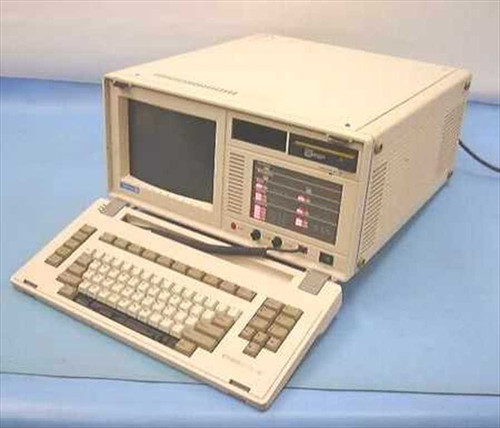

Tekelec TE713 Chameleon 32 Protocol Analyzer Simulator IEEE-488 SCSI For Parts
Tekelec
$400.00Was: $850.00Tekelec TE713 Chameleon 32 Protocol Analyzer Simulator IEEE-488 SCSI For PartsBenchtop protocol analyzer and simulator designed for telecommunications and network protocol testing. Features integrated CRT display, full keyboard, and multiple I/O...11925- SKU:
- 11925
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 64.00 LBS
- Brand:
- Tekelec
- Model:
- TE713
- MPN:
- TE713
- Secondary Model:
- Chameleon 32
- SKU:
- 11925
- Type:
- Protocol Analyzer / Simulator
- Condition:
- As-Is / For Parts or Not Working
- Interface Type:
- IEEE-488, SCSI, Primary Rate Interface, Serial
- Interfaces 1:
- IEEE-488 (GPIB)
- Interfaces 2:
- SCSI Interface
- Interfaces 3:
- Parallel Printer Port
- Interfaces 4:
- Primary Rate Interface (T1/R1/T2/R2)
- Interfaces 5:
- AUX Serial 1, AUX Serial 2
- Interfaces 6:
- Remote I/O, Serial Printer, External Monitor
- I/O Modules:
- I/O Module A (Primary Rate Interface), I/O Module B
- Power Requirements:
- 110V / 220V AC, Fuse: 6A SLO (110V) / 3A SLO (220V)
- Form Factor:
- Benchtop / Portable with integrated keyboard and display
- Display:
- Integrated CRT monitor
- Keyboard:
- Integrated full keyboard (fold-out)
- Application:
- Network diagnostics, protocol analysis, R&D lab testing
- Dimensions:
- 21 x 18 x 8.5 inches
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Sold as-is for parts or repair. Unit cannot be tested.
- Condition Notes:
- Tekelec TE713 Chameleon 32 Protocol Analyzer sold as-is for parts or repair. Unable to test due to age — functionality not confirmed. Appears physically complete. Normal age-related wear visible.
$400.00Was: $850.00 -

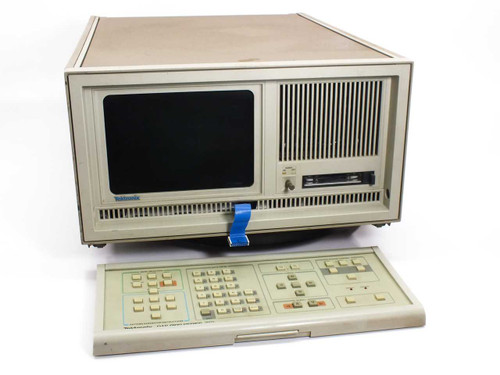

Tektronix DAS 9109 Digital Analysis System Mainframe Logic Analyzer For Parts
Tektronix
$198.00Was: $400.00Tektronix DAS 9109 Digital Analysis System Mainframe Logic Analyzer For PartsThe DAS 9109 is a benchtop logic analyzer and digital analysis system mainframe from Tektronix. It functions as a modular platform for capturing and analyzing digital signals...36007- SKU:
- 36007
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 58.00 LBS
- Brand:
- Tektronix
- Model:
- DAS 9109
- MPN:
- DAS 9109
- Type:
- Digital Analysis System Mainframe
- SKU:
- 36007
- Series:
- DAS 9100
- Firmware Version:
- V 1.07
- Option:
- 01 NSN
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes detachable DAS 9100 Series keyboard. Does not power on.
- Display Type:
- 9-inch Raster Scan CRT, 24 x 80 character lines
- Form Factor:
- Benchtop / Portable
- Measurement Type:
- Logic Analysis, Pattern Generation

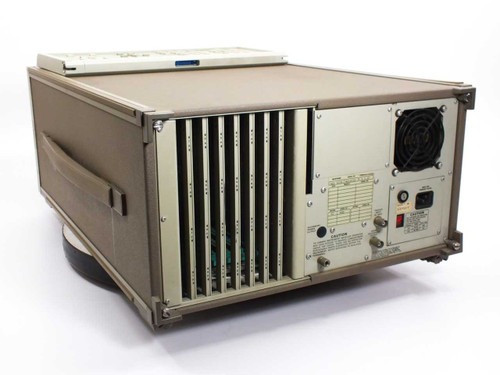

- System Architecture:
- Modular — accepts plug-in modules
- Trigger Input:
- 5V Max (BNC)
- Module Slots:
- Multiple — slots visible on rear panel
- Country/Region of Manufacture:
- United States
- Compatible With:
- Tektronix DAS 9100 Series plug-in modules
- Condition Notes:
- Tektronix DAS 9109 Digital Analysis System does not power on. Sold as-is for parts or repair only — no functionality guaranteed. Includes detachable keyboard. Module slots are empty.
$198.00Was: $400.00
