Stepper Motors

Stepper Motors

Stepper Motors are a type of brushless DC electric motor that divides a full rotation into a number of equal steps. They are ideal for applications requiring precise control of movement, such as robotics, 3D printers, CNC machines, and more. Stepper Motors operate by converting electric pulses into mechanical rotation, with each pulse moving the motor a specific distance. These motors offer excellent position accuracy and can hold their position without the need for a continuous power source. Overall, Stepper Motors are known for their reliability, versatility, and ability to provide controlled and precise movement in various industrial and technological applications.

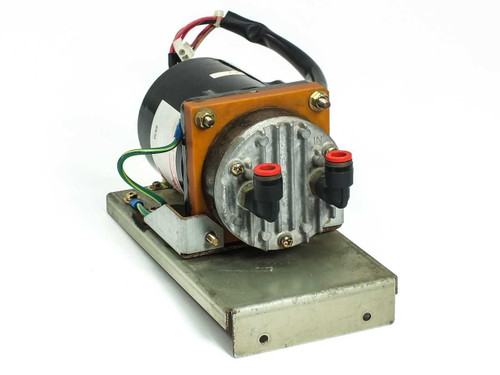

  • Japan Servo UIH8S25 induction motor mounted on metal base plate with orange-bracket gearhead and two red pneumatic ports – front-right view Japan Servo UIH8S25 induction motor rear view showing black motor body, green ground wire, and SH.MF 6uF 250VAC run capacitor mounted on base plate
    Add to Cart
    Quick view

    Japan Servo UIH8S25 25W Induction Motor 110/115VAC 80mm 1250/1550 RPM w/ Cap

    Japan Servo Co

    $65.00
    Was: $125.00
    Japan Servo UIH8S25 25W Induction Motor 110/115VAC 80mm 1250/1550 RPM w/ CapSingle-phase AC induction motor with integral run capacitor and metal mounting base plate. Designed for low-power applications requiring continuous rotation at fixed speeds...
    48770
    SKU:
    48770
    Availability:
    Usually ships within 1-2 business days.
    Weight:
    6.00 LBS
    Brand:
    Japan Servo Co.
    Model:
    UIH8S25
    MPN:
    UIH8S25
    Type:
    Single-Phase AC Induction Motor
    SKU:
    48770
    Power Rating:
    25W (24W nominal)
    Voltage Rating:
    100VAC (50/60Hz) or 110VAC (60Hz)
    Current Rating:
    0.6A / 0.6A (100V); 0.6A (110V)
    Frequency:
    50/60 Hz
    Speed (RPM):
    1250 / 1550 RPM
    Frame Size:
    80mm x 80mm
    Phase:
    Single Phase
    Run Capacitor:
    6 uF, 250VAC (100V config); 4 uF (110V config)
    Capacitor Brand:
    SH.MF (visible on capacitor label)
    Capacitor Voltage Rating:
    250V AC
    Date Code:
    8930 (visible on motor label — week/year 1989)
    Mounting:
    Metal base plate with pump/gearhead face mount
    Output Connector:
    Two pneumatic push-fit ports on gearhead face
    Lead Configuration:
    Pigtail leads with 2-pin connector
    Condition:
    Used – Pulled from Working Environment
    Seller Notes:
    Includes attached run capacitor and metal mounting base plate
    Country/Region of Manufacture:
    Japan
    Condition Notes:
    Japan Servo UIH8S25 25W AC induction motor in good used condition. Motor body, gearhead, capacitor, wiring, and base plate all intact with normal wear. Pulled from prior installation. Please contact us with any questions.
    $65.00
    Was: $125.00
