Motors
-
SEW-EURODRIVE R67DT80K4TN Helical Gear Motor 0.75HP 1700RPM 128.97:1 Ratio
SEW-EURODRIVE
$500.00Was: $1,000.00SEW-EURODRIVE R67DT80K4TN Helical Gear Motor 0.75HP 1700RPM 128.97:1 Ratio This is a foot-mounted helical gear motor designed for industrial automation and material handling applications. The unit delivers 0.75 HP at 1700 RPM with a 128.97:1 reduction...53342- SKU:
- 53342
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 100.00 LBS
- Brand:
- SEW-EURODRIVE
- Model:
- R67DT80K4TN
- MPN:
- R67DT80K4TN
- SKU:
- 53342
- Condition:
- Used – Inspected
- Seller Notes:
- Gear motor unit only; pulled from solar panel processing machine
- Country of Manufacture:
- USA (SEW-EURODRIVE Inc. USA)
- Form Factor:
- Foot Mount / Inline
- Motor Series:
- R67 Helical Gear Reducer
- Motor Type:
- Helical Gear Motor
- Power Rating:
- 0.75 HP
- Motor Speed:
- 1700 RPM
- Gear Reduction Ratio:
- 128.97:1
- Maximum Torque:
- 3590 lb-in
- Voltage Rating:
- 208/230/460V
- Frequency:
- 60 Hz
- Current Rating:
- 2.90/1.45A
- Phase:
- Three Phase
- Service Factor:
- 1.0
- Maximum Ambient Temp:
- 40°C
- Certifications:
- CSA, CE
- Manufacturer Status:
- Discontinued
- Compatible With:
- R67 series helical gear reducer applications
- Application:
- Industrial automation, material handling, processing equipment
- Condition Notes:
- This SEW-EURODRIVE R67DT80K4TN helical gear motor has been visually inspected and shows typical used industrial wear — surface rust on the output flange and junction box, scuffs to the housing. Pulled from a solar panel processing machine.
$500.00Was: $1,000.00 -
Allen-Bradley TLY-A230T-HJ62AN Kinetix AC Servo Motor 6000 RPM 230V Inverter
Allen - Bradley
$450.00Was: $900.00Allen-Bradley TLY-A230T-HJ62AN Kinetix AC Servo Motor 6000 RPM 230V Inverter Three-phase AC servo motor from Allen-Bradley's Kinetix TLY series, rated for 230V operation at 6000 RPM. Designed for inverter duty applications requiring integrated encoder...53287- SKU:
- 53287
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 10.00 LBS
- Brand:
- Allen-Bradley
- Model:
- TLY-A230T-HJ62AN
- MPN:
- TLY-A230T-HJ62AN
- SKU:
- 53287
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes attached multi-pin feedback and power cables
- Country of Manufacture:
- Japan
- Form Factor:
- Inline Frame Servo Motor
- Compatible With:
- Allen-Bradley Kinetix Servo Drives
- Motor Type:
- AC Inverter Duty Servo Motor
- Motor Series:
- Kinetix TLY Series
- Voltage Rating:
- 230V Class
- Speed (RPM):
- 6000 RPM
- Phase:
- 3 Phase
- Insulation Class:
- Class F (155°C)
- Ambient Temperature:
- 40°C
- PWM Source:
- Voltage
- Time Rating:
- Continuous
- IP Rating:
- IP65 with Shaft Seal, Excluding Connectors
- Feedback Type:
- Integrated Encoder Feedback
- Connector Type:
- Multi-pin Circular Bayonet Connectors
- Certifications:
- CE
- Application:
- Industrial Automation, Robotics, Packaging Machinery
- Condition Notes:
- This Allen-Bradley TLY-A230T-HJ62AN Kinetix AC Servo Motor has been inspected and appears to be in good used condition. The unit was pulled from a working industrial environment.
$450.00Was: $900.00 -
Leeson N256T17DB1C Electric Motor 20HP 208-230/460V Three Phase 1765 RPM
Leeson
$625.00Was: $1,300.00Leeson N256T17DB1C Electric Motor 20HP 208-230/460V Three Phase 1765 RPM Three-phase AC induction motor rated for 20 horsepower at 1765 RPM. Designed for continuous-duty industrial applications with multi-voltage capability and TEFC enclosure for harsh...53256- SKU:
- 53256
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 390.00 LBS
- Brand:
- Leeson
- Model:
- N256T17DB1C
- MPN:
- N256T17DB1C
- Cat No.:
- 150005-50
- Type:
- Three-Phase AC Induction Electric Motor
- SKU:
- 53256
- Horsepower:
- 20 HP
- Voltage:
- 208-230/460V
- Amperage:
- 54-50/25A
- Phase:
- Three Phase
- Speed (RPM):
- 1765 RPM
- Frame Size:
- 256T
- Duty Cycle:
- Continuous
- Service Factor Amps (SFA):
- 62-57/29
- Insulation Class:
- Class B
- Efficiency:
- 90.2%
- Enclosure:
- TEFC (Totally Enclosed Fan Cooled)
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Motor only; moving cart not included. Tested and confirmed working.
- Country/Region of Manufacture:
- United States
- Certifications:
- CSA (CSA-LR 58812)
- Condition Notes:
- This Leeson N256T17DB1C 20HP three-phase electric motor has been powered and tested at our facility and is in confirmed working order. We tested the motor both by connecting it directly and by wiring it through a transformer — it ran successfully
$625.00Was: $1,300.00 -
AeroTech 101-SMB2-HM Stepper Motor 25-Pin Connector 4.6A 0.48 Ohm/Phase 50 Poles
AeroTech
$175.00Was: $350.00AeroTech 101-SMB2-HM Stepper Motor 25-Pin Connector 4.6A 0.48 Ohm/Phase 50 PolesNEMA 23 frame stepper motor rated for 4.6A with 50 poles and 0.48 Ohm/Phase resistance. Designed for precision motion control and automated positioning systems with a 25-pin...53145- SKU:
- 53145
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- AeroTech
- Model:
- 101-SMB2-HM
- MPN:
- 101-SMB2-HM
- Secondary Model:
- LA23DG8-01R
- Part Number:
- 4,873,462
- SKU:
- 53145
- Type:
- Stepper Motor
- Current Rating:
- 4.6A
- Resistance per Phase (Ohms):
- 0.48 Ohm/Phase
- Number of Poles:
- 50
- Connector Type:
- 25-Pin Military-Style Circular Connector
- Number of Connector Pins:
- 25
- Form Factor:
- NEMA 23 Frame
- Shaft Type:
- Single-ended output shaft
- Application:
- Precision Motion Control, Automation, Positioning
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes detachable 25-pin circular mating connector
- Condition Notes:
- AeroTech 101-SMB2-HM stepper motor, inspected, good used condition. Pulled from a working assembly sold separately. Light surface wear; includes detachable 25-pin circular connector. Contact us with questions.
$175.00Was: $350.00 -
Ametek Pittman 3482-MAC5115 Brushless DC Motor 120V 3450 RPM w/ MCG Control
Ametek
$1,700.00Was: $3,400.00Ametek Pittman 3482-MAC5115 Brushless DC Motor 120V 3450 RPM w/ MCG Control Panel The Ametek Pittman 3482-MAC5115 is a brushless DC electric motor from the MA34000 series, manufactured by Ametek Technical & Industrial Products under their Pittman...53117- SKU:
- 53117
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 50.00 LBS
- Brand:
- Ametek Pittman
- Model:
- 3482-MAC5115
- MPN:
- 3482-MAC5115
- Secondary Model:
- MA34000 Series
- Type:
- Brushless DC Electric Motor with Control Panel
- SKU:
- 53117
- Voltage Rating:
- 120V AC
- Speed (RPM):
- 3450 RPM
- Power Rating:
- 1/3 HP
- Phase:
- Single Phase
- Motor Type:
- Brushless DC (BLDC)
- Control Panel Model:
- MCG / Ametek 48181
- Control Features:
- Variable RPM, CW/CCW Direction Control, Run/Stop, Fault/Reset
- Housing Material:
- Stainless Steel
- Pump Type:
- Dual Port Liquid Screw Pump
- Overall Dimensions:
- 6.5" x 6.5" x 28.5"
- Includes:
- MCG Control Panel, Stainless Steel Screw Pump Assembly, Power Cable
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Powers On, Not Fully Tested, Sold As-Is
- Seller Notes:
- Includes MCG variable-speed control panel and dual-port stainless steel screw pump assembly.
- Condition Notes:
- Ametek Pittman 3482-MAC5115 Brushless DC Motor 120V 3450 RPM with MCG variable-speed control panel and stainless steel screw pump assembly. Unit powers on and has been tested at our facility.
$1,700.00Was: $3,400.00 -

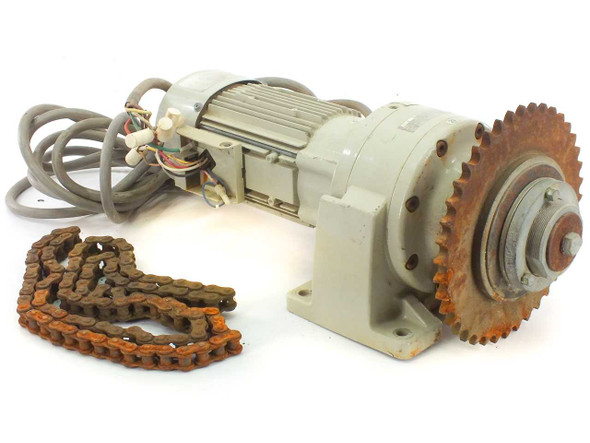

Sumitomo CNHMO5 ALTAX Drive Hoist Gearbox Induction Motor 0.4kW Sprocket Chain
Sumitomo
$325.00Was: $650.00Sumitomo CNHMO5 ALTAX Drive Hoist Gearbox Induction Motor 0.4kW Sprocket ChainThis Sumitomo CNHMO5 is a compact hoist gearbox and induction motor assembly from Sumitomo Heavy Industries' ALTAX Drive line. The unit combines an integrated gear reducer with...52675- SKU:
- 52675
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 75.00 LBS
- Brand:
- Sumitomo Heavy Industries
- Model:
- CNHMO5
- MPN:
- CNHMO5
- Type:
- Hoist Gearbox with Induction Motor
- Product Line:
- ALTAX Drive
- Input Power:
- 0.4 kW
- Sprocket Diameter:
- 9 in
- Chain Length:
- 66 in
- Drive Type:
- Chain Drive
- Application:
- Hoist / Material Handling
- Mounting:
- Foot Mount
- Country/Region of Manufacture:
- Japan
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes 9-in sprocket and 66-in roller chain. Multi-conductor lead wires attached.
- SKU:
- 52675
- Condition Notes:
- Sumitomo CNHMO5 ALTAX Drive hoist gearbox with induction motor pulled from a working environment where it was in active use and functional. Gearbox and motor body in good condition; sprocket and chain show surface rust.
$325.00Was: $650.00 -
Oriental Motor 3TK6GN-AUL Torque Motor 3GN3.6KA Gear Head 6W 110V 300RPM
Oriental Motor
$50.00Was: $100.00Oriental Motor 3TK6GN-AUL Torque Motor 3GN3.6KA Gear Head 6W 110V 300RPMAC torque motor with integrated parallel shaft gear head. Delivers consistent low-speed, high-torque output for industrial and telecom equipment requiring continuous rotation under...52457- SKU:
- 52457
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Oriental Motor
- Model:
- 3TK6GN-AUL
- MPN:
- 3TK6GN-AUL
- Secondary Model:
- 3GN3.6KA
- SKU:
- 52457
- Type:
- AC Torque Motor with Parallel Shaft Gear Head
- Output Power:
- 6 W (1/125 HP)
- Voltage:
- 110/115V AC, Single-Phase
- Frequency:
- 60 Hz
- Gear Ratio:
- 3:1
- Output Speed:
- 300 RPM
- Output Torque:
- 1.87 lb-in at max output
- Shaft/Gear Type:
- Parallel Shaft Gearhead
- Frame Size:
- 2.76 in. sq. (70 mm)
- Connector Type:
- M12 4-pin circular connector
- Country/Region of Manufacture:
- Japan
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes motor and gear head with attached M12 connector cable
- Condition Notes:
- Oriental Motor 3TK6GN-AUL torque motor with 3GN3.6KA gear head. Inspected, good used condition. Pulled from a working environment. M12 connector cable included. Normal wear from prior use.
$50.00Was: $100.00 -

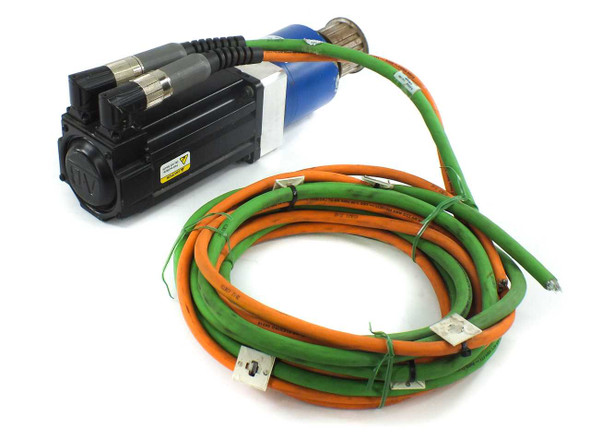

Allen-Bradley MPL-B330P-HK72AA MP-Series Servo Motor w/ Wittenstein LP
Allen - Bradley
$1,600.00Was: $3,200.00Allen-Bradley MPL-B330P-HK72AA MP-Series Servo Motor w/ Wittenstein LP 090-M01-10The Allen-Bradley MPL-B330P-HK72AA is a low-inertia, brushless AC servo motor from Rockwell Automation's MP-Series Kinetix line, here paired with a Wittenstein Alpha LP...52456- SKU:
- 52456
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 29.00 LBS
- Brand:
- Allen-Bradley
- Model:
- MPL-B330P-HK72AA
- MPN:
- MPL-B330P-HK72AA
- Secondary Model:
- LP 090-M01-10-111
- Part Number:
- PN-12146
- Series:
- MP-Series
- Type:
- Brushless AC Servo Motor with Planetary Gear Reducer
- SKU:
- 52456
- Seller Notes:
- Includes Wittenstein Alpha LP 090-M01-10-111 gear reducer and servo/feedback cables
- Country/Region of Manufacture:
- Mexico
- Voltage Rating:
- 460 V RMS L-L, 3 Phase
- Phase:
- Three Phase
- Power Rating:
- 1.8/2.4 kW/HP
- Current Rating:
- 6.1 Amps (0-Peak Continuous)
- Speed (RPM):
- 5000 RPM Max
- Frequency:
- 0-334 Hz
- Time Rating:
- Continuous
- Stall Torque:
- 4.18/37 Nm/LB.IN
- Back-EMF Constant (Ke):
- 100 V 0-Peak L-L/kRPM
- Resistance:
- 4.6 Ohms L-L, 25°C
- Insulation Class:
- 180 (H)
- Ambient Temperature:
- 0-40°C (32-104°F)
- Enclosure Rating:
- IP66 with Shaft Seal
- PWM Source:
- Voltage
- Connector Type:
- SpeedTEC DIN
- Series / Family:
- Kinetix MP-Series Low-Inertia
- Gear Reducer Brand:
- Wittenstein Alpha
- Gear Reducer Model:
- LP 090-M01-10-111
- Gear Ratio:
- 10:1
- Gear Reducer Item No.:
- 10000967
- Certifications:
- CE, UL, CSA, EN60034-1
- Compatible With:
- Rockwell Automation Kinetix servo drives
- Form Factor:
- Inline with Planetary Gear Reducer
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Allen-Bradley MPL-B330P-HK72AA servo motor with Wittenstein LP 090-M01-10 reducer, pulled from working environment. Servo cables included but have cut/frayed ends requiring re-termination. Motor and reducer show normal service wear.
$1,600.00Was: $3,200.00
