Rexroth MSK040B-0450-NN-S2-UG0-NNNN Servo Motor Wittenstein Alpha TP010S 220:1

Rexroth MSK040B-0450-NN-S2-UG0-NNNN Servo Motor Wittenstein Alpha TP010S 220:1

This is a Bosch Rexroth MSK040B-0450-NN-S2-UG0-NNNN 3-phase permanent magnet synchronous servo motor assembled with a Wittenstein Alpha TP010S-MA3-220-0C1-2S inline planetary gearbox. The MSK040B is part of Rexroth's IndraDyn S series of compact synchronous servo motors, designed for use with Rexroth IndraDrive and similar servo drive systems in precision motion control applications. The Wittenstein Alpha TP010S planetary gearbox provides a 220:1 gear ratio, delivering high torque multiplication in a compact inline form factor.

Specifications & What's Included

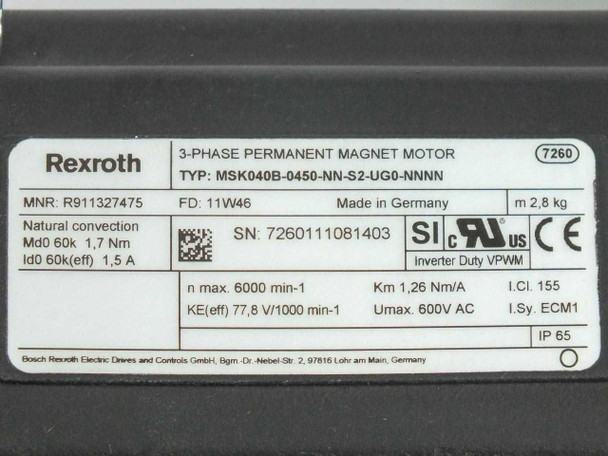

• Motor Make/Model: Bosch Rexroth MSK040B-0450-NN-S2-UG0-NNNN
• MNR (Material Number): R911327475
• Motor Type: 3-Phase Permanent Magnet Synchronous Servo Motor
• Max Speed: 6,000 min⁻¹ (RPM)
• Maximum Voltage: 600V AC
• Stall Torque (Md0 at 60K): 1.7 Nm
• Stall Current (Id0 60k eff): 1.5 A
• Back-EMF Constant (KE eff): 77.8 V / 1000 min⁻¹
• Torque Constant (Km): 1.26 Nm/A
• Cooling Method: Natural convection
• Insulation Class: I.Cl. 155
• Insulation System: I.Sy. ECM1
• Inverter Duty: VPWM rated
• Enclosure Rating: IP 65
• Date Code (FD): 11W46
• Country of Manufacture (Motor): Germany
• Certifications: UL (SI/US), CE
• Connectors: Two rear-mounted circular industrial connectors (power + encoder/feedback)
• Gearbox Make/Model: Wittenstein Alpha TP 010S-MA3-220-0C1-2S
• Gear Ratio: 220:1
• Gearbox Reduction (i): 220
• Gearbox Lubrication: Lubricated for Life — Oil Castrol Tribol 800/220
• Gearbox Date Code (DMF): 47/11
• Country of Manufacture (Gearbox): Germany
• Output: Hollow-bore output flange with bolt circle and blue O-ring seal, visible in photos
• Overall Dimensions (per existing data): approximately 17" x 5" x 5"
• Sold as assembled motor + gearbox combo unit as shown

Applications

The Rexroth MSK series permanent magnet synchronous servo motors are used in precision motion control systems across industrial automation, machine tool, robotics, and packaging machinery applications. They are designed to pair with Rexroth IndraDrive servo drives (such as the HCS and HMS series) and are common in CNC machining centers, injection molding machines, printing presses, and automated assembly equipment. The Wittenstein Alpha TP series inline planetary gearbox is a high-precision, low-backlash reducer widely used where high gear ratios and compact inline form factors are required — such as rotary indexing tables, conveyor drives, and servo-driven axis assemblies. The 220:1 ratio of this gearbox makes it particularly suited to slow-speed, high-torque output applications where the motor runs at its efficient speed range. This combination is common in European-made industrial automation machinery from the 2000s and 2010s, and Rexroth IndraDyn S components of this generation remain widely supported by IndraDrive servo amplifier systems in active production environments today.
