X-Ray NDT Inspection
X-Ray NDT Inspection is a non-destructive testing method that uses X-ray technology to examine the integrity and quality of materials and components without causing damage. This technique is commonly used in industries such as aerospace, automotive, and manufacturing to detect defects, cracks, and other irregularities that may compromise the safety and performance of a product. X-Ray NDT Inspection allows for detailed internal inspection of objects, providing accurate and reliable results that help in making informed decisions about the quality and reliability of the tested material. This method is crucial for ensuring the structural integrity and safety of various components in different industries.
-
Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System 230V Water
Amtec
$15,000.00Was: $30,000.00Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System 230V Water Cooled X-ray fluorescence (XRF) system for inline measurement of coating thickness and elemental composition. Floor-standing cabinet with separate measuring head unit, designed...52196- SKU:
- 52196
- Availability:
- This item is available for local pickup or freight shipment — please contact us for a shipping quote before purchasing.
- Weight:
- 510.00 LBS
- Brand:
- Amtec Analysenmesstechnik GmbH
- Model:
- XRF 940V
- MPN:
- XRF 940 V
- SKU:
- 52196
- Condition:
- Used – Inspected, Not Bench-Tested
- Seller Notes:
- Includes operating manual and measuring head cable assembly
- Country of Manufacture:
- Germany
- Form Factor:
- Floor-Standing Cabinet with Separate Measuring Head Unit
- Power Requirements:
- 230V AC, 1 Phase, 10A, 60Hz, 1000W
- Voltage Rating:
- 230 VAC
- Current Rating:
- 10 A
- Frequency:
- 60 Hz
- Power Consumption:
- 1000W
- Supply Fuse:
- +E01-13F2
- Enclosure Rating:
- IP 30
- Ambient Temperature Range:
- 10°C to 35°C
- Measurement Type:
- X-Ray Fluorescence (XRF)
- Measurement Application:
- Coating thickness and composition analysis
- Measurement Range:
- Coating thickness from nm to µm
- Elemental Range:
- Na/Mg through U (periodic system)
- Reproducibility:
- 1% (measurement duration dependent)
- Minimum Measurement Period:
- 3 seconds
- Max Object Temperature:
- Up to 500°C
- Detector Type:
- Silicon Drift Chamber (high energy resolution)
- X-Ray Source:
- Compact water-cooled X-ray source
- Cooling Method:
- Water Cooled
- Installation Type:
- Inline / In-Situ production integration
- Compatible With 1:
- Solar cell production: CIS, CIGS, CdTe
- Compatible With 2:
- Fuel cell, corrosion protection, barrier layers
- Compatible With 3:
- Magnetic layers, contact layers, alloy layers
- Main Unit Dimensions:
- 32" x 24" x 35.5" H
- Measuring Head Unit Dimensions:
- 19.75" x 19.75" x 10"
- Date of Manufacture:
- 03/2012
- CE Certified:
- Yes
- Condition Notes:
- This Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System has been inspected and appears to be in good physical condition. The main cabinet exterior is clean with minimal wear, and the internal electronics and wiring are intact.
$15,000.00Was: $30,000.00 -

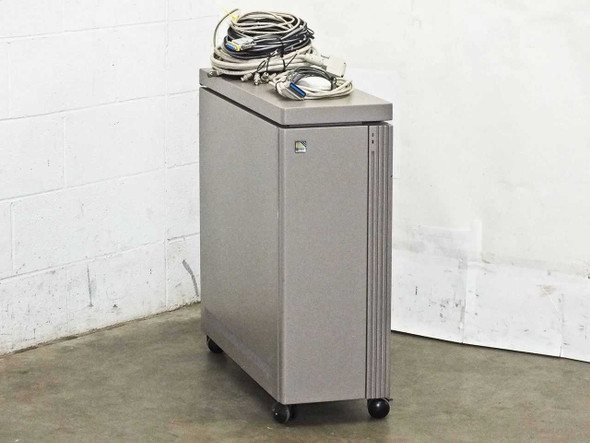

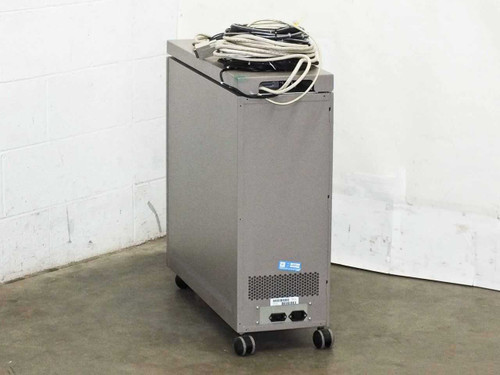

Princeton Gamma-Tech PGT .8000 ImIX-PC X-Ray Microanalysis ECS Computer
Princeton Gamma-Tech
$500.00Was: $1,000.00Princeton Gamma-Tech PGT.8000 ImIX-PC X-Ray Microanalysis ECS ComputerEnergy Dispersive X-Ray Spectroscopy (EDS/EDX) analysis system designed for elemental composition measurement in electron microscopy. Floor-standing tower cabinet with integrated beam...45075- SKU:
- 45075
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 151.00 LBS
- Brand:
- Princeton Gamma-Tech
- Model:
- PGT .8000
- Secondary Model:
- ImIX-PC
- MPN:
- .8000
- SKU:
- 45075
- Type:
- X-Ray Microanalysis ECS Computer
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes internal modules, cabling, SCSI interface, and BNC detector connections
- Country/Region of Manufacture:
- United States
- Form Factor:
- Floor-Standing Tower Cabinet on Casters
- Power Requirements:
- 115/230V AC, 10.0/5.0A, 50/60Hz
- Power Supply Model:
- Trimm Technologies CMN08GAM
- Application:
- Energy Dispersive X-Ray Spectroscopy (EDS/EDX)
- Compatible With:
- SEM (Scanning Electron Microscope) systems
- Interface Type:
- SCSI, BNC (External Detectors), REM Control
- External Detector Ports:
- 5x BNC + EXT SYNC (rear panel)
- BCI Ports:
- BCI: X/Y in, V connectors (rear panel)
- Internal Modules:
- PGT Beam Control Interface module (Model 325B)
- Internal Modules 2:
- PGT module Model 427B (SN 288)
- Sweep Calibration Controls:
- Gain X/Offset, Gain Y/Offset (front panel)
- Front Panel Controls:
- Power switch, Reset, Bias On/Off, P/A Reset, Download
- Status Indicators:
- Green and red LEDs for Power, Bias Active
- Internal Storage:
- Seagate hard drive (visible internally)
- Internal Drive Bays:
- Multiple bays visible; includes HDD and floppy-style bay
- Expansion:
- Multiple ISA/proprietary expansion card slots populated
- Condition Notes:
- Princeton Gamma-Tech PGT .8000 ImIX-PC X-Ray Microanalysis ECS Computer powers on (fans spin, LEDs light) but full function could not be verified. Sold AS-IS for parts or repair. No functionality guarantee. Please contact us with questions.
$500.00Was: $1,000.00 -

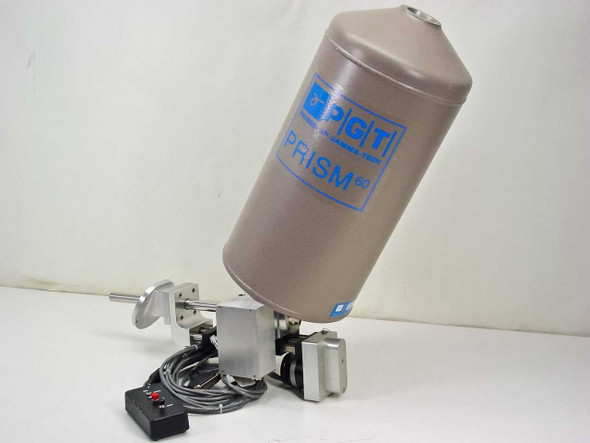

Princeton Gamma-Tech PGT PRISM60 OPP024-6048 X-Ray Detector -600VDC Bias
Princeton Gamma-Tech
$600.00Was: $1,200.00Princeton Gamma-Tech PGT PRISM60 OPP024-6048 X-Ray Detector -600VDC BiasEnergy Dispersive Spectrometer (EDS) X-ray detector designed for elemental analysis in scanning electron microscopy and related analytical systems. Operates at -600 VDC bias voltage...44248- SKU:
- 44248
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 40.00 LBS
- Brand:
- Princeton Gamma-Tech
- Model:
- PRISM60
- MPN:
- OPP024-6048
- Secondary Model:
- SA-0358TRI
- SKU:
- 44248
- Type:
- EDS X-Ray Detector / Energy Dispersive Spectrometer
- Bias Voltage:
- -600 VDC
- Detector Series:
- PRISM 60
- Application:
- Energy Dispersive X-Ray Spectroscopy (EDS/EDX)
- Compatible With:
- SEM, electron microscope, IMIX analyzer systems
- Connector Type:
- D-Sub (DB25 male) on control cable
- Country/Region of Manufacture:
- United States
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes motorized positioning stage, control box with PWR/IN/OUT switches, and cable
- Form Factor:
- Standalone detector with motorized positioning arm
- Condition Notes:
- PGT PRISM60 OPP024-6048 EDS X-ray detector sold AS-IS for parts or repair. Could not be tested; no functionality guaranteed. Includes motorized stage, control box, and cable. Please contact us with questions.
$600.00Was: $1,200.00 -

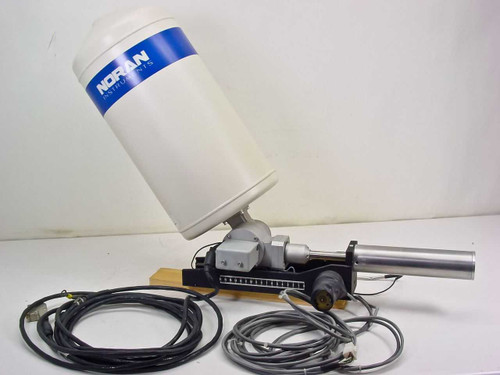

Noran Instruments 960H-1SPS EDS X-Ray Spectrometer Detector 138 eV Resolution
Noran
$2,200.00Was: $4,400.00Noran Instruments 960H-1SPS EDS X-Ray Spectrometer Detector 138 eV ResolutionEnergy dispersive X-ray spectrometer (EDS) detector for elemental analysis on electron microscopy instruments. Features 138 eV resolution, integrated LN2 cryostat, and motorized...44244- SKU:
- 44244
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Noran Instruments
- Model:
- 960H-1SPS
- MPN:
- 960H-1SPS
- Type:
- Energy Dispersive X-Ray Spectrometer (EDS) Detector
- SKU:
- 44244
- Specified Resolution:
- 138 eV
- Detector Type:
- EDS / EDX (Energy Dispersive X-Ray)
- Bias Voltage:
- -800V
- Heater Setting:
- 0

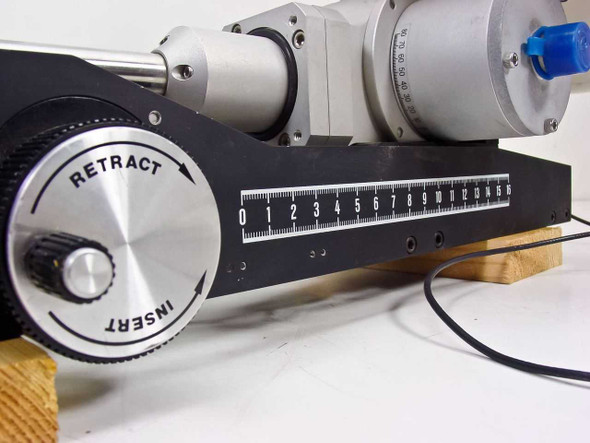

- Linear Travel Scale:
- 0–16 mm (graduated insert/retract rail)
- Rotation Scale:
- Graduated rotary scale, approx. 30–90 degrees range visible
- Cryostat / Dewar:
- Integrated LN2 dewar (white cylindrical Noran cryostat)
- Included Cables:
- Multi-conductor signal cables with multi-pin connector included
- Connector Type:
- DB-9 (9-pin D-sub) signal cable connector
- Drive Mechanism:
- Motorized lead-screw linear stage with retract/insert knob
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes multi-conductor signal cables and a thin probe tube accessory
- Application:
- SEM / EPMA elemental analysis; x-ray microanalysis
- Compatible With:
- SEM, EPMA, and electron beam instruments with EDS port
- Condition Notes:
- Noran Instruments 960H-1SPS EDS X-ray spectrometer detector. Inspected, in good used condition; pulled from a working environment where it was in active use. LN2 dewar, motorized stage, cables, and probe tube included. Normal surface wear.
$2,200.00Was: $4,400.00 -

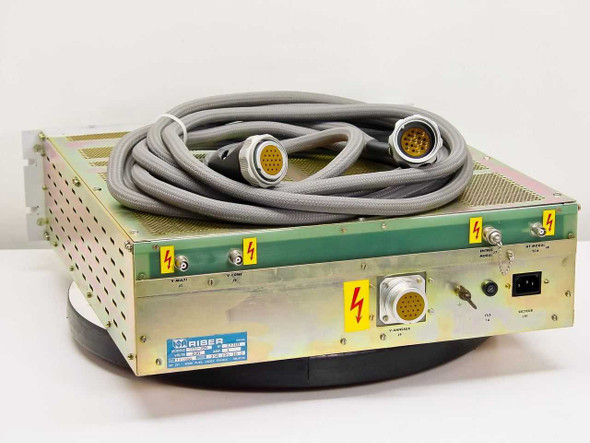

Riber TCE 300 E-Gun/ Beam/ X-Ray Focusing & Resolution Controls
Riber
$368.00Was: $1,000.00Riber TCE 300 E-Gun / X-Ray Focusing & Resolution Controls Code 250,101,60,P Condition: UsedThis item has been inspected and appears to be in good condition40629- SKU:
- 40629
- Weight:
- 44.00 LBS
$368.00Was: $1,000.00
