Amtec

Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System 230V Water

(No reviews yet) Write a Review
SKU:
52196
MPN:
XRF 940 V
Condition:
Used
Availability:
This item is available for local pickup or freight shipment — please contact us for a shipping quote before purchasing.
Weight:
510.00 LBS
Shipping:
Calculated at Checkout
  • Amtec XRF 940V system front view — closed main cabinet on dolly with separate measuring head unit beside it

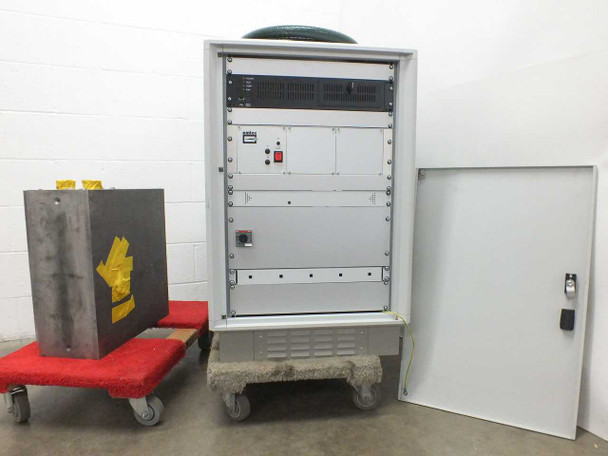

  • Amtec XRF 940V main cabinet open showing internal rack-mounted electronics, control panel with red emergency stop button
  • Amtec XRF 940V internal cabinet view — upper section showing dense cable routing, control boards, and cooling components

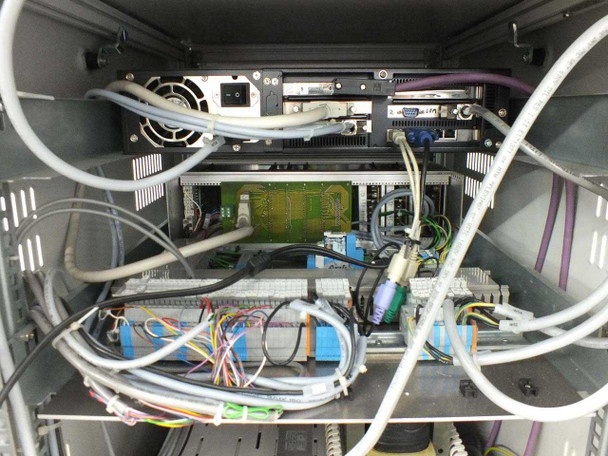

  • Amtec XRF 940V internal detail — top rack section with PC board, VGA and serial connectors visible on rear of embedded computer
  • Amtec XRF 940V internal lower section — transformer, terminal blocks, and multicolored wiring harnesses

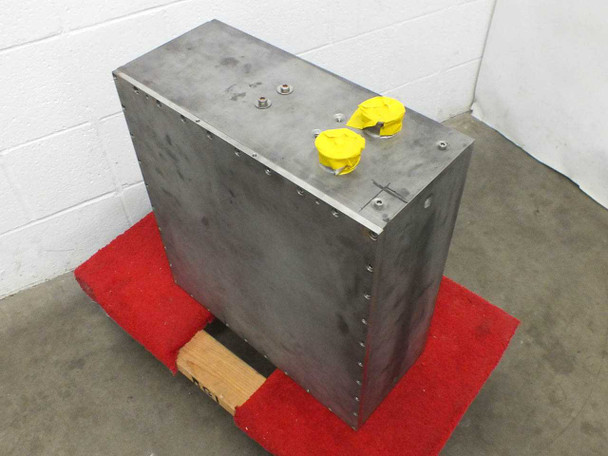

  • Amtec XRF 940V measuring head unit — top view of stainless steel enclosure with two yellow-capped fluid fittings
  • Amtec XRF 940V measuring head — angled side view showing stainless steel housing and yellow warning marking

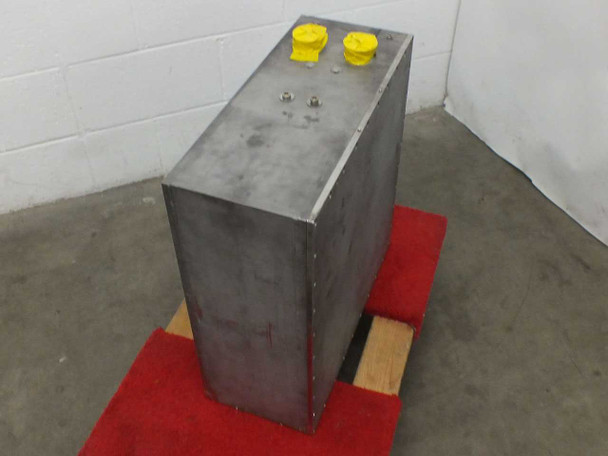

  • Amtec XRF 940V measuring head — front/side view showing overall enclosure dimensions and fluid port caps

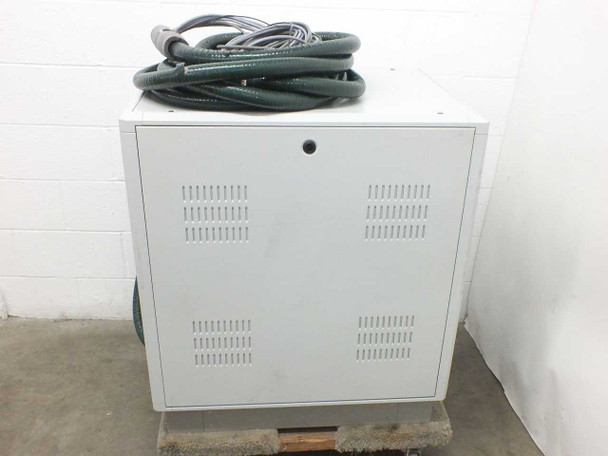

  • Amtec XRF 940V main cabinet rear/side view with ventilation louvers and green flexible conduit on top

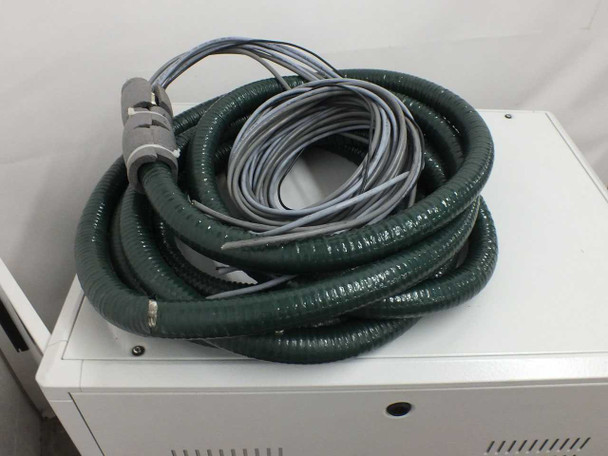

  • Amtec XRF 940V measuring head cable assembly — large green flexible conduit with multi-conductor signal cable coiled on cabinet top
  • Amtec XRF 940V operating manual — white binder from amtec Analysenmesstechnik GmbH for XRF 940V X-ray fluorescence coating process measuring system
  • Amtec XRF 940V nameplate label — shows model XRF 940V, serial XR9 12031, 230VAC 50/60Hz 1000W, IP30, date of manufacture 03/12, CE mark

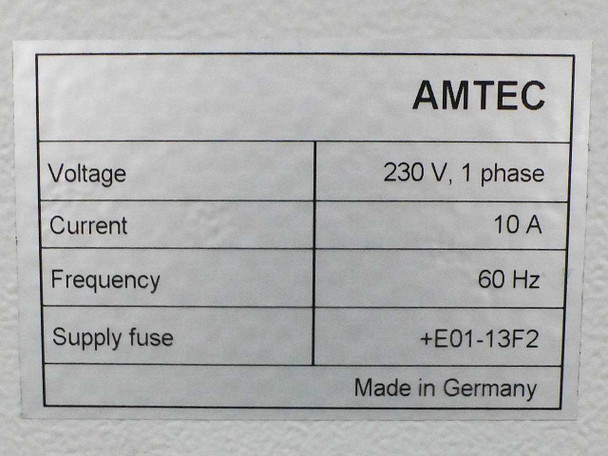

  • Amtec XRF 940V electrical specification label — 230V 1 phase, 10A, 60Hz, supply fuse +E01-13F2, Made in Germany
$15,000.00
Was: $30,000.00
Current Stock: 1

Sold Out

Description

Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System 230V Water Cooled

X-ray fluorescence (XRF) system for inline measurement of coating thickness and elemental composition. Floor-standing cabinet with separate measuring head unit, designed for integration into production environments.

Specifications & What's Included

  • Model: XRF 940V (Amtec Analysenmesstechnik GmbH, Germany)
  • Power: 230V AC, 1 Phase, 10A, 60Hz, 1000W
  • Measurement Range: Coating thickness from nm to µm; Elements Na/Mg through U
  • Detector: Silicon Drift Chamber (high energy resolution)
  • X-Ray Source: Compact water-cooled
  • Reproducibility: 1% (measurement duration dependent); minimum 3 seconds per measurement
  • Operating Temperature: 10–35°C ambient; up to 500°C object temperature
  • Enclosure Rating: IP 30; CE certified
  • Includes: Operating manual and measuring head cable assembly

Applications

XRF systems measure coating thickness and composition in inline production environments. This unit is compatible with solar cell production (CIS, CIGS, CdTe), fuel cell and corrosion protection applications, and measurement of magnetic layers, contact layers, and alloy layers. Typical uses include quality control of thin-film coatings and barrier layer verification during manufacturing.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Amtec XRF 940V X-Ray Fluorescence Inline Coating Measuring System has been inspected and appears to be in good physical condition. The main cabinet exterior is clean with minimal wear, and the internal electronics and wiring are intact. The separate water-cooled measuring head enclosure is present and shows light surface marks consistent with prior industrial use. The measuring head cable and conduit assembly is included. An original Amtec Analysenmesstechnik GmbH operating manual for the XRF 940V is also included. This system has not been powered or tested at our facility due to the specialized nature of the equipment; it is being sold as-inspected. Local viewing or pickup can be arranged — please contact us for details. Freight shipping is required; please contact us for a quote before purchasing. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Amtec Analysenmesstechnik GmbH
Model:
XRF 940V
MPN:
XRF 940 V
SKU:
52196
Condition:
Used – Inspected, Not Bench-Tested
Seller Notes:
Includes operating manual and measuring head cable assembly
Country of Manufacture:
Germany
Form Factor:
Floor-Standing Cabinet with Separate Measuring Head Unit
Power Requirements:
230V AC, 1 Phase, 10A, 60Hz, 1000W
Voltage Rating:
230 VAC
Current Rating:
10 A
Frequency:
60 Hz
Power Consumption:
1000W
Supply Fuse:
+E01-13F2
Enclosure Rating:
IP 30
Ambient Temperature Range:
10°C to 35°C
Measurement Type:
X-Ray Fluorescence (XRF)
Measurement Application:
Coating thickness and composition analysis
Measurement Range:
Coating thickness from nm to µm
Elemental Range:
Na/Mg through U (periodic system)
Reproducibility:
1% (measurement duration dependent)
Minimum Measurement Period:
3 seconds
Max Object Temperature:
Up to 500°C
Detector Type:
Silicon Drift Chamber (high energy resolution)
X-Ray Source:
Compact water-cooled X-ray source
Cooling Method:
Water Cooled
Installation Type:
Inline / In-Situ production integration
Compatible With 1:
Solar cell production: CIS, CIGS, CdTe
Compatible With 2:
Fuel cell, corrosion protection, barrier layers
Compatible With 3:
Magnetic layers, contact layers, alloy layers
Main Unit Dimensions:
32" x 24" x 35.5" H
Measuring Head Unit Dimensions:
19.75" x 19.75" x 10"
Date of Manufacture:
03/2012
CE Certified:
Yes
Condition Notes:
Amtec XRF 940V XRF Coating Measuring System. Inspected, good physical condition. Not powered or tested at our facility. Includes operating manual and measuring head cable. Freight only — contact for quote.
