Lapping Machines
Lapping machines are precision machines used in the manufacturing industry to achieve high levels of flatness, parallelism, and surface finish on a variety of materials. These machines utilize a rotating abrasive tool that moves back and forth over the workpiece, removing material until the desired specifications are met. Lapping machines are commonly used in the production of electronic components, optical lenses, and automotive parts. They offer a cost-effective and efficient solution for achieving tight tolerances and smooth surfaces. Whether in research facilities or production plants, lapping machines play a crucial role in ensuring the quality and precision of finished products.
-

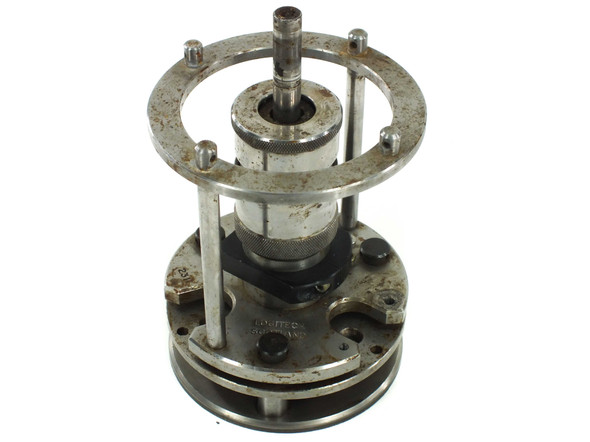

Logitech PM2A Ring Polishing Jig Head Lapping Fixture Scotland For Parts
Logitech
$1,200.00Was: $2,400.00Logitech PM2A Ring Polishing Jig Head Lapping Fixture Scotland For Parts Ring polishing jig head and lapping fixture designed for use with Logitech precision polishing and lapping machines. This component mounts to compatible Logitech equipment to hold...49755- SKU:
- 49755
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Logitech
- Model:
- PM2A
- MPN:
- PM2A
- Type:
- Ring Polishing Jig Head / Lapping Fixture
- SKU:
- 49755
- Country/Region of Manufacture:
- Scotland, United Kingdom
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. No rotational or linear movement.
- Application:
- Precision lapping, optical polishing, ring polishing
- Compatible With:
- Logitech lapping and polishing machines
- Condition Notes:

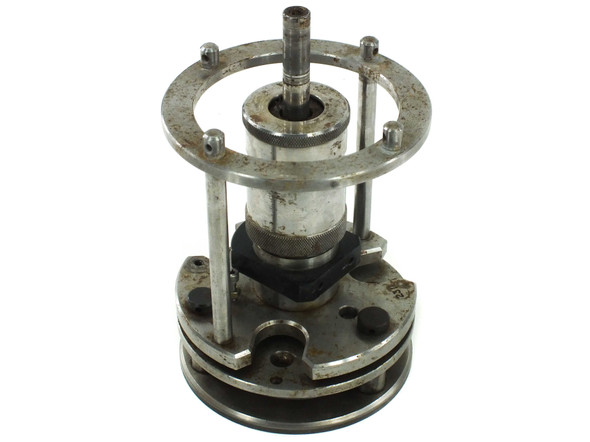

- This Logitech PM2A Ring Polishing Jig Head is being sold as-is for parts or repair. The unit has been inspected and presents with light surface rust across the base plate, flange rings, and guide rod mounting areas, as clearly visible throughout the
$1,200.00Was: $2,400.00 -
Barnes-Desenberg Model 5 Curve Generator Optical Lens Polishing Machine 3/4 HP
Barnes Desenberg
$3,000.00Was: $6,000.00Barnes-Desenberg Model 5 Curve Generator Optical Lens Polishing Machine 3/4 HP 3PhFloor-standing optical lens curve generator and polishing machine designed for precision grinding and polishing of optical lenses. Features a 3/4 HP three-phase AC...43696- SKU:
- 43696
- Availability:
- Usually ships within 5–7 business days; freight shipment — contact us for a shipping quote.
- Weight:
- 4,000.00 LBS
- Brand:
- Barnes-Desenberg
- Model:
- Model No. 5
- MPN:
- Model No. 5
- Type:
- Optical Lens Curve Generator / Polishing Machine
- SKU:
- 43696
- Seller Notes:
- Includes side accessory cabinet with 6 tooling/lap trays and tooling
- Country/Region of Manufacture:
- United States
- Form Factor:
- Floor Standing / Freestanding
- Motor Type:
- AC Induction Motor (Master Electric Co.)
- Motor Frame:
- 7415WW
- Motor Type Code:
- PA
- Horsepower:
- 3/4 HP
- Voltage:
- 208-220-440V
- Phase:
- 3-Phase
- Amperage:
- 2.2 / 1.1 A
- Frequency:
- 50/60 Hz
- RPM:
- 3450 / 2350
- Motor Manufacturer:
- Master Electric Co., Dayton, OH, USA
- Transformer Brand:
- Jeffries Transformer, Los Angeles, CA
- Transformer Cat No:
- 256-310-1
- Transformer KVA:
- 0.250 KVA
- Transformer Phase:
- Single Phase
- Transformer Voltage:
- 240/480 Primary — 120/240 Secondary
- Transformer Insulation Class:
- Class A
- Application:
- Optical Lens Curve Generation and Polishing
- Industry:
- Optical / Ophthalmic / Precision Optics Manufacturing
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Barnes-Desenberg Model 5 Optical Lens Curve Generator pulled from a working environment where it was in use and functional. Inspected and in good used condition.
$3,000.00Was: $6,000.00 -
Wilhelm Bothner WB15 Optical Curve Generating Lathe 60° Swivel 150mm Stroke 220V
Bothner
$2,500.00Was: $5,000.00Wilhelm Bothner WB15 Optical Curve Generating Lathe 60° Swivel 150mm Stroke 220VThe Wilhelm Bothner WB15 is a precision optical curve generating lathe built by Wilhelm Bothner & Co., Masch. u. Zahnradfabrik, Braunschweig, Germany — a specialist...43508- SKU:
- 43508
- Availability:
- Usually ships within 3-5 business days due to size and freight requirements.
- Weight:
- 1,580.00 LBS
- Brand:
- Wilhelm Bothner
- Model:
- WB15
- MPN:
- WB15
- Type:
- Optical Curve Generating Lathe
- SKU:
- 43508
- Swivel Range:
- 60°
- Stroke:
- 150mm
- Power Requirements:
- 220VAC
- Country/Region of Manufacture:
- Germany
- Manufacturer Location:
- Braunschweig, Germany
- Form Factor:
- Floor Standing / Pedestal
- Application:
- Optical lens and prism curve generation, grinding
- Drive System:
- Dual motor — Driving Motor and Work Motor
- Control Panel:
- Driving Motor On/Off, Work Motor On/Off, Pole Switch
- Spindle Type:
- Precision optical spindle with graduated dial
- Lubrication System:
- Integrated air/oil lubrication with pressure gauge
- Gearbox:
- Internal worm and helical gear train, red-painted housing
- Condition:
- Used – Inspected
- Seller Notes:
- Includes machine as shown; no tooling or workholding accessories confirmed
- Condition Notes:
- Wilhelm Bothner WB15 Optical Curve Generating Lathe — inspected, appears in good condition. Surface rust on spindle, pulleys, and external metalwork; paint worn and chipped. Internal gearing appears intact. Ships on pallet. Contact us with questions.
$2,500.00Was: $5,000.00
