SCE Hi-Pot Control Cabinet SCE-66ST2626WS Custom Industrial Panel Enclosure

SKU:

51696

Availability:

Usually ships within 1–3 business days after arrangement — contact us for freight details on this large cabinet.

Weight:

335.00 LBS

Brand:

SCE Saginaw Controls & Engineering

Model:

SCE-66ST2626WS

MPN:

SCE-66ST2626WS

Secondary Model:

1277912

SKU:

51696

Type:

Custom Hi-Pot Control Panel Enclosure

Enclosure Type:

Type 12.4

UL Listing:

UL Listed (A-2,192)

CSA Listing:

CSA Listed (LR97418)

Enclosure Designation:

Industrial Control Panel Enclosure

Application:

Hi-Pot / High Potential / Dielectric Withstand Testing

Form Factor:

Floor-Standing Cabinet on Casters

Display:

Integrated Flat Panel Touchscreen Monitor

Control Interface:

Touchscreen display with front-panel pushbuttons

Safety Features:

Emergency stop (E-stop) mushroom button

Interior Components:

DIN rail mounted terminal blocks, contactors, wiring

Contactors:

Multiple three-phase contactors visible (brand not fully legible)

Outlets:

4-outlet AC outlet strip inside cabinet

Included Accessories:

Keyboard, wiring harness, internal shelf

Enclosure Manufacturer:

SCE Saginaw Controls & Engineering, Saginaw MI

Country/Region of Manufacture:

United States

Condition:

New

Seller Notes:

Custom-built hi-pot control cabinet; includes touchscreen, keyboard, contactors, and internal wiring assembly.

Condition Notes:

This SCE SCE-66ST2626WS custom hi-pot control cabinet is in new condition. Enclosure and all internal components appear unused with no wear. Includes touchscreen, keyboard, contactors, and internal wiring as shown.

Kikusui TOS9201 AC/DC Withstanding Voltage Insulation Resistance Hipot Tester

Kikusui

SKU:

49607

Availability:

Usually ships within 1-2 business days.

Weight:

50.00 LBS

Brand:

Kikusui

Model:

TOS9201

MPN:

TOS9201

Type:

AC/DC Withstanding Voltage & Insulation Resistance Tester

SKU:

49607

Condition:

As-Is / For Parts or Not Working

Seller Notes:

Includes high-voltage test lead set. Powers on; DC and IR self-tests pass; VOLT ERROR on AC test.

Country/Region of Manufacture:

Japan

Form Factor:

Benchtop

Power Requirements:

100-120V or 200-240V AC, 47-63Hz (selectable)

AC Output Voltage Range:

AC 0.05 kV to 5 kV

AC Output Current (Max):

100 mA

DC Output Voltage Range:

DC 0.05 kV to 6 kV

DC Output Current (Max):

10 mA

Insulation Resistance Test Voltage:

DC 25 V to 1000 V

Insulation Resistance Range:

0.01 MΩ to 9.99 GΩ

Interface:

GPIB, RS-232C

Fuse Rating (100-120V):

10A SLOW (250V)

Fuse Rating (200-240V):

6.3A (250V)

VA Rating (Max):

800 VA

Measurement Functions:

ACW, DCW, IR (Insulation Resistance)

Control Features:

Rise-time, Fall-time, Offset cancel, Memory, Program, Interlock, DC Discharge

Certifications:

CE

Calibration Label:

Techmaster HPF-103, dated JUN-07-11, due JUN-07-12

Condition Notes:

This Kikusui TOS9201 AC/DC Withstanding Voltage and Insulation Resistance Hipot Tester is being sold as-is for parts or repair. The unit powers on and passes its built-in DC withstanding voltage (DCW) and insulation resistance (IR) self-tests — as

Carnel Labs NM-65T 1-10 GHz EMI Radio Interference Analyzer Receiver

Carnel Labs

SKU:

25015

Availability:

Usually ships within 1–2 business days.

Weight:

38.00 LBS

Brand:

Carnel Labs

Model:

NM-65T

MPN:

NM-65T

SKU:

25015

Type:

EMI Radio Interference Analyzer / Receiver

Condition:

As-Is / For Parts or Not Working

Frequency Range:

1 GHz to 10 GHz

Frequency Bands:

1.0–2.0 GHz, 2.0–4.4 GHz, 4.4–10.0 GHz

IF Bandwidth:

0.1 MHz, 1.0 MHz, 10 MHz (3 selectable)

Dynamic Range:

60 dB (logarithmic IF amplifier display)

Measurement Range:

120 dB total (three 20 dB attenuator steps)

Attenuator Steps:

3 x 20 dB steps (0 dB, +20 dB, +40 dB)

Display Type:

Analog panel meter (microvolts / dB / dBm)

Meter Scales:

Microvolts, dB referred to 1uV, -dBm

Power Source:

AC mains via IEC inlet; battery (Recharge/Operate)

Measurement Type:

Conducted and radiated RF / EMI

Standards Compliance:

Military and commercial EMI test specifications

Form Factor:

Benchtop

Seller Notes:

Sold as-is for parts or repair; includes internal RF modules visible in photos

Condition Notes:

Carnel Labs NM-65T EMI Analyzer sold as-is for parts or repair. Not tested or guaranteed functional. Top cover absent; internal RF modules show corrosion. Front panel and meter appear intact. Please contact us with questions.

Singer 91263-1 Impulse Field Generator Stoddart Calibrated 105-125V BNC Output

Singer

SKU:

44846

Availability:

Usually ships within 1–2 business days.

Weight:

13.00 LBS

Brand:

Singer

Model:

91263-1

MPN:

91263-1

Type:

Impulse Field Generator

SKU:

44846

Manufacturer Division:

Singer Electronic Products Division, Los Angeles, CA

Country/Region of Manufacture:

United States

Power Requirements:

105 to 125V, 50 to 60 Hz

Output Connector:

BNC

Output Scale:

dB above 1µV/MC

Pulse Polarity:

Selectable positive/negative (front panel knob)

HV Regulator:

Yes — front panel HV Regulator On indicator

Fuse Rating:

1A (primary fuse + spare fuse, front panel accessible)

Calibration:

Calibrated 11/15/2012 by Mr. Bender, Carnel Labs

Form Factor:

Benchtop / Portable

Application:

EMC/EMI radiated emissions and susceptibility testing

Also Known As:

Stoddart Impulse Generator

Seller Notes:

Includes attached AC power cord. Calibrated 11/15/2012 by Carnel Labs.

Condition Notes:

Singer 91263-1 Impulse Field Generator in good used condition. Pulled from a working environment. Shows light bench wear. Calibrated 11/15/2012 by Carnel Labs. BNC output and front panel controls intact. Please contact us with any questions.

Singer Stoddart NM-37/57 EMI Field Intensity Meter 30-1000 MHz Calibrated

Singer

SKU:

44844

Availability:

Usually ships within 1–2 business days.

Weight:

64.00 LBS

Brand:

Singer Instrumentation

Model:

NM-37/57

MPN:

NM-37/57

Secondary Model:

Stoddart NM-37/57

Type:

EMI / Field Intensity Meter

SKU:

44844

Measurement Type:

EMI / Electromagnetic Field Intensity

Frequency Range:

30 MHz – 1000 MHz (30–57, 55–105, 101–192, 186–292, 285–445, 430–620, 600–825, 800–1000 MHz bands)

Band Selection:

8 overlapping bands, 30–1000 MHz

Attenuator Range:

0, +20 (X1), -20 (X0.1), +40, +60 dB

Display:

Dual analog meters: Frequency (MHz) and Microvolt/dB

Meter Scale:

Microvolts and dB referred to 1 µV

Function Modes:

Peak, Quasi-Peak, Field Intensity, Slideback Peak, Calibrate, BFO

Audio Modes:

AM, FM

Power Supply:

115V AC, 0.5A fused; also Battery operation

Internal Power Rails:

+17.5V and -17.5V (push-to-reset circuit breakers)

Rear Outputs:

IF Output, Recorder/Penlift, Linear, Video FM, LOG, X Output, Y Output, External Scan

Rear Connectors:

Programmer (multi-pin circular), BNC outputs (orange), IEC AC inlet

Form Factor:

Benchtop

Country/Region of Manufacture:

United States

Calibration Status:

Calibrated 11/14/2012 by Carnel Labs, Canoga Park CA; Due 12/14/13

Calibration Standard:

Traceable to NIST per MIL STD 45662A/ANSI/NCSL Z540-1-1994

Serial Number (Internal):

0502-08178

Condition:

Used – Inspected and in Good Condition

Seller Notes:

Includes Carnel Labs calibration certificate. Inspected, good cosmetic condition.

Condition Notes:

Singer Stoddart NM-37/57 EMI Field Intensity Meter. Inspected, good used condition. Carnel Labs calibration cert dated 11/14/2012 (NIST traceable); recalibration recommended before compliance use. Normal wear. Please contact us with questions.

Ailtech Stoddart P7 Programmer NM-17/27 NM-37/57 NM-67 EMI Receiver

Cutler Hammer

SKU:

36940

Availability:

Usually ships within 1–2 business days.

Weight:

47.00 LBS

Brand:

Ailtech (Cutler-Hammer)

Model:

P7 Programmer

MPN:

Stoddart P7

Type:

EMI Receiver Programmer

SKU:

36940

Frequency Range:

0.02 kHz to 40 GHz

Band Coverage:

NM-7, NM-17/27, NM-37/57, NM-67, FC-67

Receiver Control Features:

Bandwidth, Detector Function, Remote Atten (dB)

Programmer Mode:

Local / Remote

Scan Control Features:

Sweep Time, Vernier, Scan Mode, Sector Calibrate

Data Control Features:

Display Mode, Power, Start/Stop/Reset, X-Y Recorder

Outputs / Interfaces:

X-Y Recorder, CRT (X Data, Y Data, Z Blank), AUX Output

Remote Interfaces:

Remote Digital Display, Remote Digital Controller

Rear Panel Connectors:

NM7, NM17/27, NM37/57, NM67 LOG/AUX/PROGRAM; Simultaneous FI

Power Requirements:

115V / 230V AC; 1.5A or 3A S.B. fused per rail

Additional Interface:

Antenna Switch and Attenuator connector (rear)

Form Factor:

Benchtop / Rack-Mountable

Condition:

Used – Powers On; Cannot Be Tested Further

Seller Notes:

Unit only; powers on at our facility; no further functional testing performed

Country/Region of Manufacture:

United States

Application:

EMI/EMC receiver programming and automated scan control

Condition Notes:

Ailtech Stoddart P7 Programmer — inspected, good cosmetic condition. Powers on at our facility; cannot be fully tested without NM-series receivers. Front-panel controls and rear connectors appear intact. Shows normal lab wear.

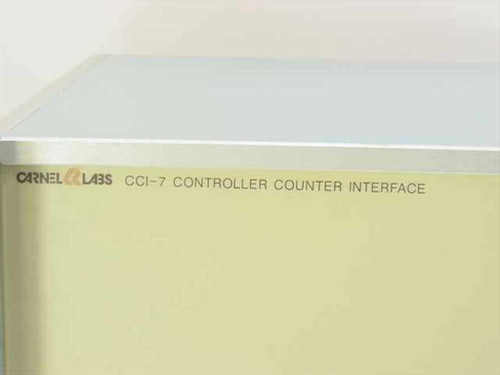

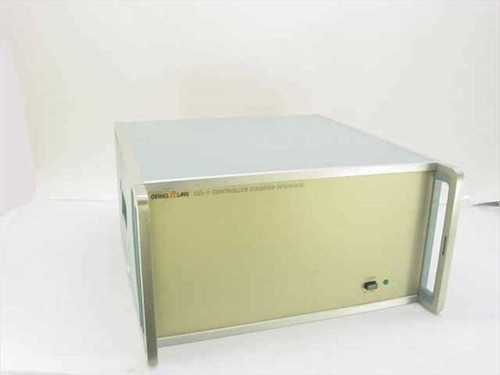

Carnel Labs CCI-7 Controller Counter Interface EMI NM7 Receiver GPIB 100-240V

Carnel Labs

SKU:

25053

Availability:

Usually ships within 1-2 business days.

Weight:

46.00 LBS

Brand:

Carnel Labs

Model:

CCI-7

MPN:

CCI-7

Secondary Model:

Eaton Advanced Electronics CCI-7

Type:

Controller Counter Interface

SKU:

25053

Compatible With:

NM Series 7 Receivers

Interface Type:

GPIB

Number of Controller Cards:

4

Input Voltage:

100-120VAC / 200-240VAC, 50-400Hz

Fuse Rating 100-120V:

3.0A SB

Fuse Rating 200-240V:

1.5A SB

Application:

EMI / EMC Testing, Receiver Sweep Control

PWBA Card 1 Part Number:

PWBA 4-006039-001 REV B (qty 4)

PWBA Card 2 Part Number:

PWBA 4-006038-001 REV C (qty 3)

PWBA Card 3 Part Number:

PWBA 4-006037-001 (qty 1)

PWBA Card 4 Part Number:

PWBA 4-006036-001 (qty 1)

PWBA Card 5 Part Number:

PWBA 4-006035-001 (qty 1)

PWBA Card 6 Part Number:

PWBA 4-006034-001 (qty 1)

Form Factor:

Benchtop / Rackmount Chassis

Condition:

Used – Inspected

Seller Notes:

Includes all internal PWBA receiver controller cards as listed; GPIB interface.

Condition Notes:

Carnel Labs CCI-7 Controller Counter Interface. Inspected and in good condition. All internal PWBA cards present as listed. Green TESTED sticker visible on rear panel. Normal lab wear.
