Carnel Labs

Carnel Labs CCI-7 Controller Counter Interface EMI NM7 Receiver GPIB 100-240V

(No reviews yet) Write a Review
SKU:
25053
MPN:
CCI-7
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
46.00 LBS
Shipping:
Calculated at Checkout
  • Carnel Labs CCI-7 Controller Counter Interface – front panel view showing beige chassis with power indicator LED

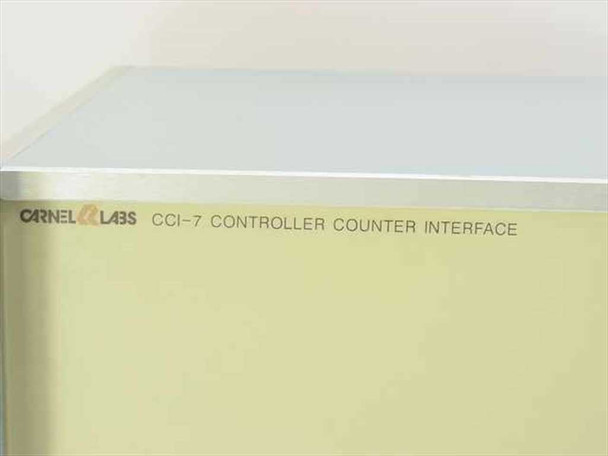

  • Carnel Labs CCI-7 Controller Counter Interface – close-up of front panel label reading 'CCI-7 Controller Counter Interface'

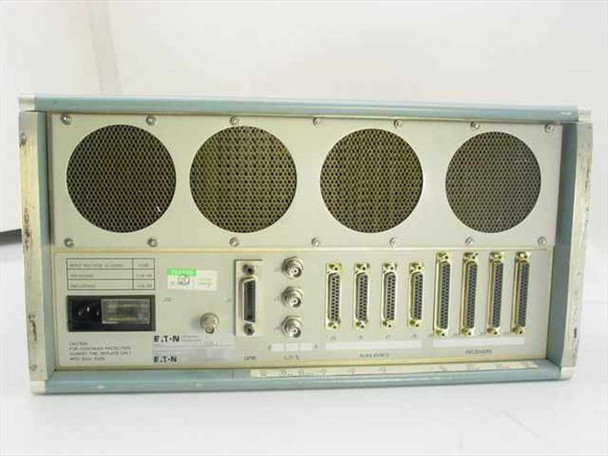

  • Carnel Labs CCI-7 – rear panel view showing four ventilation grilles, GPIB connector, BNC connectors, and multiple D-sub receiver interface connectors

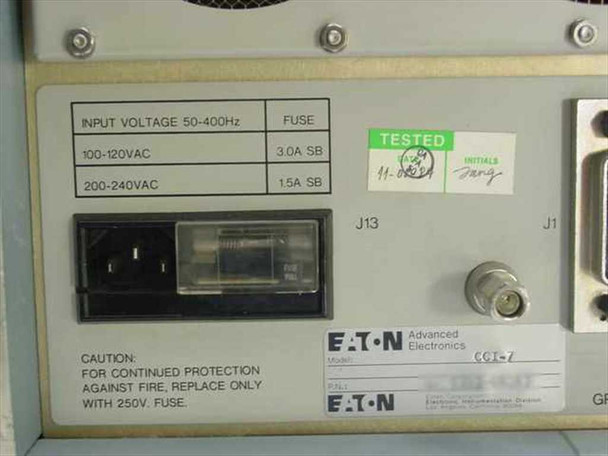

  • Carnel Labs CCI-7 – rear power input label showing 100-120VAC 3.0A SB / 200-240VAC 1.5A SB, 50-400Hz, IEC inlet, and Eaton Advanced Electronics model plate with green TESTED sticker

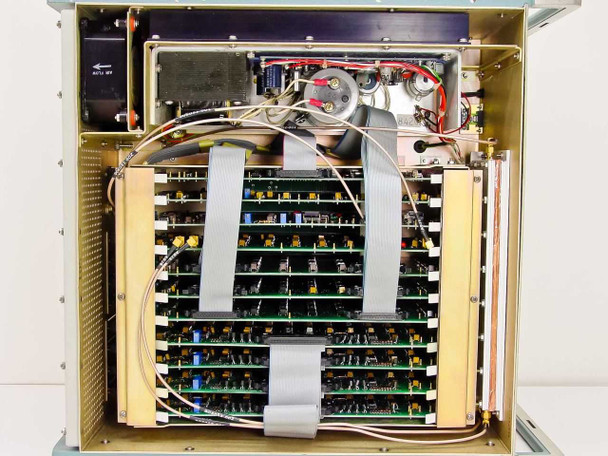

  • Carnel Labs CCI-7 – interior view showing multiple stacked PWBA receiver controller cards with ribbon cable interconnects and internal power supply
$325.00
Was: $650.00
Current Stock: 1

Sold Out

Description

Carnel Labs CCI-7 Controller Counter Interface EMI NM7 Receiver GPIB 100-240V

Benchtop/rackmount controller interface for EMI and EMC testing applications. Manages sweep control and receiver operation via GPIB interface with support for NM Series 7 receivers.

Specifications & What's Included

  • Model: CCI-7 (Carnel Labs / Eaton Advanced Electronics)
  • Interface: GPIB
  • Input Voltage: 100-120VAC or 200-240VAC, 50-400Hz
  • Fuses: 3.0A SB (100-120V) / 1.5A SB (200-240V)
  • Four controller cards with six PWBA receiver controller cards installed (PWBA 4-006039-001 REV B ×4, PWBA 4-006038-001 REV C ×3, PWBA 4-006037-001, PWBA 4-006036-001, PWBA 4-006035-001, PWBA 4-006034-001)

Applications

The CCI-7 functions as a control interface in EMI/EMC test systems, coordinating receiver sweep operations and data acquisition. Designed for laboratory and production testing environments where automated receiver control is required during electromagnetic interference measurements and compliance testing.

Condition: Used
This Carnel Labs CCI-7 Controller Counter Interface has been inspected and is in good condition. The chassis and front panel are clean with normal wear consistent with lab use. The rear panel label is legible and a green 'TESTED' sticker is visible on the rear panel. All internal PWBA receiver controller cards are present as listed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Carnel Labs
Model:
CCI-7
MPN:
CCI-7
Secondary Model:
Eaton Advanced Electronics CCI-7
Type:
Controller Counter Interface
SKU:
25053
Compatible With:
NM Series 7 Receivers
Interface Type:
GPIB
Number of Controller Cards:
4
Input Voltage:
100-120VAC / 200-240VAC, 50-400Hz
Fuse Rating 100-120V:
3.0A SB
Fuse Rating 200-240V:
1.5A SB
Application:
EMI / EMC Testing, Receiver Sweep Control
PWBA Card 1 Part Number:
PWBA 4-006039-001 REV B (qty 4)
PWBA Card 2 Part Number:
PWBA 4-006038-001 REV C (qty 3)
PWBA Card 3 Part Number:
PWBA 4-006037-001 (qty 1)
PWBA Card 4 Part Number:
PWBA 4-006036-001 (qty 1)
PWBA Card 5 Part Number:
PWBA 4-006035-001 (qty 1)
PWBA Card 6 Part Number:
PWBA 4-006034-001 (qty 1)
Form Factor:
Benchtop / Rackmount Chassis
Condition:
Used – Inspected
Seller Notes:
Includes all internal PWBA receiver controller cards as listed; GPIB interface.
Condition Notes:
Carnel Labs CCI-7 Controller Counter Interface. Inspected and in good condition. All internal PWBA cards present as listed. Green TESTED sticker visible on rear panel. Normal lab wear.
View AllClose

Related Products

Related Products

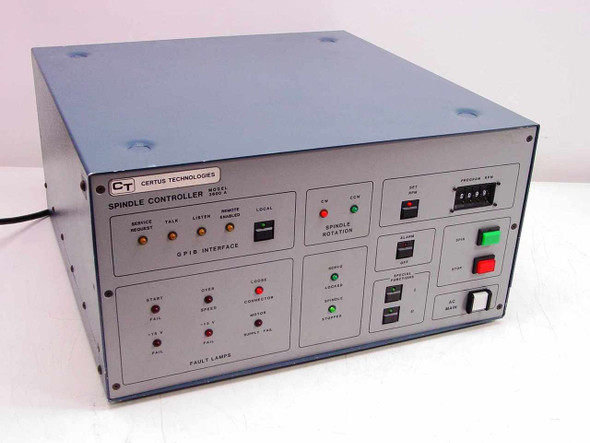

Certus Technologies 3600A Spindle Controller – front panel showing GPIB Interface indicators, Spindle Rotation controls, fault lamps, and control switches Certus Technologies 3600A Spindle Controller – rear panel overview with handwritten GPIB address note, Certus Technologies label, and large heatsink/fan
