Solar Simulators
Solar Simulators are devices used in the testing of solar panels to simulate sunlight under controlled conditions. These simulators emit light that closely mimics the spectrum and intensity of natural sunlight, allowing researchers and manufacturers to accurately assess the performance and durability of solar panels. Solar simulators are crucial tools in the development and quality control of photovoltaic systems, ensuring that they meet industry standards and perform optimally in real-world conditions. By using solar simulators, researchers can efficiently conduct research and testing without relying on unpredictable weather patterns. Overall, solar simulators play a vital role in advancing the technology and efficiency of solar energy systems.
-

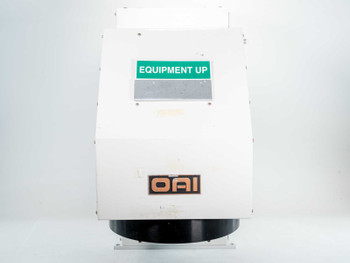

OAI 0130-041-04 UV Exposure Housing 1000W 220nm 10in Lens Solar Cell Simulator
OAI
$2,500.00Was: $5,000.00OAI 0130-041-04 UV Exposure Housing 1000W 220nm 10in Lens Solar Cell SimulatorUV exposure lamp housing manufactured by Optical Associates Inc. for solar cell testing and semiconductor photolithography applications. Produces 1000W output at 220nm...52793- SKU:
- 52793
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 54.00 LBS
- Brand:
- OAI (Optical Associates Inc.)
- Model:
- 0130-041-04
- MPN:
- 0130-041-04
- Type:
- UV Exposure Lamp Housing / Solar Cell UV Source
- SKU:
- 52793
- UV Wavelength:
- 220 nm
- Lamp Power:
- 1000 Watts
- Lens Aperture:
- 10 inch (approx. 254mm)
- Sensor Range:
- 220 / 260 nm
- Application:
- Solar Cell UV Exposure, Semiconductor Photolithography Testing
- Enclosure:
- White Metal Enclosure with Black Aperture Ring
- Connector (Power Leads):
- Positive and negative bare power leads
- Connector (Signal):
- Multi-pin circular connector (rear panel)
- Power Supply Included:
- No — power supply not included
- Internal Components:
- Linear actuator, reflector mirror, UV lamp, orange gasket seal
- Country/Region of Manufacture:
- United States
- Manufacturer Address:
- 1425 McCandless Drive, Milpitas, CA 95035
- Exhaust Airflow (Factory Preset):
- 30 Hz (per rear panel label)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Housing only; power supply not included. Positive and negative leads present.
- Condition Notes:
- OAI 0130-041-04 UV Exposure Housing pulled from solar cell production. Good used condition; minor surface marks. Internal components present including actuator, mirror, lamp, and 10-in lens. Power supply NOT included. Leads present.
$2,500.00Was: $5,000.00 -
Eppley Laboratory 8-48 Black White Pyranometer Diffuse Radiometer 295-2800nm
Eppley Laboratory
$600.00Was: $1,200.00Eppley Laboratory 8-48 Black White Pyranometer Diffuse Radiometer 295-2800nmThe Eppley Laboratory Model 8-48 is a Black & White Pyranometer designed for measuring diffuse (scattered sky) solar radiation. It uses a thermopile detector with alternating...52455- SKU:
- 52455
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Eppley Laboratory
- Model:
- 8-48
- MPN:
- 8-48
- Type:
- Black & White Pyranometer / Diffuse Radiometer
- SKU:
- 52455
- Application:
- Diffuse Solar Radiation Network Measurement
- Traceability:
- World Radiation Reference (WRR)
- Spectral Range:
- 295–2800 nm
- Output Signal:
- 0–10 mV analog
- Sensitivity:
- approx. 8 µV / W·m⁻²
- Impedance:
- approx. 350 Ω
- 95% Response Time:
- 30 seconds
- Zero Offset A:
- 1 W·m⁻²
- Zero Offset B:
- 2 W·m⁻²
- Non-Stability:
- 1%
- Non-Linearity:
- 1%
- Directional Response:
- 30 W·m⁻²
- Spectral Selectivity:
- 2%
- Temperature Response:
- 1.5% (-20°C to +40°C)
- Tilt Response:
- 3%
- Hourly Measurement Uncertainty:
- approx. 3–5%
- Daily Measurement Uncertainty:
- approx. 3%
- Connector Type:
- Multi-pin circular (instrument side); XLR-style (cable end)
- Includes:
- Pyranometer body with leveling bubble, output cable
- Form Factor:
- Benchtop / Standalone Field Instrument
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Eppley Laboratory 8-48 Black & White Pyranometer pulled from a working environment where it was in use. Inspected and in good used condition. Housing shows light field wear. Glass dome intact. Output cable included.
$600.00Was: $1,200.00 -
Berger PSS10 Pulsed Solar Simulator 230V 1700W w/ Electronicon Capacitors
Berger
$4,500.00Was: $9,000.00Berger PSS10 Pulsed Solar Simulator 230V 1700W w/ Electronicon CapacitorsThe Berger PSS10 is a pulsed solar simulator designed for characterizing solar cells and photovoltaic panels via flash-based IV curve measurement. Built by Berger Lichttechnik of...52005- SKU:
- 52005
- Availability:
- Usually ships within 3-5 business days — contact us for freight quote on this large unit.
- Weight:
- 260.00 LBS
- Datasheet:
- Berger PSS 10 Pulsed Solar Simulator Datasheet
- Brand:
- Berger Lichttechnik
- Model:
- PSS10
- MPN:
- PSS10
- Type:
- Pulsed Solar Simulator
- SKU:
- 52005
- Voltage:
- 230V
- Power:
- 1700W
- Frequency:
- 60 Hz
- Fuse:
- 6.3ATT
- Capacitor Model:
- Electronicon E62.R32-754C20
- Capacitor Qty:
- 12
- Capacitor Voltage (DC):
- 1000V DC
- Capacitor Voltage (AC):
- 640V AC
- Capacitor Capacitance:
- 750 µF ±10% MKP
- Capacitor Temp Range:
- -25°C to +85°C
- Capacitor Standard:
- IEC 61071
- Display:
- LCD bargraph display with SET/ACT voltage and status
- Dimensions:
- 37" L x 22" W x 24" H
- Form Factor:
- Floor-standing, mobile (caster wheels)
- Country/Region of Manufacture:
- Germany
- Application:
- Solar cell / PV panel IV curve flash testing
- Certifications:
- CE
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes flash lamp assembly, fiber optic cables, and contact probes/accessories
- Condition Notes:
- Berger PSS10 Pulsed Solar Simulator pulled from Solopower's working CIGS solar cell test line where it served as a backup spare. Inspected, in good condition. All 12 Electronicon 1000V 750µF capacitors present. Accessories included.
$4,500.00Was: $9,000.00 -

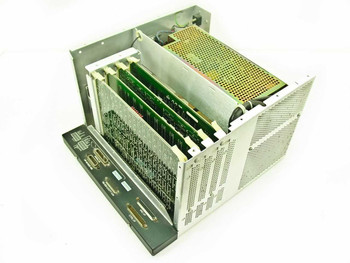

HP C1600V Vintage Industrial Computer HP-IB IEEE-488 RS-232 MFM HDD For Parts
HP
$900.00Was: $1,800.00HP C1600V Vintage Industrial Computer HP-IB IEEE-488 RS-232 MFM HDD For PartsThe HP C1600V is a vintage industrial computer and controller system from Hewlett-Packard, built for use in automated test, measurement, and process control environments. Housed...42194- SKU:
- 42194
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 33.00 LBS
- Brand:
- Hewlett-Packard
- Model:
- C1600V
- MPN:
- C1600V
- Type:
- Vintage Industrial Computer / Controller
- SKU:
- 42194
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes all boards, Seagate ST-251-1 MFM HDD, Acme HF-75544 140W PSU, backplane
- Country/Region of Manufacture:
- United States
- Form Factor:
- Desktop / Rackmount Chassis
- Power Requirements:
- 100-120V AC, 50-60Hz, 1.5A Max (110W Max)
- Interface Type:
- HP-IB/IEEE-488, RS-232-C/CITT V.24, Parallel, VRC I/F, CTRL I/F
- Included Board 1:
- HP C1600-69109 / 2944-11 w/ C1600-08051 Chip (TPB-J.VO)
- Included Board 2:
- HP C1600-60107 B / 267311-0006 / 2821-11 (TPB-J.VO)
- Included Board 3:
- HP C1600-60101 B / 267272-0007 / 2809-11 (TPB-J.VO)
- Included Board 4:
- HP C1600-60103 B / 267286-0010 / 2840-11
- Backplane:
- HP C1600-60100 / 267259-0005
- Hard Drive:
- Seagate ST-251-1 / ST-251-1 MFM HDD
- Power Supply:
- Acme Electric HF-75544 140W, 120VAC In, +5.1/+12/-12VDC Out
- Power Supply Part Number:
- Acme Electric HF-75544
- PSU Input:
- 120 VAC, 2.5A, 50-60Hz
- PSU Output:
- +5.1VDC/20A, +12VDC/3.1A, -12VDC/0.1A, 140W Max
- HP Part Number:
- HP 0957-0033
- Connector Types:
- Parallel, HP-IB/IEEE-488, RS-232-C/CITT V.24, VRC I/F, CTRL I/F
- Compatible With:
- HP C1600 Series industrial control systems
- Condition Notes:
- This HP C1600V vintage industrial computer is sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Includes all expansion boards, Seagate ST-251-1 MFM HDD, Acme HF-75544 140W PSU, and backplane, as photographed.
$900.00Was: $1,800.00
