Microwave and RF
The Microwave and RF category encompasses technologies related to microwave frequencies and radio frequency systems. This field includes the design, development, and application of components such as amplifiers, antennas, filters, and transmitters. Researchers and engineers in this category focus on advancing communication systems, radar systems, wireless networks, and satellite technologies. The Microwave and RF industry plays a crucial role in various sectors such as telecommunications, aerospace, healthcare, and defense. Professionals in this field work with electromagnetic waves in the microwave and RF range to create innovative solutions for high-speed data transmission and wireless connectivity.
-

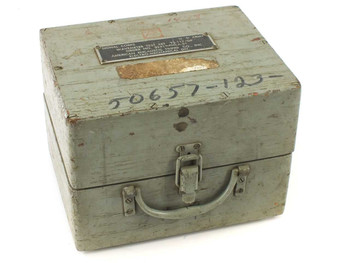

US Army Signal Corps TS-117/GP Wavemeter Test Set Signal Corps Vintage RF
American Encaustic Tiling Co
$195.00Was: $500.00US Army Signal Corps TS-117/GP Wavemeter Test Set Signal Corps Vintage RF Military-grade RF wavemeter and test set used by US Army Signal Corps for frequency and wavelength measurement. Crystal-based passive instrument requiring no external power supply...52649- SKU:
- 52649
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 10.00 LBS
- Brand:
- American Encaustic Tiling Co., Inc.
- Model:
- TS-117/GP
- MPN:
- TS-117/GP
- Type:
- Wavemeter Test Set
- SKU:
- 52649
- Order Number:
- 22419-PHILA-51
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS; original wood carrying case included; missing parts
- Country/Region of Manufacture:
- United States
- Form Factor:
- Portable / Carrying Case
- Manufacturer Division:
- Electro-Mechanical Division
- Military Branch:
- US Army Signal Corps
- Measurement Type:
- Frequency / Wavelength (RF Wavemeter)
- Connector Type:
- Type N (female), VIDEO output
- Controls:
- XTAL CURRENT meter, SENSITIVITY dial, TUNE TO PEAK, TUNE TO DIP
- Calibration Chart:
- Calibration-Micrometer vs Frequency chart on side panel
- Calibration Authority:
- T.O. 33A4-4-18 (AFTO Form 108)
- Last Calibration Date:
- 1 Jul 1969 / Due 1 Jul 1970 (per label)
- Power Requirements:
- Passive / Crystal-based (no external power required)
- Compatible With:
- US Army Signal Corps RF test systems, vintage military radio equipment
- Condition Notes:
- This US Army Signal Corps TS-117/GP Wavemeter Test Set is being sold AS-IS due to its age and missing parts. The instrument is housed in its original wood carrying case, which shows significant wear consistent with decades of military and field use
$195.00Was: $500.00 -

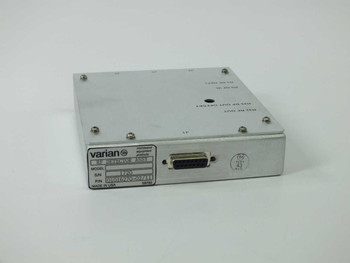

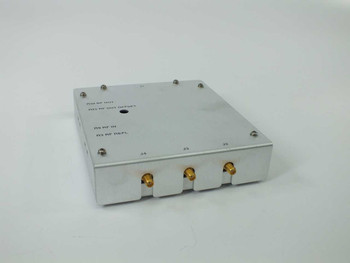

Varian 01016270-02/11 RF Detector Assembly - Satcom - R9 RF IN - R32 RF OUT
Varian
$59.00Was: $100.00Varian 01016270-02/11 RF Detector Assembly - Satcom - R9 RF IN - R32 RF OUT Condition: UsedThis used satcom assembly has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use and...50370- SKU:
- 50370
- Weight:
- 3.00 LBS
$59.00Was: $100.00 -

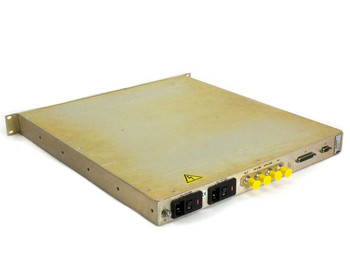

Specialty Microwave 4000A-70 1:1 TX Satcom Baseball Switch Protection 4000
Specialty Microwave
$130.00Was: $250.00Specialty Microwave 4000A-70 1:1 TX Satcom Baseball Switch Protection 4000 Condition: UsedThis used satcom device has been inspected and it appears to be in good condition. It powers on as shown in the photo set but we are unable to test it...50307- SKU:
- 50307
- Weight:
- 20.00 LBS
$130.00Was: $250.00 -
Balzers RFS 302 RF Power Supply 2.5kW 13.56 MHz Plasma Generator 380V 3-Phase
Balzers
$1,800.00Was: $3,600.00Balzers RFS 302 RF Power Supply 2.5kW 13.56 MHz Plasma Generator 380V 3-PhaseRF plasma generator power supply manufactured by Balzers with internal Hüttinger electronics. Supplies 2.5 kW of RF energy at 13.56 MHz for industrial plasma processing...50032- SKU:
- 50032
- Availability:
- This item requires freight shipping due to its size and weight. Please contact us for a freight quote or to arrange local pickup.
- Weight:
- 1,111.00 LBS
- Brand:
- Balzers
- Model:
- RFS 302
- MPN:
- RFS 302
- Secondary Model:
- TIS 2.5/13560
- Type:
- RF Plasma Generator Power Supply
- SKU:
- 50032
- Internal Generator Brand:
- Fritz Hüttinger Elektronik GmbH
- Internal Generator Type:
- TIS 2.5/13560
- Internal Generator Version:
- A 46-0104
- Output Power:
- 2500 W (2.5 kW)
- Output Frequency:
- 13.56 MHz
- Line Voltage:
- 3 x 380V AC
- Phase:
- Three Phase
- Frequency:
- 50/60 Hz
- Power Consumption:
- 5400 VA
- Input Current:
- 8.2 A
- RF Output Connector:
- N-type / coaxial (50 Ohm)
- RF Output Impedance:
- 50 Ohm
- Max RF Voltage:
- 1000 Vp (per Vorsicht HF-Spannung label)
- Form Factor:
- Floor-Standing Enclosure / Cabinet
- Dimensions:
- 27.5" W x 22" D x 53" H
- Front Panel Meters:
- Incident Power (kW), Reflected Power meters
- Front Panel Controls:
- Mains/Standby/Remote switch, RF on/off, Overload indicator, Interlock
- Power Switch:
- Siemens rotary lockout/keyed main disconnect
- Internal Power Supply Module:
- Hüttinger Netzteil Typ B 66-0015
- Internal RF Unit:
- Hüttinger HF-Teil Typ B 76-0002
- Internal Control Board:
- Hüttinger Typ B 38-0114
- Application:
- RF Plasma Etching, Sputtering, CVD, PVD Semiconductor
- Cooling:
- Forced air (internal axial fans visible)
- Country/Region of Manufacture:
- West Germany
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS. Freight shipping required — contact us for quote or local pickup.
- Condition Notes:
- Balzers RFS 302 RF Plasma Generator Power Supply sold AS-IS, untested, for parts or repair. Not powered or tested at our facility. Freight shipping required — contact us for a quote or local pickup.
$1,800.00Was: $3,600.00 -

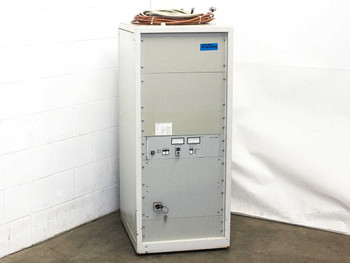

Balzers RFS 302 RF Power Supply 2.5kW 13.56 MHz Plasma Hüttinger TIS 2.5/13560
Balzers
$2,500.00Was: $5,000.00Balzers RFS 302 RF Power Supply 2.5kW 13.56 MHz Plasma Hüttinger TIS 2.5/13560RF power supply and plasma generator for industrial semiconductor and materials processing. Delivers 2.5 kW at 13.56 MHz fixed frequency with Fritz Hüttinger TIS 2.5/13560 RF...50029- SKU:
- 50029
- Availability:
- This item requires freight shipping due to its size and weight. Please contact us for a freight quote or to arrange local pickup.
- Weight:
- 495.00 LBS
- Brand:
- Balzers
- Model:
- RFS 302
- MPN:
- BG M34 563 / 0157
- Secondary Model:
- TIS 2.5/13560
- Type:
- RF Power Supply / Plasma Generator
- SKU:
- 50029
- Seller Notes:
- Includes RF output cables and associated cabling visible on top of unit
- Country/Region of Manufacture:
- Germany
- Form Factor:
- Floor-Standing Cabinet
- Output Power:
- 2500 W (2.5 kW)
- Output Frequency:
- 13.56 MHz
- Input Voltage:
- 3 x 380V AC (Three-Phase)
- Phase:
- Three Phase
- Input Frequency:
- 50/60 Hz
- Power Consumption:
- 5400 VA
- Current Rating:
- 8.2 A
- RF Generator Manufacturer:
- Fritz Hüttinger Elektronik GmbH
- RF Generator Type:
- TIS 2.5/13560
- RF Generator Version:
- A 46-0104
- Cooling:
- Water-cooled and fan-cooled
- Cooling Water Flow Min:
- 6 l/min
- Cooling Water Pressure:
- 7 bar nominal / max
- Front Panel Meters:
- Incident Power Pi (0-2.5 kW), Reflected Power Pr (0-500 W)
- Front Panel Controls:
- Key switch, Mains/Standby/Remote indicators, RF on/off, Overload reset
- Overload Indicators:
- Interlock, T>, Pr>, I>
- Output Connector:
- Coaxial (N-type / threaded RF output)
- Max RF Voltage (Output):
- Up to 1000 Vp
- Application:
- Plasma Etch, PVD Sputtering, CVD, Semiconductor
- Dimensions:
- 27.5" W x 22" D x 52.25" H
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Balzers RFS 302 RF Power Supply inspected and in good used condition. Cabinet and internals intact; Fritz Hüttinger TIS 2.5/13560 module present. Cables included. Freight shipping required — contact us for a quote.
$2,500.00Was: $5,000.00 -
Channel Microwave AU323-5 Antenna in Custom Round Enclosure
Channel Microwave
$193.00Was: $500.00Channel Microwave AU323-5 Antenna in Custom Round Enclosure Condition: UsedThis used antenna has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use and functional. Please view our...35712- SKU:
- 35712
- Weight:
- 34.00 LBS
$193.00Was: $500.00 -
Avantek ATM-18033 12-18 GHz RF Microwave System Narda S213D Teledyne CS33SIC-T
Avantek
$550.00Was: $1,100.00Avantek ATM-18033 12-18 GHz RF Microwave System Narda S213D Teledyne CS33SIC-TWideband RF microwave assembly operating in the Ku-Band frequency range of 12 to 18 GHz. Complete chassis-mounted system combining signal amplification, attenuation, switching,...49561- SKU:
- 49561
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Avantek
- Model:
- ATM-18033
- Secondary Model:
- AMT-18033
- MPN:
- ATM-18033
- SKU:
- 49561
- Type:
- Microwave RF Assembly / Wideband Signal Amplifier System
- Frequency Range:
- 12 to 18 GHz
- Frequency Band:
- Ku-Band
- Component 1:
- Avantek ATM-18033 Wideband Small Signal Amplifier 12-18 GHz
- Component 2:
- VMC Vectronics Microwave Corp DAD1114-80 Digital Attenuator
- Component 3:
- Narda S213D SPST Switch
- Component 4:
- Narda 4316-2 2-Way Power Divider
- Component 5:
- Teledyne Microwave CS33SIC-T Module 24-30 VDC (Qty 2)
- Component 6:
- Varian VSR 9050BTA
- Component 7:
- Microwave Associates 8R45F Module
- Component 8:
- ARRA Attenuator
- Power Requirements:
- 24-30 VDC (Teledyne CS33SIC-T modules)
- Connector Type:
- SMA (gold-plated), D-Sub
- Form Factor:
- Chassis / Board Assembly
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Complete multi-component RF microwave assembly on chassis; all sub-modules included as listed.
- Condition Notes:
- Avantek ATM-18033 12-18 GHz RF microwave assembly inspected and in good used condition. Pulled from a working environment where it was in use and functional. All listed sub-components present on chassis.
$550.00Was: $1,100.00 -

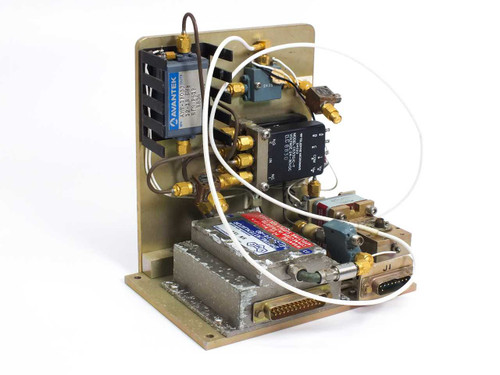

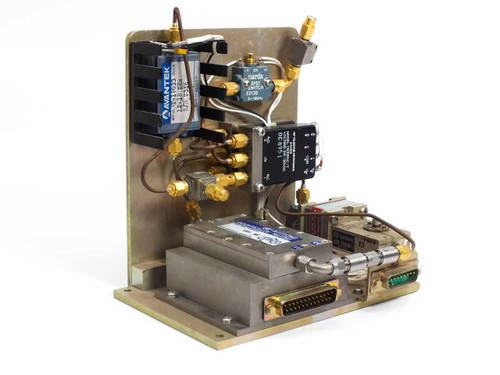

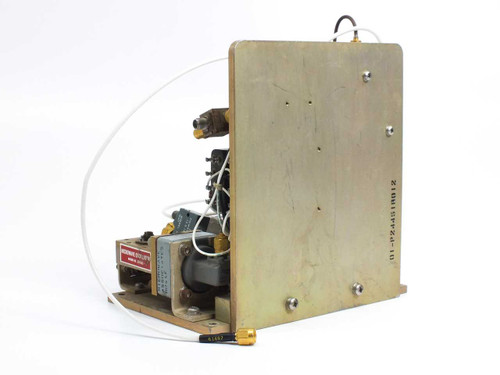

Avantek ATM-18033 12-18 GHz Wideband Amplifier RF Microwave Assembly w/ Narda
Avantek
$550.00Was: $1,100.00Avantek ATM-18033 12-18 GHz Wideband Amplifier RF Microwave Assembly w/ Narda S213DThis is a multi-component RF and microwave signal assembly built around an Avantek ATM-18033 wideband small signal amplifier covering 12.0 to 18.0 GHz (Ku-band). The...49560- SKU:
- 49560
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Avantek
- Model:
- ATM-18033
- MPN:
- ATM-18033
- Type:
- RF Microwave Amplifier Assembly
- SKU:
- 49560
- Frequency Range:
- 12 to 18 GHz
- Amplifier Type:
- Wideband Small Signal Amplifier
- Frequency Band:
- Ku-Band
- Country/Region of Manufacture:
- United States
- Form Factor:
- Chassis/Module Assembly
- Included Component 1:
- Avantek ATM-18033 Wideband Amplifier 12-18 GHz (Qty 1)
- Included Component 2:
- VMC Vectronics DAD1114-80 Digital Attenuator (Qty 1)
- Included Component 3:
- Narda S213D SPST Switch 2-18 GHz (Qty 1)
- Included Component 4:
- Teledyne Microwave CS33SIC-T Module 24-30 VDC (Qty 2)
- Included Component 5:
- Varian VSR 9050BTA (Qty 1)
- Included Component 6:
- Microwave Associates 8R45F Module (Qty 1)
- Included Component 7:
- ARRA 9412-6 Attenuator (Qty 1)
- Included Component 8:
- ARRA 9412-10 Attenuator (Qty 1)
- Connector Type:
- SMA (coaxial), D-Sub
- Control Voltage:
- 24-30 VDC (Teledyne modules)
- Narda Switch Model:
- S213D, 2-18 GHz SPST
- VMC Attenuator Model:
- DAD1114-80 Digital Attenuator
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Complete multi-component RF assembly; all sub-modules listed above are included as shown.
- Condition Notes:
- Avantek ATM-18033 12-18 GHz RF amplifier assembly inspected and in good used condition. Pulled from a working environment where it was actively in use and functional. All listed sub-components present. SMA and D-Sub connectors intact.
$550.00Was: $1,100.00
