Description
Avantek ATM-18033 12-18 GHz RF Microwave System Narda S213D Teledyne CS33SIC-T
Wideband RF microwave assembly operating in the Ku-Band frequency range of 12 to 18 GHz. Complete chassis-mounted system combining signal amplification, attenuation, switching, and power distribution for microwave signal processing applications.
Specifications & What's Included
- Frequency Range: 12–18 GHz (Ku-Band)
- Avantek ATM-18033 Wideband Small Signal Amplifier
- Narda S213D SPST Switch and Narda 4316-2 2-Way Power Divider
- VMC Vectronics DAD1114-80 Digital Attenuator; ARRA Attenuator
- Two Teledyne CS33SIC-T Modules (24–30 VDC)
- Varian VSR 9050BTA and Microwave Associates 8R45F modules
- SMA and D-Sub connectors; chassis form factor
- Power: 24–30 VDC
Applications
Ku-Band RF microwave assemblies of this type are used in satellite communications, radar systems, and test and measurement equipment. These integrated systems provide signal conditioning, amplification, and routing for coherent and non-coherent signal processing. Historically used in telecom infrastructure, military communications platforms, and aerospace testing environments where precise microwave signal control across the 12–18 GHz band is required.

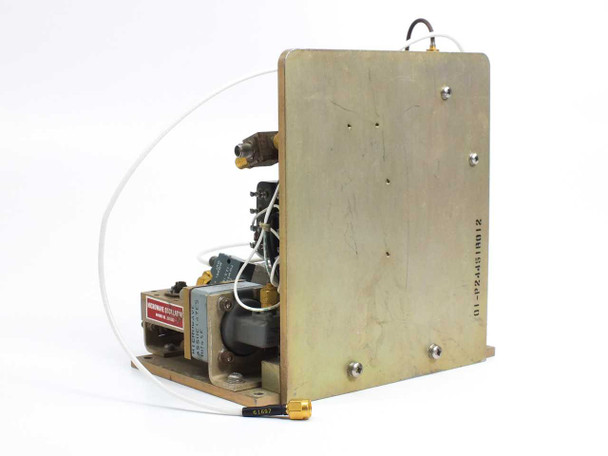

This Avantek ATM-18033 12-18 GHz RF microwave assembly has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The brass chassis and all mounted sub-components appear intact, with normal wear consistent with lab or field service use. SMA connectors and D-sub connectors are present and show no obvious damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Avantek |
Model: |
ATM-18033 |
Secondary Model: |
AMT-18033 |
MPN: |
ATM-18033 |
SKU: |
49561 |
Type: |
Microwave RF Assembly / Wideband Signal Amplifier System |
Frequency Range: |
12 to 18 GHz |
Frequency Band: |
Ku-Band |
Component 1: |
Avantek ATM-18033 Wideband Small Signal Amplifier 12-18 GHz |
Component 2: |
VMC Vectronics Microwave Corp DAD1114-80 Digital Attenuator |
Component 3: |
Narda S213D SPST Switch |
Component 4: |
Narda 4316-2 2-Way Power Divider |
Component 5: |
Teledyne Microwave CS33SIC-T Module 24-30 VDC (Qty 2) |
Component 6: |
Varian VSR 9050BTA |
Component 7: |
Microwave Associates 8R45F Module |
Component 8: |
ARRA Attenuator |
Power Requirements: |
24-30 VDC (Teledyne CS33SIC-T modules) |
Connector Type: |
SMA (gold-plated), D-Sub |
Form Factor: |
Chassis / Board Assembly |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Complete multi-component RF microwave assembly on chassis; all sub-modules included as listed. |
Condition Notes: |
Avantek ATM-18033 12-18 GHz RF microwave assembly inspected and in good used condition. Pulled from a working environment where it was in use and functional. All listed sub-components present on chassis. |
