Dallas Semiconductor DS1982U-F5 iButton 1KB EPROM 1-Wire Data Carrier Maxim
Dallas Semiconductor
$40.00Was: $75.00Dallas Semiconductor DS1982U-F5 iButton 1KB EPROM 1-Wire Data Carrier Maxim Lot/10 1-Wire EPROM data carrier in stainless steel iButton form factor. Stores 1KB of user-programmable data and communicates via single-wire serial protocol with parasitic...52767- SKU:
- 52767
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Dallas Semiconductor
- Model:
- DS1982U-F5
- MPN:
- DS1982U-F5
- SKU:
- 52767
- Condition:
- Open Box
- Quantity:
- 10 pieces per lot
- Memory Capacity:
- 1KB (1024 bits) EPROM
- Protocol:
- 1-Wire
- Package / Form Factor:
- F5 iButton (stainless steel disk)
- Family Code:
- 09h
- Serial Number Type:
- 48-bit unique + 8-bit CRC + 8-bit Family Code
- Programming:
- User-programmable; write-protect capable
- Power Supply:
- Parasitic power from 1-Wire line (no external supply)
- Data Transfer:
- Serial via 1-Wire single data lead + ground return
- Compatible With:
- Optibreed Analyzer credit card systems
- Compatible With 2:
- Any 1-Wire host (microcontroller single port pin)
- Country of Manufacture:
- United States
- Seller Notes:
- Lot of 10 open-box iButtons; may have adhesive residue on backs
- Condition Notes:
- These Dallas Semiconductor DS1982U-F5 iButton EPROM data carriers are open-box units previously attached to Optibreed Analyzer credit cards. Some units may have adhesive residue on the back contact face from card removal.
$40.00Was: $75.00 -

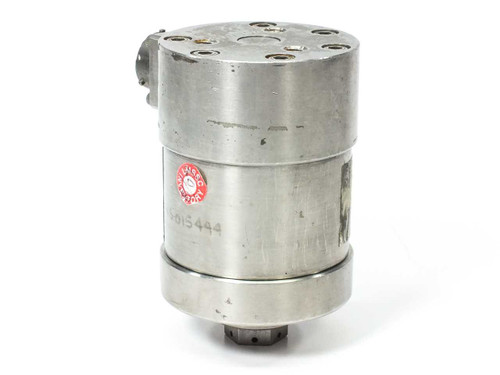

Teledyne Taber 206-SA Pressure Transducer 0-1500 PSIG 350 Ohm Aerospace
Teledyne Taber
$125.00Was: $250.00Teledyne Taber 206-SA Pressure Transducer 0-1500 PSIG 350 Ohm AerospaceStrain gauge pressure transducer for measuring gauge pressure in high-pressure applications. Output 350 Ohm resistance with mil-spec circular connector.Specifications & What's...50073- SKU:
- 50073
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Teledyne Taber
- Model:
- 206-SA
- MPN:
- 206-SA
- Type:
- Pressure Transducer
- SKU:
- 50073
- Pressure Range:
- 0-1500 PSIG
- Resistance:
- 350 Ohm
- Measurement Type:
- Gauge Pressure (PSIG)
- Transducer Technology:
- Strain Gauge
- Connector Type:
- Multi-pin circular mil-spec connector
- Housing Material:
- Stainless Steel
- Application:
- Aerospace, Rocket Motor Testing, High-Pressure Industrial
- Country/Region of Manufacture:
- United States
- Manufacturer:
- Taber Instrument Corporation, North Tonawanda, NY
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Transducer only; inspected and in good used condition. Previously used on space shuttle rocket motor chamber pressure measurement.
- Condition Notes:
- Teledyne Taber 206-SA pressure transducer, 0-1500 PSIG. Inspected and in good used condition; pulled from active service. Stainless steel body shows typical field wear and surface scuffing. Connector appears intact.
$125.00Was: $250.00 -
Hughes 7742911 Utility Computer VME Board Card 7729305-099 SSEL Command
Hughes
$500.00Was: $1,000.00Hughes 7742911 Utility Computer VME Board Card 7729305-099 SSEL Command GeneratorVME utility computer board card designed for satellite ground support equipment command generation. Extracted from Hughes/SSEL 7746600-100 Command Generator VME systems...48329- SKU:
- 48329
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Hughes
- Model:
- 7742911
- MPN:
- 7742911
- Secondary Model:
- 7729305-099
- Type:
- VME Utility Computer Board Card
- SKU:
- 48329
- Form Factor:
- VME Card/Module
- Bus Type:
- VMEbus
- Compatible With:
- Hughes/SSEL 7746600-100 Command Generator VME
- Interface Type:
- Serial (DB9) x2, Parallel connector
- Connectors:
- 2x DB9 serial (SER A, SER B), parallel I/O connector
- Application:
- Satellite Ground Support Equipment / Aerospace
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Pulled from Hughes/SSEL 7746600-100 Command Generator VME system
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes 7742911 Utility VME Board Card (7729305-099) pulled from a Hughes/SSEL 7746600-100 Command Generator VME system. Inspected and in good used condition. PCB clean, connectors intact, no visible damage.
$500.00Was: $1,000.00 -

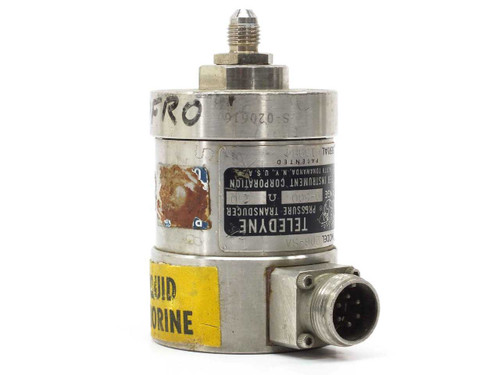

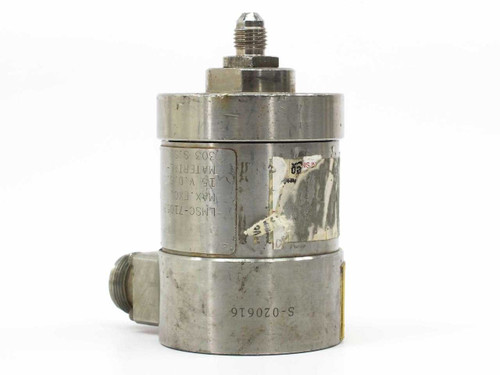

Teledyne Taber 206-SA Pressure Transducer 0-500 PSI 350 Ohm Aerospace
Teledyne Taber
$125.00Was: $250.00Teledyne Taber 206-SA Pressure Transducer 0-500 PSI 350 Ohm AerospaceStrain gauge pressure transducer for high-pressure measurement applications. Uses a Wheatstone bridge configuration to convert pressure into electrical signal output.Specifications...48036- SKU:
- 48036
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Teledyne Taber
- Model:
- 206-SA
- MPN:
- 206-SA
- Type:
- Pressure Transducer
- SKU:
- 48036
- Manufacturer:
- Taber Instrument Corporation
- Manufacturer Location:
- North Tonawanda, NY, USA
- Pressure Range:
- 0-500 PSI
- Bridge Resistance:
- 350 Ohms
- Transducer Technology:
- Strain Gauge / Wheatstone Bridge
- Body Material:
- Stainless Steel
- Pressure Port:
- Male AN/MS Fitting (top port visible)
- Electrical Connector:
- Multi-pin circular connector (side-exit)
- Application:
- Aerospace, High Pressure Measurement
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected
- Seller Notes:
- Unit only; documented space shuttle program provenance per original listing.
- Condition Notes:
- Teledyne Taber 206-SA Pressure Transducer, 0-500 PSI, 350 ohm. Inspected; good used condition. Shows surface wear, scuffing, rust spotting, and label wear consistent with aerospace service. Connector and pressure port intact.
$125.00Was: $250.00 -
Teledyne Taber 176 Pressure Transducers 0-2000 PSI 350 Ohms
Teledyne Taber
$97.00Was: $225.00Teledyne Taber 176 Pressure Transducers 0-2000 PSI 350 Ohms Condition: UsedThis used aerospace equipment has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use and functional. Please...39249- SKU:
- 39249
- Weight:
- 4.00 LBS
$97.00Was: $225.00 -
Teledyne Taber 217 Pressure Transducer 0-200 PSI Bonded Strain Gage
Teledyne Taber
$20.10Was: $55.00Teledyne Taber 217 Pressure Transducer 0-200 PSI Bonded Strain Gage The Teledyne Taber 217 Pressure Transducer is a high-precision instrument designed for accurate pressure measurement in industrial and scientific applications. With a pressure range of 0...39248- SKU:
- 39248
- Weight:
- 4.00 LBS
$20.10Was: $55.00 -
Precise Sensors 0-1000 PSIG Transducer 111-2-1000-01-G-35-10-B6
Precise Sensors
$24.10Was: $65.00Precise Sensors 111-2-1000-01-G-35-10-B6 0-1000 PSIG Transducer Condition: UsedThis item has been inspected and it is in good condition.39242- SKU:
- 39242
- Weight:
- 1.00 LBS
$24.10Was: $65.00 -
Mil-H-25579 S38208-0104S260 Hydraulic Hose Assembly 1500 PSI 45-Degree Fittings
Generic
$25.00Was: $50.00Mil-H-25579 S38208-0104S260 Hydraulic Hose Assembly 1500 PSI 45-Degree FittingsMilitary-specification hydraulic hose assembly rated for 1500 PSI operation. Features 45-degree swaged elbow fittings on both ends with yellow plastic port caps installed...38913- SKU:
- 38913
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Unbranded
- Model:
- S38208-0104S260
- MPN:
- S38208-0104S260
- Secondary Model:
- 78570
- Type:
- Hydraulic Hose Assembly
- Military Specification:
- MIL-H-25579
- NSN / Stock Number:
- IRM4720-148-8639
- Contract Number:
- N00383-74-C-0689
- Fitting Style:
- 45-Degree Swaged Elbow, Both Ends
- End Caps:
- Yellow plastic port caps installed, both ends
- Hose Color:
- Red
- Date Code:
- 2/74 (February 1974)
- Certification / Standard:
- MIL-H-25579
- Application:
- Military / Aerospace Hydraulic Systems
- SKU:
- 38913
- Condition:
- New Old Stock (NOS) — unused, in original military box
- Seller Notes:
- Includes original military cardboard box. Yellow port caps on both ends.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- New old stock (NOS) Mil-H-25579 S38208-0104S260 hydraulic hose assembly. Unused, both port caps in place, hose label intact. Comes in original military box dated 2/74. Box shows shelf wear; hose is unissued.
$25.00Was: $50.00
