Motorola Aviation Electronics

Motorola Aviation Electronics 5613A VHF Receiver 14/28 VDC 1.5/.75A Assy

(No reviews yet) Write a Review
SKU:
33606
MPN:
5613A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout
  • Motorola Aviation Electronics 5613A VHF Receiver — three-quarter front-left view showing elongated chassis, vented housing, and attached wiring harness with circular connectors
  • Motorola 5613A VHF Receiver — right side view showing full chassis length, blue data label, and wiring harness with bare wire leads
  • Motorola 5613A VHF Receiver — close-up of two multi-pin circular aviation connectors attached to wiring harness
  • Motorola 5613A VHF Receiver — close-up of red insulated wire lead with spade terminal
  • Motorola 5613A VHF Receiver — close-up of blue insulated wire lead with spade terminal

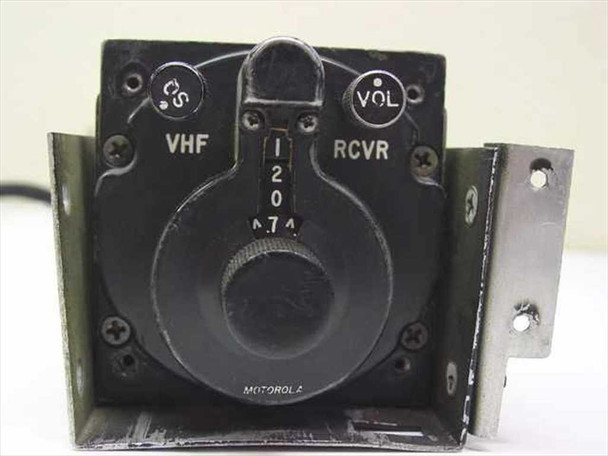

  • Motorola 5613A VHF Receiver — front panel view showing VHF RCVR label, channel selector dial with frequency positions, squelch and volume knobs, and Motorola branding

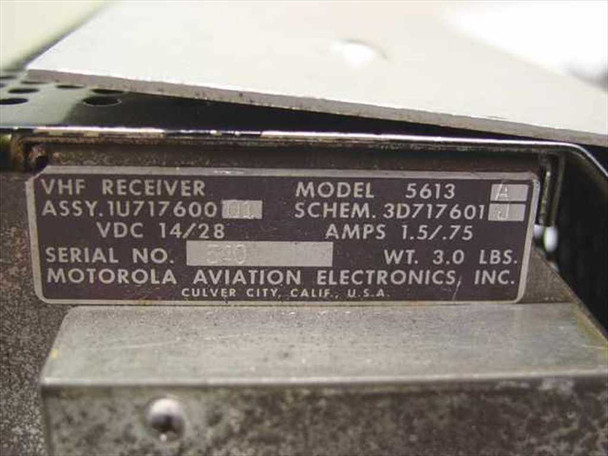

  • Motorola Aviation Electronics 5613A VHF Receiver — data plate showing Model 5613A, Assy 1U717600, Schematic 3D717601, VDC 14/28, Amps 1.5/.75, and Motorola Aviation Electronics Inc. Culver City Calif. USA
$65.00
Was: $125.00
Current Stock: 2

Sold Out

Description

Motorola Aviation Electronics 5613A VHF Receiver 14/28 VDC 1.5/.75A Assy 1U717600

VHF aircraft receiver designed for aviation and avionics applications. Operates on 14 or 28 VDC power with selectable current draw and mounts as a 1U panel/rack component.

Specifications & What's Included

  • Model: Motorola 5613A (MPN 1U717600)
  • Type: VHF Aircraft Receiver
  • Power: 14/28 VDC; 1.5A @ 14 VDC / 0.75A @ 28 VDC
  • Connectors: Multi-pin circular aviation connectors
  • Form Factor: 1U panel/rack mount chassis
  • Manufactured: Culver City, California, USA
  • Includes: Attached wiring harness with aviation connectors

Applications

VHF receivers of this type were standard components in aircraft communication systems and avionics installations from the 1970s onward. This unit is typical of equipment found in general aviation aircraft, commercial airliners, and ground-based aviation support systems. The dual-voltage design accommodates both 14 VDC (single-engine aircraft) and 28 VDC (multi-engine aircraft) electrical systems. Motorola aviation receivers like this model were widely used for navigation, communication monitoring, and ground-to-air coordination.

Condition: Used
This Motorola Aviation Electronics 5613A VHF Receiver has been inspected and appears to be in good condition. The chassis and housing show age-appropriate wear consistent with vintage avionics equipment — the front panel label is legible, the channel selector and knobs are intact, and the data plate is fully readable. The attached wiring harness is present with its multi-pin circular aviation connectors and bare/spade-terminated leads. Some surface wear and oxidation are visible on the chassis exterior, which is normal for equipment of this era. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Motorola
Model:
5613A
MPN:
5613A
Secondary Model:
1U717600
Schematic Number:
3D717601
Type:
VHF Aircraft Receiver
SKU:
33606
Power Requirements:
14/28 VDC
Current Draw:
1.5A (14 VDC) / 0.75A (28 VDC)
Frequency Band:
VHF
Application:
Aviation / Avionics
Connector Type:
Multi-pin circular aviation connectors
Country/Region of Manufacture:
United States
Manufacturer Location:
Culver City, California, USA
Form Factor:
Panel/Rack Mount — elongated chassis
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes attached wiring harness with aviation circular connectors
Condition Notes:
This Motorola Aviation Electronics 5613A VHF Receiver has been inspected and appears to be in good condition. Chassis shows age-appropriate wear; front panel, knobs, and data plate are intact. Wiring harness with aviation connectors included.
