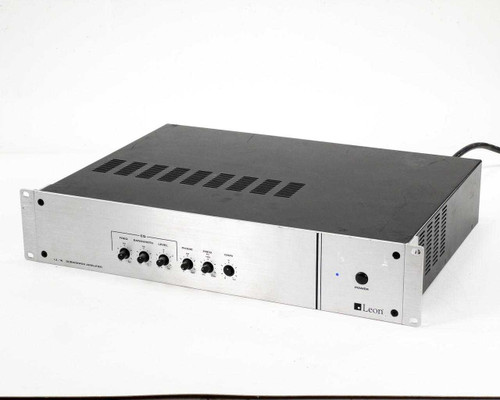

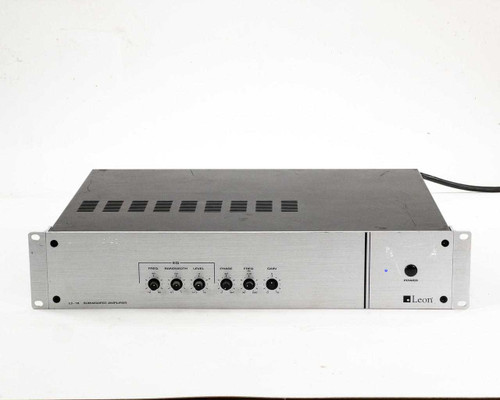

Leon L3-1K Subwoofer Amplifier 1000W Class A/B Dual Ch Rackmount 100-240V
Leon
$248.00Was: $500.00Leon L3-1K Subwoofer Amplifier 1000W Class A/B Dual Ch Rackmount 100-240V The Leon L3-1K is a 1000-watt, dual-channel, Class A/B rackmount subwoofer amplifier designed for dedicated low-frequency amplification in home audio, home theater, and studio...52998- SKU:
- 52998
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 30.00 LBS
- Brand:
- Leon
- Model:
- L3-1K
- MPN:
- L3-1K
- Type:
- Subwoofer Amplifier
- SKU:
- 52998
- Condition:
- As-Is / For Parts or Not Working
- Power Output:
- 1000W
- Amplifier Class:
- Class A/B
- Number of Channels:
- 2
- Line Voltage:
- 100-120VAC / 200-240VAC switchable
- AC Mains Fuse (120V):
- T10AL
- AC Mains Fuse (230V):
- T5AL
- Frequency:
- 50/60Hz
- Standby Power (120V):
- 24W
- Standby Power (230V):
- 18.4W
- Crossover Frequency Range:
- 30-200Hz (with bypass)
- Bass Boost:
- -3 dB @ 25 Hz, Q = 1.4
- High Pass Filter:
- -3 dB @ 80 Hz, 12 dB/octave
- Minimum Speaker Impedance:
- 4 Ohms combined load
- Input Connectors:
- RCA (L/R, LFE); 3.5mm 12V trigger
- Output Connectors:
- Binding post speaker outputs; RCA High Pass output
- Remote Turn On:
- Manual, Auto, or 12V Trigger
- Subsonic Filter:
- Switchable
- Bass Boost Filter:
- Switchable
- EQ:
- Low frequency parametric EQ (Freq, Bandwidth, Level controls)
- Form Factor:
- Rackmount, 2U
- Rack Mount Brackets:
- Included
- Country/Region of Manufacture:
- China
- Certifications:
- UL Listed (E205670), CE
- Seller Notes:
- Sold AS-IS. Powers on; High Pass output functional. Other audio outputs not working.
- Condition Notes:
- This Leon L3-1K 1000W Dual Channel Subwoofer Amplifier is being sold AS-IS for parts or repair. The unit does power on, and we have tested it to produce audio output through the High Pass output; however, the remaining audio outputs are not
$248.00Was: $500.00 -
ORA Electronics ID3000 Booster Amplifier 806-821 Tx 851-866 MHz Rx DC 12V BNC
ORA Electronics
$55.00Was: $100.00ORA Electronics ID3000 Booster Amplifier 806-821 Tx 851-866 MHz Rx DC 12V BNCRF booster amplifier designed for mobile radio and telecommunications applications. Operates in the 800 MHz cellular band with separate transmit and receive frequency ranges...46538- SKU:
- 46538
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- ORA Electronics
- Model:
- ID3000
- MPN:
- ID3000
- FCC ID:
- LTFCBI
- Type:
- RF Booster Amplifier
- SKU:
- 46538
- Frequency Range (Tx):
- 806-821 MHz
- Frequency Range (Rx):
- 851-866 MHz
- Power Requirements:
- DC 12V
- Input Connector:
- BNC (N-type flange mount)
- Output Connector:
- BNC (N-type flange mount)
- Power Indicator:
- LED power indicator on output panel
- Form Factor:
- Desktop / Compact Enclosure with Heatsink
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Unit only; no power supply included. DC 12V input connector present.
- Country/Region of Manufacture:
- Japan
- Condition Notes:
- ORA Electronics ID3000 RF Booster Amplifier, inspected and in good used condition. Heatsink shows light wear; BNC connectors intact. No power supply included. Please view photos and contact us with questions.
$55.00Was: $100.00 -
Watkins-Johnson WJ-5201-49 Medium Power Solid State Amplifier 1.7-2.0 GHz +20V
Watlkins-Johnson
$45.00Was: $90.00Watkins-Johnson WJ-5201-49 Medium Power Solid State Amplifier 1.7-2.0 GHz +20VMedium power solid state RF amplifier operating in the 1.7–2.0 GHz band. Designed for bench-level and integrated RF system applications requiring linear amplification at +20V...33454- SKU:
- 33454
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Watkins-Johnson
- Model:
- WJ-5201-49
- MPN:
- WJ-5201-49
- Type:
- Medium Power Solid State RF Amplifier
- SKU:
- 33454
- Frequency Range:
- 1.7–2.0 GHz
- Power Supply Voltage:
- +20V DC
- Connector Type:
- SMA (IN and OUT)
- Form Factor:
- Benchtop / Module
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only — no additional accessories included.
- Condition:
- Used – Inspected and in Good Condition
- Condition Notes:
- Watkins-Johnson WJ-5201-49 Solid State Amplifier, 1.7–2.0 GHz. Inspected and in good used condition. Minor surface wear on chassis. SMA connectors and power terminals intact.
$45.00Was: $90.00
