Hughes

Hughes 7742911 Utility Computer VME Board Card 7729305-099 SSEL Command

(No reviews yet) Write a Review
SKU:
48329
MPN:
7742911
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Hughes 7742911 Utility VME Board Card front component side showing ICs, memory chips, DB9 connectors and front panel

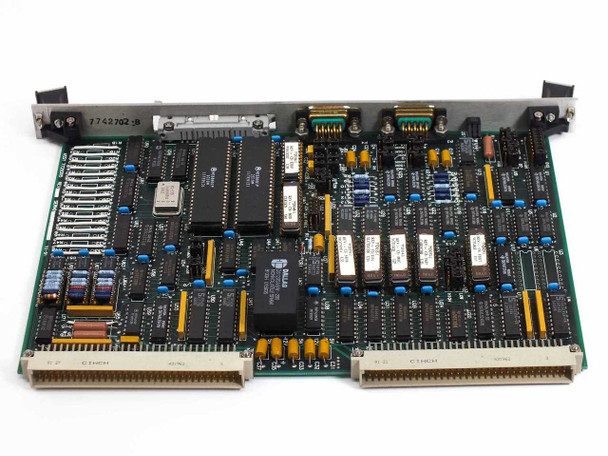

  • Hughes 7742911 VME board card component side reverse angle showing main processor ICs and VMEbus edge connectors

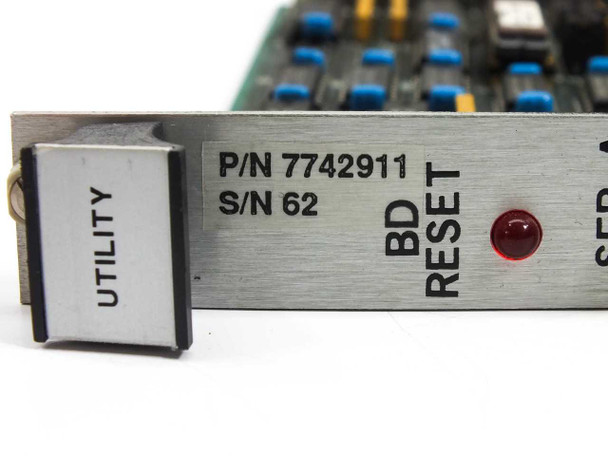

  • Hughes 7742911 VME card front panel close-up showing P/N 7742911 label, S/N 62, BD RESET button and red LED indicator

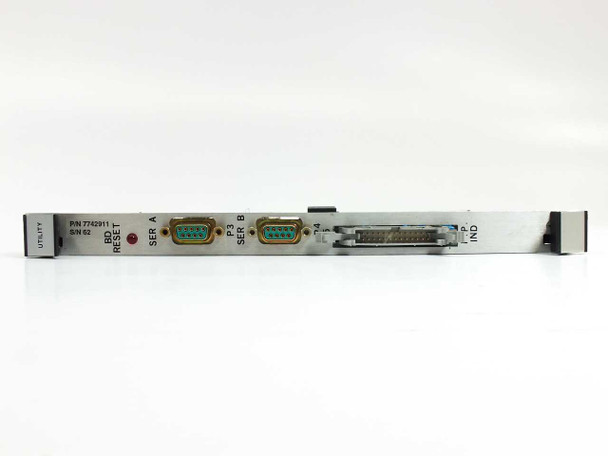

  • Hughes 7742911 VME board card front panel edge view showing SER A and SER B DB9 serial connectors and parallel I/O connector

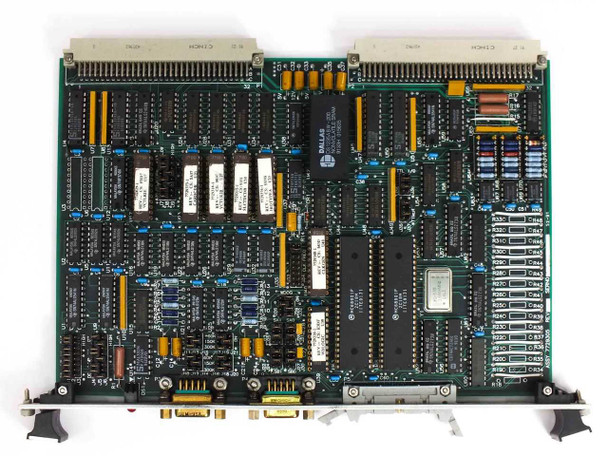

  • Hughes 7742911 VME utility board card rear component side showing Dallas IC, oscillator, and dual VMEbus P1/P2 edge connectors
$500.00
Was: $1,000.00
Current Stock: 4

Sold Out

Description

Hughes 7742911 Utility Computer VME Board Card 7729305-099 SSEL Command Generator

VME utility computer board card designed for satellite ground support equipment command generation. Extracted from Hughes/SSEL 7746600-100 Command Generator VME systems.

Specifications & What's Included

  • Model: Hughes 7742911 (MPN 7729305-099)
  • Form Factor: VME card/module
  • Bus Type: VMEbus
  • Connectors: 2x DB9 serial (SER A, SER B), parallel I/O connector
  • Interfaces: Serial and parallel
  • Application: Satellite ground support equipment, aerospace
  • Manufactured: United States

Applications

This VME utility computer board was used in Hughes aerospace and satellite command systems. It serves as a control interface within larger ground support equipment architectures, handling serial and parallel communications for command generation and data processing. Compatible with Hughes/SSEL 7746600-100 Command Generator VME systems.

Condition: Used
This Hughes 7742911 Utility VME Board Card (secondary P/N 7729305-099) has been inspected and is in good used condition. The card was pulled from a Hughes/SSEL 7746600-100 Command Generator VME system. The PCB is clean with no visible damage, cracked traces, or missing components. The front panel is intact, and both DB9 serial connectors appear undamaged. Normal light handling wear is present consistent with prior installation in a VME chassis. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes
Model:
7742911
MPN:
7742911
Secondary Model:
7729305-099
Type:
VME Utility Computer Board Card
SKU:
48329
Form Factor:
VME Card/Module
Bus Type:
VMEbus
Compatible With:
Hughes/SSEL 7746600-100 Command Generator VME
Interface Type:
Serial (DB9) x2, Parallel connector
Connectors:
2x DB9 serial (SER A, SER B), parallel I/O connector
Application:
Satellite Ground Support Equipment / Aerospace
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Pulled from Hughes/SSEL 7746600-100 Command Generator VME system
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 7742911 Utility VME Board Card (7729305-099) pulled from a Hughes/SSEL 7746600-100 Command Generator VME system. Inspected and in good used condition. PCB clean, connectors intact, no visible damage.
View AllClose

Related Products

Related Products

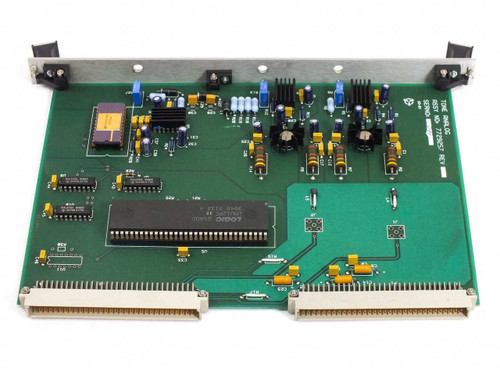

Hughes 7729257 Tone Analog VME Board Card front view showing component side with dual VME edge connectors and front panel tab Hughes 7729257-099 Tone Analog VME Board Card reverse side showing LOGIC chip, capacitors, and dual VME bus connectors
Add to Cart
Quick view

Hughes 7729257 Tone Analog VME Board Card 7729257-099 SSEL Command Generator

Hughes

$150.00
Was: $300.00
Hughes 7729257 Tone Analog VME Board Card 7729257-099 SSEL Command GeneratorThe Hughes 7729257 (P/N 7729257-099) is a Tone Analog VME board card designed for use in the Hughes / SSEL (Satellite...
48327
SKU:
48327
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Hughes
Model:
7729257
MPN:
7729257-099
Secondary Model:
7729257-099
SKU:
48327
Type:
Tone Analog VME Board Card
Form Factor:
VME Card/Module
Compatible With:
Hughes/SSEL 7746600-100 Command Generator VME
Application:
Satellite Command Generator System
Bus Interface:
VME
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; pulled from Hughes/SSEL 7746600-100 Command Generator VME system
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 7729257 Tone Analog VME Board Card (7729257-099) pulled from a Hughes/SSEL 7746600-100 Command Generator VME system where it was in use and functional. Inspected and in good condition. PCB clean, connectors intact.

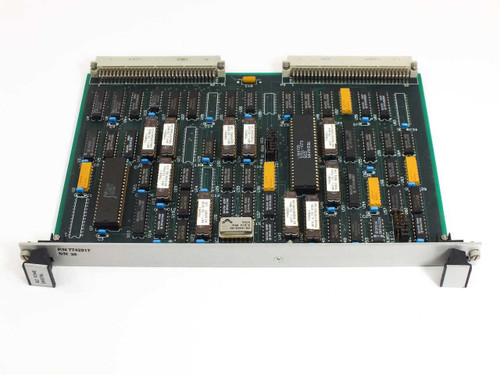

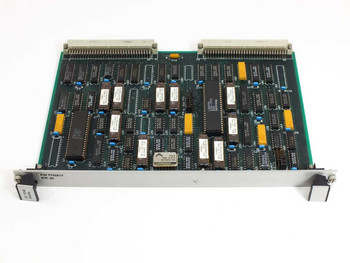

Hughes 7742917 RZ Tone Digital VME Board Card Assembly — component side top view showing ICs and front panel faceplate Hughes 7742917 VME Board Card — reverse component side showing DIP ICs, connectors, and rear edge VME backplane connectors
