SSEL Hughes 7746600-100 Satellite Command Generator VME Rack 7746604-100

(No reviews yet) Write a Review
SKU:
39399
MPN:
7746600-100
Condition:
Used
Availability:
Usually ships within 3-5 business days due to size and packaging requirements.
Weight:
61.00 LBS
Shipping:
Calculated at Checkout

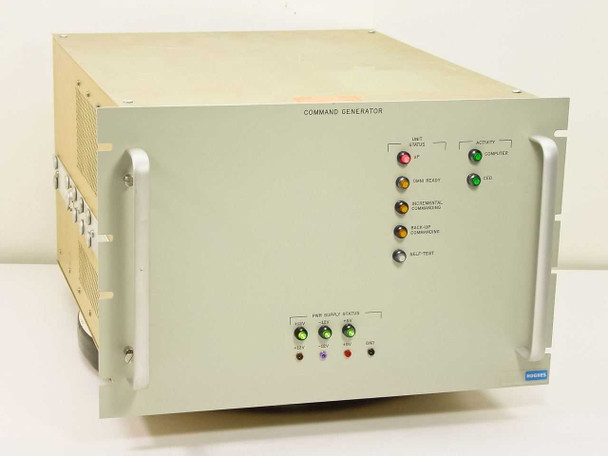

  • SSEL Hughes 7746600-100 Satellite Command Generator VME rack front panel with status indicators and power supply status LEDs
  • SSEL Command Generator front panel PWR SUPPLY STATUS section showing +12V, -12V, +5V indicator lights and banana jack test points all illuminated green

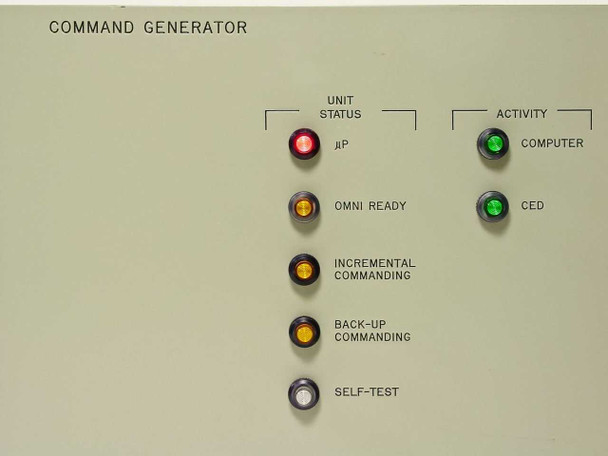

  • SSEL Command Generator front panel closeup showing Unit Status and Activity indicator lights: uP, OMNI Ready, Incremental Commanding, Back-Up Commanding, Self-Test, Computer, CED
  • SSEL Hughes 7746600-100 Command Generator rear panel showing dual cooling fans, D-sub connectors, BNC tone output connectors, tone level adjust switches, and IEC AC power inlet
  • SSEL Command Generator identification label showing P/N 7746600-100, H/W 7746604-100, F/W 7729349-100 Rev A, S/N 011, manufactured by Satellite Support Equipment Laboratories Aurora Colorado

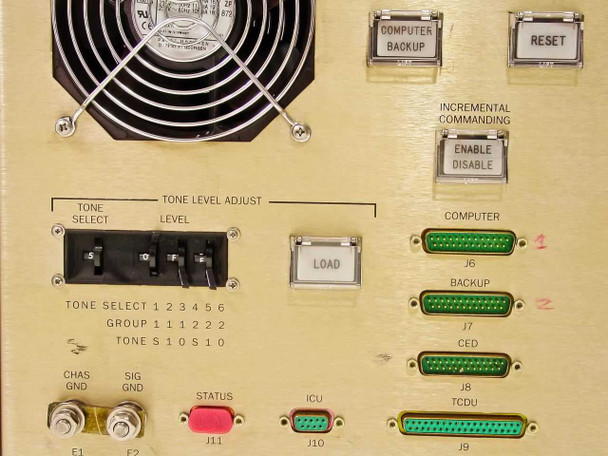

  • SSEL Command Generator rear panel left section showing Tone Level Adjust switches, Computer Backup and Reset buttons, Incremental Commanding Enable/Disable switch, and D-sub connectors J6-J9
  • SSEL Command Generator rear panel right section showing Command Trigger BNC J2, Tone Output BNCs RZ1/RZ2/SGLS (J3-J5), elapsed time meter M1, and IEC AC power inlet J1
  • SSEL Command Generator interior with front doors open showing loaded VME card cage with multiple plug-in cards installed and Lambda power supply unit visible at right
  • SSEL Command Generator VME card cage closeup showing Tone Analog P/N 7729257 (S/N 43), RZ Tone Digital P/N 7742917 (S/N 34), Utility P/N 7742911 (S/N 60), Motorola MVME 335, and Force Computers SYS68K CPU-4VC cards with serial and D-sub connectors
  • Lambda Electronics LND-Y-152 regulated power supply label showing dual output, 105-127V or 210-250V AC input, +/-12 to 15VDC output, Rev B
  • SSEL Command Generator interior bottom showing main power distribution board, wiring harnesses, and dual cooling fans
$2,200.00
Was: $4,400.00
Current Stock: 1

Sold Out

Description

SSEL Hughes 7746600-100 Satellite Command Generator VME Rack 7746604-100

7U VMEbus rackmount chassis designed for satellite ground station command and control operations. Houses five VME cards for tone generation, digital command processing, and system management in Hughes/SSEL satellite support systems.

Specifications & What's Included

  • Form Factor: 7U rackmount (25" L × 19" W × 12.25" H)
  • Bus Architecture: VMEbus
  • CPU: Force Computers SYS68K CPU-4VC
  • VME Cards: Motorola MVME 335, Tone Analog (7729257-099), RZ Tone Digital (7742917), Utility (7742911)
  • Power Supply: Lambda LND-Y-152, 105-127V or 210-250V AC input, +12V/-12V/+5V DC outputs
  • Connectors: D-sub (Computer, Backup, CED, TCDU, ICU, Status), BNC tone outputs (RZ1, RZ2, SGLS), IEC AC inlet
  • Front Panel: Unit Status and Activity indicators

Applications

Satellite command generators were deployed in ground control stations to transmit coded commands to orbiting spacecraft. This unit supported Hughes satellite systems and SSEL ground support networks, handling tone and digital command generation, signal routing, and system status monitoring. Typically integrated into larger telemetry and command subsystems for mission-critical satellite operations.

Condition: Used
This SSEL Hughes 7746600-100 Satellite Command Generator VME rack has been inspected and powers on — the front panel status LEDs illuminate as seen in our photos. We were not able to fully test this unit's satellite command functions at our facility, so it is being offered in as-inspected, powers-on condition. All five VME plug-in cards are present and seated: Force Computers SYS68K CPU-4VC (P/N 100413), Motorola VMEmodule MVME 335 (P/N 01-W3530B), Tone Analog (P/N 7729257/7729257-099), RZ Tone Digital (P/N 7742917), and Utility (P/N 7742911). The chassis shows typical wear consistent with prior professional use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SSEL (Satellite Support Equipment Laboratories)
Model:
7746600-100
MPN:
7746600-100
Secondary Model:
7746604-100
Firmware Part Number:
7729349-100
Type:
Satellite Command Generator VME Rack
SKU:
39399
Form Factor:
Rackmount, 7U
Rack Units:
7U
Bus Architecture:
VME (VMEbus)
Included Card 1:
Force Computers SYS68K CPU-4VC, P/N 100413
Included Card 2:
Motorola VMEmodule MVME 335, P/N 01-W3530B
Included Card 3:
Tone Analog, P/N 7729257 / 7729257-099
Included Card 4:
RZ Tone Digital, P/N 7742917
Included Card 5:
Utility, P/N 7742911
Power Supply:
Lambda LND-Y-152, 105-127V or 210-250V AC, dual output
Power Supply Input:
105-127 VAC or 210-250 VAC, 47-63 Hz
Power Supply Output:
+12V, -12V, +5V DC (banana jack test points on front)
Rear Connectors:
D-sub (J6-J9), BNC tone output (J3-J5), IEC AC inlet
Rear Interfaces:
Computer J6, Backup J7, CED J8, TCDU J9, ICU J10, Status J11
Tone Output Connectors:
BNC: RZ1 (J3), RZ2 (J4), SGLS (J5)
Command Trigger:
BNC connector J2 (rear panel)
Front Panel Indicators:
Unit Status: uP, Omni Ready, Incremental Commanding, Back-Up Commanding, Self-Test; Activity: Computer, CED
Dimensions:
25" L x 19" W x 12.25" H
Application:
Satellite ground station command and control
Compatible With:
Hughes / SSEL satellite ground support systems
Country/Region of Manufacture:
United States
Condition:
Used – Powers On, Not Fully Tested
Seller Notes:
VME rack loaded with all cards listed. Powers on and lights up.
Condition Notes:
SSEL Hughes 7746600-100 Satellite Command Generator VME rack powers on and front panel LEDs illuminate. Not fully tested at our facility. All 5 VME cards present. Good cosmetic condition. Contact us with questions.
