Hughes 3814100-100 Sync Command Generator Galaxy II/III Satellite Ground

(No reviews yet) Write a Review
SKU:
39424
MPN:
3814100-100
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
35.00 LBS
Shipping:
Calculated at Checkout
  • Hughes 3814100-100 Synchronous Command Generator – front panel view showing touch entry display and control buttons
  • Hughes 3814100-100 Synchronous Command Generator – rear panel showing connectors, fan, power inlet, and interface labels
  • Hughes Synchronous Command Generator – close-up of front panel nameplate reading 'SYNCHRONOUS COMMAND GENERATOR'
  • Hughes 3814100-100 – close-up of front panel control buttons: Clear Decoder, Transmit Command, Critical Enable, Fail/Reset, Execute
  • Hughes 3814100-100 rear panel – left section showing EXT Controller J4, Monitor Interface J5, Command Tones Out J8, FM RT Input J6/J7, and Hughes label
  • Hughes 3814100-100 rear panel – right section showing PCM Telemetry RS-232 J3 and TTL J9, Computer Interface J2, power switch S1, 120VAC 2A inlet J1, SIG GND and Chassis GND terminals
  • Hughes Aircraft Satellite Ground Equipment Division label – showing SYS: Galaxy II/III, UNIT: Sync Command Generator, PN: 3814100-100, SER: 006
  • Hughes 3814100-100 interior – top-down view of main PCB (AS ASSY 3814102 REV F) with internal boards, ribbon cables, and cooling fan
  • Hughes Synchronous Command Generator PCB – close-up of A2 ASSY 3814102 REV F board markings with crystal oscillator and ICs
  • Hughes Synchronous Command Generator PCB – close-up of A3 ASSY 3808473 REV D board with Hughes Aircraft Company logo and S/N 032
  • Hughes 3814100-100 RF Synchronous Command Generator for Galaxy II/III Satellites
$400.00
Was: $800.00
Current Stock: 3

Sold Out

Description

Hughes 3814100-100 Sync Command Generator Galaxy II/III Satellite Ground

RF synchronous command generator used in Hughes satellite ground control stations. This unit generates and transmits command signals for Galaxy II and Galaxy III satellite operations.

Specifications & What's Included

  • Model: 3814100-100 (Hughes Aircraft Company)
  • Type: RF Synchronous Command Generator
  • Power: 120 VAC, 2A
  • Form Factor: Rackmount
  • Display: IEEE/PEP Interactive Touch Entry (MD: 04282-01)
  • Interfaces: RS-232, TTL, DB-25 computer, DB-9 external controller, DB-15 monitor, RF command tone outputs
  • Front Panel Controls: Clear Decoder, Transmit Command, Critical Enable, Fail/Reset, Execute

Applications

This command generator was used in satellite ground control facilities for Galaxy II and Galaxy III satellite systems. The unit processes and transmits RF command signals to control satellite operations. It integrates with ground station telemetry and monitoring systems via multiple interface standards common to 1980s-2000s telecommunications infrastructure.

Condition: For Parts or Not Working
This Hughes 3814100-100 RF Synchronous Command Generator is being sold as-is for parts or repair. It has not been tested and no functionality is guaranteed. The chassis shows typical age-related wear consistent with satellite ground station service — the rear panel has some surface yellowing/oxidation on the beige paint. The front touch display panel and control buttons are physically intact. Interior boards (A2 ASSY 3814102 REV F and A3 ASSY 3808473 REV D) are present and appear undamaged visually, though no power-on test was performed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes Aircraft Company
Model:
3814100-100
MPN:
3814100-100
Type:
RF Synchronous Command Generator
SKU:
39424
Secondary Model:
3814102 / 3808473
System Compatibility:
Galaxy II / Galaxy III Satellites
Division:
Hughes Satellite Ground Equipment Division
Assembly A2:
ASSY 3814102 REV F
Assembly A3:
ASSY 3808473 REV D
Power Requirements:
120 VAC, 2A
Form Factor:
Rackmount
Display:
IEE / PEP Interactive Touch Entry Display (MD: 04282-01)
Interface – PCM Telemetry:
RS-232 (J3), TTL (J9)
Interface – Computer:
Computer Interface connector J2 (DB-25 style)
Interface – Ext Controller:
EXT Controller J4 (DB-9 style)
Interface – Monitor:
Monitor Interface J5 (DB-15 style)
RF Outputs:
Command Tones Out – J8, FM RT Input – J6, J7
Front Panel Controls:
Clear Decoder, Transmit Command, Critical Enable, Fail/Reset, Execute
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair. Unit may vary from photo.
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 3814100-100 Sync Command Generator sold as-is for parts or repair. Not tested, no functionality guaranteed. Chassis shows age wear; interior boards present and visually intact. Please contact us with questions.
View AllClose

Related Products

Related Products

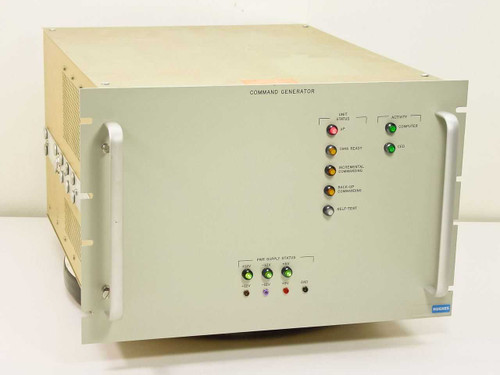

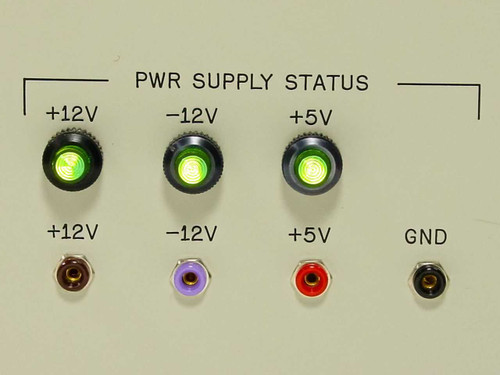

SSEL Hughes 7746600-100 Satellite Command Generator VME rack front panel with status indicators and power supply status LEDs SSEL Command Generator front panel PWR SUPPLY STATUS section showing +12V, -12V, +5V indicator lights and banana jack test points all illuminated green
