Hughes
-

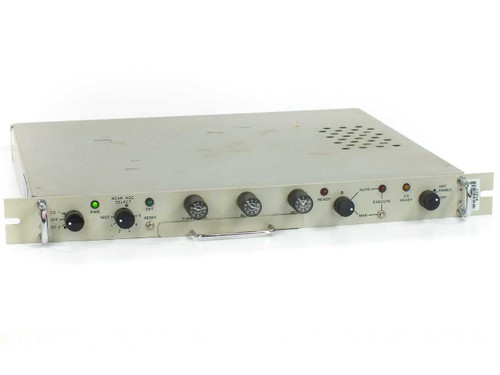

Hughes 3808670-100-1 Westar Incremental Control Unit Rev A RF Satcom
Hughes
$150.00Was: $300.00Hughes 3808670-100-1 Westar Incremental Control Unit Rev A RF SatcomIncremental Control Unit for Westar RF satellite ground systems. This 1U rackmount component manages transmit and receive functions...52284- SKU:
- 52284
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Hughes
- Model:
- 3808670-100-1
- MPN:
- 3808670-100-1
- Type:
- Incremental Control Unit
- SKU:
- 52284
- Revision:
- Rev A
- System:
- Westar
- Division:
- Hughes Satellite Ground Equipment Division
- Application:
- RF Satellite Communications (Satcom)
- Form Factor:
- Rackmount, 1U
- Front Panel Controls:
- PWR, RCVR AGC Select, Reset, Ready, Auto/Man, Execute, CG Ready, XMT Enable
- Rear Connectors:
- IEC AC inlet, DB9 serial ports, BNC coaxial connectors
- Condition:
- Used – Inspected, appears in good condition
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; no accessories included. Inspected and appears in good condition.
- Compatible With:
- Westar RF Satellite Ground Systems
- Condition Notes:
- Hughes 3808670-100-1 Westar Incremental Control Unit Rev A. Inspected, appears in good condition. Light surface wear on chassis. All front panel controls and rear connectors present and intact. Not powered or tested at our facility.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -

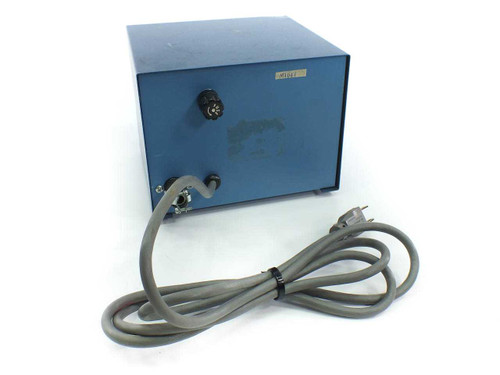

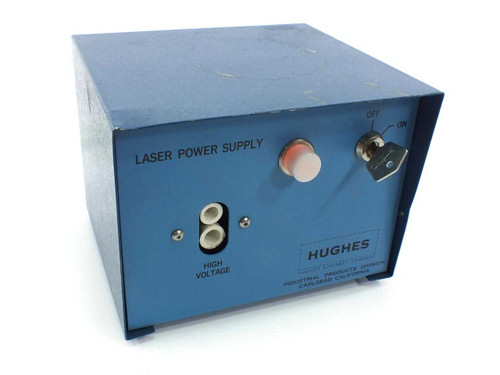

Hughes 3599H Laser Power Supply 115VAC HeNe Melles Griot 25-LHP-991-249
Hughes
$124.00Was: $250.00Hughes 3599H Laser Power Supply 115VAC HeNe Melles Griot 25-LHP-991-249The Hughes 3599H is a benchtop Helium-Neon (HeNe) laser power supply designed to drive red HeNe laser tubes with the...51940- SKU:
- 51940
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Brand:
- Hughes
- Model:
- 3599H
- MPN:
- 3599H
- Type:
- Helium-Neon Laser Power Supply
- SKU:
- 51940
- Input Voltage:
- 115 VAC
- Output Type:
- High Voltage DC (HeNe laser excitation)
- Compatible With:
- Melles Griot 25-LHP-991-249 Red HeNe Laser
- Laser Type:
- Helium-Neon (HeNe)
- Form Factor:
- Benchtop / Desktop
- Includes:
- ON/OFF key, AC power cord
- Connector - Output:
- High Voltage dual-post output
- Connector - Rear:
- Multi-pin circular connector, AC line cord
- Condition:
- Used – Inspected and Tested
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Tested working with Melles Griot 25-LHP-991-249. Includes ON/OFF key and AC power cord.
- Condition Notes:
- Hughes 3599H HeNe Laser Power Supply. Tested and confirmed working with Melles Griot 25-LHP-991-249 Red HeNe Laser. Includes ON/OFF key and AC cord. Good cosmetic condition with light surface wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$124.00Was: $250.00 -

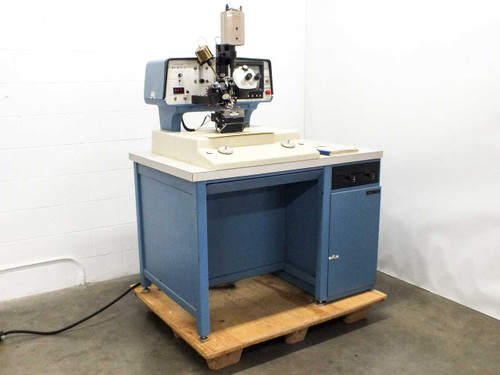

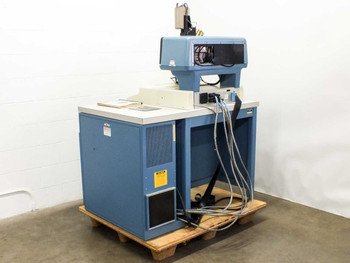

Hughes 2460 HMC-2460 Automatic Wire Bonder WD-8700D1 Rev F w/ Panasonic WV-5350
Hughes
$4,000.00Was: $8,000.00Hughes 2460 HMC-2460 Automatic Wire Bonder WD-8700D1 Rev F w/ Panasonic WV-5350The Hughes Aircraft Model 2460 (also identified as HMC-2460) is a semi-automatic thermosonic/thermocompression wire...51542- SKU:
- 51542
- Availability:
- Usually ships within 5-10 business days — freight shipment required due to size and weight.
- Weight:
- 762.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 2460
- MPN:
- WD-8700D1
- Secondary Model:
- HMC-2460
- Type:
- Automatic Wire Bonder System
- Revision:
- Rev F
- SKU:
- 51542
- Seller Notes:
- Includes Panasonic WV-5350 video monitor and Hughes operator's manual
- Country/Region of Manufacture:
- United States
- Manufacturer Division:
- Hughes Aircraft Company – Industrial Products Division, Carlsbad, CA
- Application / Use Case:
- Semiconductor wire bonding, IC packaging, microelectronics assembly
- Included Video Monitor:
- Panasonic WV-5350
- Monitor Power Requirements:
- 120V AC 60Hz 23W / 12V DC 0.9A
- Monitor Input:
- 1 Vp-p, 75 Ohm
- Monitor Connectors:
- BNC Video IN/OUT, BNC Sync IN/OUT
- Microscope:
- Bausch & Lomb stereo binocular microscope
- Control System:
- Internal card cage with multiple PCB controller boards
- Front Panel Controls:
- Electronic Flame Off, Fiber Light Source, Flow Rate, Feed, Tension
- Overall Dimensions:
- 48" W x 37" D x 66" H
- Condition:
- Used – Not Fully Tested at Facility
- Form Factor:
- Freestanding Benchtop System on Integrated Cabinet
- Included Documentation:
- Hughes Automatic Wire Bonder Operator's Manual
- Condition Notes:
- Hughes 2460 HMC-2460 Automatic Wire Bonder WD-8700D1 could not be fully tested at our facility. Sold in as-found condition. Appears complete with monitor, microscope, card cage, and operator's manual. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$4,000.00Was: $8,000.00 -

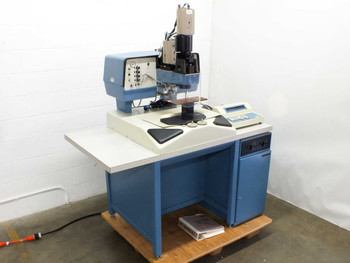

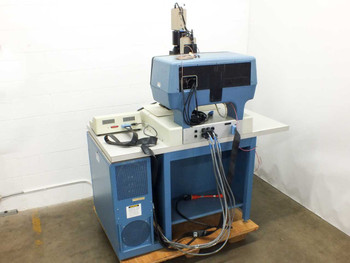

Hughes Aircraft Model 2500 Hybrid Automatic Die Bonder w/ Operator's Guide - AS
Hughes
$5,300.00Was: $10,600.00Hughes Aircraft Model 2500 Hybrid Automatic Die Bonder w/ Operator's Guide Benchtop automatic die bonding system designed for hybrid microelectronics assembly. Supports both eutectic and epoxy...50538- SKU:
- 50538
- Availability:
- This item requires freight shipping — please contact us for a shipping quote before purchasing.
- Weight:
- 895.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 2500
- MPN:
- Model 2500
- SKU:
- 50538
- Condition:
- Used – Inspected, Not Bench-Tested
- Seller Notes:
- Includes Operator's Guide and Maintenance Manual
- Form Factor:
- Benchtop / Floor-Standing Workstation
- Country of Manufacture:
- USA
- Overall Dimensions:
- 62" W x 37" D x 73" H
- Application / Use Case:
- Hybrid Microelectronics Die Bonding / Die Attach
- Machine Type:
- Automatic Die Bonder
- Bonding Method:
- Hybrid Die Bonding (Eutectic / Epoxy capable)
- Control Interface:
- Hughes Industrial Products keyboard controller with LED display
- Vision System:
- Panasonic CRT monitor with integrated camera
- Air / Vacuum:
- Air and dual vacuum ports (J2050 panel)
- Force Control:
- Adjustable via front panel Force Control knob
- Fiber Light Source:
- Integrated fiber optic illumination with brightness control
- Connector Types:
- Multi-pin circular connectors: J2041, J2051, J2052, J2023, J2034
- Shipping Method:
- Freight Required
- Includes:
- Operator's Guide, Maintenance Manual, card cage with boards
- Compatible With:
- Hybrid microelectronics production lines, semiconductor packaging
- Condition Notes:
- Hughes Aircraft Model 2500 Hybrid Automatic Die Bonder sold AS-IS / FOR PARTS OR NOT WORKING. This unit has been visually inspected only and is not tested for operational functionality.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$5,300.00Was: $10,600.00 -

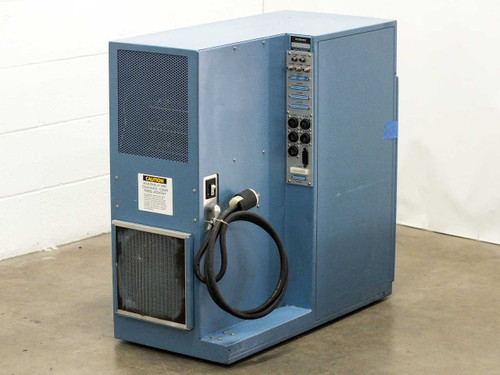

Hughes Aircraft 2470-II Wire Bonder Control Box WD-8702-006 Rev Y with Cards
Hughes
$1,200.00Was: $2,400.00Hughes Aircraft 2470-II Wire Bonder Control Box WD-8702-006 Rev Y with CardsThis is the electronic control enclosure for the Hughes Aircraft Company Model 2470-II Automatic Wire Bonder, part number...50489- SKU:
- 50489
- Availability:
- Usually ships within 3-5 business days via freight carrier — please contact us to arrange shipment.
- Weight:
- 216.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 2470-II
- MPN:
- WD-8702-006
- Secondary Model:
- WD-8702-006 Rev Y
- Type:
- Automatic Wire Bonder Electronic Control Enclosure
- SKU:
- 50489
- Revision:
- Rev Y
- Series:
- 2470-II Automatic Wire Bonder
- Seller Notes:
- Electrical enclosure with control cards only — bonder head not included. Freight shipping required.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Freestanding Cabinet / Floor-Standing Enclosure
- Overall Dimensions:
- 33" W x 15" D x 32" H
- Application:
- Semiconductor Wire Bonding — Automatic Wire Bonder Control
- Includes:
- Control cards and boards as shown in photos
- What's NOT Included:
- Wire bonder head / bonding machine — enclosure only
- Condition:
- Used – Powers On, Not Fully Tested
- Shipping Method:
- Freight shipping required due to size and weight
- Condition Notes:
- Hughes Aircraft 2470-II Wire Bonder Control Box WD-8702-006 Rev Y powers on but has not been fully tested. Control cards included as shown. Enclosure only — bonder not included. ~220 lbs, freight shipping required.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,200.00Was: $2,400.00 -

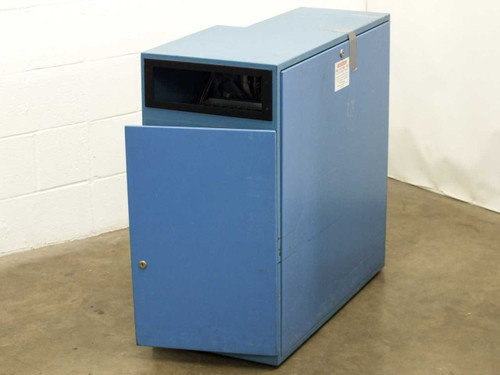

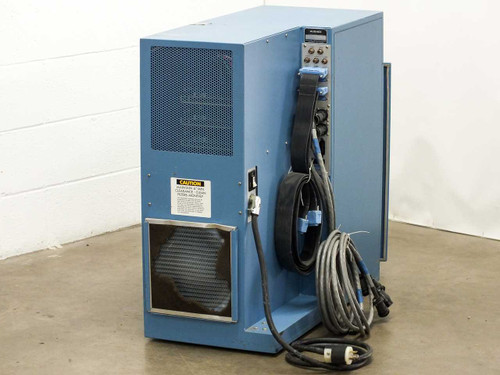

Hughes Aircraft WD-8702-001 Rev Y 2470-II Wire Bonder Electronic Control Box
Hughes
$1,100.00Was: $2,200.00Hughes Aircraft WD-8702-001 Rev Y 2470-II Wire Bonder Electronic Control BoxElectronic control enclosure for Hughes 2470-II Series wire bonders. Manages motion control and system I/O for...50488- SKU:
- 50488
- Availability:
- This item requires freight shipping due to its size and weight; please contact us for a freight quote before ordering.
- Weight:
- 216.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- WD-8702-001
- MPN:
- WD-8702-001
- Secondary Model:
- 2470-II
- Hardware Revision:
- Rev. Y
- Type:
- Wire Bonder Electronic Control Enclosure
- SKU:
- 50488
- Series:
- 2470-II
- Manufacturer Division:
- Industrial Products Division
- Country/Region of Manufacture:
- United States
- Form Factor:
- Freestanding Cabinet / Floor-Standing Enclosure
- Dimensions:
- 33" W x 15" D x 32" H (approx.)
- Includes:
- Electronic control boards, power cabling, internal wiring harness
- Card Slots / Board Positions:
- Multi-slot card cage; slots labeled SYS CPU, MEM, IDX CPU, IEEE 488, SYS I/O, X-Axis, Y-Axis, Z-Axis, Spare
- Internal Power Supply:
- Xentek Inc. WD-9553 Rev C (D/C 4-89, SN/409)
- External Connectors:
- BNC connectors J-1001 through J-1005, J-1011; multi-pin connector
- Compatible With:
- Hughes 2470-II Series Wire Bonder
- Condition:
- Used – Powers On, Not Fully Tested
- Seller Notes:
- Electrical enclosure only — wire bonder head not included. Boards shown in photos included. Freight shipping required.
- Application:
- Semiconductor wire bonding — motion control and system I/O
- Shipping Method:
- Freight required due to size and weight
- Condition Notes:
- Hughes WD-8702-001 Rev Y wire bonder control enclosure powers on but has not been fully tested. Boards shown in photos included. Enclosure only — bonder not included. Freight shipping required. Not guaranteed fully functional.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,100.00Was: $2,200.00 -
Hughes 2460-II Automatic Gold Wire Ball Bonder with Accessories Shown - Palomar
Hughes
$3,769.00Was: $15,000.00Hughes 2460-II Automatic Gold Wire Ball Bonder with Accessories Shown - Palomar Hughes Aircraft Bonding Division was purchased by Palomar Includes assortment of accessories as shown in the photos...50461- SKU:
- 50461
- Weight:
- 839.00 LBS
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$3,769.00Was: $15,000.00 -

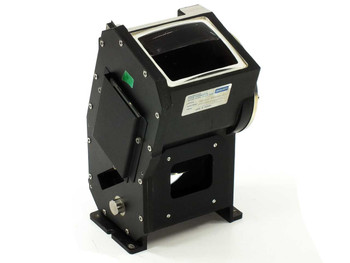

Hughes Elcan 900612-002 R/G Prism Assembly Red Green Large Video Projector Part
Hughes
$175.00Was: $450.00Hughes Elcan 900612-002 R/G Prism Assembly Red Green Large Video Projector Part Optical prism assembly for large-format video projection systems. Separates and directs red and green color channels...50352- SKU:
- 50352
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Hughes Elcan
- Model:
- 900612-002
- MPN:
- 900612-002
- Type:
- Red/Green Prism Assembly
- SKU:
- 50352
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is; cannot be tested. Photos show internal optic detail including dust and minor marks.
- Country/Region of Manufacture:
- Canada
- FSCM Number:
- 36126
- Color Channels:
- Red / Green (R/G)
- Compatible With:
- Large format Hughes Elcan video projector systems
- Application:
- Large video projection system optical path
- Manufacturer Division:
- Hughes Elcan Optical Technologies
- Condition Notes:
- Hughes Elcan 900612-002 Red/Green Prism Assembly for large video projectors. This used optical assembly has been visually inspected and is in good cosmetic condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$175.00Was: $450.00 -

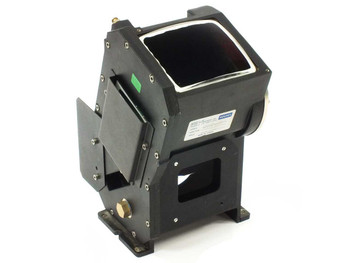

Hughes Leitz 102685 Prism Assembly Red Green Large Video Projector Optical
Hughes
$175.00Was: $450.00Hughes Leitz 102685 Prism Assembly Red Green Large Video Projector Optical Red/Green prism assembly for large format video projection systems. Routes and separates color channels in Hughes video...50351- SKU:
- 50351
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Hughes Leitz
- Model:
- 102685
- MPN:
- 102685
- Type:
- Prism Assembly
- SKU:
- 50351
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is. Inspected; appears physically intact. Cannot be tested.
- Country/Region of Manufacture:
- Canada
- Manufacturer:
- Hughes Leitz Optical Technologies Ltd.
- Color Channel:
- Red / Green (R/G)
- Application:
- Large Format Video Projector
- Housing Color:
- Black
- Compatible With:
- Large Hughes video projector systems
- FSCM:
- 36126
- Sub-model / Item Number:
- PRISM ASSY R/G
- Condition Notes:
- The Hughes Leitz 102685 Prism Assembly Red/Green for Large Video Projector has been visually inspected and is in good used condition. The black sheet-metal housing is intact with no significant structural damage, and all internal optical elements
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$175.00Was: $450.00 -
Hughes 7729257 Tone Analog VME Board Card 7729257-099 SSEL Command Generator
Hughes
$150.00Was: $300.00Hughes 7729257 Tone Analog VME Board Card 7729257-099 SSEL Command GeneratorThe Hughes 7729257 (P/N 7729257-099) is a Tone Analog VME board card designed for use in the Hughes / SSEL (Satellite...48327- SKU:
- 48327
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Hughes
- Model:
- 7729257
- MPN:
- 7729257-099
- Secondary Model:
- 7729257-099
- SKU:
- 48327
- Type:
- Tone Analog VME Board Card
- Form Factor:
- VME Card/Module
- Compatible With:
- Hughes/SSEL 7746600-100 Command Generator VME
- Application:
- Satellite Command Generator System
- Bus Interface:
- VME
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Card only; pulled from Hughes/SSEL 7746600-100 Command Generator VME system
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes 7729257 Tone Analog VME Board Card (7729257-099) pulled from a Hughes/SSEL 7746600-100 Command Generator VME system where it was in use and functional. Inspected and in good condition. PCB clean, connectors intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Hughes WD-12778 Interface Unit Palomar Automatic Wedge Wire Bonder ISA PC6502
Hughes
$550.00Was: $1,100.00Hughes WD-12778 Interface Unit Palomar Automatic Wedge Wire Bonder ISA PC6502Interface and communication unit for Hughes Palomar automatic wedge wire bonding equipment. Manages data transfer and...48777- SKU:
- 48777
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Hughes
- Model:
- WD-12778
- MPN:
- WD-12778
- Secondary Model:
- WD12783 / WD13007
- Type:
- Interface / Communication Unit
- SKU:
- 48777
- Compatible With:
- Hughes Palomar Automatic Wedge Wire Bonder
- Included Boards:
- PC6502, DMA-16/PDMA-16, SCB-411/411E, A60653 I/O, 4-Slot ISA
- Floppy Drive:
- TEAC FD-235HF 1.44MB (P/N 193077C2-91)
- Bus Type:
- ISA
- Main Controller Chip:
- ALi (ALI) chipset on PC6502 DMA-16 board (Rev C)
- Rear Connectors:
- COM 1 HOST, COM 2 HOST (DB9), HOST-COGNEX DATA (DB25)
- Additional Connectors:
- P1101, P1102 BNC/coax ports; multi-pin connector
- Front Panel:
- Power LED, Reset button, DIN connector, 3.5" floppy bay
- Form Factor:
- Rackmount Enclosure / Module
- Application:
- Semiconductor Wire Bonding Equipment
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Pulled from Hughes Palomar wire bonder; all listed boards and floppy drive included
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes WD-12778 Interface Unit pulled from a Palomar Automatic Wedge Wire Bonder. Blue enclosure shows surface scuffs and industrial wear. All boards present; not bench-tested at our facility. Sold as-removed.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$550.00Was: $1,100.00 -
Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
Hughes
$11,827.00Was: $30,000.00Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat Aluminum and Gold wire bonding Cycle Time: 750ms per wire with an approximate wire length of 0.025 inches Table...17438- SKU:
- 17438
- Weight:
- 760.00 LBS
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$11,827.00Was: $30,000.00 -
Hughes 3814120-100 FM Data Detector Galaxy System Rev B Rackmount Satcom
Hughes
$150.00Was: $300.00Hughes 3814120-100 FM Data Detector Galaxy System Rev B Rackmount SatcomThe Hughes 3814120-100 is a rackmount FM Data Detector built by Hughes Aircraft's Satellite Ground Equipment Division for the...39442- SKU:
- 39442
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 14.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3814120-100
- MPN:
- 3814120-100
- Secondary Model:
- 3814120-100-A
- Type:
- FM Data Detector
- SKU:
- 39442
- System Compatibility:
- Hughes Galaxy Satellite Ground Equipment System
- Revision:
- Rev B
- Division:
- Hughes Satellite Ground Equipment Division
- Form Factor:
- Rackmount
- Connector J1:
- BNC — Composite TM In
- Connector J2:
- D-Sub (25-pin) — Detected TM Data Out
- Connector J3:
- BNC — PSI Out
- Front Panel Indicators:
- PS1, MIP, EX LED indicators
- Front Panel Controls:
- Nutation Offset knob, Nutation Gain switch, Analog Data button
- Nutation Gain Settings:
- 100 Hz/V, 1 KHz/V
- Power Input:
- 100/240 VAC, 48/440 Hz (Hopkins Engineering F65003 Line Module)
- Internal Power Module:
- Acopian 5EB50 AC to DC Power Module
- Internal Crystal Oscillator:
- Vectron CO-231, 10 KHz
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no accessories. Pulled from a working Galaxy satcom environment.
- Condition Notes:
- This Hughes 3814120-100 FM Data Detector (Galaxy Rev B) has been inspected and is in good used condition. Pulled from a working satcom environment. Chassis shows light wear; all connectors, indicators, and controls appear intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Hughes 3814120-100 Galaxy System FM Data Detector Rackmount Satcom
Hughes
$100.00Was: $200.00Hughes 3814120-100 Galaxy System FM Data Detector Rackmount SatcomFM data detector unit designed for satellite ground station telemetry applications. Processes composite telemetry signals and outputs...39454- SKU:
- 39454
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3814120-100
- MPN:
- 3814120-100
- Type:
- FM Data Detector
- SKU:
- 39454
- System:
- Galaxy Satellite Ground System
- Division:
- Hughes Satellite Ground Equipment Division
- Form Factor:
- Rack Mount
- Front Panel Indicators:
- PS1, MIP, EX LED indicators
- Front Panel Controls:
- Nutation Offset, Nutation Gain knobs
- Front Panel Outputs:
- Analog Data (BNC), Nutation Earth (BNC)
- Rear Connectors:
- J1 Composite TM In (BNC), J2 Detected TM Data Out (D-Sub), J3 PSI Out (BNC)
- Rear Power:
- AC Power inlet with ON/OFF toggle switch and fuse
- Internal Power Module:
- Acopian Model 5EB50 AC to DC Power Module
- Internal Crystal Oscillator:
- Vectron CO-231, 10 KHz
- Internal Potentiometer:
- Helipot A-R10K-L.25 precision potentiometer
- Condition:
- As-Is / For Parts or Not Working
- Country/Region of Manufacture:
- United States
- Application:
- Satellite telemetry FM signal detection, ground station
- Seller Notes:
- Sold as-is for parts or repair. No functionality guarantee.
- Condition Notes:
- Hughes 3814120-100 Galaxy FM Data Detector sold as-is for parts or repair. Not powered or tested. No functionality guarantee. Cosmetically shows age-related wear. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$100.00Was: $200.00 -
Hughes 3878529-100 Station Status and Control Module 19" Rackmount AUSSAT Satcom
Hughes
$300.00Was: $600.00Hughes 3878529-100 Station Status and Control Module 19" Rackmount AUSSAT SatcomStation Status and Control Module for AUSSAT satellite ground equipment. This 19" rackmount unit houses a 112K...41234- SKU:
- 41234
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 35.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878529-100
- MPN:
- 3878529-100
- Secondary Model:
- 337-529-100
- Type:
- Station Status and Control Module
- SKU:
- 41234
- System:
- AUSSAT Satellite Ground Equipment
- Division:
- Hughes Satellite Ground Equipment Division
- Form Factor:
- 19" Rackmount
- Front Panel Display:
- Embedded CRT/LCD display
- Front Panel Controls:
- REMOTE, LOCAL, PSU/INIT, MUTE buttons
- Node Label:
- Node 17
- Internal Board 1:
- 112K Processor, Assy 3878693
- Internal Board 2:
- Local Control Unit, Assy 3878583 Rev A
- Internal Board 3:
- SPD Industrial Electronic Engineers P/N 04202-01, Mfg Date 8345
- Power Input:
- AC mains via IEC inlet, fused 2A
- Rear Connectors:
- IEC AC inlet, BNC (x2), DB-type connector, E1/E2 signal/chassis GND
- Rear Switches:
- S1 ON/OFF power switch, J1 AC inlet
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. Multiple internal PCBs visible.
- Compatible With:
- AUSSAT Satellite Ground Station Systems
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes 3878529-100 Station Status and Control Module sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Internal PCBs present. 19" rackmount chassis shows typical wear. Please contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$300.00Was: $600.00 -
Hughes 3878523-100 Synchronous Command Generator 240VAC 2A AUSSAT Satellite
Hughes
$300.00Was: $600.00Hughes 3878523-100 Synchronous Command Generator 240VAC 2A AUSSAT SatelliteThe Hughes 3878523-100 is a Synchronous Command Generator Assembly built by the Hughes Aircraft Company Satellite Ground...41351- SKU:
- 41351
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 35.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878523-100
- MPN:
- 3878523-100
- Type:
- Synchronous Command Generator
- SKU:
- 41351
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is; includes main chassis with internal PCBs and all visible connectors
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rackmount Benchtop Chassis
- Power Requirements:
- 240 VAC, 2A
- Revision:
- Rev D
- System Compatibility:
- AUSSAT Satellite Ground Equipment System
- Division:
- Hughes Satellite Ground Equipment Division
- Unit Description:
- Command Generator Assembly
- Internal Board 1:
- A2 Assy 3814102 Rev F — Synchronous Command Generator PCB
- Internal Board 2:
- A3 Assy 3808473 — Synchronous Command Generator PCB
- Interface — PCM Telemetry:
- RS-232 (J3), TTL (J9)
- Interface — Computer Interface:
- D-Sub connector J2
- Interface — Ext Controller:
- D-Sub connector J4
- Interface — Monitor Interface:
- D-Sub connector J5
- Interface — Command Tones Out:
- BNC connectors J7, J8
- Interface — FM RT Input:
- BNC connector J6
- Front Panel Controls:
- Clear Decoder, Transmit Command, Critical Enable, Fail Reset, Execute
- Front Panel Display:
- CRT/monitor display; CMD GEN 2 designation label
- Serial Number:
- 002 (internal reference — not for storefront)
- Application:
- Satellite ground station command encoding and transmission
- Compatible With:
- AUSSAT satellite ground station systems
- Manufacturer Division:
- Hughes Satellite Ground Equipment Division
- Condition Notes:
- Hughes 3878523-100 Synchronous Command Generator sold as-is for parts or repair. Not tested, not guaranteed functional. Chassis and internal PCBs present. Unit shipped may vary from photo. Contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$300.00Was: $600.00 -
Hughes 7742911 Utility Computer VME Board Card 7729305-099 SSEL Command
Hughes
$500.00Was: $1,000.00Hughes 7742911 Utility Computer VME Board Card 7729305-099 SSEL Command GeneratorVME utility computer board card designed for satellite ground support equipment command generation. Extracted from...48329- SKU:
- 48329
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Hughes
- Model:
- 7742911
- MPN:
- 7742911
- Secondary Model:
- 7729305-099
- Type:
- VME Utility Computer Board Card
- SKU:
- 48329
- Form Factor:
- VME Card/Module
- Bus Type:
- VMEbus
- Compatible With:
- Hughes/SSEL 7746600-100 Command Generator VME
- Interface Type:
- Serial (DB9) x2, Parallel connector
- Connectors:
- 2x DB9 serial (SER A, SER B), parallel I/O connector
- Application:
- Satellite Ground Support Equipment / Aerospace
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Pulled from Hughes/SSEL 7746600-100 Command Generator VME system
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes 7742911 Utility VME Board Card (7729305-099) pulled from a Hughes/SSEL 7746600-100 Command Generator VME system. Inspected and in good used condition. PCB clean, connectors intact, no visible damage.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$500.00Was: $1,000.00 -
Hughes 7742917 RZ Tone Digital VME Board Card 7729307-099 Satellite Command
Hughes
$150.00Was: $300.00Hughes 7742917 RZ Tone Digital VME Board Card 7729307-099 Satellite CommandRZ Tone Digital VME board card assembly for satellite command generation. Designed for use in Hughes/SSEL ground support...48328- SKU:
- 48328
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Hughes
- Model:
- 7742917
- MPN:
- 7742917
- Secondary Model:
- 7729307-099
- SKU:
- 48328
- Type:
- RZ Tone Digital VME Board Card Assembly
- Form Factor:
- VME Card/Module
- Compatible With:
- Hughes/SSEL 7746600-100 Command Generator VME
- Application:
- Satellite Command Generation / Satcom Ground Support
- Bus Interface:
- VME (Versa Module Europa)
- Connector Type:
- High-density DIN VME backplane connectors
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Card only; pulled from Hughes/SSEL 7746600-100 Command Generator VME
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes 7742917 RZ Tone Digital VME Board Card (7729307-099) inspected and in good condition. Pulled from a Hughes/SSEL 7746600-100 Command Generator VME. Board and connectors intact with normal light wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00 -
Hughes 3878540-100 Ku-Band Command Upconverter 14180 MHz Satcom AUSSAT 4U
Hughes
$600.00Was: $1,200.00Hughes 3878540-100 Ku-Band Command Upconverter 14180 MHz Satcom AUSSAT 4UKu-Band command upconverter designed for AUSSAT satellite ground equipment. Converts IF signals at 248/248.5 MHz to 14180 MHz...41247- SKU:
- 41247
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 33.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878540-100
- MPN:
- 3878540-100
- Type:
- Ku-Band Command Upconverter
- SKU:
- 41247
- System Compatibility:
- AUSSAT Expansion Rev. D
- Output Frequency:
- 14180 MHz
- IF Frequency:
- 248 / 248.5 MHz
- Frequency Band:
- Ku-Band
- Power Requirements:
- 240 VAC, 1A, 50/60 Hz
- DC Voltages:
- +28V, -15V, +24V, GND, 0V
- Form Factor:
- 4U Rackmount
- Monitor Ports:
- Input, Output, 14180 MHz, 248 MHz, 248.5 MHz, Sweep
- RF Connectors:
- J2 RF IN, J3 RF OUT, J4 248.5 MHz Output (BNC)
- Control Interface:
- J5 Status & Control – DB9 Serial (9-pin)
- Power Connector:
- J1 IEC 240VAC inlet with 1A fuse
- Chassis Ground:
- E1 Chassis GND binding post
- LED Indicators:
- Sweep Loss / Freq Shift, Phase Unlocked
- Voltage Indicators:
- +28V, -15V, +24V LED status lights
- Front Panel Controls:
- Sweep Deviation knob, Sweep Rate knob, Level Set switch, SPOT/OMNI switch
- Sweep Features:
- Adjustable Sweep Deviation and Sweep Rate
- Serial Number:
- 011
- Revision:
- Rev. D
- Division:
- Hughes Satellite Ground Equipment Division
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Powers On, Pulled from Working Environment
- Seller Notes:
- Unit powers on at our warehouse. Sold as pictured; no accessories included.
- Condition Notes:
- Hughes 3878540-100 Ku-Band Command Upconverter. Inspected, good used condition. Pulled from working satcom environment; powers on at our warehouse. Normal service wear. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00 -
Hughes Aircraft 3878521-100 FM Data Detector AUSSAT Satellite Ground System Rev
Hughes
$300.00Was: $600.00Hughes Aircraft 3878521-100 FM Data Detector AUSSAT Satellite Ground System Rev CFM data detector unit designed for AUSSAT satellite ground station systems. Processes composite telemetry input and...41246- SKU:
- 41246
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 18.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878521-100
- MPN:
- 3878521-100
- Type:
- FM Data Detector
- SKU:
- 41246
- Revision:
- Rev C
- System Compatibility:
- AUSSAT Satellite Ground System
- Division:
- Hughes Satellite Ground Equipment Division
- Form Factor:
- Rack Mount
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Missing bottom plate; sold as-is with noted cosmetic deficiency
- Front Panel Indicators:
- PS1, MIP, EX status LEDs
- Front Panel Controls:
- Nutation Offset knob, Gain selector (100 Hz/V, 10 kHz/V), Analog Data switch (Nutation/Earth)
- Connector J1:
- Composite TM In – BNC
- Connector J2:
- Detected TM Data Out – D-Sub (DB-25 style, green)
- Connector J3:
- PSI Out – BNC
- Rear Interface:
- RS-Out connector, IEC AC power inlet, On/Off toggle, GND terminal
- Internal Power Module:
- Acopian AC to DC Power Module
- Crystal Oscillator:
- Vectron Laboratories C023L, 10 kHz
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes Aircraft 3878521-100 FM Data Detector pulled from a working environment, inspected, in good used condition. Bottom plate is missing — noted in title and reflected in price. PCBs and internal components present and visually intact. Light wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$300.00Was: $600.00
