Hughes 3878529-100 Station Status and Control Module 19" Rackmount AUSSAT Satcom

(No reviews yet) Write a Review
SKU:
41234
MPN:
3878529-100
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
35.00 LBS
Shipping:
Calculated at Checkout

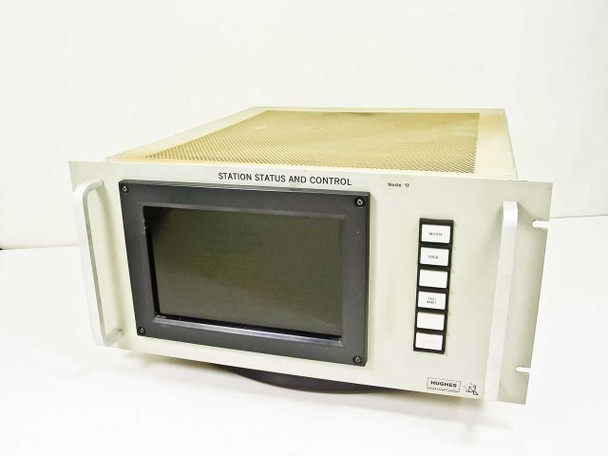

  • Hughes 3878529-100 Station Status and Control Module – front panel view showing embedded display and REMOTE LOCAL PSU MUTE buttons
  • Hughes 3878529-100 Station Status and Control Module – rear/side view showing ventilation fan, AC inlet, BNC connectors, and blue Hughes label
  • Hughes Station Status and Control Module front panel close-up showing Node 17 label, display, and Hughes Aircraft logo
  • Hughes 3878529-100 rear panel close-up showing IEC AC inlet, J1 connector, 2A fuse, S1 power switch, E1 E2 signal and chassis ground terminals
  • Hughes Satellite Ground Equipment Division label showing AUSSAT system, Local Control Assy Rev G, P/N 337-529-100, Ser 001, and AUSSAT PTY LTD barcode tag 00001380
  • Hughes 3878529-100 internal view – 112K Processor board Assy 3878693 with multiple ICs including UB3064 and socketed chips
  • Internal Local Control Unit board Assy 3878583 Rev A S/N 003 with ribbon cable connections
  • Internal PCB close-up showing SPD Industrial Electronic Engineers board P/N 04202-01 Mfg Date 8345 Serial 0173 with ribbon cables
  • Hughes 3878529-100 Station Status and Control Module – top-open view showing internal PCB stack and front panel display assembly
$300.00
Was: $600.00
Current Stock: 2

Sold Out

Description

Hughes 3878529-100 Station Status and Control Module 19" Rackmount AUSSAT Satcom

Station Status and Control Module for AUSSAT satellite ground equipment. This 19" rackmount unit houses a 112K processor, local control unit, and industrial electronics board for managing ground station operations and monitoring satellite link status.

Specifications & What's Included

  • Model: 3878529-100 / 337-529-100
  • Form Factor: 19" Rackmount chassis
  • Front Panel: CRT/LCD display with REMOTE, LOCAL, PSU/INIT, and MUTE buttons
  • Internal Boards: 112K Processor (Assy 3878693), Local Control Unit (Assy 3878583 Rev A), SPD Industrial Electronics board
  • Power: AC mains via IEC inlet, 2A fused
  • Rear Connectors: IEC inlet, BNC (x2), DB-type, E1/E2 signal/chassis ground
  • Node Label: Node 17

Applications

This module type was used in AUSSAT satellite ground stations for controlling and monitoring satellite communications equipment. The station status and control functionality manages uplink/downlink operations, system diagnostics, and remote/local command switching in satellite earth station configurations. Typical installation in Hughes satellite ground equipment divisions for Australian domestic satellite systems.

Condition: For Parts or Not Working
This Hughes 3878529-100 Station Status and Control Module is being sold AS-IS for parts or repair. It has not been tested or confirmed functional, and no warranty of operation is expressed or implied. The chassis is a 19" rackmount unit with the front-panel display and control buttons intact. Internally, the unit contains multiple PCBs including the 112K Processor board (Assy 3878693) and the Local Control Unit (Assy 3878583 Rev A), along with a third board from SPD Industrial Electronic Engineers (P/N 04202-01, Mfg. date 8345). The chassis shows typical age-related wear consistent with prior installation. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
