Hughes

Hughes 3770031-100 FM Data Detector Rackmount Westar VII Satcom Ground Station

(No reviews yet) Write a Review
SKU:
39438
MPN:
3770031-100
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout
  • Hughes 3770031-100 FM Data Detector front panel view showing PS1, MIP, EX indicators and nutation controls

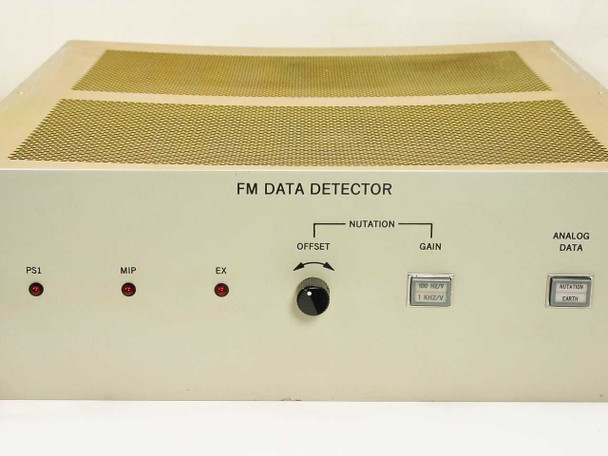

  • Hughes FM Data Detector front panel close-up showing Nutation Offset knob, Gain switch, and Analog Data toggle

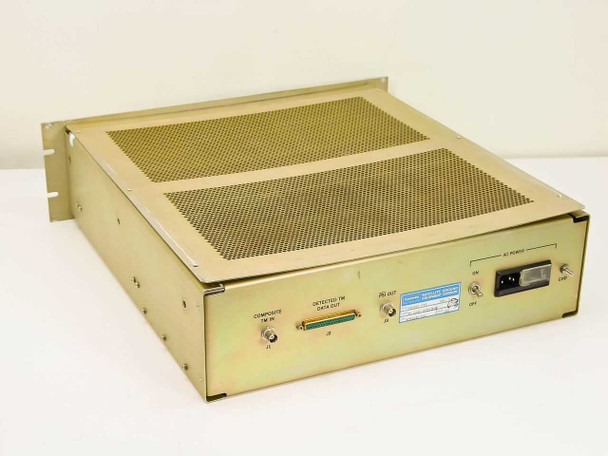

  • Hughes 3770031-100 FM Data Detector rear panel showing BNC composite TM input, D-sub data output, IEC power inlet

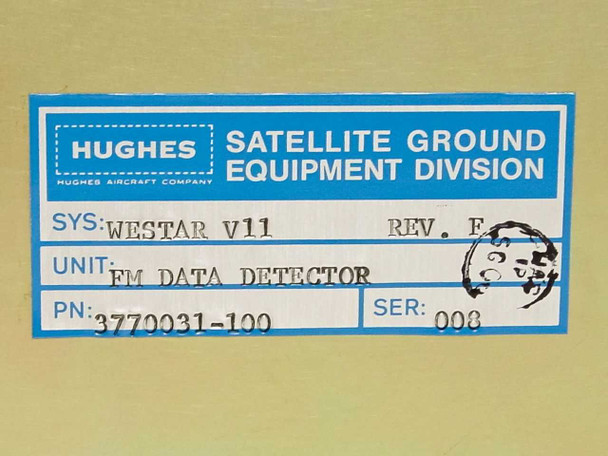

  • Hughes Aircraft Satellite Ground Equipment Division label showing Westar V11 Rev F, PN 3770031-100, SER 008

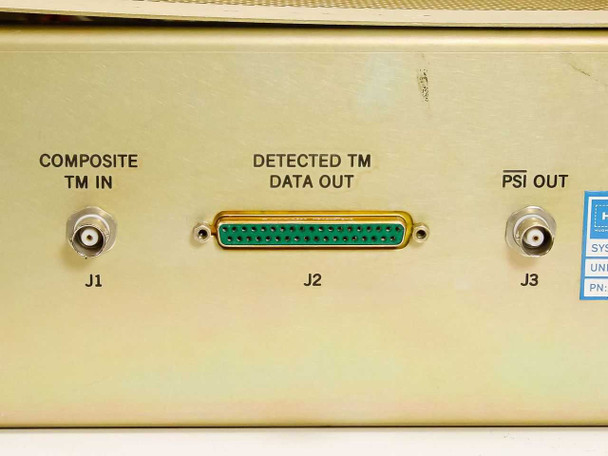

  • Rear panel connector detail: J1 Composite TM In (BNC), J2 Detected TM Data Out (D-sub), J3 PSI Out (BNC)

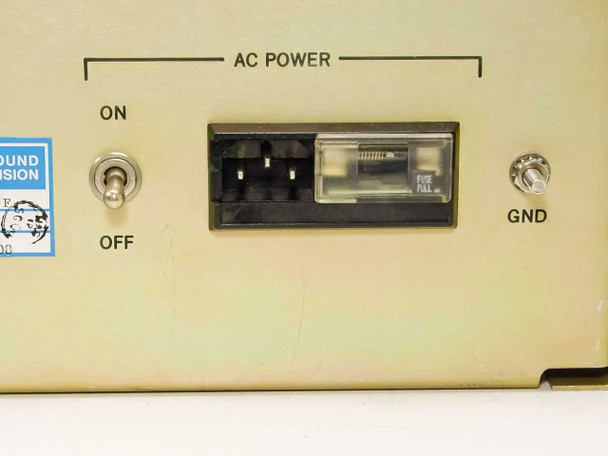

  • Rear panel AC Power section showing ON/OFF toggle switch, IEC power inlet with fuse, and GND terminal

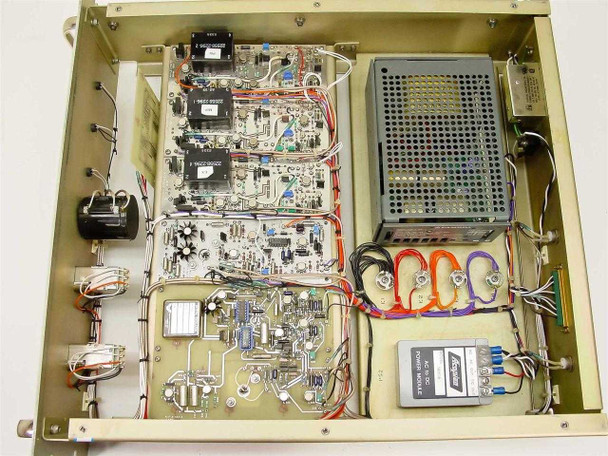

  • Interior top view of Hughes FM Data Detector showing circuit boards, wiring, Lambda power supply, and Acopian power module

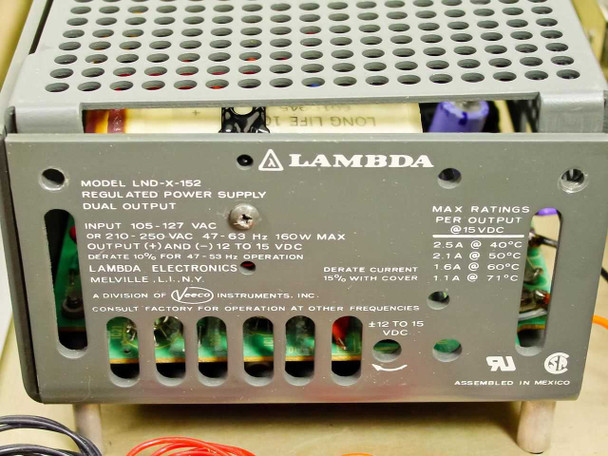

  • Lambda LND-X-152 regulated dual output power supply label showing 105-127V or 210-250V AC input, ±12-15 VDC output

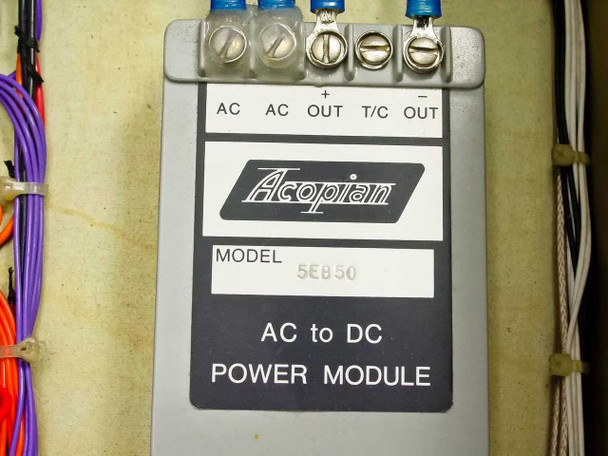

  • Acopian Model 5E850 AC to DC Power Module label showing AC/OUT/T-C terminals

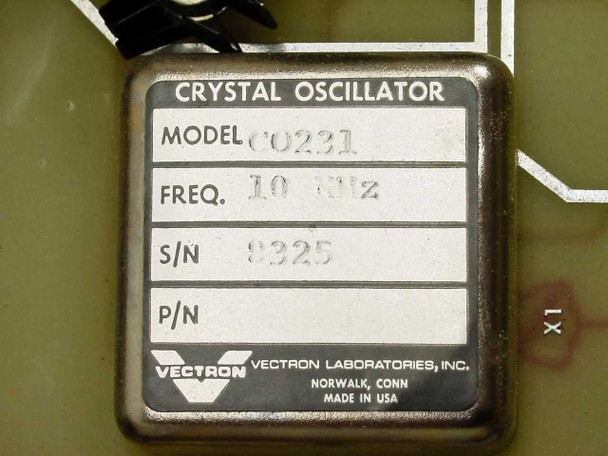

  • Vectron Laboratories Crystal Oscillator Model CO231 label showing 10 kHz frequency, S/N 8325
  • Hughes 3770031-100 Rackmount FM Data Detector System: Westar VII Rev F
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Hughes 3770031-100 FM Data Detector Rackmount Westar VII Satcom Ground Station

FM data detector unit designed for satellite telemetry applications in Westar VII ground stations. Processes composite telemetry input and outputs detected data and PSI signals for ground station operations.

Specifications & What's Included

  • Model: Hughes 3770031-100, Revision F
  • Type: FM Data Detector, Rackmount form factor
  • Input: BNC composite telemetry (J1)
  • Outputs: D-sub detected TM data (J2), BNC PSI (J3)
  • Power: 105–127 VAC or 210–250 VAC, 47–63 Hz
  • Internal supply: Lambda LND-X-152 ±12–15 VDC, Acopian 5E850 module
  • Crystal oscillator: Vectron Laboratories CO231, 10 kHz
  • Front panel: Nutation offset/gain controls, indicator lights, analog data switch
  • Unit only; no accessories included

Applications

This detector handles FM telemetry demodulation in satellite ground station installations. Westar VII (Westar V11) ground stations used this equipment for receiving and processing satellite telemetry data. The unit integrates into larger ground station racks for signal conditioning and data extraction in C-band and Ku-band satellite communication systems.

Condition: Used
This Hughes 3770031-100 FM Data Detector has been inspected and is in good used condition. It was pulled from a Westar VII satellite ground station where it was in active service. The chassis and front panel are clean overall with light shelf wear typical of rack-installed equipment. Front panel indicators (PS1, MIP, EX) and controls appear intact, and rear connectors — including the BNC composite TM input, D-sub data output, and BNC PSI output — show no obvious damage. The internal assembly, including the Lambda LND-X-152 dual-output power supply and Acopian 5E850 power module, appears complete and undisturbed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes Aircraft
Model:
3770031-100
MPN:
3770031-100
Type:
FM Data Detector
SKU:
39438
System Compatibility:
Westar VII (Westar V11) Satellite Ground Station
Revision:
Rev F
Form Factor:
Rackmount
Condition:
Used – Pulled from Working Environment
Division:
Hughes Satellite Ground Equipment Division
Front Panel Controls:
Nutation Offset, Nutation Gain knob/switches, PS1/MIP/EX indicators, Analog Data switch
Rear Connectors:
J1: Composite TM In (BNC), J2: Detected TM Data Out (D-sub), J3: PSI Out (BNC)
Input Connector:
BNC – Composite TM In (J1)
Output Connector:
D-sub – Detected TM Data Out (J2); BNC – PSI Out (J3)
Power Input:
105-127 VAC or 210-250 VAC, 47-63 Hz (IEC inlet, rear)
Internal Power Supply:
Lambda LND-X-152 Regulated Dual Output, ±12 to 15 VDC
Internal Power Module:
Acopian Model 5E850 AC to DC Power Module
Crystal Oscillator:
Vectron Laboratories CO231, 10 kHz
Application:
Satellite telemetry FM data detection, Westar ground station
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no accessories. Pulled from Westar VII satellite ground station service.
Condition Notes:
Hughes 3770031-100 FM Data Detector, used, pulled from active Westar VII satellite ground station service. Inspected and in good condition. Front panel controls and rear connectors intact. Internal assembly complete.
