Description
Hughes 3582710-100 Westar Palapa FM Data Detector HAC Satellite Ground Equip
FM data detector unit for Westar and Palapa satellite ground stations. Processes frequency-modulated telemetry signals and outputs detected data for system monitoring and control applications.
Specifications & What's Included
- Model: Hughes 3582710-100
- Type: FM Data Detector (HAC)
- Form Factor: Rackmount

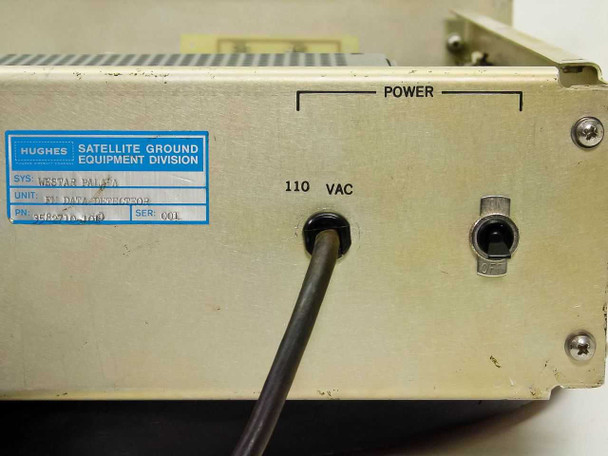

- Power: 110 VAC
- Rear Connectors: J1 BNC (Composite TM In), J2 D-Sub (Detected TM Data Out), J3 BNC (PSI Out)

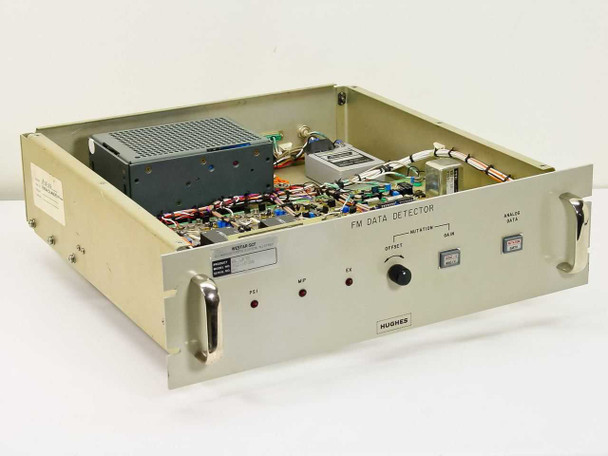

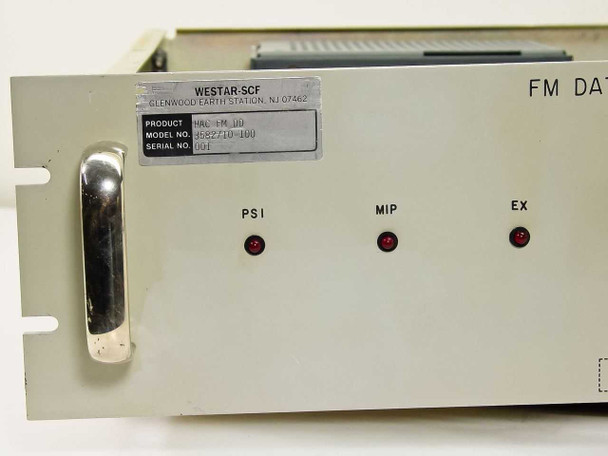

- Front Panel: PSI, MIP, EX LED indicators; Nutation Offset & Gain controls; Analog Data switch
- Includes: Power cable (damaged jacket)
Applications
FM data detectors were standard components in C-band and Ku-band satellite earth stations during the 1980s and 1990s. This unit supported Westar and Palapa satellite network operations for telemetry demodulation and signal conditioning. Used in teleport facilities and ground terminals for real-time monitoring of satellite link parameters and carrier quality indicators.
Condition: Used

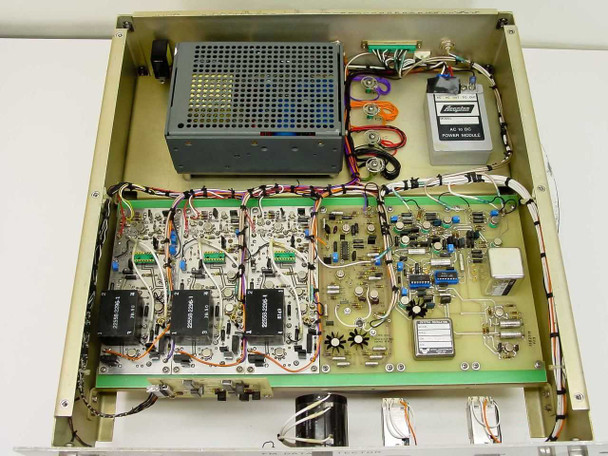

This Hughes 3582710-100 Westar Palapa FM Data Detector has been inspected and appears to be in good used condition overall, with the following noted deficiencies: the top and bottom sheet-metal covers are missing, leaving the internal PCB and components exposed. The front panel and chassis frame are intact and show normal age-related wear consistent with ground station service. The rear connectors (J1 BNC, J2 D-Sub, J3 BNC) appear clean and undamaged. The included AC power cable has visible jacket damage with the inner conductors partially exposed near the middle of the cord — this cable should be replaced before the unit is powered. No other damage is apparent from inspection. Please view our photo set and contact us if you have any questions.
This Hughes 3582710-100 Westar Palapa FM Data Detector has been inspected and appears to be in good used condition overall, with the following noted deficiencies: the top and bottom sheet-metal covers are missing, leaving the internal PCB and components exposed. The front panel and chassis frame are intact and show normal age-related wear consistent with ground station service. The rear connectors (J1 BNC, J2 D-Sub, J3 BNC) appear clean and undamaged. The included AC power cable has visible jacket damage with the inner conductors partially exposed near the middle of the cord — this cable should be replaced before the unit is powered. No other damage is apparent from inspection. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Hughes Aircraft Company |
Model: |
3582710-100 |
MPN: |
3582710-100 |
Type: |
FM Data Detector |
SKU: |
39333 |
Product Code: |
HAC FM DD |
System Compatibility: |
Westar / Palapa Satellite Ground System |
Division: |
Hughes Satellite Ground Equipment Division |
Condition: |
Used – Inspected; missing top and bottom covers |
Power Requirements: |
110 VAC |
Form Factor: |
Rackmount |
Front Panel Indicators: |
PSI, MIP, EX LED indicators |
Front Panel Controls: |
Nutation Offset & Gain knobs; Analog Data switch |
Rear Connectors: |
J1 BNC (Composite TM In), J2 D-Sub (Detected TM Data Out), J3 BNC (PSI Out) |
Seller Notes: |
Includes power cable (jacket damaged — see photos). Missing top and bottom covers. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Hughes 3582710-100 FM Data Detector. Inspected, good used condition. Missing top and bottom covers; internal PCB exposed. Rear connectors intact. Included power cable has damaged jacket — replace before use. |
