Hughes Aircraft 3878521-100 FM Data Detector AUSSAT Satellite Ground System Rev C

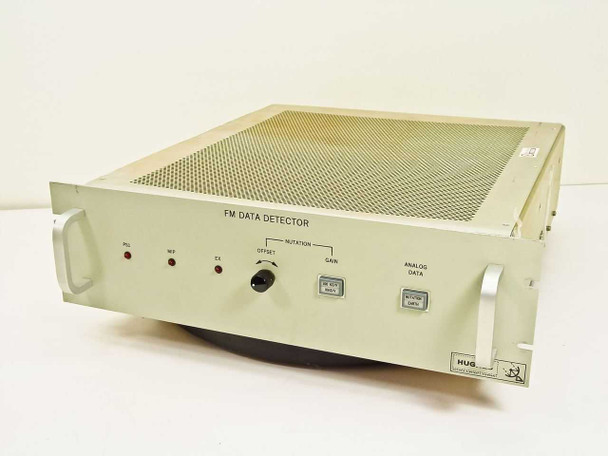

FM data detector unit designed for AUSSAT satellite ground station systems. Processes composite telemetry input and outputs detected telemetry data via D-Sub connector.
Specifications & What's Included
- Model: 3878521-100, Revision C
- Rack-mount form factor

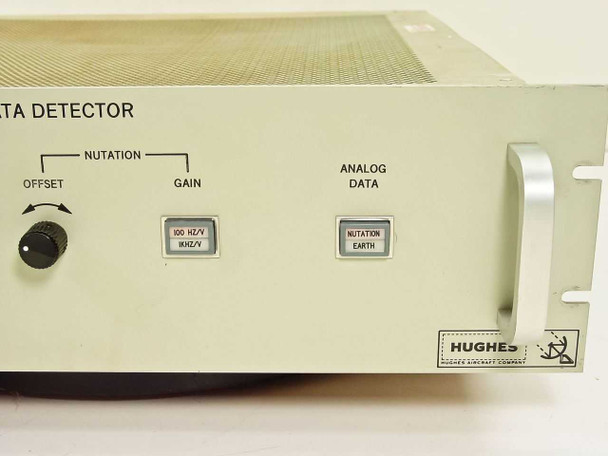

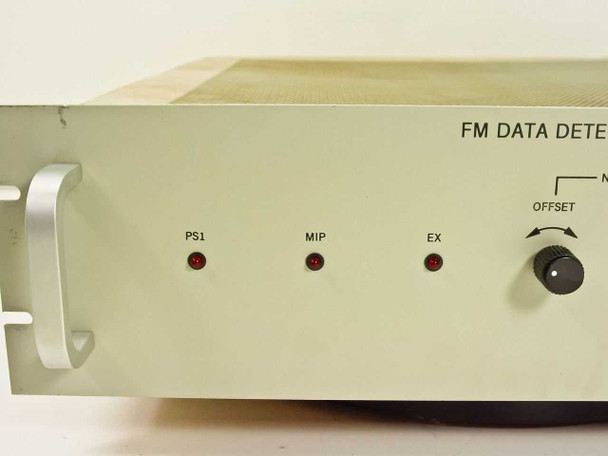

- Front panel controls: Nutation Offset knob, Gain selector (100 Hz/V, 10 kHz/V), Analog Data switch
- Status indicators: PS1, MIP, EX LEDs

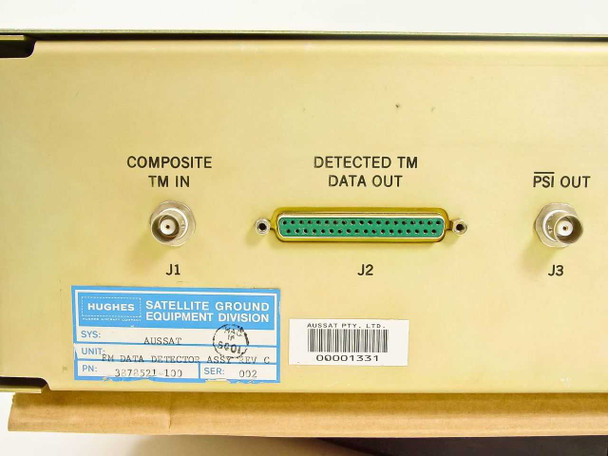

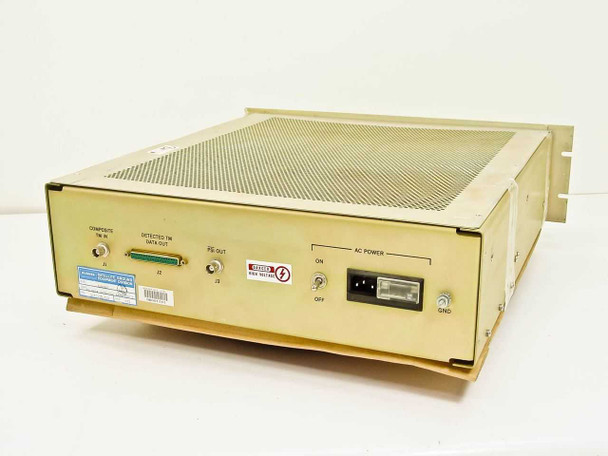

- Connectors: BNC (Composite TM In, PSI Out), DB-25 (Detected TM Data Out), RS-Out rear interface

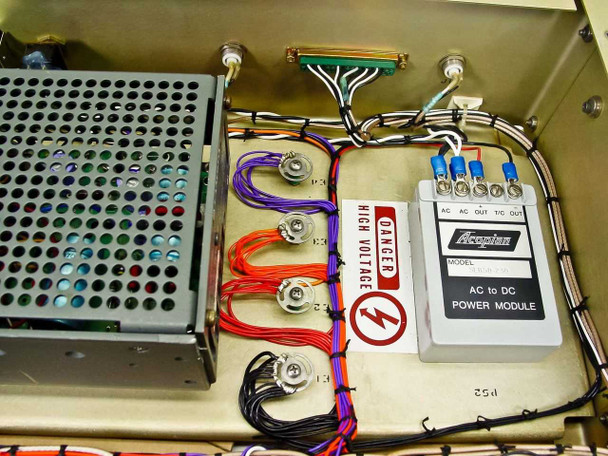

- Internal Acopian AC-DC power module; Vectron 10 kHz crystal oscillator
- Made in USA
Applications
FM data detectors were integral components in satellite ground station receiver chains, particularly for Australian AUSSAT systems. This unit handled demodulation and detection of frequency-modulated telemetry signals from space-based platforms. Typical deployment involved integration into larger telemetry processing racks alongside multiplexers, decommutators, and recording equipment.
Condition: Used

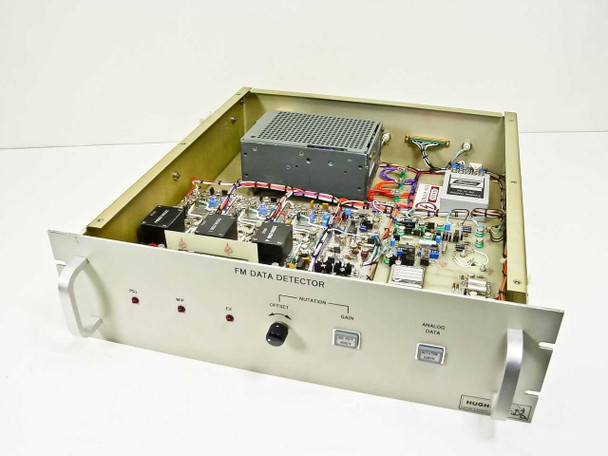

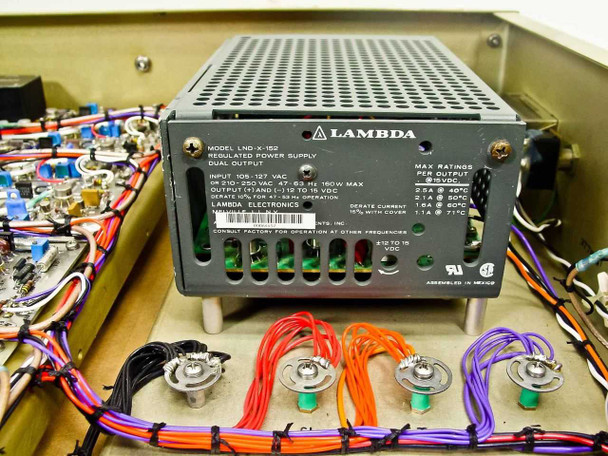

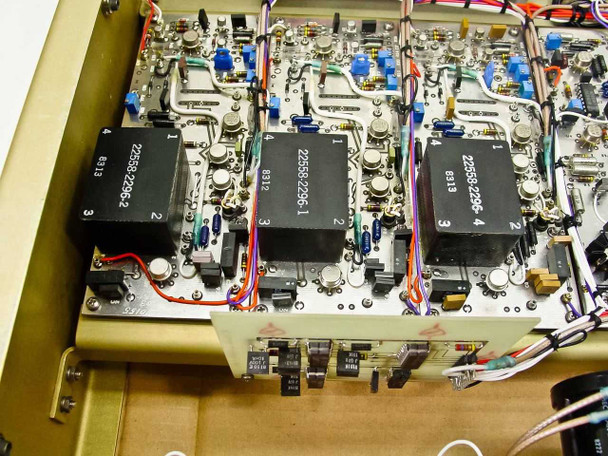

This Hughes Aircraft 3878521-100 FM Data Detector was pulled from a working environment where it was in active use. It has been inspected and is in good used condition overall. The chassis, front panel controls, and rear connectors all appear intact and undamaged. The bottom plate is missing, as noted in the listing title and reflected in the price. Interior photos show the PCBs, wiring, Acopian AC-to-DC power module, and Vectron crystal oscillator are all present and visually intact. Some light surface wear and aging are consistent with prior operational service. Please view our photo set and contact us if you have any questions.
This Hughes Aircraft 3878521-100 FM Data Detector was pulled from a working environment where it was in active use. It has been inspected and is in good used condition overall. The chassis, front panel controls, and rear connectors all appear intact and undamaged. The bottom plate is missing, as noted in the listing title and reflected in the price. Interior photos show the PCBs, wiring, Acopian AC-to-DC power module, and Vectron crystal oscillator are all present and visually intact. Some light surface wear and aging are consistent with prior operational service. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Hughes Aircraft |
Model: |
3878521-100 |
MPN: |
3878521-100 |
Type: |
FM Data Detector |
SKU: |
41246 |
Revision: |
Rev C |
System Compatibility: |
AUSSAT Satellite Ground System |
Division: |
Hughes Satellite Ground Equipment Division |
Form Factor: |
Rack Mount |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Missing bottom plate; sold as-is with noted cosmetic deficiency |
Front Panel Indicators: |
PS1, MIP, EX status LEDs |
Front Panel Controls: |
Nutation Offset knob, Gain selector (100 Hz/V, 10 kHz/V), Analog Data switch (Nutation/Earth) |
Connector J1: |
Composite TM In – BNC |
Connector J2: |
Detected TM Data Out – D-Sub (DB-25 style, green) |
Connector J3: |
PSI Out – BNC |
Rear Interface: |

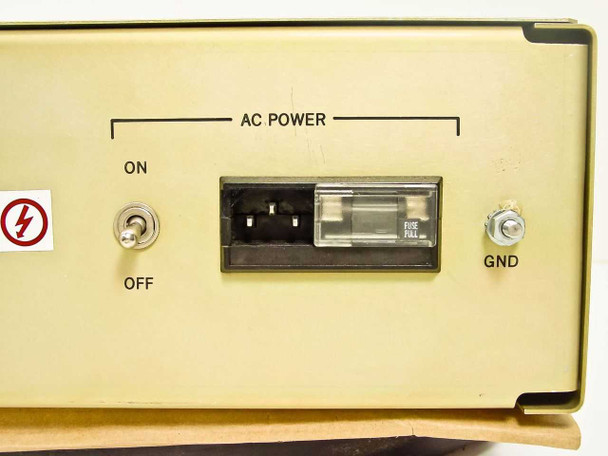

RS-Out connector, IEC AC power inlet, On/Off toggle, GND terminal |
Internal Power Module: |
Acopian AC to DC Power Module |
Crystal Oscillator: |

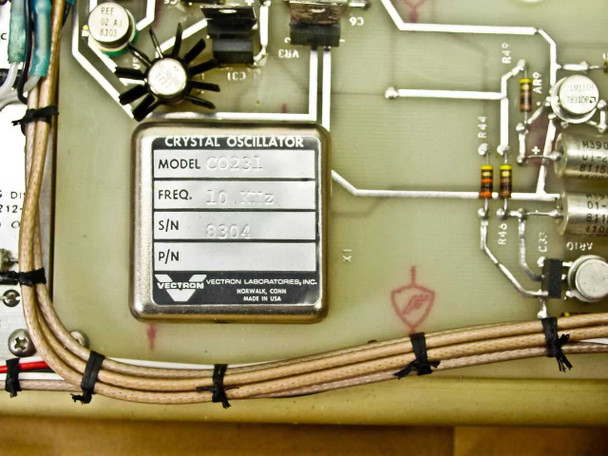

Vectron Laboratories C023L, 10 kHz |
