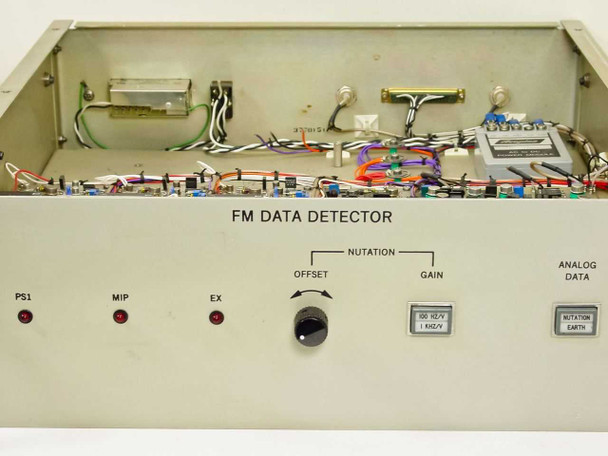

  • Hughes 3814120-100 FM Data Detector — front panel close-up showing PS1, MIP, EX indicators, Nutation Offset/Gain controls, and Analog Data output

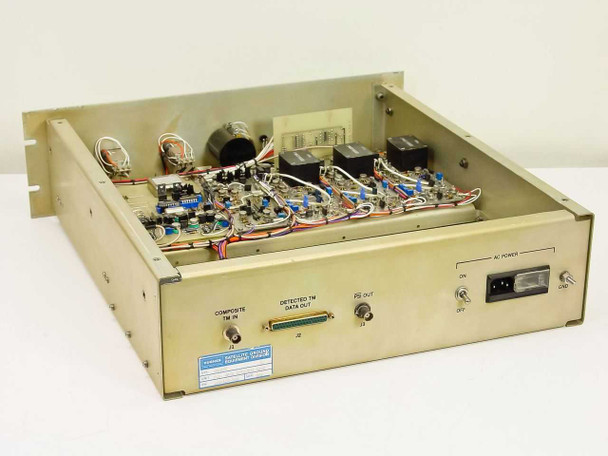

  • Hughes FM Data Detector 3814120-100 — rear panel showing Composite TM In (J1 BNC), Detected TM Data Out (J2 D-sub), PSI Out (J3 BNC), and AC Power inlet

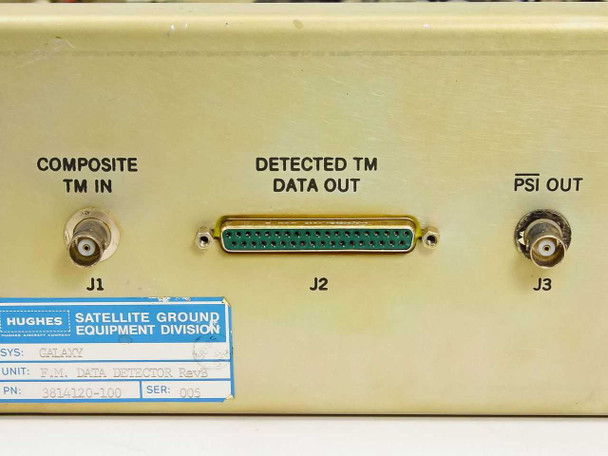

  • Hughes 3814120-100 FM Data Detector — rear panel label close-up: Hughes Satellite Ground Equipment Division, SYS: Galaxy, UNIT: F.M. Data Detector RevB, PN: 3814120-100, SER: 005

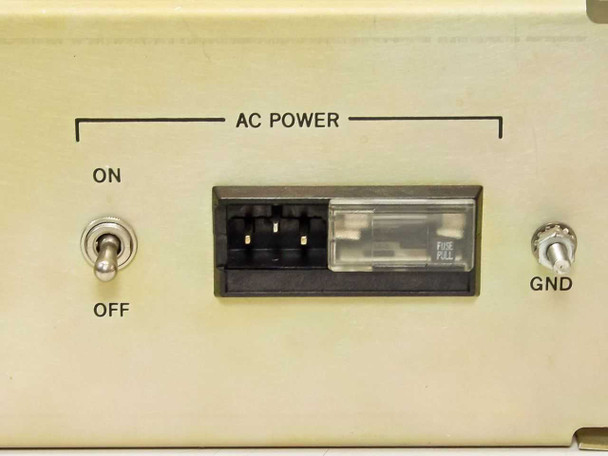

  • Hughes FM Data Detector Galaxy — rear panel AC power section showing ON/OFF toggle switch, fused IEC power inlet, and GND post

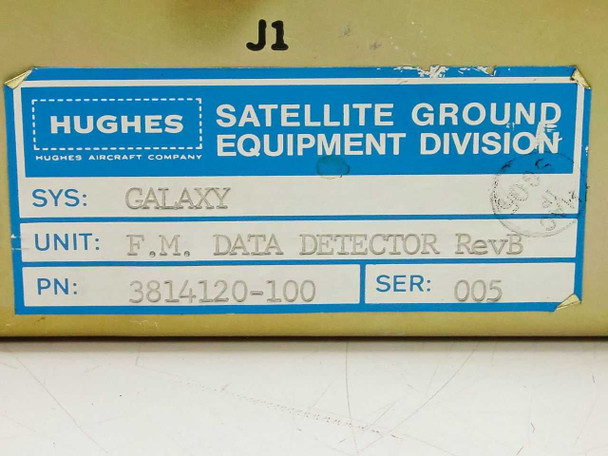

  • Hughes 3814120-100 FM Data Detector — Hughes Satellite Ground Equipment Division identification label close-up showing system Galaxy, unit F.M. Data Detector RevB, PN 3814120-100, SER 005

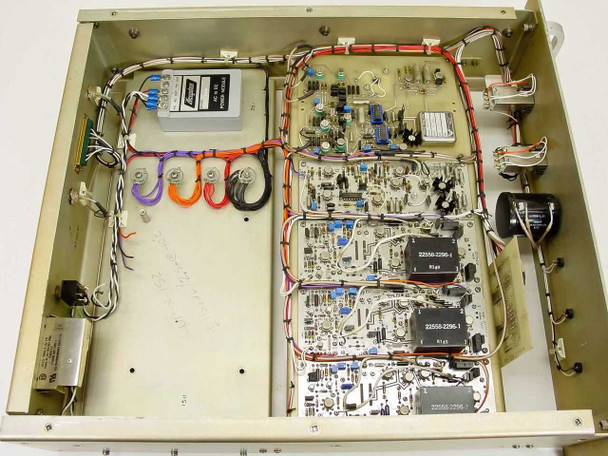

  • Hughes 3814120-100 FM Data Detector — top-down interior view showing full PCB layout, wiring harness, and internal subassemblies

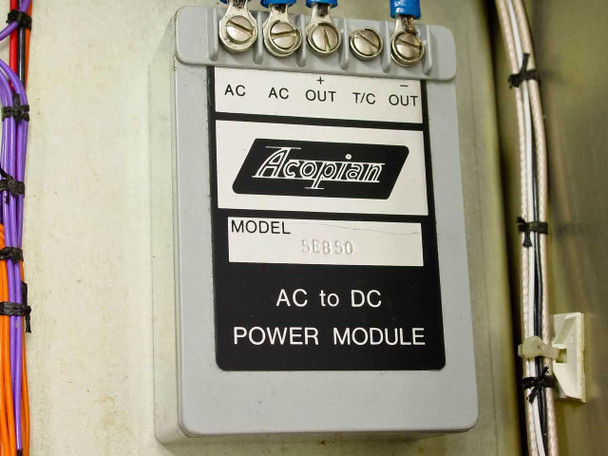

  • Hughes FM Data Detector internal — Acopian Model 5EB50 AC to DC Power Module with terminal strip wiring detail

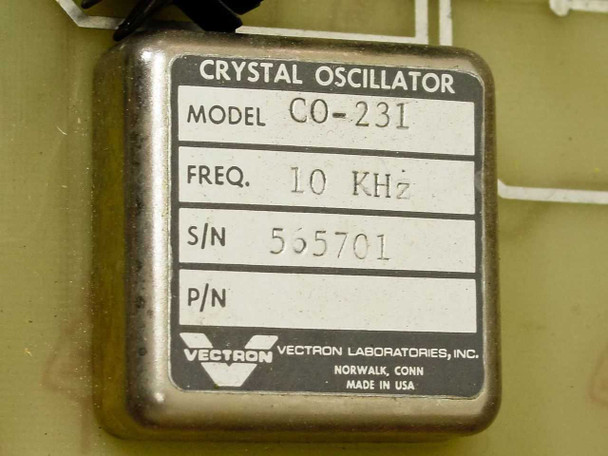

  • Hughes FM Data Detector internal — Vectron Laboratories CO-231 Crystal Oscillator, 10 KHz, S/N 565701

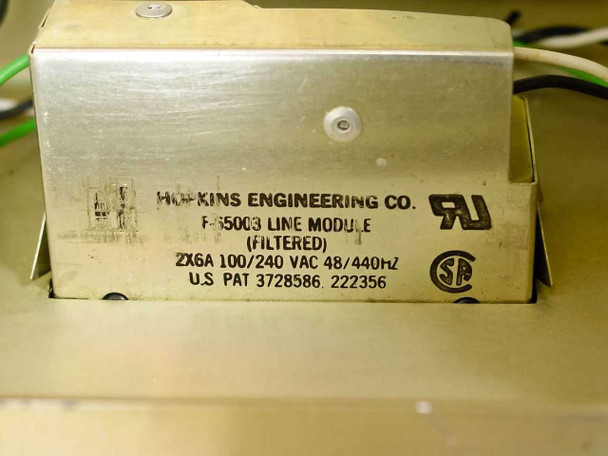

  • Hughes FM Data Detector internal — Hopkins Engineering Co. F65003 Filtered Line Module, 2x6A, 100/240 VAC, 48/440 Hz, UL and CSA listed
  • Hughes 3814120-100-A Rackmount FM Data Detector Galaxy System Rev B
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Hughes 3814120-100 FM Data Detector Galaxy System Rev B Rackmount Satcom

The Hughes 3814120-100 is a rackmount FM Data Detector built by Hughes Aircraft's Satellite Ground Equipment Division for the Galaxy satellite ground system. It receives a composite telemetry (TM) input signal, demodulates the FM data stream, and outputs detected TM data along with a PSI (phase-shift indicator) signal used for nutation measurement and control. The unit is revision B and carries the part number 3814120-100 per the factory identification label on the rear panel.

Specifications & What's Included

  • Manufacturer: Hughes Aircraft — Satellite Ground Equipment Division
  • Part Number: 3814120-100 (suffix -100-A per title data)
  • System: Galaxy (Hughes satellite ground equipment system)
  • Revision: Rev B
  • Form Factor: Rackmount (open-frame chassis, no top cover)
  • Front Panel Indicators: PS1, MIP, EX (LED status indicators)
  • Front Panel Controls: Nutation Offset rotary knob; Nutation Gain switch (100 Hz/V / 1 KHz/V); Analog Data output button
  • Rear Connector J1: BNC — Composite TM In
  • Rear Connector J2: D-Sub 25-pin — Detected TM Data Out
  • Rear Connector J3: BNC — PSI Out
  • Rear AC Power: IEC inlet with fuse, ON/OFF toggle switch, GND post
  • Internal Power Module: Acopian Model 5EB50 AC-to-DC Power Module
  • Internal Filtered Line Module: Hopkins Engineering Co. F65003, 2×6A, 100/240 VAC, 48/440 Hz (UL and CSA listed)
  • Internal Crystal Oscillator: Vectron Laboratories CO-231, 10 KHz
  • Unit only — no accessories or cables included

Applications

The Hughes Galaxy satellite ground equipment system was a Hughes Aircraft-developed earth station platform used for satellite telemetry, tracking, and control (TT&C) operations. FM data detectors like this unit play a core role in ground station receive chains: they accept the composite telemetry downlink, demodulate the FM-modulated data, and pass the clean digital TM stream to downstream recording, processing, or display equipment. The PSI output supports nutation damping loops, which are critical for spin-stabilized satellite attitude control — a common requirement on the Hughes HS-376 and related satellite buses that the Galaxy system was designed to support. This type of specialized ground support equipment dates from the 1970s–1980s era of Hughes Aircraft's satellite ground infrastructure and is primarily of interest today for legacy system maintenance, spare parts, research into Hughes-era satellite ground station architecture, and aerospace heritage collections.

Condition: Used
This Hughes 3814120-100 FM Data Detector (Galaxy system, Rev B) has been inspected and is in good used condition. It was pulled from a working satcom environment where it was in active use. The chassis shows typical light wear consistent with rack-mounted field service use. Internal boards, wiring harness, and subassemblies appear intact and undisturbed. The rear-panel connectors — BNC composite TM input (J1), D-sub TM data output (J2), and BNC PSI output (J3) — show no damage. The front panel indicators and controls are present and intact. Please view our photo set and contact us if you have any questions.
