Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF Satcom

(No reviews yet) Write a Review
SKU:
41235
MPN:
3878526-100
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
50.00 LBS
Shipping:
Calculated at Checkout
  • Hughes Aircraft 3878526-100 AUSSAT Satellite Simulator – front panel view showing CRT display and FAIL/RESET button
  • Hughes 3878526-100 Satellite Simulator – rear panel showing telemetry BNC connectors, RS-232 port, speaker grille, and AC inlet
  • Hughes Aircraft Satellite Ground Equipment Division label showing SYS: AUSSAT, UNIT: Satellite Simulator Rev B, PN: 3878526-100, SER: 001
  • Hughes Aircraft Company logo and satellite dish graphic on front panel corner
  • Hughes 3878526-100 Satellite Simulator – straight-on front panel view showing CRT display with status text and FAIL/RESET button

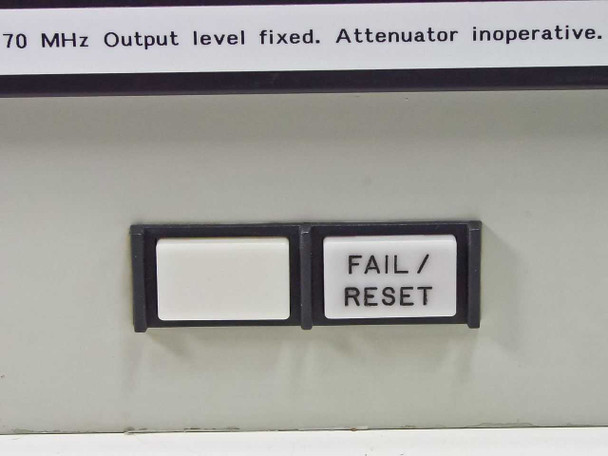

  • Close-up of front panel CRT display reading '70 MHz Output level fixed. Attenuator inoperative.' with FAIL/RESET button below

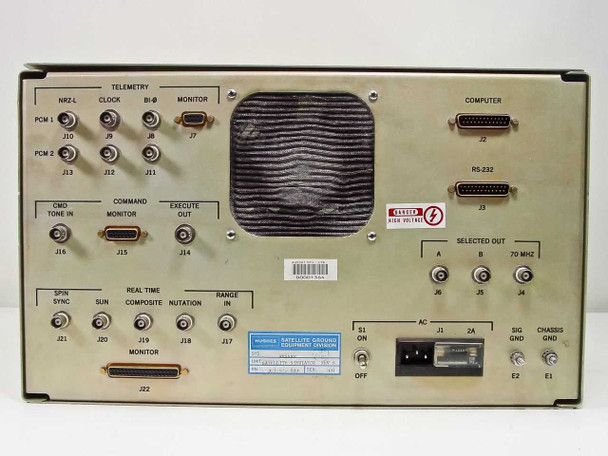

  • Rear panel of Hughes Satellite Simulator showing full connector layout: telemetry section, command section, computer/RS-232 ports, selected 70 MHz output, and AC power inlet with 2A breaker
  • Close-up of rear panel telemetry section showing PCM 1 and PCM 2 BNC connectors (NRZ-L, Clock, BI-Phase) labeled J8–J13, and Monitor D-sub J7

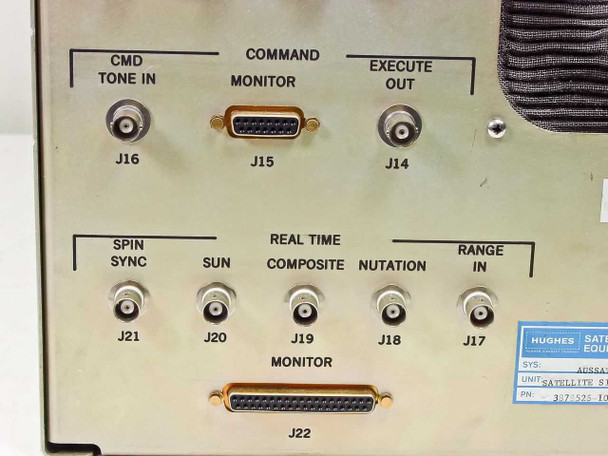

  • Close-up of rear panel command and real-time section showing CMD Tone In J16, Command Monitor J15, Execute Out J14, Spin Sync J21, Sun J20, Real Time Composite J19, Nutation J18, Range In J17, and Monitor D-sub J22

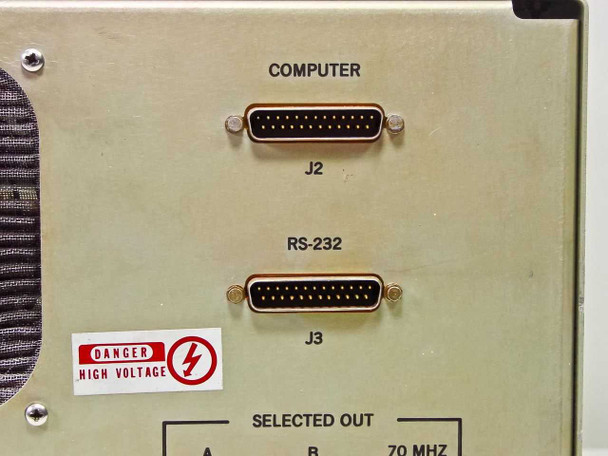

  • Close-up of rear panel Computer (DB-25, J2) and RS-232 (DB-25, J3) ports with DANGER HIGH VOLTAGE warning label visible
  • Hughes 3878526-100 Simulator for AUSSAT HS-601 Satellite - RF Satcom - 240 Volt
$350.00
Was: $700.00
Current Stock: 1

Sold Out

Description

Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF Satcom

Ground support equipment simulator for AUSSAT HS-601 satellite systems. Generates 70MHz RF test signals and processes telemetry data for satellite command and control operations.

Specifications & What's Included

  • Model: 3878526-100 (Rev B)
  • RF Output: 70 MHz via BNC connectors (A/B selectable)
  • Power: 240V AC, 2A
  • Dual PCM telemetry inputs (NRZ-L, Clock, BI-Phase)
  • Command interface with tone input and execute output
  • Real-time spin sync, sun, composite, and nutation inputs
  • RS-232 computer interface (DB-25)
  • CRT/LCD front panel display with status readout
  • Rackmount enclosure

Applications

Satellite simulators provide ground-based RF and telemetry signal generation for testing satellite command systems, receiver chains, and mission operations centers. The AUSSAT HS-601 simulator was used in Australian communications satellite operations and integration testing. This equipment supports development and validation of satellite ground stations and command processing systems.

Condition: For Parts or Not Working
This Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator is being sold AS-IS for parts or repair. The front panel display notes that the 70 MHz output level is fixed and the attenuator is inoperative, and the unit has not been tested or verified functional at our facility. The screen also has a crack in one corner that is not captured in the photo set. No functionality is guaranteed. Please review all photos carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes Aircraft Company
Model:
3878526-100
MPN:
3878526-100
Type:
Satellite Simulator / RF Satcom Ground Support Equipment
SKU:
41235
Condition:
As-Is / For Parts or Not Working
Revision:
Rev B
System:
AUSSAT HS-601
Division:
Hughes Satellite Ground Equipment Division
Output Frequency:
70 MHz (Selected Out)
Power Input:
240V AC, 2A
Interface - Computer:
RS-232 (DB-25, J3); Computer port DB-25 (J2)
Telemetry Inputs - PCM 1:
NRZ-L (J10), Clock (J9), BI-Phase (J8)
Telemetry Inputs - PCM 2:
NRZ-L (J13), Clock (J12), BI-Phase (J11)
Telemetry Monitor:
D-sub connector J7
Command Interface:
CMD Tone In (J16), Monitor (J15, D-sub), Execute Out (J14)
Real Time Inputs:
Spin Sync J21, Sun J20, Composite J19, Nutation J18
Range In:
BNC connector J17
Monitor Bus:
D-sub J22
Selected RF Output:
A/B switch, 70 MHz, BNC connectors J6/J5/J4
Front Panel Display:
CRT/LCD screen with status readout
Front Panel Controls:
FAIL/RESET button
Known Fault:
70 MHz output level fixed; attenuator inoperative
Form Factor:
Rackmount Enclosure
Seller Notes:
Sold AS-IS for parts or repair. Crack in corner of screen.
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 3878526-100 AUSSAT Satellite Simulator sold AS-IS for parts/repair. 70 MHz attenuator inoperative; output level fixed. Crack in screen corner. Not tested. No functionality guaranteed.
View AllClose
