Hughes 3878540-100 Ku-Band Command Upconverter 14180 MHz Satcom AUSSAT 4U

(No reviews yet) Write a Review
SKU:
41247
MPN:
3878540-100
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
33.00 LBS
Shipping:
Calculated at Checkout

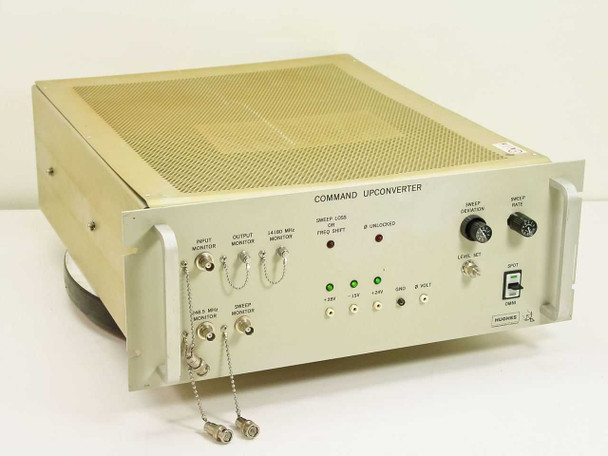

  • Hughes 3878540-100 Ku-Band Command Upconverter – front panel view showing monitor ports, LED indicators, sweep controls, and HUGHES branding
  • Hughes 3878540-100 front panel close-up showing Input Monitor, Output Monitor, 14180 MHz Monitor, 248.5 MHz Monitor, and Sweep Monitor BNC ports with security chains

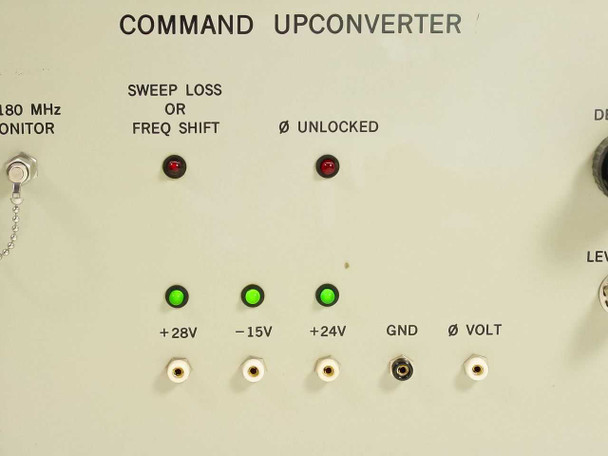

  • Hughes 3878540-100 front panel detail showing Sweep Loss/Freq Shift and Phase Unlocked LED indicators, plus +28V, -15V, +24V, GND, and 0 Volt status lights
  • Hughes 3878540-100 front panel right section showing Sweep Deviation knob, Sweep Rate knob, Level Set switch, SPOT/OMNI switch, and Hughes Aircraft Company logo with asset label
  • Hughes 3878540-100 rear panel showing J2 RF IN, J3 RF OUT, J4 248.5 MHz Output BNC connectors, J5 Status & Control DB9 port, 240VAC IEC power inlet with 1A fuse, chassis ground, and inspection tag

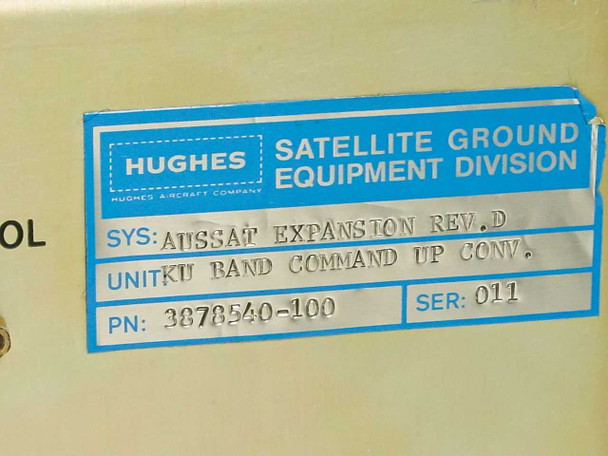

  • Hughes 3878540-100 identification label – Hughes Satellite Ground Equipment Division, SYS: AUSSAT EXPANSION REV. D, UNIT: KU BAND COMMAND UP CONV., PN: 3878540-100, SER: 011
  • Hughes 3878540-100 rear panel SCG Inspection Status Tag showing part number 3878540-100-D, KU BAND UP CONV., date 2/14/86, and Unauthorized Removal Prohibited notice
  • Hughes 3878540-100 rear panel close-up showing J5 Status & Control DB9 connector, S1 ON/OFF switch, J1 240VAC IEC power inlet with 1A fuse, E1 Chassis GND post, and Hughes label
  • Hughes 3878540-100 internal view with top cover removed showing RF circuitry, coaxial interconnects, internal power supply module, and signal processing subassemblies
  • Hughes 3878540-100 internal view alternate angle showing internal RF modules, coaxial cable routing, power supply, and circuit board assemblies
  • Hughes 3878540-100 4U Ku-Band Satcom Command Upconverter - 14180MHz / 1.418GHz
  • Hughes 3878540-100 4U Ku-Band Satcom Command Upconverter - 14180MHz / 1.418GHz
  • Hughes 3878540-100 4U Ku-Band Satcom Command Upconverter - 14180MHz / 1.418GHz
  • Hughes 3878540-100 4U Ku-Band Satcom Command Upconverter - 14180MHz / 1.418GHz
  • Hughes 3878540-100 4U Ku-Band Satcom Command Upconverter - 14180MHz / 1.418GHz
  • Hughes 3878540-100 4U Ku-Band Satcom Command Upconverter - 14180MHz / 1.418GHz
$600.00
Was: $1,200.00
Current Stock: 3

Sold Out

Description

Hughes 3878540-100 Ku-Band Command Upconverter 14180 MHz Satcom AUSSAT 4U

Ku-Band command upconverter designed for AUSSAT satellite ground equipment. Converts IF signals at 248/248.5 MHz to 14180 MHz output frequency for satellite command transmission.

Specifications & What's Included

  • Model: 3878540-100 | Serial: 011 | Revision: Rev. D
  • Output Frequency: 14180 MHz | IF Frequency: 248/248.5 MHz
  • Form Factor: 4U Rackmount
  • Power: 240 VAC, 1A, 50/60 Hz | DC Voltages: +28V, -15V, +24V
  • Connectors: RF IN (J2), RF OUT (J3), BNC 248.5 MHz (J4), DB9 Serial Control (J5)
  • Features: Adjustable sweep deviation and rate, LED status indicators

Applications

Used in AUSSAT satellite ground station systems for command uplink operations. This upconverter was standard equipment in Australian satellite communications infrastructure. Typical deployment in telecom earth stations, satellite command centers, and military/government satcom facilities requiring Ku-Band command transmission capability.

Condition: Used
This Hughes 3878540-100 Ku-Band Command Upconverter has been inspected and is in good used condition. It was pulled from a working satellite ground station environment and powers on at our warehouse. The front panel, controls, and chassis show normal wear consistent with rack-mounted service use. The BNC monitor ports retain their security chains. Internally the RF circuitry, subassemblies, and internal power supply appear intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes Aircraft Company
Model:
3878540-100
MPN:
3878540-100
Type:
Ku-Band Command Upconverter
SKU:
41247
System Compatibility:
AUSSAT Expansion Rev. D
Output Frequency:
14180 MHz
IF Frequency:
248 / 248.5 MHz
Frequency Band:
Ku-Band
Power Requirements:
240 VAC, 1A, 50/60 Hz
DC Voltages:
+28V, -15V, +24V, GND, 0V
Form Factor:
4U Rackmount
Monitor Ports:
Input, Output, 14180 MHz, 248 MHz, 248.5 MHz, Sweep
RF Connectors:
J2 RF IN, J3 RF OUT, J4 248.5 MHz Output (BNC)
Control Interface:
J5 Status & Control – DB9 Serial (9-pin)
Power Connector:
J1 IEC 240VAC inlet with 1A fuse
Chassis Ground:
E1 Chassis GND binding post
LED Indicators:
Sweep Loss / Freq Shift, Phase Unlocked
Voltage Indicators:
+28V, -15V, +24V LED status lights
Front Panel Controls:
Sweep Deviation knob, Sweep Rate knob, Level Set switch, SPOT/OMNI switch
Sweep Features:
Adjustable Sweep Deviation and Sweep Rate
Serial Number:
011
Revision:
Rev. D
Division:
Hughes Satellite Ground Equipment Division
Country/Region of Manufacture:
United States
Condition:
Used – Powers On, Pulled from Working Environment
Seller Notes:
Unit powers on at our warehouse. Sold as pictured; no accessories included.
Condition Notes:
Hughes 3878540-100 Ku-Band Command Upconverter. Inspected, good used condition. Pulled from working satcom environment; powers on at our warehouse. Normal service wear. Please contact us with any questions.
View AllClose

Related Products

Related Products

Miteq U-9456 54735 Ku-Band Upconverter front panel with LCD display showing 14200.000 MHz RF frequency, modulation controls, numeric keypad, and power switch Miteq U-9456 54735 Ku-Band Upconverter rear panel showing cooling fan, DB-15 remote interface connectors, power input, and RF/IF port area
Add to Cart
Quick view

Miteq U-9456 54735 Ku-Band Upconverter 70 MHz IF 13.5-14.5 GHz RF Satcom

Miteq

$1,100.00
Was: $2,200.00
Miteq U-9456 54735 Ku-Band Upconverter 70 MHz IF 13.5-14.5 GHz RF SatcomThe Miteq U-9456/54735 is a Ku-Band upconverter designed for satellite communications earth station applications. It accepts a...
52450
SKU:
52450
Availability:
Usually ships within 1–2 business days.
Weight:
31.00 LBS
Brand:
Miteq
Model:
U-9456
Secondary Model:
54735
MPN:
U-9456/54735
SKU:
52450
Type:
Ku-Band Upconverter
Condition:
Used – Inspected and Tested
IF Input Frequency:
70 MHz
RF Output Frequency Range:
13.5 GHz to 14.5 GHz
Frequency Band:
Ku-Band
Power Requirements:
100–240V AC, 47–63 Hz, 250 VA Max
Input Voltage Options:
120V–3.0A / 220V–1.5A / 240V–1.5A
RF Output Connector:
Type N (J2 — RF Output)
IF Input Connector:
Type N (J1 — IF Input)
IF Monitor Output Connector:
Type N (J1A — IF Monitor Output)
Reference Frequency:
5 MHz (Int/Ext selectable)
Attenuation:
Variable (dB), front-panel adjustable
Remote Interface:
Dual DB-15 remote interface ports (J6, J10)
Alarm Outputs:
Summary Alarm (J3, DB-9), Redundancy Alarm (I7)
Form Factor:
Rackmount, 3U
Dimensions:
24" x 19" x 5"
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no accessories included. Tested working at our facility.
Application:
Satellite Communications (Satcom), VSAT Earth Station
Condition Notes:
Miteq U-9456/54735 Ku-Band Upconverter tested and confirmed working at our facility using an RF Signal Generator and RF Amplifier. Powers on, LCD and keypad functional. Typical rack wear cosmetically. Please contact us with any questions.
Hughes 3878529-100 Station Status and Control Module – front panel view showing embedded display and REMOTE LOCAL PSU MUTE buttons Hughes 3878529-100 Station Status and Control Module – rear/side view showing ventilation fan, AC inlet, BNC connectors, and blue Hughes label
Add to Cart
Quick view

Hughes 3878529-100 Station Status and Control Module 19" Rackmount AUSSAT Satcom

Hughes

$300.00
Was: $600.00
Hughes 3878529-100 Station Status and Control Module 19" Rackmount AUSSAT SatcomStation Status and Control Module for AUSSAT satellite ground equipment. This 19" rackmount unit houses a 112K...
41234
SKU:
41234
Availability:
Usually ships within 1-2 business days.
Weight:
35.00 LBS
Brand:
Hughes Aircraft Company
Model:
3878529-100
MPN:
3878529-100
Secondary Model:
337-529-100
Type:
Station Status and Control Module
SKU:
41234
System:
AUSSAT Satellite Ground Equipment
Division:
Hughes Satellite Ground Equipment Division
Form Factor:
19" Rackmount
Front Panel Display:
Embedded CRT/LCD display
Front Panel Controls:
REMOTE, LOCAL, PSU/INIT, MUTE buttons
Node Label:
Node 17
Internal Board 1:
112K Processor, Assy 3878693
Internal Board 2:
Local Control Unit, Assy 3878583 Rev A
Internal Board 3:
SPD Industrial Electronic Engineers P/N 04202-01, Mfg Date 8345
Power Input:
AC mains via IEC inlet, fused 2A
Rear Connectors:
IEC AC inlet, BNC (x2), DB-type connector, E1/E2 signal/chassis GND
Rear Switches:
S1 ON/OFF power switch, J1 AC inlet
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair. Multiple internal PCBs visible.
Compatible With:
AUSSAT Satellite Ground Station Systems
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 3878529-100 Station Status and Control Module sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Internal PCBs present. 19" rackmount chassis shows typical wear. Please contact us with questions.
Hughes Aircraft 3878526-100 AUSSAT Satellite Simulator – front panel view showing CRT display and FAIL/RESET button Hughes 3878526-100 Satellite Simulator – rear panel showing telemetry BNC connectors, RS-232 port, speaker grille, and AC inlet
Add to Cart
Quick view

Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF Satcom

Hughes

$350.00
Was: $700.00
Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF SatcomGround support equipment simulator for AUSSAT HS-601 satellite systems. Generates 70MHz RF test signals and processes...
41235
SKU:
41235
Availability:
Usually ships within 1-2 business days.
Weight:
50.00 LBS
Brand:
Hughes Aircraft Company
Model:
3878526-100
MPN:
3878526-100
Type:
Satellite Simulator / RF Satcom Ground Support Equipment
SKU:
41235
Condition:
As-Is / For Parts or Not Working
Revision:
Rev B
System:
AUSSAT HS-601
Division:
Hughes Satellite Ground Equipment Division
Output Frequency:
70 MHz (Selected Out)
Power Input:
240V AC, 2A
Interface - Computer:
RS-232 (DB-25, J3); Computer port DB-25 (J2)
Telemetry Inputs - PCM 1:
NRZ-L (J10), Clock (J9), BI-Phase (J8)
Telemetry Inputs - PCM 2:
NRZ-L (J13), Clock (J12), BI-Phase (J11)
Telemetry Monitor:
D-sub connector J7
Command Interface:
CMD Tone In (J16), Monitor (J15, D-sub), Execute Out (J14)
Real Time Inputs:
Spin Sync J21, Sun J20, Composite J19, Nutation J18
Range In:
BNC connector J17
Monitor Bus:
D-sub J22
Selected RF Output:
A/B switch, 70 MHz, BNC connectors J6/J5/J4
Front Panel Display:
CRT/LCD screen with status readout
Front Panel Controls:
FAIL/RESET button
Known Fault:
70 MHz output level fixed; attenuator inoperative
Form Factor:
Rackmount Enclosure
Seller Notes:
Sold AS-IS for parts or repair. Crack in corner of screen.
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 3878526-100 AUSSAT Satellite Simulator sold AS-IS for parts/repair. 70 MHz attenuator inoperative; output level fixed. Crack in screen corner. Not tested. No functionality guaranteed.

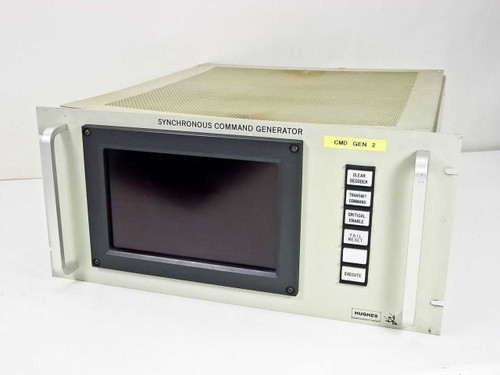

Hughes 3878523-100 Synchronous Command Generator — front panel with CRT display and CMD GEN 2 label, showing Clear Decoder, Transmit Command, Critical Enable, Fail Reset, and Execute buttons Hughes 3878523-100 Synchronous Command Generator — rear and side panel showing Ext Controller (J4), Monitor Interface (J5), Command Tones Out BNC (J7/J8), FM RT Input BNC (J6), and Hughes Satellite Ground Equipment Division label
