Hughes

Hughes Aircraft WD-8702-001 Rev Y 2470-II Wire Bonder Electronic Control Box

(No reviews yet) Write a Review
SKU:
50488
MPN:
WD-8702-001
Condition:
Used
Availability:
This item requires freight shipping due to its size and weight; please contact us for a freight quote before ordering.
Weight:
216.00 LBS
Shipping:
Calculated at Checkout
  • Hughes WD-8702-001 wire bonder control cabinet – rear-left view showing ventilation panel, caution label, large cooling fan, and power cable with twist-lock plug
  • Hughes WD-8702-001 2470-II wire bonder control enclosure – left side view with lower access door open, showing internal cable bundle at top
  • Hughes Aircraft Company WD-8702-001 Rev Y nameplate – Industrial Products Division, Carlsbad California, S/N 1044
  • Hughes WD-8702-001 top connector panel – six BNC connectors labeled J-1001 through J-1005 and J-1011, plus a multi-pin connector; Hughes nameplate visible above
  • Hughes WD-8702-001 interior view – front door open showing card cage with multiple boards at top, large transformer, blue capacitors, and internal power supply module
  • Hughes WD-8702-001 interior lower section – relay boards and terminal strips with multi-colored wiring, DIN-rail mounted relay modules, and wiring harness

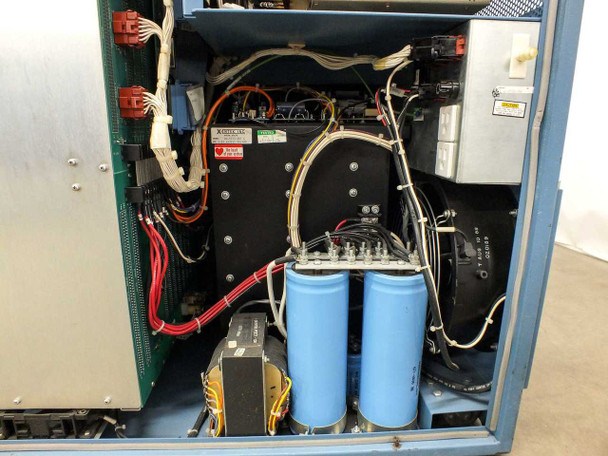

  • Hughes WD-8702-001 interior power section – Xentek power supply unit, large blue electrolytic capacitors, transformer, and high-voltage wiring bundle

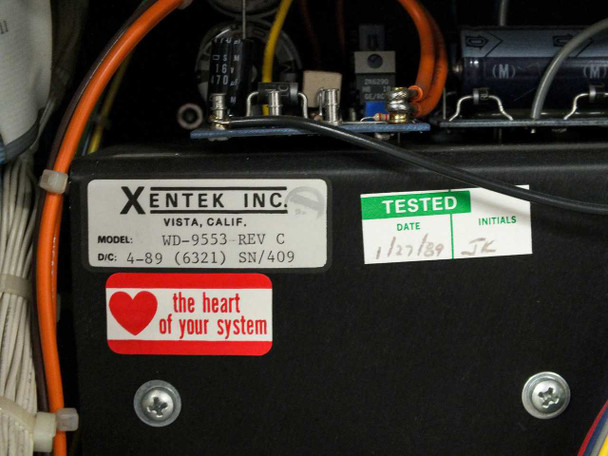

  • Xentek Inc. WD-9553 Rev C internal power supply label – Model WD-9553 Rev C, D/C 4-89, SN/409; green TESTED sticker dated 1/27/89 with initials JR
  • Hughes WD-8702-001 card cage – upper slot row with boards installed in slots labeled SYS CPU, MEM, IDX CPU, IEEE 488, SYS I/O, X-Axis, Y-Axis, Z-Axis, and Spare
  • Hughes WD-8702-001 card cage – lower slot row mostly empty; multi-pin cable and connector visible at front; green backplane illuminated
  • Hughes Aircraft Company customer service information sheet – Industrial Products Division contact details for Western and Eastern regions, Carlsbad CA
  • Hughes wire bonder control board – front side of green PCB (marked WD8607C3 Rev A) with multiple DIP ICs, edge connector, and discrete components
  • Hughes wire bonder control board – rear/component side of green PCB (WD8607C3 Rev A) with TESTED sticker dated 2/3/89; Hughes Industrial Products Division label visible

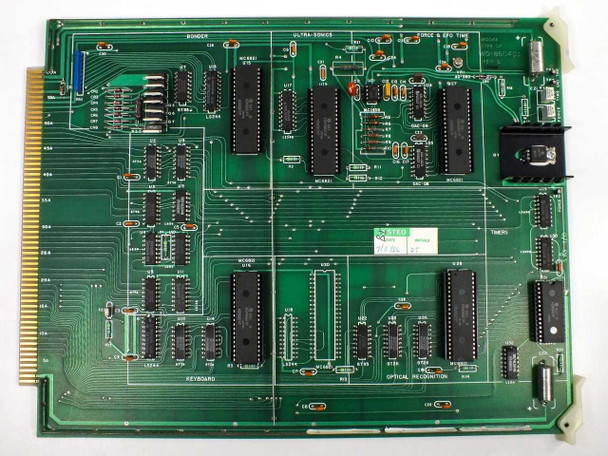

  • Hughes 2470-II wire bonder control card – green PCB labeled BONDER / ULTRA-SONICS / CAMERA & OPD TRK; sections labeled KEYBOARD, OPTICAL RECOGNITION, TIMERS; multiple DIP ICs and edge connector
$1,100.00
Was: $2,200.00
Current Stock: 1

Sold Out

Description

Hughes Aircraft WD-8702-001 Rev Y 2470-II Wire Bonder Electronic Control Box

Electronic control enclosure for Hughes 2470-II Series wire bonders. Manages motion control and system I/O for semiconductor wire bonding equipment.

Specifications & What's Included

  • Model: WD-8702-001 Rev Y; Secondary Model: 2470-II
  • Dimensions: 33" W x 15" D x 32" H (freestanding cabinet)
  • Multi-slot card cage with CPU, memory, motion axis control, and I/O boards
  • Internal Xentek Inc. WD-9553 Rev C power supply (D/C 4-89)
  • External BNC connectors (J-1001 through J-1005, J-1011) and multi-pin connectors
  • Includes electronic control boards, power cabling, and internal wiring harness as shown in photos

Applications

Wire bonder control enclosures manage motion systems and electrical I/O for automated semiconductor assembly. The 2470-II was used in die attachment and wire bonding operations requiring coordinated X, Y, and Z axis control. This enclosure type served as the central control platform for Hughes wire bonding equipment in manufacturing environments.

Condition: Used
This Hughes Aircraft WD-8702-001 Rev Y 2470-II Wire Bonder Electronic Control Box powers on but has not been fully tested. The unit is being sold as a partially verified surplus item — it is not guaranteed to be fully functional. The boards shown in the photo set are included: the card cage contains multiple populated control cards (including boards labeled SYS CPU, MEM, IDX CPU, IEEE 488, SYS I/O, and axis control cards), and the internal Xentek WD-9553 Rev C power supply is present. The enclosure itself shows typical wear for equipment of this vintage — the blue powder-coat finish has minor scuffs and surface marks. This is the electrical control enclosure only; the wire bonder head and bonding hardware are not included. Due to its size and weight, freight shipping is required. Please review our full photo set and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes Aircraft Company
Model:
WD-8702-001
MPN:
WD-8702-001
Secondary Model:
2470-II
Hardware Revision:
Rev. Y
Type:
Wire Bonder Electronic Control Enclosure
SKU:
50488
Series:
2470-II
Manufacturer Division:
Industrial Products Division
Country/Region of Manufacture:
United States
Form Factor:
Freestanding Cabinet / Floor-Standing Enclosure
Dimensions:
33" W x 15" D x 32" H (approx.)
Includes:
Electronic control boards, power cabling, internal wiring harness
Card Slots / Board Positions:
Multi-slot card cage; slots labeled SYS CPU, MEM, IDX CPU, IEEE 488, SYS I/O, X-Axis, Y-Axis, Z-Axis, Spare
Internal Power Supply:
Xentek Inc. WD-9553 Rev C (D/C 4-89, SN/409)
External Connectors:
BNC connectors J-1001 through J-1005, J-1011; multi-pin connector
Compatible With:
Hughes 2470-II Series Wire Bonder
Condition:
Used – Powers On, Not Fully Tested
Seller Notes:
Electrical enclosure only — wire bonder head not included. Boards shown in photos included. Freight shipping required.
Application:
Semiconductor wire bonding — motion control and system I/O
Shipping Method:
Freight required due to size and weight
Condition Notes:
Hughes WD-8702-001 Rev Y wire bonder control enclosure powers on but has not been fully tested. Boards shown in photos included. Enclosure only — bonder not included. Freight shipping required. Not guaranteed fully functional.
