Hughes 3808670-100-1 Westar Incremental Control Unit Rev A RF Satcom

(No reviews yet) Write a Review
SKU:
52284
MPN:
3808670-100-1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Shipping:
Calculated at Checkout

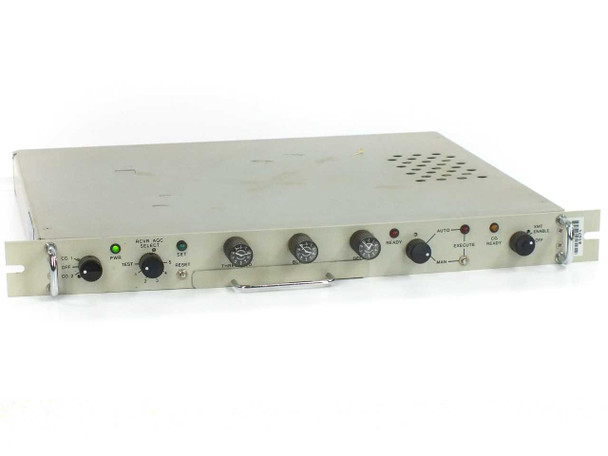

  • Hughes 3808670-100-1 Westar Incremental Control Unit Rev A – front panel view showing PWR, RCVR AGC Select, Reset, Ready, Auto/Man Execute, and XMT Enable controls
  • Hughes 3808670-100-1 Westar Incremental Control Unit – rear panel showing IEC AC power inlet, DB9 serial connectors, and BNC coaxial ports
  • Hughes Westar Incremental Control Unit front panel left section – close-up of CG 1/OFF/CG 2 selector, PWR indicator, RCVR AGC Select knob, SET indicator, and RESET button
  • Hughes Westar Incremental Control Unit front panel right section – close-up of READY indicator, AUTO/MAN switch, EXECUTE knob, CG READY indicator, and XMT ENABLE toggle

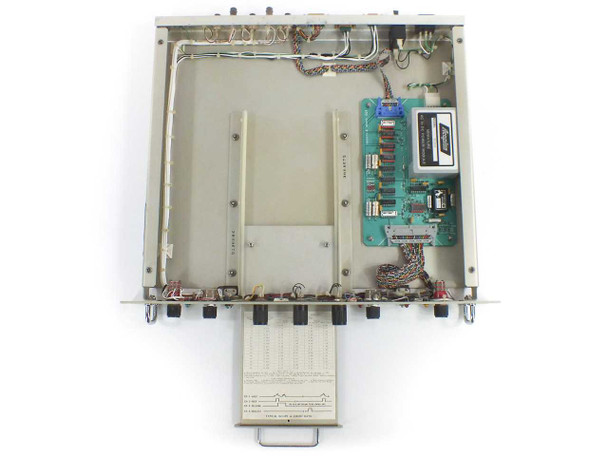

  • Hughes 3808670-100-1 Westar Incremental Control Unit – interior top-down view showing PCB assembly, wiring harness, and internal connector card
  • Hughes 3808670-100-1 Westar Incremental Control Unit identification label – reads Hughes Satellite Ground Equipment Division, SYS: Westar, Rev A, Unit: Incremental Control Unit, PN: 3808670-100-1, SER: 001
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Hughes 3808670-100-1 Westar Incremental Control Unit Rev A RF Satcom

Incremental Control Unit for Westar RF satellite ground systems. This 1U rackmount component manages transmit and receive functions in satellite communication installations.

Specifications & What's Included

  • Model: 3808670-100-1 | Revision A
  • Form Factor: 1U rackmount
  • Front Panel: PWR, RCVR AGC Select, Reset, Ready, Auto/Man, Execute, CG Ready, XMT Enable controls
  • Rear Connectors: IEC AC inlet, DB9 serial ports, BNC coaxial connectors
  • Unit only; no accessories included

Applications

The Westar incremental control units were deployed in Hughes satellite ground station equipment for RF satcom operations. This component integrates with Westar RF satellite ground systems to manage receiver AGC selection, transmitter enable functions, and operational modes. Commonly found in telecom and broadcast earth station installations from the 1980s through early 2000s.

Condition: Used
This Hughes 3808670-100-1 Westar Incremental Control Unit (Rev A) has been inspected and appears to be in good condition. The chassis and front panel show light surface wear consistent with prior rack-mounted use, including minor scuffing on the top cover. Front panel controls, indicators, and knobs are all present and intact. The rear panel connectors — including the IEC AC inlet, DB9 ports, and BNC coaxials — show no obvious damage. The unit has not been powered or tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hughes
Model:
3808670-100-1
MPN:
3808670-100-1
Type:
Incremental Control Unit
SKU:
52284
Revision:
Rev A
System:
Westar
Division:
Hughes Satellite Ground Equipment Division
Application:
RF Satellite Communications (Satcom)
Form Factor:
Rackmount, 1U
Front Panel Controls:
PWR, RCVR AGC Select, Reset, Ready, Auto/Man, Execute, CG Ready, XMT Enable
Rear Connectors:
IEC AC inlet, DB9 serial ports, BNC coaxial connectors
Condition:
Used – Inspected, appears in good condition
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no accessories included. Inspected and appears in good condition.
Compatible With:
Westar RF Satellite Ground Systems
Condition Notes:
Hughes 3808670-100-1 Westar Incremental Control Unit Rev A. Inspected, appears in good condition. Light surface wear on chassis. All front panel controls and rear connectors present and intact. Not powered or tested at our facility.
View AllClose

Related Products

Related Products

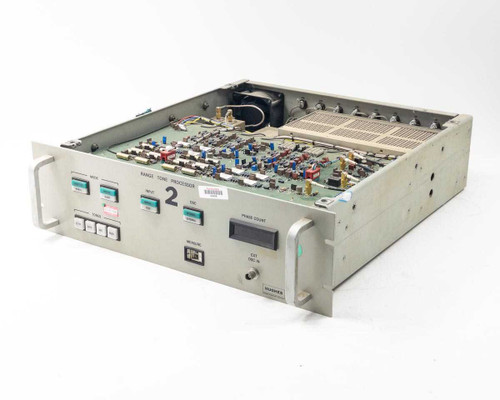

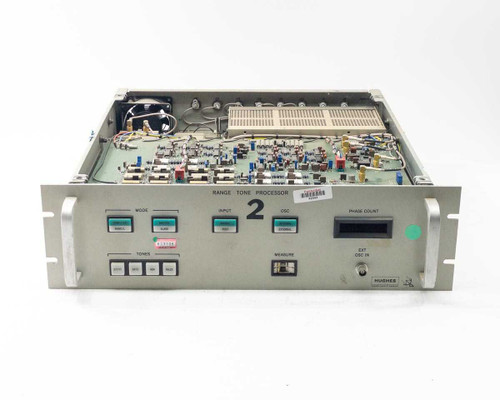

Hughes 3899311-100 Westar Range Tone Processor — three-quarter front-left view showing open top cover and internal PCB assembly Hughes 3899311-100 Range Tone Processor — straight-on front panel view showing Mode, Input, OSC, Tones buttons and Phase Count display
Add to Cart
Quick view

Hughes 3899311-100 Westar VII Range Tone Processor Rackmount Satcom

Hughes

$150.00
Was: $300.00
Hughes 3899311-100 Westar VII Range Tone Processor Rackmount SatcomRange tone processor designed for Westar VII satellite ground equipment. Generates and measures tone frequencies for satellite...
39329
SKU:
39329
Availability:
Usually ships within 1-2 business days.
Weight:
35.00 LBS
Brand:
Hughes Aircraft
Model:
3899311-100
MPN:
3899311-100
Type:
Range Tone Processor
SKU:
39329
System:
Westar VII
Revision:
Rev A
Division:
Satellite Ground Equipment Division
Form Factor:
Rack Mount
Tone Frequencies:
27777, 3472, 434, 54.25 Hz
Front Panel Controls:
Mode, Input, OSC, Measure, Tones, Phase Count display
OSC Modes:
Internal / External
Input Modes:
Normal / Test
Mode Options:
Computer / Manual; Master / Slave
EXT OSC IN:
BNC connector on front panel
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is. Does not power on. Unit only, no accessories.
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 3899311-100 Westar VII Range Tone Processor does not power on. Tested at our facility — failed to power up. Sold as-is for parts or repair only. No functionality guaranteed. Please see photos.

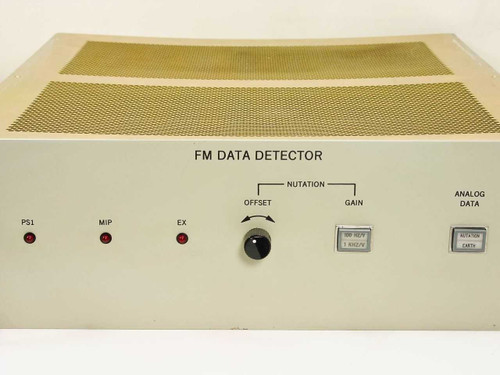

Hughes 3770031-100 FM Data Detector front panel view showing PS1, MIP, EX indicators and nutation controls Hughes FM Data Detector front panel close-up showing Nutation Offset knob, Gain switch, and Analog Data toggle
Add to Cart
Quick view

Hughes 3770031-100 FM Data Detector Rackmount Westar VII Satcom Ground Station

Hughes

$175.00
Was: $350.00
Hughes 3770031-100 FM Data Detector Rackmount Westar VII Satcom Ground StationFM data detector unit designed for satellite telemetry applications in Westar VII ground stations. Processes composite...
39438
SKU:
39438
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Brand:
Hughes Aircraft
Model:
3770031-100
MPN:
3770031-100
Type:
FM Data Detector
SKU:
39438
System Compatibility:
Westar VII (Westar V11) Satellite Ground Station
Revision:
Rev F
Form Factor:
Rackmount
Condition:
Used – Pulled from Working Environment
Division:
Hughes Satellite Ground Equipment Division
Front Panel Controls:
Nutation Offset, Nutation Gain knob/switches, PS1/MIP/EX indicators, Analog Data switch
Rear Connectors:
J1: Composite TM In (BNC), J2: Detected TM Data Out (D-sub), J3: PSI Out (BNC)
Input Connector:
BNC – Composite TM In (J1)
Output Connector:
D-sub – Detected TM Data Out (J2); BNC – PSI Out (J3)
Power Input:
105-127 VAC or 210-250 VAC, 47-63 Hz (IEC inlet, rear)
Internal Power Supply:
Lambda LND-X-152 Regulated Dual Output, ±12 to 15 VDC
Internal Power Module:
Acopian Model 5E850 AC to DC Power Module
Crystal Oscillator:
Vectron Laboratories CO231, 10 kHz
Application:
Satellite telemetry FM data detection, Westar ground station
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no accessories. Pulled from Westar VII satellite ground station service.
Condition Notes:
Hughes 3770031-100 FM Data Detector, used, pulled from active Westar VII satellite ground station service. Inspected and in good condition. Front panel controls and rear connectors intact. Internal assembly complete.

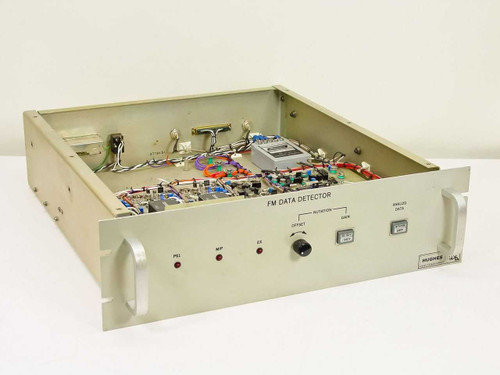

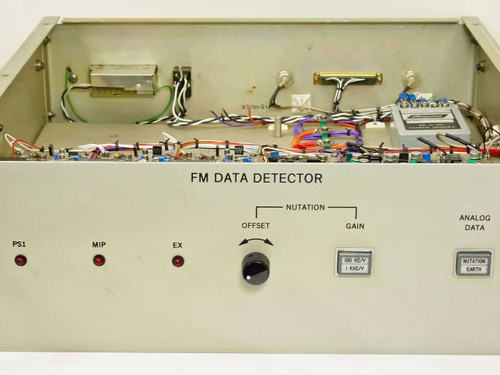

Hughes 3814120-100 FM Data Detector Galaxy Rev B — front-left three-quarter view with top cover removed showing internal PCB assembly Hughes 3814120-100 FM Data Detector — front panel close-up showing PS1, MIP, EX indicators, Nutation Offset/Gain controls, and Analog Data output
Add to Cart
Quick view

Hughes 3814120-100 FM Data Detector Galaxy System Rev B Rackmount Satcom

Hughes

$150.00
Was: $300.00
Hughes 3814120-100 FM Data Detector Galaxy System Rev B Rackmount SatcomThe Hughes 3814120-100 is a rackmount FM Data Detector built by Hughes Aircraft's Satellite Ground Equipment Division for the...
39442
SKU:
39442
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Brand:
Hughes Aircraft
Model:
3814120-100
MPN:
3814120-100
Secondary Model:
3814120-100-A
Type:
FM Data Detector
SKU:
39442
System Compatibility:
Hughes Galaxy Satellite Ground Equipment System
Revision:
Rev B
Division:
Hughes Satellite Ground Equipment Division
Form Factor:
Rackmount
Connector J1:
BNC — Composite TM In
Connector J2:
D-Sub (25-pin) — Detected TM Data Out
Connector J3:
BNC — PSI Out
Front Panel Indicators:
PS1, MIP, EX LED indicators
Front Panel Controls:
Nutation Offset knob, Nutation Gain switch, Analog Data button
Nutation Gain Settings:
100 Hz/V, 1 KHz/V
Power Input:
100/240 VAC, 48/440 Hz (Hopkins Engineering F65003 Line Module)
Internal Power Module:
Acopian 5EB50 AC to DC Power Module
Internal Crystal Oscillator:
Vectron CO-231, 10 KHz
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories. Pulled from a working Galaxy satcom environment.
Condition Notes:
This Hughes 3814120-100 FM Data Detector (Galaxy Rev B) has been inspected and is in good used condition. Pulled from a working satcom environment. Chassis shows light wear; all connectors, indicators, and controls appear intact.
Hughes Aircraft 3878526-100 AUSSAT Satellite Simulator – front panel view showing CRT display and FAIL/RESET button Hughes 3878526-100 Satellite Simulator – rear panel showing telemetry BNC connectors, RS-232 port, speaker grille, and AC inlet
Add to Cart
Quick view

Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF Satcom

Hughes

$350.00
Was: $700.00
Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF SatcomGround support equipment simulator for AUSSAT HS-601 satellite systems. Generates 70MHz RF test signals and processes...
41235
SKU:
41235
Availability:
Usually ships within 1-2 business days.
Weight:
50.00 LBS
Brand:
Hughes Aircraft Company
Model:
3878526-100
MPN:
3878526-100
Type:
Satellite Simulator / RF Satcom Ground Support Equipment
SKU:
41235
Condition:
As-Is / For Parts or Not Working
Revision:
Rev B
System:
AUSSAT HS-601
Division:
Hughes Satellite Ground Equipment Division
Output Frequency:
70 MHz (Selected Out)
Power Input:
240V AC, 2A
Interface - Computer:
RS-232 (DB-25, J3); Computer port DB-25 (J2)
Telemetry Inputs - PCM 1:
NRZ-L (J10), Clock (J9), BI-Phase (J8)
Telemetry Inputs - PCM 2:
NRZ-L (J13), Clock (J12), BI-Phase (J11)
Telemetry Monitor:
D-sub connector J7
Command Interface:
CMD Tone In (J16), Monitor (J15, D-sub), Execute Out (J14)
Real Time Inputs:
Spin Sync J21, Sun J20, Composite J19, Nutation J18
Range In:
BNC connector J17
Monitor Bus:
D-sub J22
Selected RF Output:
A/B switch, 70 MHz, BNC connectors J6/J5/J4
Front Panel Display:
CRT/LCD screen with status readout
Front Panel Controls:
FAIL/RESET button
Known Fault:
70 MHz output level fixed; attenuator inoperative
Form Factor:
Rackmount Enclosure
Seller Notes:
Sold AS-IS for parts or repair. Crack in corner of screen.
Country/Region of Manufacture:
United States
Condition Notes:
Hughes 3878526-100 AUSSAT Satellite Simulator sold AS-IS for parts/repair. 70 MHz attenuator inoperative; output level fixed. Crack in screen corner. Not tested. No functionality guaranteed.

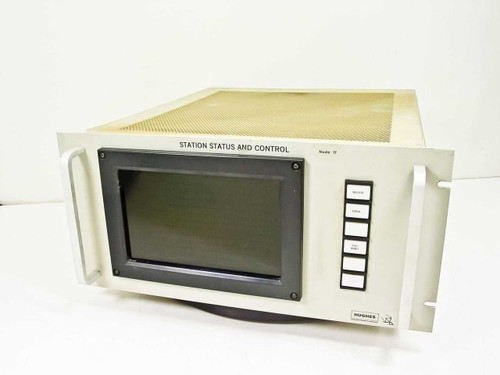

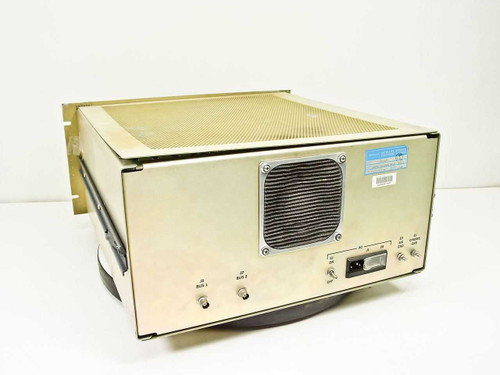

Hughes 3878529-100 Station Status and Control Module – front panel view showing embedded display and REMOTE LOCAL PSU MUTE buttons Hughes 3878529-100 Station Status and Control Module – rear/side view showing ventilation fan, AC inlet, BNC connectors, and blue Hughes label
