The Hughes Aircraft Model 2460 (also identified as HMC-2460) is a semi-automatic thermosonic/thermocompression wire bonder designed for precision interconnection of semiconductor die in IC packaging and microelectronics assembly. Built by Hughes Aircraft Company's Industrial Products Division in Carlsbad, California, the Model 2460 bonds fine gold or aluminum wire between die bond pads and package leads using a combination of heat, ultrasonic energy, and controlled bonding force. This system is configured as the WD-8700D1 control unit at Revision F and includes an integrated Panasonic WV-5350 video monitor and a Hughes operator's manual.

Specifications & What's Included

• Manufacturer: Hughes Aircraft Company – Industrial Products Division, Carlsbad, California
• Model: 2460 (HMC-2460)
• Control Unit Model: WD-8700D1, Revision F
• Type: Automatic Wire Bonder System
• Overall System Dimensions: 48" W x 37" D x 66" H (integrated cabinet)

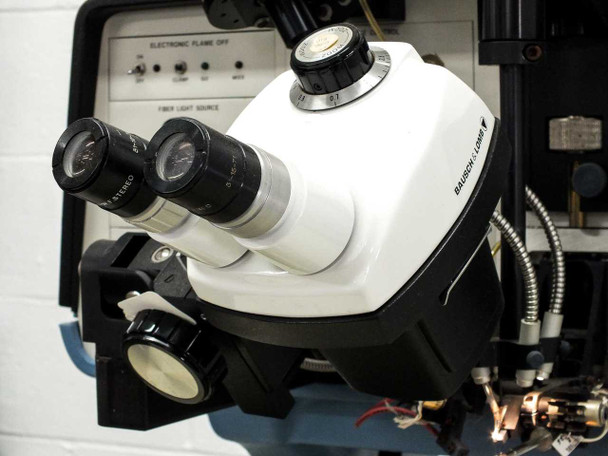

• Microscope: Bausch & Lomb stereo binocular microscope with dual eyepieces
• Integrated Video Monitor: Panasonic WV-5350
• Monitor Power: 120V AC, 60Hz, 23W / 12V DC, 0.9A
• Monitor Video Input: 1 Vp-p, 75 Ohm (BNC)

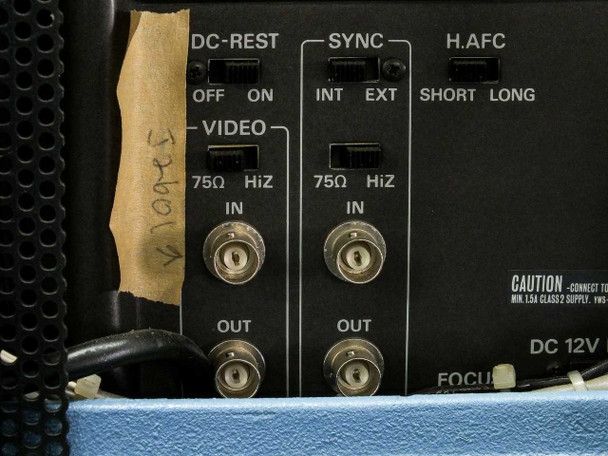

• Monitor Rear Connectors: BNC Video IN/OUT, BNC Sync IN/OUT; DC-Rest, Sync INT/EXT, H.AFC switches

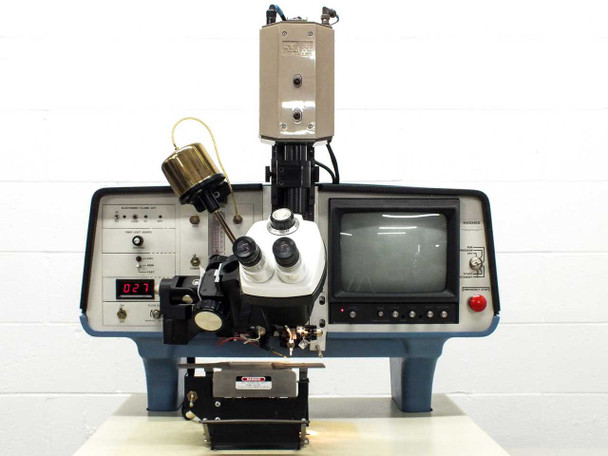

• Front Panel Controls: Electronic Flame Off (On/Off, Clamp, Go, Miss indicators), Fiber Light Source (Brightness), Cal/Run/Test selector, Flow Rate control (Increase/Decrease), Feed and Tension adjustments
• LED Setpoint Display: Red 3-digit numeric display (reading 027 in photos)
• Emergency Stop: Red mushroom-head button on front panel
• Run/Program/Off and Start/Standby switches on monitor panel
• Internal Control Card Cage: Two-tier rack with multiple PCB controller boards installed

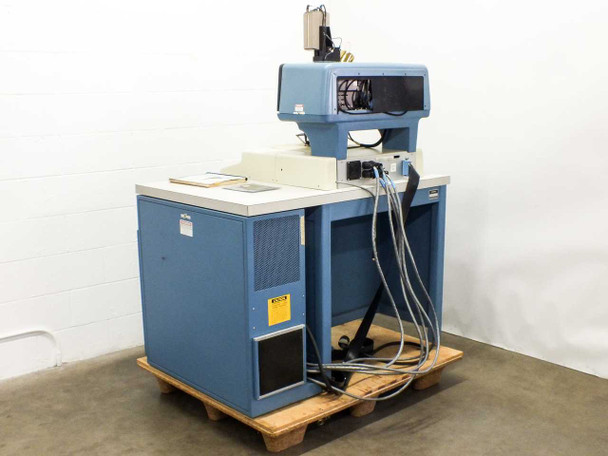

• Cabinet: Integrated steel cabinet base with ventilated lower section
• Included: Hughes Automatic Wire Bonder Operator's Manual (spiral-bound, Industrial Products Division) and additional material packet (visible in photos)

Applications
