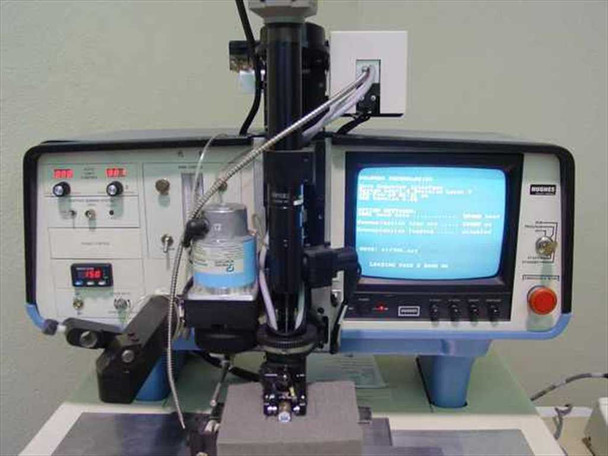

Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat

(No reviews yet) Write a Review
SKU:
17438
MPN:
2470-V
Condition:
Used
Weight:
760.00 LBS
Shipping:
Calculated at Checkout
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
  • Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat
$11,827.00
Was: $30,000.00
Current Stock: 1

Sold Out

Description

Hughes 2470-V Palomar Automatic Wedge Wire Bonder Aluminum & Gold - Bad CMOS Bat


  • Aluminum and Gold wire bonding
  • Cycle Time: 750ms per wire with an approximate wire length of 0.025 inches
  • Table Range: 5 x 12 inches
  • Digital servos
  • Looping: multiple programmable looping envelopes with a maximum loop height & other features
  • Ultrasonic generator with electrostrictive ceramic 60 khz transducer with current and voltage modes & power level selectable
  • One or two point reference with two point rotation correction
  • X / Y / Z axis resolution of 0.0001 inches
  • Deep access capability

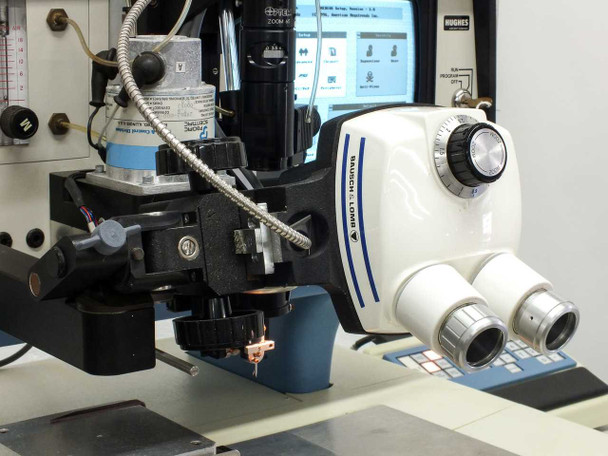

  • Adjustable power microscope

    • This used wire bonder is in good overall condition condition. The dallas time clock battery on the main CPU needs to be replaced as the onboard motherboard will not hold CMOS data. Listing in an As Is / As Photographed. condition. Please let us know if you have any questions.



    Condition: Used

    This used wire bonder is in good overall condition condition. The dallas time clock battery on the main CPU needs to be replaced as the onboard motherboard will not hold CMOS data. Listing in an As Is / As Photographed. condition. Please let us know if you have any questions.
