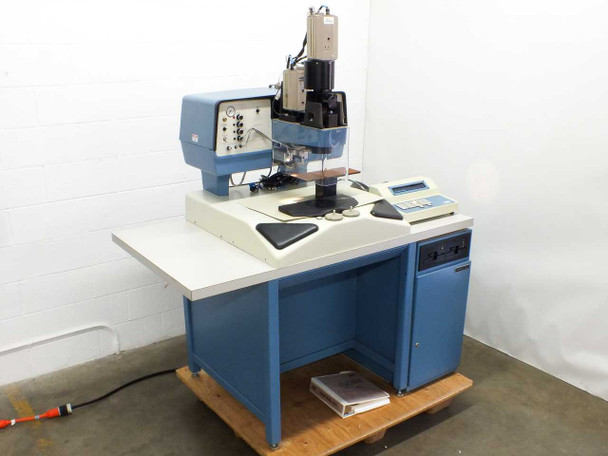

  • Hughes Aircraft Model 2500 Hybrid Automatic Die Bonder full system front-left view on pallet, blue cabinet with bonding head and CRT monitor

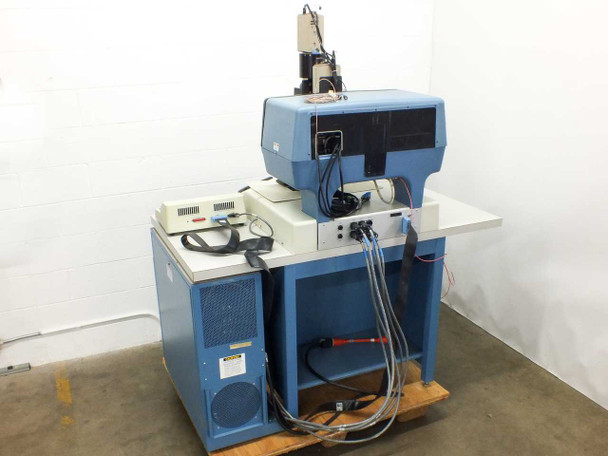

  • Hughes Model 2500 Hybrid Die Bonder right-side view showing card cage cabinet, external controller unit, and interconnect cabling on pallet

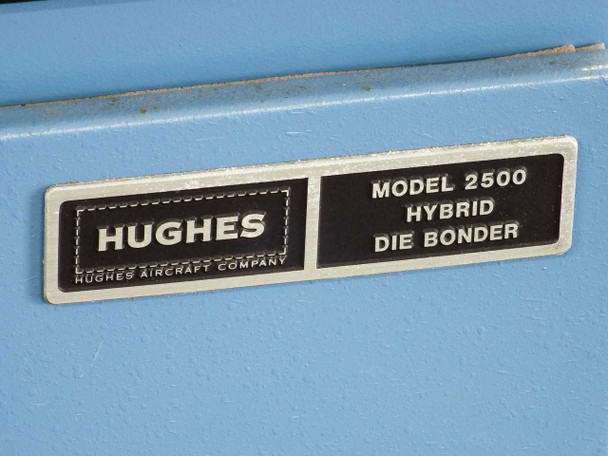

  • Hughes Aircraft Company Model 2500 Hybrid Die Bonder nameplate closeup showing manufacturer and model designation
  • Hughes 2500 Die Bonder front panel view showing bonding head assembly, vacuum chuck work stage, Panasonic CRT monitor, and emergency stop button

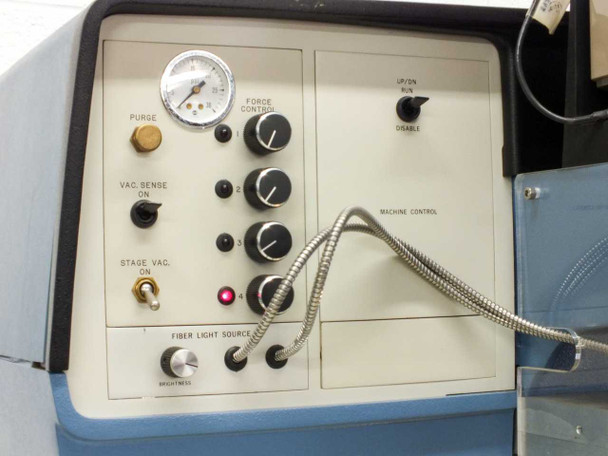

  • Hughes 2500 Die Bonder left control panel with pressure gauge, Force Control, Vac Sense, Stage Vac, fiber light source brightness, UP/ON Run and Disable switches
  • Hughes 2500 Die Bonder bonding head and collet assembly closeup showing fine-placement mechanism and rotary dial

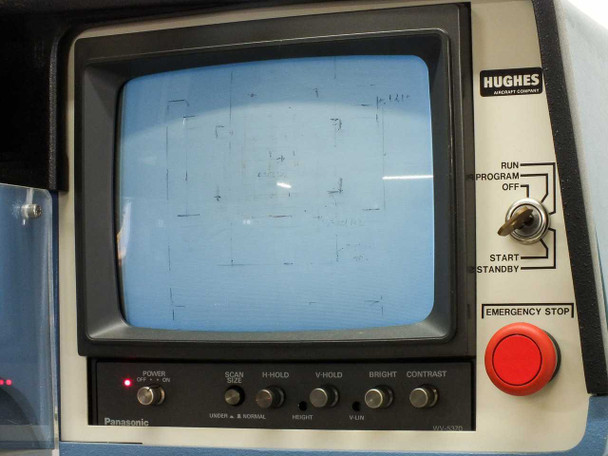

  • Hughes 2500 Die Bonder Panasonic CRT vision monitor with Run/Program/Off and Start/Standby toggle switches and red Emergency Stop button

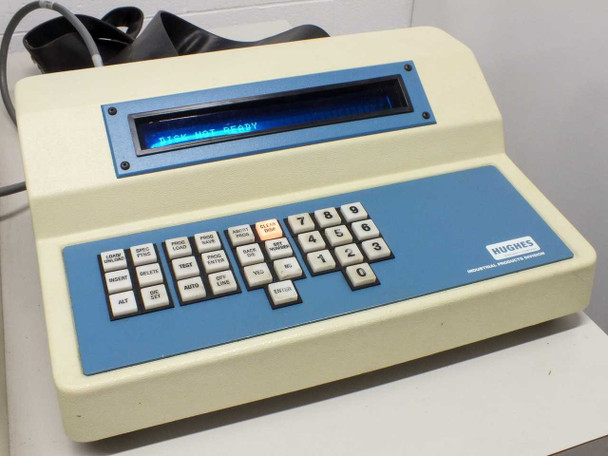

  • Hughes Industrial Products keyboard controller with LED display reading 'DISK NOT READY', numeric and function keypad
  • Hughes Model 2500 Die Bonder internal card cage open showing multiple populated PCB boards in upper and lower card slots, with manual visible at lower left

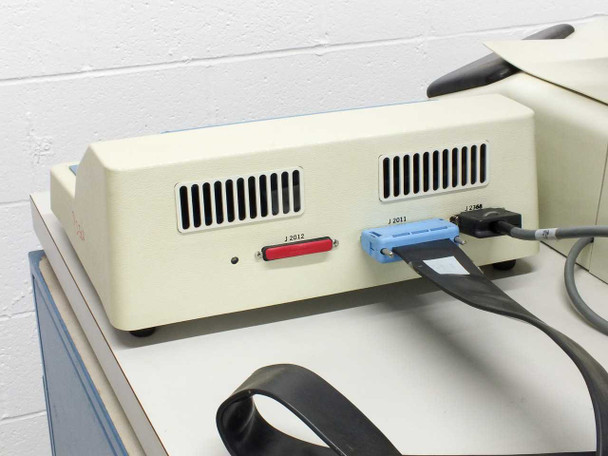

  • Hughes 2500 Die Bonder external controller rear panel showing J2012 and J2011 connector ports with cables attached
  • Hughes 2500 Die Bonder rear interconnect panel showing circular multi-pin connectors J2041, J2051, J2052, J2023, J2034 with cables installed

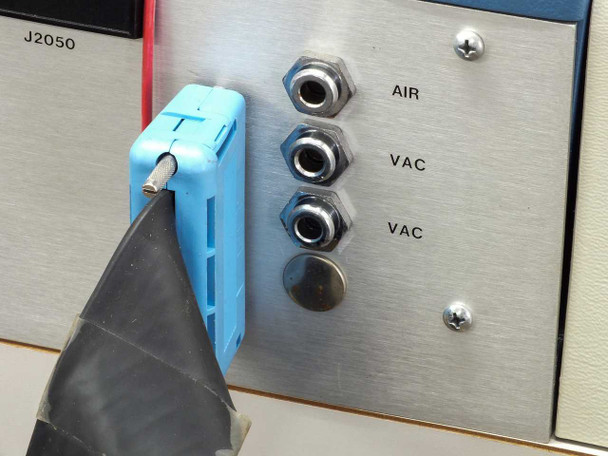

  • Hughes 2500 Die Bonder J2050 utility panel showing AIR and dual VAC pneumatic fittings with blue connector accessory

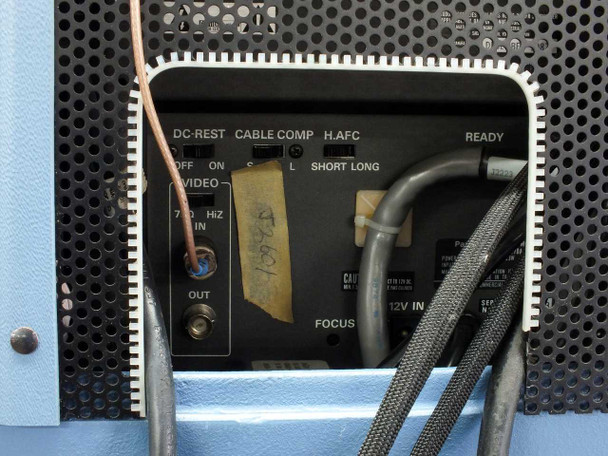

  • Hughes 2500 Die Bonder rear CRT monitor adjustment panel showing DC-Rest, Cable Comp, H.AFC, Video, Focus, and 12V IN connections
  • Panasonic CRT monitor serial number label on Hughes 2500 Die Bonder showing SER. NO 7ZU00143, Made in Taiwan
$5,300.00
Was: $10,600.00
Current Stock: 1

Sold Out

Description

Hughes Aircraft Model 2500 Hybrid Automatic Die Bonder w/ Operator's Guide

Benchtop automatic die bonding system designed for hybrid microelectronics assembly. Supports both eutectic and epoxy bonding methods with adjustable force control and integrated vision system.

Specifications & What's Included

  • Dimensions: 62" W x 37" D x 73" H
  • Control: Hughes Industrial Products keyboard controller with LED display
  • Vision: Panasonic CRT monitor with integrated camera and fiber optic illumination
  • Bonding Methods: Hybrid die bonding—eutectic and epoxy capable
  • Air & Vacuum: Dual vacuum ports with J2050 panel
  • Force Control: Adjustable via front panel knob
  • Includes: Operator's Guide, Maintenance Manual, card cage with boards

Applications

Used in hybrid microelectronics production and semiconductor packaging environments. The Model 2500 was deployed on production lines requiring precision die attachment for integrated circuit and hybrid component assembly. Compatible with standard hybrid microelectronics workstations and semiconductor packaging workflows.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: For Parts or Not Working
Hughes Aircraft Model 2500 Hybrid Automatic Die Bonder sold AS-IS / FOR PARTS OR NOT WORKING. This unit has been visually inspected only and is not tested for operational functionality. The blue cabinet and work surfaces show age-appropriate wear from prior production use. The bonding head assembly, control panel, vacuum switches, fiber light source, rotary collet mechanism, integrated Panasonic CRT vision monitor, and Hughes keyboard controller are present and appear structurally intact. Internal PCB assemblies and interconnect connectors are in place. Operator's Guide and Maintenance Manual are included. No power-on or functional testing has been performed at our facility. Sold strictly as-is with no warranties or guarantees of operation. Freight shipping required.
