Decom Systems DSI 7376 PSK/PCM Bit Synchronizer PSK Demodulator Rackmount

(No reviews yet) Write a Review
SKU:
39320
MPN:
7376-41000-012
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
18.00 LBS
Shipping:
Calculated at Checkout

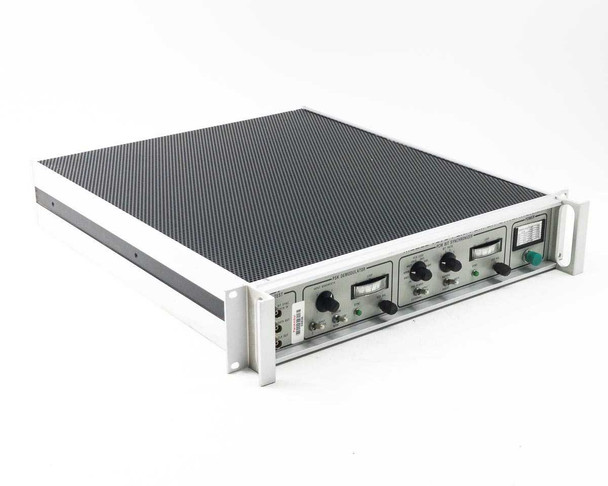

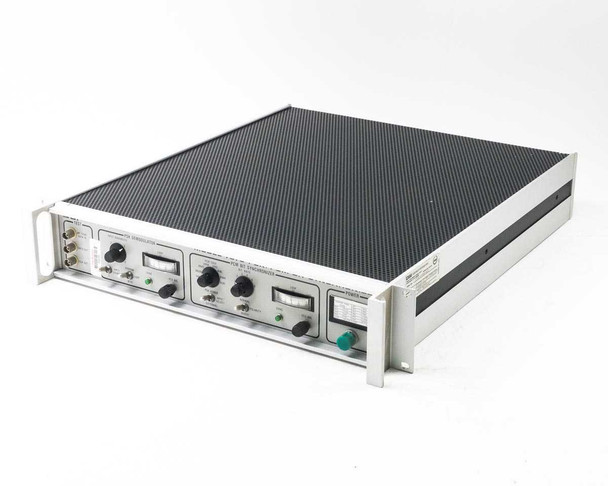

  • Decom Systems DSI 7376 PSK PCM Bit Synchronizer front-right three-quarter view showing full rackmount enclosure and honeycombed top panel

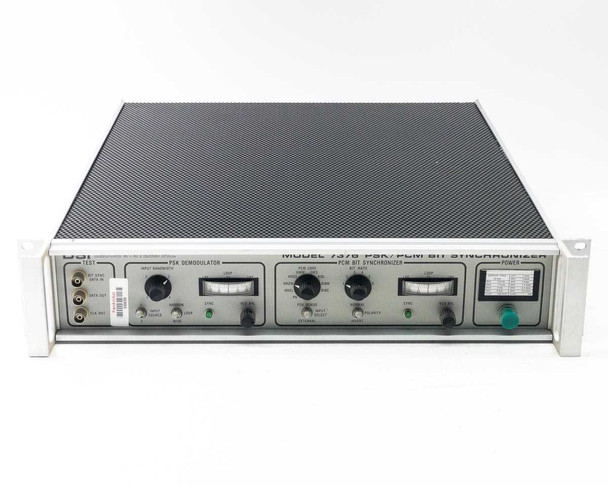

  • DSI Model 7376 PSK PCM Bit Synchronizer front panel showing PSK Demodulator section, PCM Bit Synchronizer section, and Power section with model label

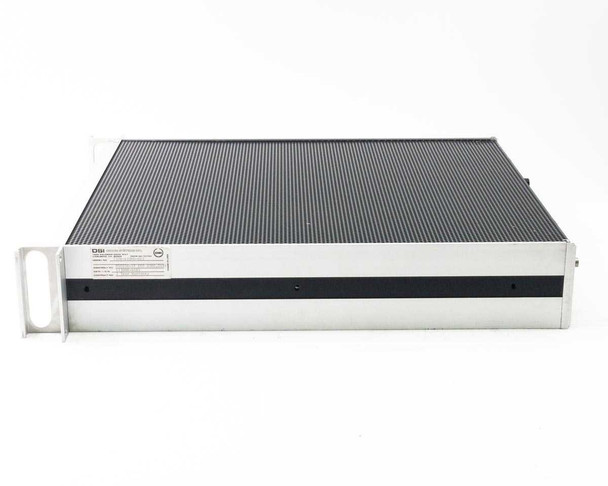

  • DSI label on right side panel showing Model 7376-41000-012, Assembly 010226-1F EVO 0380/049, Date and Contract fields — Decom Systems Inc. Carlsbad CA

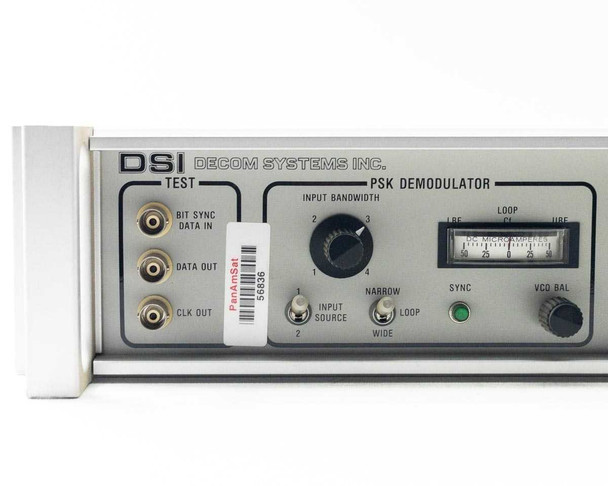

  • DSI 7376 front panel left section close-up: PSK Demodulator with Test BNC outputs (Bit Sync/Data In, Data Out, Clock Out), Input Bandwidth knob, Input Source switch, Loop switch, Sync LED, VCO Bal knob, and Loop meter; PanamSat asset tag visible
  • DSI 7376 front panel close-up showing Model 7376 label, PSK Demodulator section and PCM Bit Synchronizer section with PCM Code selector (NRZ-M, DMS, Bi-Phase-L, NRZ-M, NRZ-L, RNBS, PN), Bit Rate knob, and Input Select switch
  • DSI 7376 front panel right half close-up: PCM Bit Synchronizer section with PCM Code knobs and Power section with carrier frequency/bit rate reference chart (32 kHz carrier, BR1–BR6, BW1–BW4, Loop settings) and green power button
  • Close-up of DSI 7376 Power section reference chart showing carrier frequency 32 kHz, bit rates BR1=1 kbps through BR6=4.8 kbps, bandwidths BW1–BW4, and Loop 1%/0.1%/3%
  • Rear panel of DSI 7376 showing full array of BNC output connectors J1–J11 across two rows, red PAS Capital asset tag, power input select switch S1, signal ground J12, chassis ground J13, and circular power connector
  • DSI 7376 rear panel connector close-up showing labeled BNC jacks: Demod In 1 (J1), Demod In 2 (J2/J3), Bit Sync Ext In, NRZL Out (J4), Clock Out (J5), Demod Status Out (J6), Bit Sync Status Out (J7), Bib Tape Out (J8/J9), PN Tape Out (J10/J11)
  • DSI 7376 rear panel right-side close-up showing NRZL Out, Clock Out, PN Tape Out BNC jacks, red PAS Capital asset tag with barcode, S1 Input Power Select switch (115V/230V/0.5A), Signal Ground J12, Chassis Ground J13 binding posts, and circular power inlet
  • Decom Systems DSI 7376 PSK PCM Bit Synchronizer PSK Demodulator 7376-41000-012
  • Decom Systems DSI 7376 PSK PCM Bit Synchronizer PSK Demodulator 7376-41000-012
  • Decom Systems DSI 7376 PSK PCM Bit Synchronizer PSK Demodulator 7376-41000-012
  • Decom Systems DSI 7376 PSK PCM Bit Synchronizer PSK Demodulator 7376-41000-012
$75.00
Was: $150.00
Current Stock: 7

Sold Out

Description

Decom Systems DSI 7376 PSK/PCM Bit Synchronizer PSK Demodulator Rackmount

2U rackmount bit synchronizer and PSK demodulator for telemetry data acquisition. Processes PSK and PCM signals in aerospace and defense applications, supporting multiple PCM codes and configurable bit rates from 1 to 4.8 kbps.

Specifications & What's Included

  • Model: DSI 7376 (MPN 7376-41000-012)
  • Carrier Frequency: 32 kHz
  • Bit Rate Range: 1–4.8 kbps (BR1–BR6 selectable)
  • PCM Codes: NRZ-L, NRZ-M, NRZ-S, Bi-Phase-L, Bi-Phase-M, PN
  • Bandwidth Settings: 750 Hz, 1.5 kHz, 3 kHz, 6 kHz
  • Loop Settings: 1% / 0.1% selectable
  • Power: 115V / 230V switchable, 0.5A
  • Unit only; no manual or accessories included

Applications

This equipment was used in telemetry reception systems for tracking and data acquisition in space programs and aerospace communications. Decom Systems units of this type were standard in ground stations and mobile platforms for demodulating and synchronizing satellite telemetry streams. Compatible with systems requiring real-time PSK/PCM signal processing across multiple bandwidth and bit rate configurations.

Condition: Used
This Decom Systems DSI 7376 PSK/PCM Bit Synchronizer and PSK Demodulator has been inspected and appears to be in good used condition. The front panel controls, knobs, switches, and meter are intact and show normal wear consistent with lab or ground station use. The BNC connectors on both the front test outputs and the rear panel I/O array appear undamaged. The chassis and honeycomb top panel show light surface scuffing typical of rackmount equipment. A PanamSat asset tag is present on the front panel and a PAS Capital barcode label is affixed to the rear panel. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Decom Systems Inc.
Model:
7376
MPN:
7376-41000-012
Secondary Model:
010226-1F EVO-0380 EVO-0491
Type:
PSK/PCM Bit Synchronizer & PSK Demodulator
SKU:
39320
Form Factor:
Rackmount (2U)
Application:
Telemetry Data Acquisition, Aerospace/Defense
Signal Type:
PSK, PCM
PCM Codes Supported:
NRZ-L, NRZ-M, NRZ-S, Bi-Phase-L, Bi-Phase-M, PN
Carrier Frequency:
32 kHz
Bit Rate Range:
1 kbps – 4.8 kbps (BR1–BR6 selectable)
Bandwidth Settings:
BW1: 750 Hz, BW2: 1.5 kHz, BW3: 3 kHz, BW4: 6 kHz
Loop Setting:
1% / 0.1% selectable
Input Bandwidth Control:
Narrow / Wide switchable
Input Source:
1 / 2 selectable
Front Panel Outputs (Test):
Bit Sync / Data In, Data Out, Clock Out (BNC)
Rear Panel Connectors:
J1–J13 BNC: Demod In 1/2, Bit Sync Ext In, NRZL Out, Clock Out, Demod Status Out, Bit Sync Status Out, Bib Tape Out, PN Tape Out
Power Input Select:
S1 switch: 115V / 230V / 0.5A (rear panel)
Grounds:
Signal Ground (J12), Chassis Ground (J13) on rear
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no manual or accessories included.
Condition:
Used – Inspected, appears in good condition
Condition Notes:
Decom Systems DSI 7376 PSK/PCM Bit Synchronizer has been inspected and appears in good used condition. Front panel controls and BNC connectors intact. Normal cosmetic wear. PanamSat/PAS Capital asset tags present. Please contact us with questions.
View AllClose

Related Products

Related Products

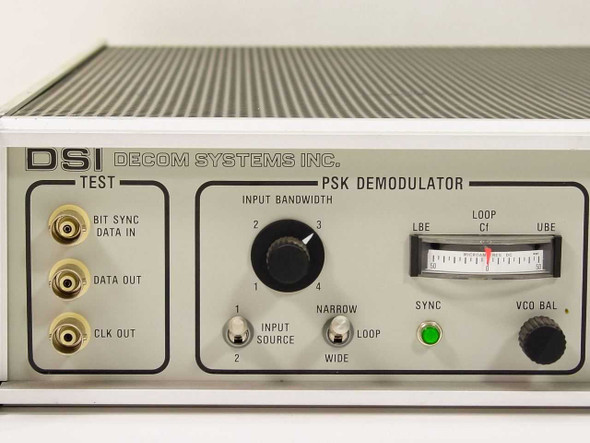

Decom Systems Model 7376 PSK/PCM Bit Synchronizer – full front panel view showing PSK demodulator and PCM bit sync sections with meters and controls Decom Systems DSI 7376 PSK Demodulator section – close-up of front panel showing BNC test connectors, input bandwidth knob, input source switch, loop/wide switch, sync LED, and loop meter
Add to Cart
Quick view

Decom Systems DSI 7376-41000-012-333 PSK/PCM Bit Synchronizer Rackmount

Decom Systems

$400.00
Was: $800.00
Decom Systems DSI 7376-41000-012-333 PSK/PCM Bit Synchronizer RackmountThe Decom Systems Inc. (DSI) Model 7376 is a rackmount PSK/PCM Bit Synchronizer combining a PSK demodulator section and a PCM...
39441
SKU:
39441
Availability:
Usually ships within 1–2 business days.
Weight:
13.00 LBS
Brand:
Decom Systems Inc.
Model:
7376-41000-012-333
MPN:
7376-41000-012-333
Secondary Model:
010226-1 F
Type:
PSK/PCM Bit Synchronizer
SKU:
39441
Form Factor:
Rackmount
Assembly Number:
010226-1 F
EVO Numbers:
EVO-0380, EVO-0491
FSC/M Number:
55744
Signal Type:
PSK / PCM
Sections:
PSK Demodulator, PCM Bit Synchronizer
Front Panel Connectors:
BNC: Bit Sync/Data In, Data Out, CLK Out (test)
Rear Connectors:
BNC: Demod In 1 (J1), Demod In 2 (J2), Bit Sync Ext In (J3), NRZL Out (J4), Clock Out (J5), Demod Status Out (J6), Bit Sync Status Out (J7), BI0 Tape Out (J8), PN Tape Out (J9/J10/J11)
Rear Power:
AC Power via multi-pin circular connector (J14)
Input Power Select:
S1 switch: 115V; Fuse: 1/4A / 1/2A
PCM Code Modes:
NRZ-S, NRZ-M, NRZ-L, NRZ-I, BI0S, BI0B, DMS, DM8, PN
PSK Demod Input Bandwidth:
Narrow / Wide selectable
Input Source:
1 / 2 selectable
Polarity:
Normal / Invert selectable
Sync Indicator:
Green LED, front panel
Loop Meter:
Analog meter: LBE / CI / UBE (both sections)
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no manual or accessories included.
Condition Notes:
Decom Systems 7376 PSK/PCM Bit Synchronizer. Inspected, good used condition. Pulled from a working environment where it was in use and functional. Normal wear. Please view photos and contact us with questions.

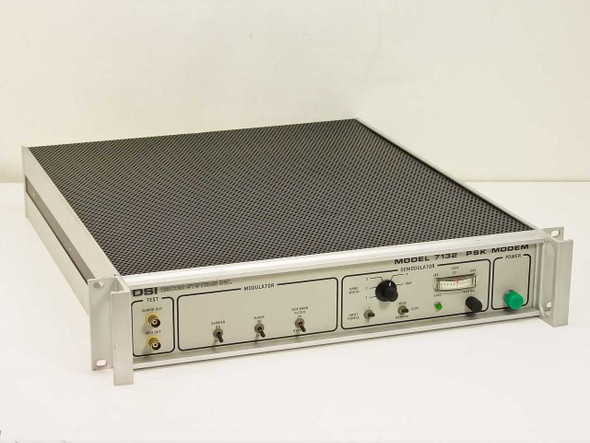

Decom Systems DSI 7132 PSK Modem – front panel view showing Modulator and Demodulator sections with power switch Decom Systems DSI 7132 PSK Modem – close-up of left front panel showing DSI logo, TEST BNC outputs (DEMOD OUT, MOD OUT), and Modulator toggle switches
Add to Cart
Quick view

Decom Systems DSI 7132-1000-008 PSK Modem Rackmount Modulator Demodulator

Decom Systems, Inc.

$100.00
Was: $200.00
Decom Systems DSI 7132-1000-008 PSK Modem Rackmount Modulator DemodulatorPSK modem unit designed for Phase Shift Keying modulation and demodulation in rackmount configuration. Provides modulator and...
39445
SKU:
39445
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Brand:
Decom Systems Inc.
Model:
7132-1000-008
MPN:
7132-1000-008
Secondary Model:
000165-A
Type:
PSK Modem (Modulator/Demodulator)
SKU:
39445
Form Factor:
Rackmount
Modulation Type:
PSK (Phase Shift Keying)
Front Panel Sections:
Modulator, Demodulator, Power
Modulator Controls:
Carrier On/Off, Mixer On/Off, Side Band Filter In/Bypass
Demodulator Controls:
Bandwidth (1–4/RMT), Input Source (1/2), Wide/Narrow/Loop
Demodulator Indicators:
Sync LED, VCO BAL meter (LBE, CF, UBE, Loop)
Test Points (Front):
DEMOD OUT (BNC), MOD OUT (BNC)
Rear BNC Ports:
J4 Demod In 1, J5 Demod In 2, J6 Mod Out, J7 Mixer In, J8 Demod Out, J9 Mod Data In, J10, J11, J12
Rear Interface Connector:
J13 D-Sub (gold, large format)
Power Connector (Rear):
J1 AC PWR (circular multi-pin), J2 SIG GND, J3 CH GND
Fuse:
F1 Fuse, 1/4A rated (visible on rear panel)
Connector Types:
BNC, D-Sub, Circular multi-pin AC power
Assembly Number:
000165-A
FSCM Number:
55744
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no accessories or manual included.
Condition:
Used – Pulled from Working Environment
Condition Notes:
Decom Systems DSI 7132-1000-008 PSK Modem inspected and in good condition. Pulled from a working environment where it was in active use. Front panel controls and BNC ports appear intact. Normal rack-service wear. Photos available.

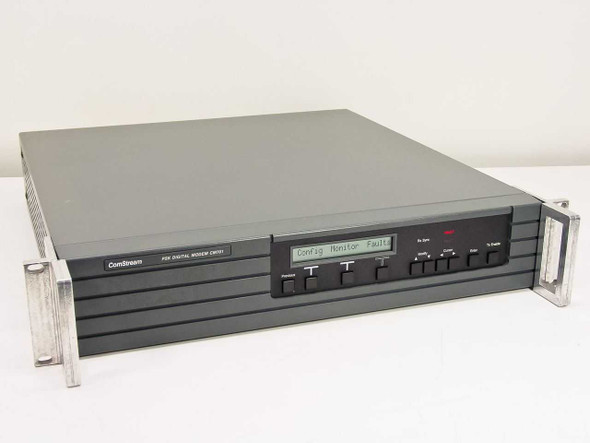

ComStream CM701 PSK Digital Satellite Modem front panel and rackmount chassis, 2U form factor with LCD display showing Config Monitor Fault menu ComStream PSK Digital Modem CM701 nameplate label close-up on front panel bezel
