US Army Signal Corps TS-117/GP Wavemeter Test Set Signal Corps Vintage RF
Military-grade RF wavemeter and test set used by US Army Signal Corps for frequency and wavelength measurement. Crystal-based passive instrument requiring no external power supply.
Specifications & What's Included
- Model: TS-117/GP | Manufacturer: American Encaustic Tiling Co., Inc. Electro-Mechanical Division
- Type N (female) connector with VIDEO output
- Controls: XTAL CURRENT meter, SENSITIVITY dial, TUNE TO PEAK, TUNE TO DIP
- Calibration chart micrometer vs frequency on side panel per T.O. 33A4-4-18
- Last calibrated: 1 Jul 1969; due 1 Jul 1970
- Includes original wood carrying case
Applications
Wavemeter test sets of this type were used in military RF test and maintenance operations for US Army Signal Corps radio and communication systems. Compatible with vintage military radio equipment and signal corps RF test systems. Portable design allowed field deployment in military communications networks.
Condition: For Parts or Not Working

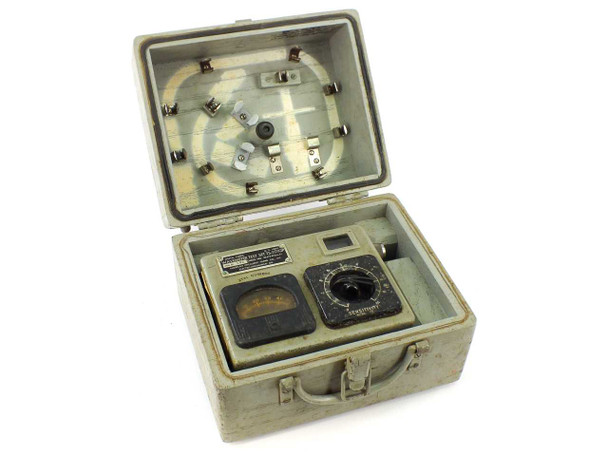

This US Army Signal Corps TS-117/GP Wavemeter Test Set is being sold AS-IS due to its age and missing parts. The instrument is housed in its original wood carrying case, which shows significant wear consistent with decades of military and field use — the case exterior has scuffs, paint wear, and an old handwritten inventory number (50657-123). The instrument body itself shows general surface oxidation, grime, and patina typical of vintage military surplus equipment from this era. The front panel features the XTAL CURRENT meter and SENSITIVITY dial; the top surface has two Type N (female) connectors and one smaller connector; the side panel carries a printed Calibration-Micrometer vs Frequency reference chart. A vintage AFTO Form 108 calibration label is affixed, indicating calibration dates of 1 Jul 1969 with a due date of 1 Jul 1970. The original listing notes that parts are missing; buyers should review the photos carefully to assess completeness before purchasing. This item is sold strictly AS-IS with no functionality guarantee. Please view our photo set and contact us if you have any questions.
This US Army Signal Corps TS-117/GP Wavemeter Test Set is being sold AS-IS due to its age and missing parts. The instrument is housed in its original wood carrying case, which shows significant wear consistent with decades of military and field use — the case exterior has scuffs, paint wear, and an old handwritten inventory number (50657-123). The instrument body itself shows general surface oxidation, grime, and patina typical of vintage military surplus equipment from this era. The front panel features the XTAL CURRENT meter and SENSITIVITY dial; the top surface has two Type N (female) connectors and one smaller connector; the side panel carries a printed Calibration-Micrometer vs Frequency reference chart. A vintage AFTO Form 108 calibration label is affixed, indicating calibration dates of 1 Jul 1969 with a due date of 1 Jul 1970. The original listing notes that parts are missing; buyers should review the photos carefully to assess completeness before purchasing. This item is sold strictly AS-IS with no functionality guarantee. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
American Encaustic Tiling Co., Inc. |
Model: |
TS-117/GP |
MPN: |
TS-117/GP |
Type: |
Wavemeter Test Set |
SKU: |
52649 |
Order Number: |
22419-PHILA-51 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold AS-IS; original wood carrying case included; missing parts |
Country/Region of Manufacture: |
United States |
Form Factor: |
Portable / Carrying Case |
Manufacturer Division: |
Electro-Mechanical Division |
Military Branch: |
US Army Signal Corps |
Measurement Type: |
Frequency / Wavelength (RF Wavemeter) |
Connector Type: |
Type N (female), VIDEO output |
Controls: |
XTAL CURRENT meter, SENSITIVITY dial, TUNE TO PEAK, TUNE TO DIP |
Calibration Chart: |
Calibration-Micrometer vs Frequency chart on side panel |
Calibration Authority: |
T.O. 33A4-4-18 (AFTO Form 108) |
Last Calibration Date: |
1 Jul 1969 / Due 1 Jul 1970 (per label) |
Power Requirements: |
Passive / Crystal-based (no external power required) |
Compatible With: |
US Army Signal Corps RF test systems, vintage military radio equipment |
Condition Notes: |
This US Army Signal Corps TS-117/GP Wavemeter Test Set is being sold AS-IS due to its age and missing parts. The instrument is housed in its original wood carrying case, which shows significant wear consistent with decades of military and field use |
