OAI 0130-041-04 UV Exposure Housing 1000W 220nm 10in Lens Solar Cell Simulator

(No reviews yet) Write a Review
SKU:
52793
MPN:
0130-041-04
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
54.00 LBS
Shipping:
Calculated at Checkout

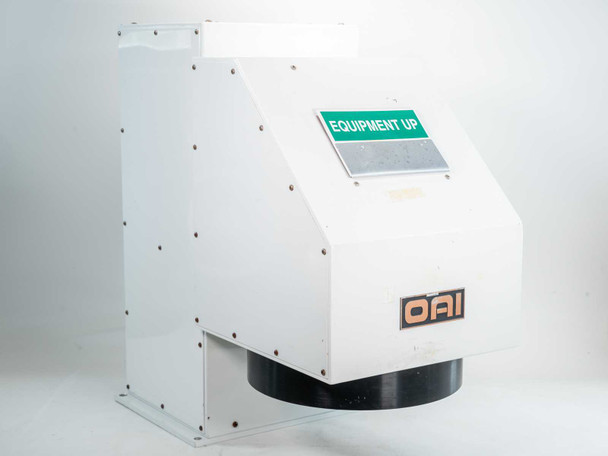

  • OAI 0130-041-04 UV exposure housing – front-left 3/4 view showing white metal enclosure, OAI badge, Equipment Up label, and black aperture ring at base

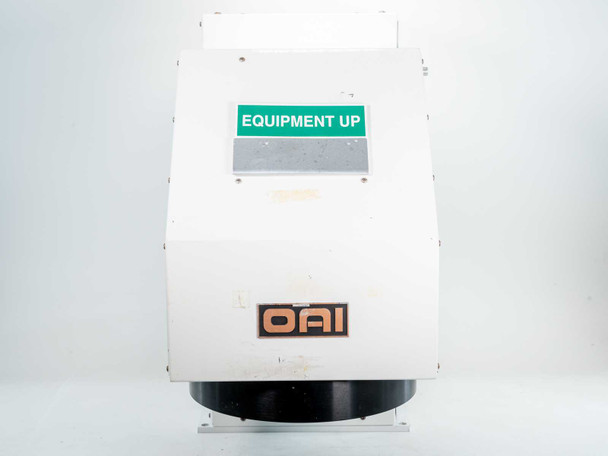

  • OAI 0130-041-04 UV exposure housing – straight front view showing OAI logo, Equipment Up indicator panel, and circular black aperture opening

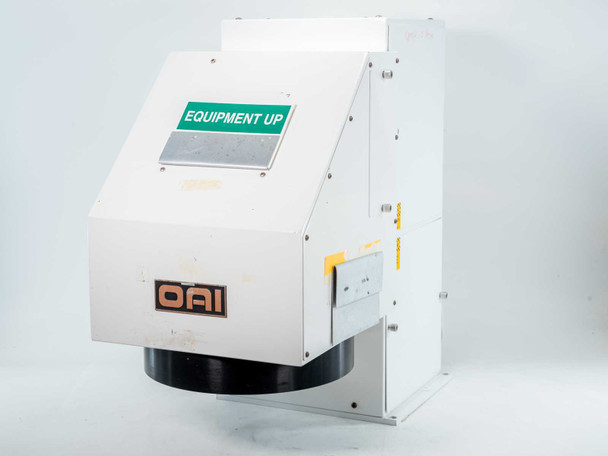

  • OAI 0130-041-04 UV exposure housing – right-side 3/4 view showing side panel, yellow caution label, and bottom aperture ring

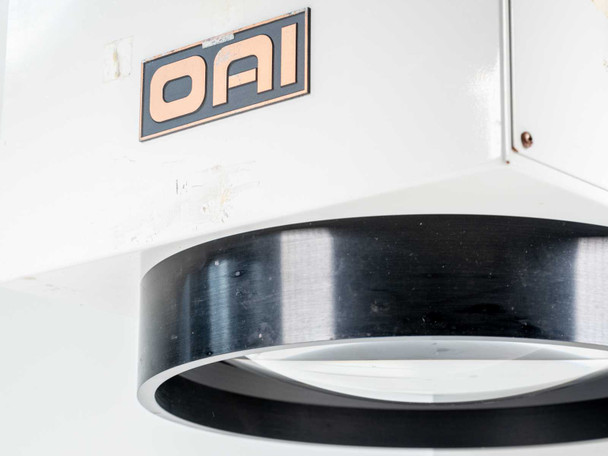

  • OAI 0130-041-04 – close-up of OAI badge and black circular aperture ring with reflective interior visible

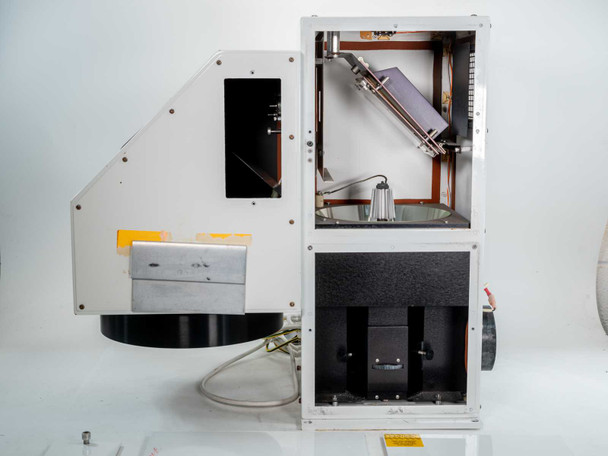

  • OAI 0130-041-04 – interior open view showing linear actuator arm, mirror/filter assembly, reflector bowl, UV lamp, and orange gasket seal around chamber opening

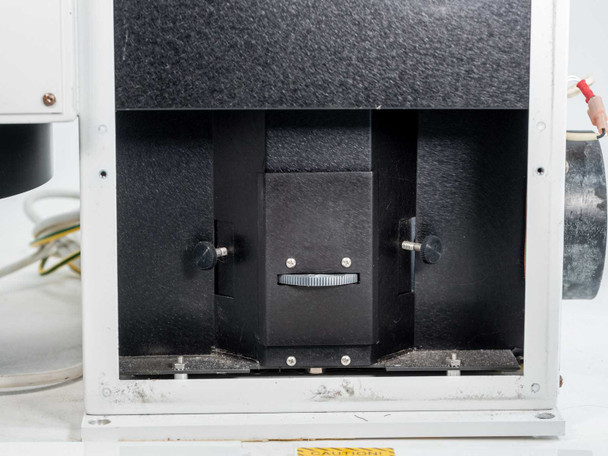

  • OAI 0130-041-04 – interior lower compartment view showing lamp carriage, adjustment knob, and mounting rails inside the black-lined lamp chamber

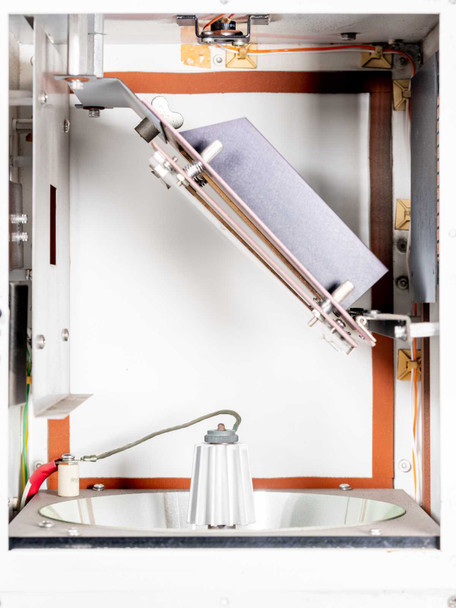

  • OAI 0130-041-04 – interior top-down view of open chamber showing angled mirror/filter on actuator arm, UV lamp on reflector bowl, and orange perimeter gasket

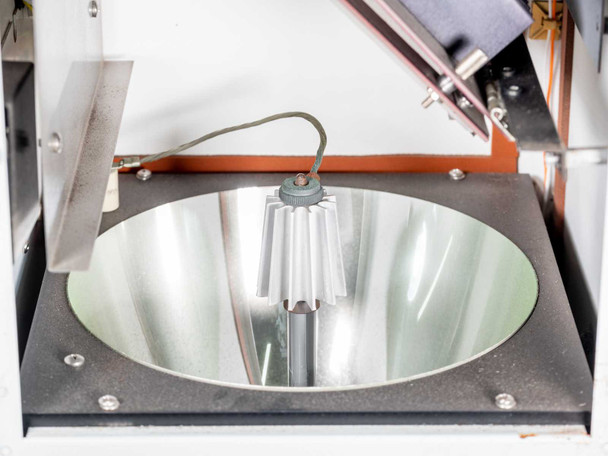

  • OAI 0130-041-04 – close-up of reflector bowl, UV lamp assembly with leads, and lower chamber interior

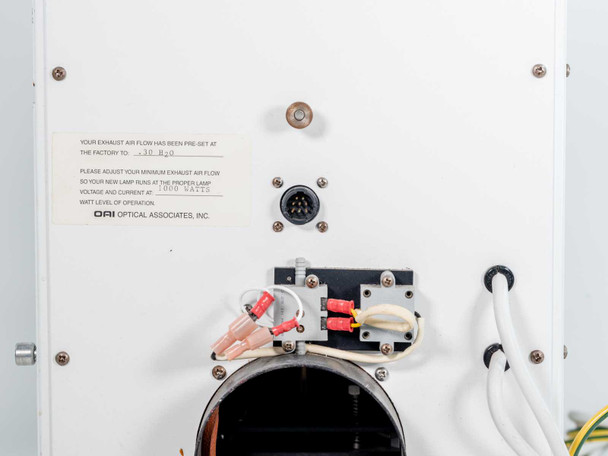

  • OAI 0130-041-04 – rear panel showing power lead connections (red and black terminals), multi-pin circular connector, exhaust vent opening, and OAI Optical Associates label

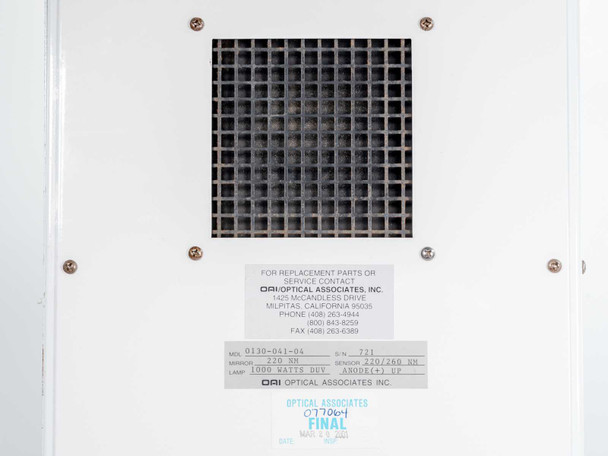

  • OAI 0130-041-04 – rear panel data label showing model 0130-041-04, mirror 220nm, sensor 220/260nm, lamp 1000W, and OAI Optical Associates Inc. contact information
$2,500.00
Was: $5,000.00
Current Stock: 1

Sold Out

Description

OAI 0130-041-04 UV Exposure Housing 1000W 220nm 10in Lens Solar Cell Simulator

UV exposure lamp housing manufactured by Optical Associates Inc. for solar cell testing and semiconductor photolithography applications. Produces 1000W output at 220nm wavelength through a 10-inch lens aperture.

Specifications & What's Included

  • Model: 0130-041-04
  • UV Wavelength: 220nm / 260nm sensor range
  • Lamp Power: 1000 Watts
  • Lens Aperture: 10 inch (254mm)
  • Exhaust Airflow: 30 Hz preset
  • Internal Components: Linear actuator, reflector mirror, UV lamp, orange gasket seal
  • Positive and negative bare power leads present
  • Multi-pin circular connector on rear panel
  • White metal enclosure with black aperture ring
  • Power supply NOT included

Applications

Used for UV exposure testing of solar cells and photovoltaic devices. Commonly employed in semiconductor manufacturing for photolithography process verification. Suitable for accelerated testing environments requiring controlled UV wavelength exposure at high intensity levels.

Condition: Used
This OAI 0130-041-04 UV Exposure Housing was pulled from a solar cell production environment and appears to be in good used condition. The white metal enclosure shows some minor surface marks and scuffing consistent with production use, visible on the front and side panels. All visible internal components are present, including the linear actuator arm, angled mirror/filter assembly, UV lamp on the reflector bowl, and the orange perimeter gasket seal around the chamber opening. The 10-inch aperture lens and mounting hardware are intact. The rear panel includes positive and negative power leads and a multi-pin circular connector. Please note: the power supply is not included — this is the lamp housing only. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
OAI (Optical Associates Inc.)
Model:
0130-041-04
MPN:
0130-041-04
Type:
UV Exposure Lamp Housing / Solar Cell UV Source
SKU:
52793
UV Wavelength:
220 nm
Lamp Power:
1000 Watts
Lens Aperture:
10 inch (approx. 254mm)
Sensor Range:
220 / 260 nm
Application:
Solar Cell UV Exposure, Semiconductor Photolithography Testing
Enclosure:
White Metal Enclosure with Black Aperture Ring
Connector (Power Leads):
Positive and negative bare power leads
Connector (Signal):
Multi-pin circular connector (rear panel)
Power Supply Included:
No — power supply not included
Internal Components:
Linear actuator, reflector mirror, UV lamp, orange gasket seal
Country/Region of Manufacture:
United States
Manufacturer Address:
1425 McCandless Drive, Milpitas, CA 95035
Exhaust Airflow (Factory Preset):
30 Hz (per rear panel label)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Housing only; power supply not included. Positive and negative leads present.
Condition Notes:
OAI 0130-041-04 UV Exposure Housing pulled from solar cell production. Good used condition; minor surface marks. Internal components present including actuator, mirror, lamp, and 10-in lens. Power supply NOT included. Leads present.
View AllClose

Related Products

Related Products

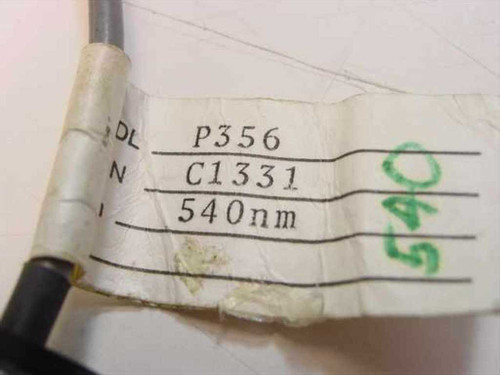

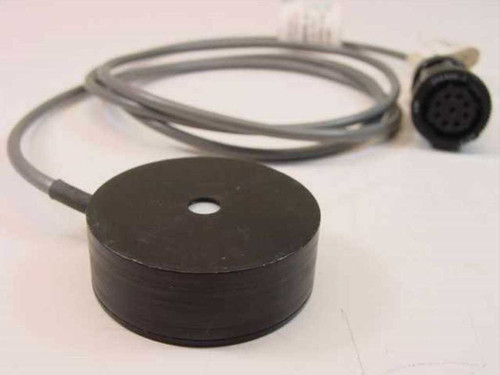

OAI Optical Associates P356 540nm UV exposure meter probe — round black puck body with integrated gray cable and multi-pin AMP connector OAI P356 probe label showing model P356, calibration ID C1331, and 540nm wavelength designation with handwritten 540 notation
