Carnel Labs NM-65T 1-10 GHz EMI Radio Interference Analyzer Receiver

(No reviews yet) Write a Review
SKU:
25015
MPN:
NM-65T
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
38.00 LBS
Shipping:
Calculated at Checkout

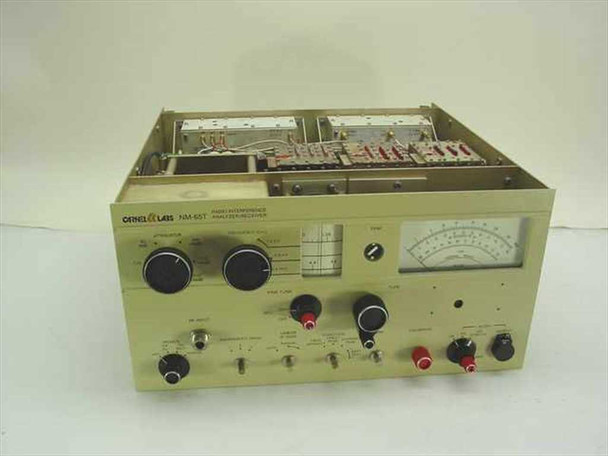

  • Carnel Labs NM-65T EMI Radio Interference Analyzer Receiver – front panel view showing attenuator knobs, frequency dial, and analog meter; top cover removed exposing internal RF modules
  • Carnel Labs NM-65T – rear and right side view showing IEC AC inlet, rear BNC connectors, and internal chassis with wiring visible; top cover absent

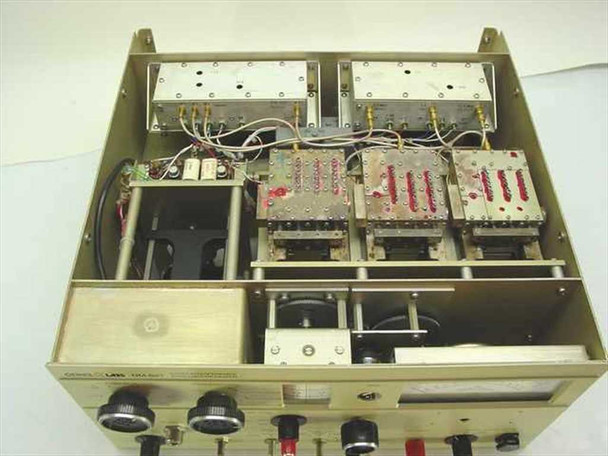

  • Carnel Labs NM-65T – top-down interior view showing multiple shielded RF filter/mixer modules, wiring harness, and internal subassemblies
  • Carnel Labs NM-65T – close-up of front panel label showing brand name, model NM-65T, attenuator positions (X1 0dB, X10 +20dB, X100 +40dB), and frequency selector dial with GHz bands

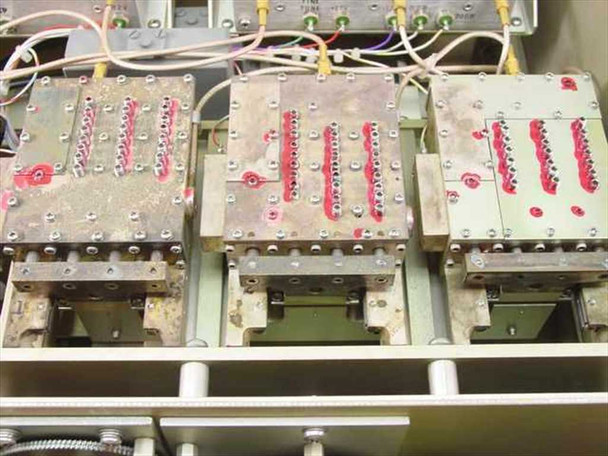

  • Carnel Labs NM-65T – close-up of three internal shielded RF module assemblies with visible corrosion and red wiring connections on top surfaces
  • Carnel Labs NM-65T – macro close-up of internal RF filter module showing tuning rods, screws, and red adjustment markers; significant oxidation/corrosion visible

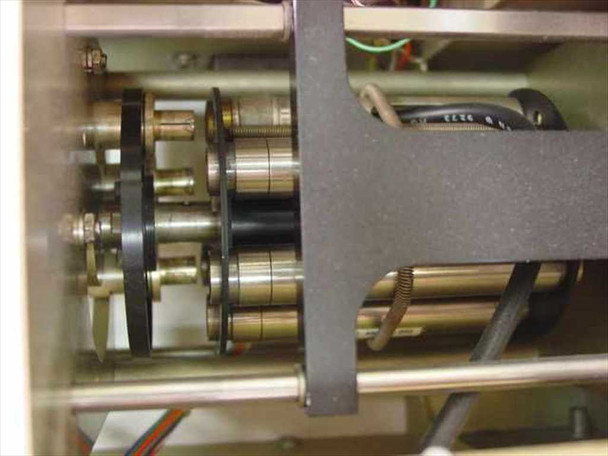

  • Carnel Labs NM-65T – close-up of internal mechanical assembly showing a sliding or rotary tuning element with visible wear and surface oxidation

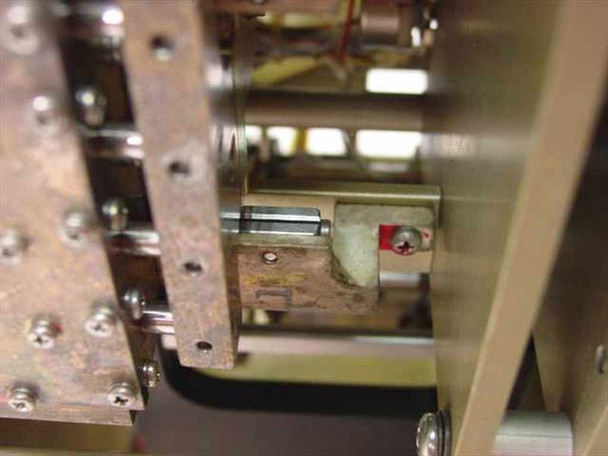

  • Carnel Labs NM-65T – close-up of internal tuning or switching mechanism showing metallic slider, red marker, and label; foam/rubber seal visible

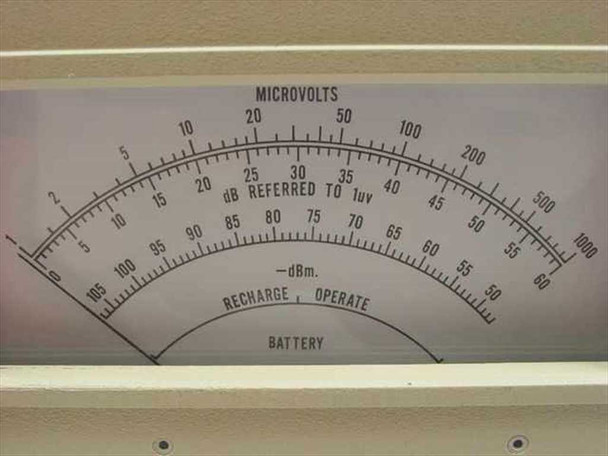

  • Carnel Labs NM-65T – close-up of front analog panel meter face showing Microvolts scale (1–1000), dB referred to 1uV, -dBm, and Battery Recharge/Operate indicator arc
  • Carnel Labs NM-65T – close-up of front panel frequency selector knob showing three band positions: 1.0–2.0 GHz, 2.0–4.4 GHz, and 4.4–10.0 GHz, with Fine Tune label below
  • Carnel Labs NM-65T 1-10 GHz EMI Radio Interference Analyzer Receiver - AS IS
  • Carnel Labs NM-65T 1-10 GHz EMI Radio Interference Analyzer Receiver - AS IS
  • Carnel Labs NM-65T 1-10 GHz EMI Radio Interference Analyzer Receiver - AS IS
$600.00
Was: $1,200.00
Current Stock: 1

Sold Out

Description

Carnel Labs NM-65T 1-10 GHz EMI Radio Interference Analyzer Receiver

Benchtop EMI analyzer for detection and measurement of radio frequency interference across the 1–10 GHz frequency range. Used for conducted and radiated RF emissions testing in accordance with military and commercial EMI specifications.

Specifications & What's Included

  • Frequency Range: 1.0–10.0 GHz (three bands: 1.0–2.0 GHz, 2.0–4.4 GHz, 4.4–10.0 GHz)
  • IF Bandwidth: 0.1 MHz, 1.0 MHz, 10 MHz (three selectable modes)
  • Dynamic Range: 60 dB logarithmic IF amplifier display
  • Measurement Range: 120 dB total (three 20 dB attenuator steps)
  • Display: Analog panel meter with microvolts, dB, and dBm scales
  • Power: AC mains (IEC inlet) and battery operation/recharge

Applications

The NM-65T was used in RF EMI testing environments, telecommunications facilities, and military/aerospace compliance labs for identifying and analyzing unwanted emissions in equipment and systems. Suitable for pre-compliance testing, troubleshooting, and field measurements in regulated frequency bands.

Condition: For Parts or Not Working
This Carnel Labs NM-65T Radio Interference Analyzer/Receiver is being sold as-is for parts or repair. The unit is not confirmed functional and is not guaranteed to work. Photos show the top cover is removed and the internal RF filter/mixer modules are exposed; visible corrosion and oxidation are present on the internal module housings and tuning assemblies. The front panel, knobs, and analog meter appear intact and complete. It has not been tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Carnel Labs
Model:
NM-65T
MPN:
NM-65T
SKU:
25015
Type:
EMI Radio Interference Analyzer / Receiver
Condition:
As-Is / For Parts or Not Working
Frequency Range:
1 GHz to 10 GHz
Frequency Bands:
1.0–2.0 GHz, 2.0–4.4 GHz, 4.4–10.0 GHz
IF Bandwidth:
0.1 MHz, 1.0 MHz, 10 MHz (3 selectable)
Dynamic Range:
60 dB (logarithmic IF amplifier display)
Measurement Range:
120 dB total (three 20 dB attenuator steps)
Attenuator Steps:
3 x 20 dB steps (0 dB, +20 dB, +40 dB)
Display Type:
Analog panel meter (microvolts / dB / dBm)
Meter Scales:
Microvolts, dB referred to 1uV, -dBm
Power Source:
AC mains via IEC inlet; battery (Recharge/Operate)
Measurement Type:
Conducted and radiated RF / EMI
Standards Compliance:
Military and commercial EMI test specifications
Form Factor:
Benchtop
Seller Notes:
Sold as-is for parts or repair; includes internal RF modules visible in photos
Condition Notes:
Carnel Labs NM-65T EMI Analyzer sold as-is for parts or repair. Not tested or guaranteed functional. Top cover absent; internal RF modules show corrosion. Front panel and meter appear intact. Please contact us with questions.
View AllClose

Related Products

Related Products

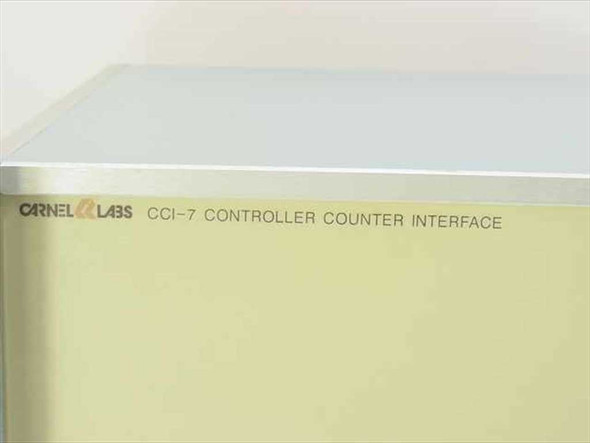

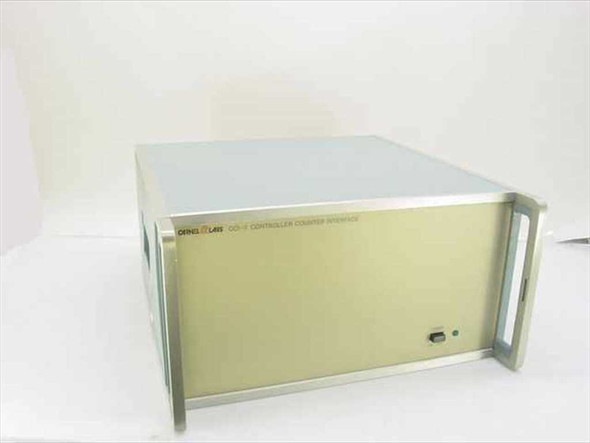

Carnel Labs CCI-7 Controller Counter Interface – front panel view showing beige chassis with power indicator LED Carnel Labs CCI-7 Controller Counter Interface – close-up of front panel label reading 'CCI-7 Controller Counter Interface'
