Kikusui TOS9201 AC/DC Withstanding Voltage Insulation Resistance Hipot Tester

(No reviews yet) Write a Review
SKU:
49607
MPN:
TOS9201
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
50.00 LBS
Shipping:
Calculated at Checkout

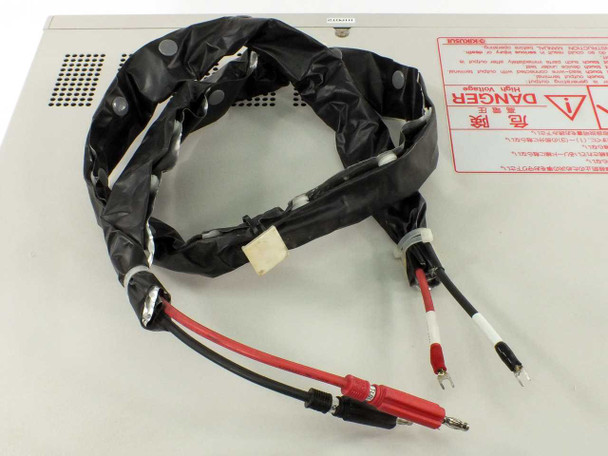

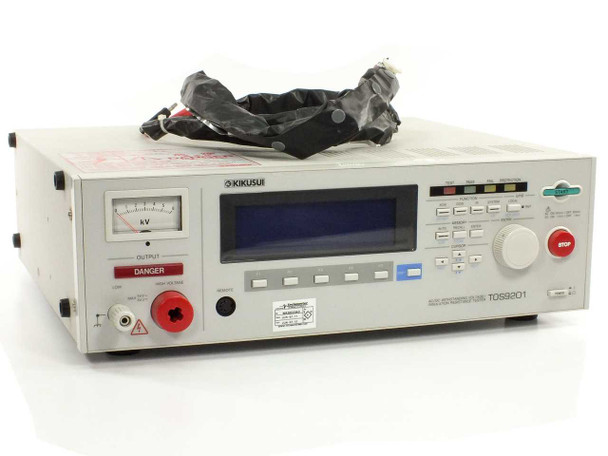

  • Kikusui TOS9201 high-voltage test lead set — black insulated lead bundle with red and black banana plug probes and spade/clip terminations, shown on top of unit

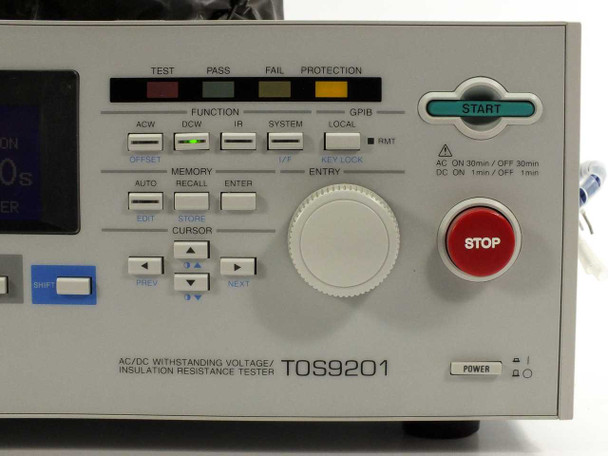

  • Kikusui TOS9201 right-side control panel showing FUNCTION selector buttons (ACW, DCW, IR, SYSTEM, LOCAL), GPIB/RMT indicator, MEMORY controls, CURSOR keys, rotary ENTER knob, and large red STOP button
  • Kikusui TOS9201 LCD display showing IR (insulation resistance) PASS mode at 1021V, 99.9 GΩ, 10.1s timer — confirming insulation resistance self-test passes
  • Kikusui TOS9201 Hipot Tester rear panel showing dual cooling fans, GPIB connector, RS-232C port, IEC AC inlet with line voltage selector, and high-voltage output terminal
  • Kikusui TOS9201 rear panel detail showing SCANNER port, SIGNAL I/O connector, GPIB interface, INTERLOCK terminals, STATUS OUT terminals, dual cooling fans, IEC AC inlet with line voltage range switch (100-120V / 200-240V), and ground terminal

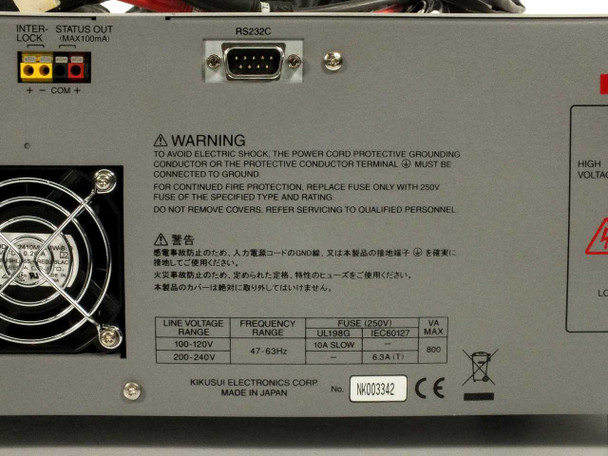

  • Kikusui TOS9201 rear panel close-up showing RS-232C DB9 port, INTERLOCK and STATUS OUT terminals, safety warning labels in English and Japanese, power rating plate (100-240V, 47-63Hz, 800VA max, fuse ratings), CE mark, and Kikusui Electronics Corp Made in Japan label

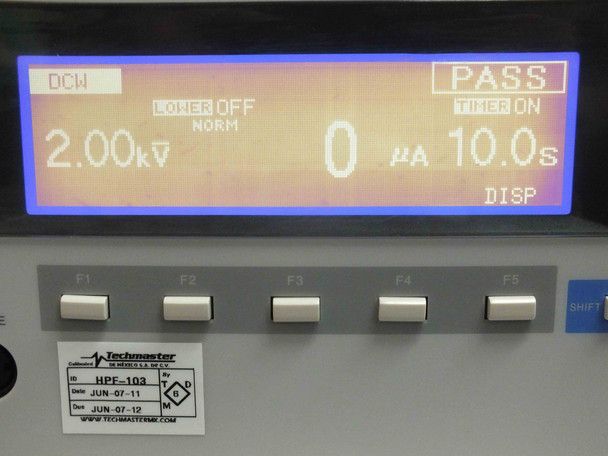

  • Kikusui TOS9201 LCD display showing DCW PASS mode at 2.00 kV, 0 µA, 10.0s timer — F1 through F5 soft keys and Techmaster calibration label HPF-103 visible
  • Kikusui TOS9201 AC/DC Hipot Tester front panel with kV analog meter, LCD display, and high-voltage output terminals — top view with test leads draped over unit
  • Kikusui TOS9201 front panel close-up showing analog kV meter, OUTPUT DANGER illuminated indicator, MAX 5kV AC / 6kV DC terminals, LCD displaying ACW 60Hz 4.07kV, and Techmaster calibration label HPF-103
$1,800.00
Was: $3,600.00
Current Stock: 1

Sold Out

Description

Kikusui TOS9201 AC/DC Withstanding Voltage Insulation Resistance Hipot Tester

Benchtop hipot tester for measuring withstanding voltage and insulation resistance on electrical components and assemblies. Performs AC and DC high-voltage testing with insulation resistance measurement capability.

Specifications & What's Included

  • AC Output: 0.05–5 kV, 100 mA max
  • DC Output: 0.05–6 kV, 10 mA max
  • Insulation Resistance: DC 25–1000 V, 0.01 MΩ–9.99 GΩ range
  • Interfaces: GPIB, RS-232C
  • Power: 100–120 V or 200–240 V AC, 47–63 Hz (selectable)
  • Functions: ACW, DCW, IR with rise-time, fall-time, offset cancel, memory, program, interlock, DC discharge
  • Includes high-voltage test lead set

Applications

Hipot testers are used in electronics manufacturing and service to verify insulation integrity on components, cables, assemblies, and finished equipment. Common applications include certification testing for power supplies, transformers, industrial controls, medical devices, and telecom equipment before deployment. The TOS9201 supports both AC and DC testing with programmable parameters for automated production line integration.

Condition: For Parts or Not Working
This Kikusui TOS9201 AC/DC Withstanding Voltage and Insulation Resistance Hipot Tester is being sold as-is for parts or repair. The unit powers on and passes its built-in DC withstanding voltage (DCW) and insulation resistance (IR) self-tests — as confirmed by the PASS readouts visible in our photos. However, we are experiencing a VOLT ERROR when attempting to run AC withstanding voltage (ACW) tests, which is why we are offering this unit in as-is condition rather than as a fully functional tester. The source of the AC fault has not been further diagnosed. The unit is cosmetically in good shape overall, with typical light wear on the chassis. The rear panel calibration label (Techmaster HPF-103) indicates the last calibration date was June 2011. The high-voltage test lead set is included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Kikusui
Model:
TOS9201
MPN:
TOS9201
Type:
AC/DC Withstanding Voltage & Insulation Resistance Tester
SKU:
49607
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes high-voltage test lead set. Powers on; DC and IR self-tests pass; VOLT ERROR on AC test.
Country/Region of Manufacture:
Japan
Form Factor:
Benchtop
Power Requirements:
100-120V or 200-240V AC, 47-63Hz (selectable)
AC Output Voltage Range:
AC 0.05 kV to 5 kV
AC Output Current (Max):
100 mA
DC Output Voltage Range:
DC 0.05 kV to 6 kV
DC Output Current (Max):
10 mA
Insulation Resistance Test Voltage:
DC 25 V to 1000 V
Insulation Resistance Range:
0.01 MΩ to 9.99 GΩ
Interface:
GPIB, RS-232C
Fuse Rating (100-120V):
10A SLOW (250V)
Fuse Rating (200-240V):
6.3A (250V)
VA Rating (Max):
800 VA
Measurement Functions:
ACW, DCW, IR (Insulation Resistance)
Control Features:
Rise-time, Fall-time, Offset cancel, Memory, Program, Interlock, DC Discharge
Certifications:
CE
Calibration Label:
Techmaster HPF-103, dated JUN-07-11, due JUN-07-12
Condition Notes:
Kikusui TOS9201 Hipot Tester sold as-is for parts/repair. Powers on; DCW and IR self-tests PASS. VOLT ERROR occurs on AC (ACW) tests. AC fault undiagnosed. Includes HV test leads. Not guaranteed functional.
