SCE Hi-Pot Control Cabinet SCE-66ST2626WS Custom Industrial Panel Enclosure

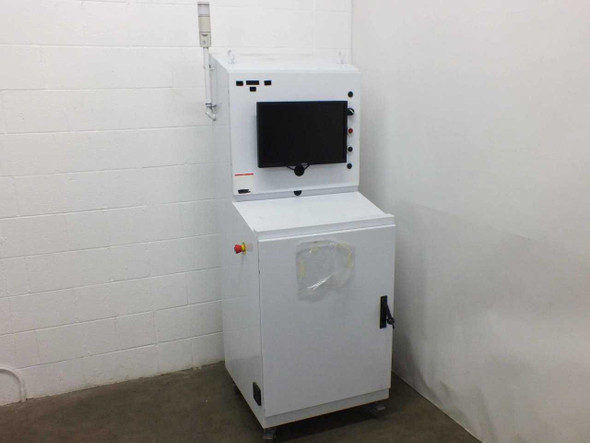

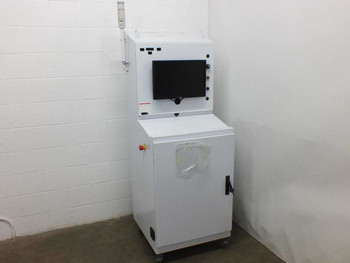

This is a custom-built hi-pot (high-potential / dielectric withstand) control cabinet manufactured by SCE Saginaw Controls & Engineering of Saginaw, Michigan. Built around an SCE-66ST2626WS Type 12.4 UL- and CSA-listed floor-standing industrial enclosure, this system integrates a touchscreen operator interface, DIN-rail-mounted control wiring, three-phase contactors, terminal blocks, and a safety E-stop into a self-contained mobile cabinet. It is designed to serve as the operator and switching control station for high-potential electrical safety testing equipment.
Specifications & What's Included
- Manufacturer: SCE Saginaw Controls & Engineering, Saginaw, MI 48638
- Enclosure Model: SCE-66ST2626WS
- Part / Serial Number: 1277912
- Enclosure Type: 12.4 (dust-tight, drip-tight, oil-tight)
- UL Listed: A-2,192
- CSA Listed: LR97418
- Designation: Industrial Control Panel Enclosure
- Form Factor: Floor-standing cabinet on locking casters
- Upper section: integrated flat-panel touchscreen display with front-panel illuminated pushbuttons and rotary selector

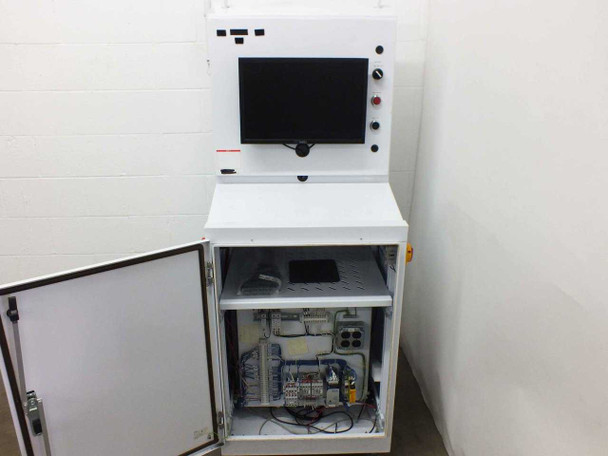

- Lower cabinet: hinged door with DIN-rail-mounted terminal blocks, three-phase contactors (multiple, brand not fully legible in photos), safety/monitoring relay, and internal wiring harness
- Interior: 4-outlet AC outlet strip, internal vented shelf, keyboard

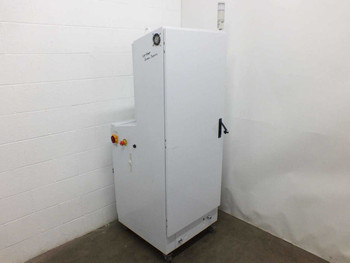

- Emergency stop (E-stop) mushroom-head button on left side panel
- Cabinet finish: white powder coat
- Condition: New — unused as assembled
Applications
Hi-pot (high-potential) control cabinets are used in electrical safety testing to apply and switch high voltages across insulation systems, cable assemblies, transformers, motors, and other electrical components to verify dielectric integrity. The operator interface — here a touchscreen with hardwired pushbuttons and an E-stop — allows technicians to initiate, monitor, and safely interrupt test sequences without direct exposure to the high-voltage circuit. Type 12.4 enclosures are rated for industrial environments where protection from dust, dripping liquids, and oil is required, making this cabinet suitable for manufacturing floor and test lab deployment. Custom-built control cabinets of this type are commonly used in electrical manufacturing, motor and transformer testing, cable production quality control, and MIL-spec or IEC/UL compliance testing. The SCE enclosure itself is a well-regarded domestic-built product from Saginaw Controls & Engineering, a Michigan-based manufacturer specializing in UL-listed industrial control panel enclosures.
This SCE Saginaw Controls & Engineering SCE-66ST2626WS custom hi-pot control cabinet is in new condition. The enclosure and all internal components appear unused, with no signs of wear, scratches, or damage. Interior wiring, DIN rail terminal blocks, contactors, and the touchscreen display are all clean and intact as assembled. The unit ships on casters and includes the keyboard and internal shelf as shown. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SCE Saginaw Controls & Engineering |
Model: |
SCE-66ST2626WS |
MPN: |
SCE-66ST2626WS |
Secondary Model: |
1277912 |
SKU: |
51696 |
Type: |
Custom Hi-Pot Control Panel Enclosure |
Enclosure Type: |
Type 12.4 |
UL Listing: |
UL Listed (A-2,192) |
CSA Listing: |
CSA Listed (LR97418) |
Enclosure Designation: |
Industrial Control Panel Enclosure |
Application: |
Hi-Pot / High Potential / Dielectric Withstand Testing |
Form Factor: |
Floor-Standing Cabinet on Casters |
Display: |
Integrated Flat Panel Touchscreen Monitor |
Control Interface: |
Touchscreen display with front-panel pushbuttons |
Safety Features: |
Emergency stop (E-stop) mushroom button |
Interior Components: |
DIN rail mounted terminal blocks, contactors, wiring |
Contactors: |
Multiple three-phase contactors visible (brand not fully legible) |
Outlets: |
4-outlet AC outlet strip inside cabinet |
Included Accessories: |
Keyboard, wiring harness, internal shelf |
Enclosure Manufacturer: |
SCE Saginaw Controls & Engineering, Saginaw MI |
Country/Region of Manufacture: |
United States |
Condition: |
New |
Seller Notes: |
Custom-built hi-pot control cabinet; includes touchscreen, keyboard, contactors, and internal wiring assembly. |
Condition Notes: |
This SCE SCE-66ST2626WS custom hi-pot control cabinet is in new condition. Enclosure and all internal components appear unused with no wear. Includes touchscreen, keyboard, contactors, and internal wiring as shown. |
