SCE Custom Hi-Pot Control Cabinet SCE-66ST2626WS UL Type 12.4 Industrial
This is a custom-built hi-pot (high-potential dielectric withstand test) control cabinet built by Saginaw Control & Engineering (SCE) of Saginaw, Michigan. The enclosure is a UL Listed, CSA-certified Type 12.4 industrial control panel rated for protection against dust, dirt, dripping, and splashing non-corrosive liquids — suitable for indoor industrial use. The cabinet integrates a touchscreen HMI monitor, an internal PC shelf with keyboard and mouse, a lower electrical compartment with three contactors, DIN-rail terminal blocks, a safety relay module, and a panel-mounted 4-outlet 120V AC receptacle. The unit rides on locking casters for mobility on the shop floor.
Specifications & What's Included
- Manufacturer: Saginaw Control & Engineering (SCE), Saginaw, MI 48638
- Enclosure Model: SCE-66ST2626WS
- Internal ID / Serial: 1277912

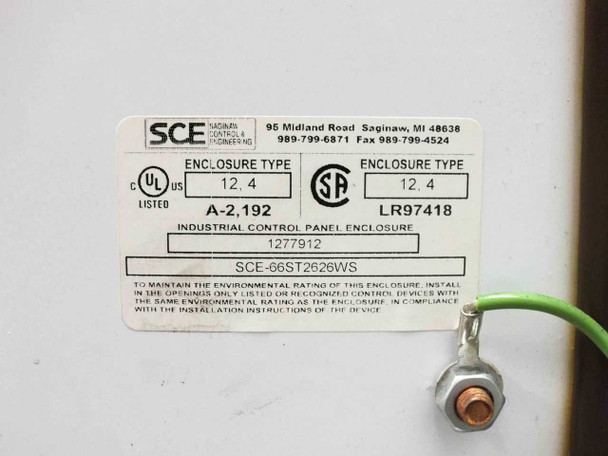

- Enclosure Type: UL Listed Type 12.4 (UL Listing A-2,192)
- CSA Certification: LR97418, Type 12.4
- Classification: Industrial Control Panel Enclosure
- Color: White painted steel
- Mobility: Floor-standing on casters

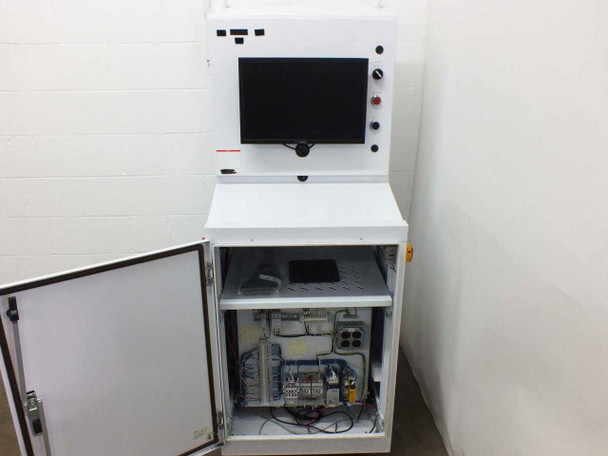

- Upper section: Integrated flat-panel touchscreen monitor mounted to upper cabinet door
- Interior upper shelf: Keyboard and mouse (included)
- Interior lower compartment: 3x contactors on DIN rail
- Interior lower compartment: DIN-rail terminal block rows (multi-row)
- Interior lower compartment: Safety relay module (yellow housing)
- Interior lower compartment: Blue wiring harness with routed conductors
- Panel-mounted 4-outlet 120V AC receptacle (interior lower panel)
- Emergency stop (E-stop): Yellow mushroom-head pushbutton on left exterior panel
- Front-panel indicator lights and rotary selector on upper section
- Lower cabinet door with circular viewport window and swing handle latch
Applications
Hi-pot control cabinets are used in electrical manufacturing, cable assembly, transformer production, and motor/generator testing to apply high-voltage dielectric withstand or insulation resistance tests to finished assemblies. The hi-pot test verifies that insulation is intact and that no breakdown or leakage occurs between conductors and ground at voltages above the product's rated working level — a standard quality assurance and safety compliance step before shipping or deploying electrical equipment. This type of custom control cabinet centralizes the test voltage generation, switching (via contactors), safety interlocks (via the safety relay), operator HMI, and test result logging into a single mobile floor-standing unit. Custom SCE enclosures are commonly specified by OEM manufacturers and contract electronics assemblers who need a turnkey, shop-floor-mobile hi-pot test station. The UL Type 12.4 rating makes it appropriate for factory environments where dust and splashing fluids are a concern.
This SCE Custom Hi-Pot Control Cabinet (model SCE-66ST2626WS) is in new condition. The enclosure shows no signs of use or wear — the white painted steel cabinet is clean and unmarked. Interior wiring, contactors, terminal blocks, safety relay, and the touchscreen HMI are all present and appear complete as built. The unit rolls on casters and the cabinet door and latch operate normally. No installation or operational use is evident. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SCE (Saginaw Control & Engineering) |
Model: |
SCE-66ST2626WS |
MPN: |
SCE-66ST2626WS |
Secondary Model: |
1277912 |
Type: |
Custom Hi-Pot Control Panel Enclosure |
SKU: |
51695 |
Enclosure Type: |
UL Type 12.4 / CSA LR97418 |
UL Listing: |
UL Listed — A-2,192 |
CSA Certification: |
CSA LR97418 |
Enclosure Model Number: |
SCE-66ST2626WS |
Enclosure Classification: |
Industrial Control Panel Enclosure |
Manufacturer: |
Saginaw Control & Engineering, Saginaw MI |
Country/Region of Manufacture: |
United States |
Form Factor: |
Floor-Standing Cabinet on Casters |
Display / HMI: |
Integrated touchscreen monitor (brand not legible) |
Input Devices: |
Keyboard and mouse included on interior shelf |
Contactors: |
3x contactors visible on interior lower panel |
Safety Components: |
Safety relay module (yellow, brand not fully legible) |
Terminal Blocks: |
DIN-rail mounted terminal block rows, interior lower |
Power Outlets: |
4-outlet 120V AC duplex panel mount receptacle |
Emergency Stop: |
Yellow mushroom-head E-stop button on left side |
Enclosure Color: |
White |
Condition: |
New |
Seller Notes: |
Includes integrated touchscreen, keyboard, mouse, contactors, terminal blocks, safety relay, and wiring. |
Condition Notes: |
This SCE Custom Hi-Pot Control Cabinet SCE-66ST2626WS is in new, unused condition. Enclosure is clean with no wear. Interior wiring, contactors, terminal blocks, safety relay, and touchscreen HMI are all present and complete. |
