Singer

Singer Stoddart NM-37/57 EMI Field Intensity Meter 30-1000 MHz Calibrated

(No reviews yet) Write a Review
SKU:
44844
MPN:
Stoddart NM-37/57
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
64.00 LBS
Shipping:
Calculated at Checkout

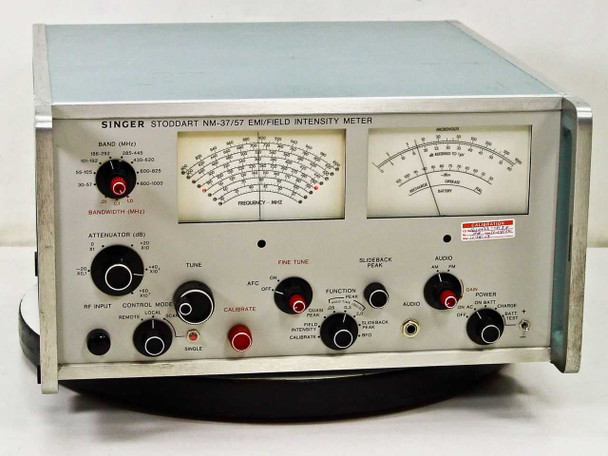

  • Singer Stoddart NM-37/57 EMI Field Intensity Meter – front panel view showing dual analog meters, band selector, attenuator, tune and fine tune knobs, and function controls
  • Singer Stoddart NM-37/57 EMI Field Intensity Meter – rear panel showing IEC AC inlet, fuses, programmer multi-pin connector, IF output, linear, video FM, log, X output, Y output, and external scan BNC connectors
  • Singer Stoddart NM-37/57 label closeup showing model NM-37/57, serial number 0502-08178, Singer Instrumentation Los Angeles California Made in USA, with IF output, linear, video FM, log, and X output connectors below
  • Singer Stoddart NM-37/57 EMI Field Intensity Meter – front panel closeup showing band selector (30–1000 MHz), bandwidth selector, attenuator knob, RF input, control mode, tune, fine tune, AFC, calibrate, and function knobs
  • Singer Stoddart NM-37/57 – front panel closeup of frequency analog meter and microvolt meter with calibration sticker, showing fine tune, slideback peak, audio, function selector, and gain/power controls
  • Calibration sticker on Singer Stoddart NM-37/57 showing calibration date 11/14/2012 and due date 12/14/13 with ID number 0502-08178
  • Singer Stoddart NM-37/57 – side panel detail showing +17.5V and -17.5V push-to-reset circuit breaker buttons
  • Singer Stoddart NM-37/57 – rear panel closeup with Singer Instrumentation label (serial 0502-08178), programmer connector, recorder/penlift, IF output, linear, video FM, log, X output, Y output, and external scan terminals
  • Carnel Labs calibration certificate for Singer NM-37/57 serial 0502-08178, dated 11/14/2012, calibrated to manufacturer specs, traceable to NIST, listing equipment used including Wavetek generator, Boonton power meter, Fluke counter and multimeter, and Carnel Labs CCS-334 calibrator
$750.00
Was: $1,500.00
Current Stock: 1

Sold Out

Description

Singer Stoddart NM-37/57 EMI Field Intensity Meter 30-1000 MHz Calibrated

Benchtop EMI and field intensity measurement instrument for detecting and quantifying electromagnetic radiation across VHF and UHF bands. Dual analog meters display frequency and signal level in microvolts and dB.

Specifications & What's Included

  • Frequency Range: 30 MHz – 1000 MHz (8 overlapping bands)
  • Measurement Modes: Peak, Quasi-Peak, Field Intensity, Slideback Peak, Calibrate, BFO
  • Attenuator: 0, +20, -20, +40, +60 dB
  • Audio Modes: AM, FM
  • Outputs: IF, Recorder/Penlift, Linear, Video FM, LOG, X/Y, External Scan (BNC connectors)
  • Power: 115V AC or Battery operation
  • Calibration Certificate: Carnel Labs, 11/14/2012 (NIST traceable per MIL STD 45662A)

Applications

Historically used in broadcast, telecommunications, and defense environments for EMI compliance testing, field strength surveys, and troubleshooting RF interference. Compatible with standard benchtop lab setups and external recording/scanning equipment via rear connectors. Measures radiated emissions across civilian and military frequency allocations.

Condition: Used
This Singer Stoddart NM-37/57 EMI/Field Intensity Meter has been inspected and is in good used condition. The instrument carries a Carnel Labs calibration certificate (Canoga Park, CA) dated 11/14/2012, traceable to NIST per MIL STD 45662A/ANSI/NCSL Z540-1-1994; the calibration due date on the sticker reads 12/14/2013, so recalibration will be needed before use in a compliance-critical application. The front panel shows normal wear consistent with a previously used bench instrument — controls, knobs, and panel graphics are intact and legible. The calibration sticker is present and affixed to the front panel. The rear-panel BNC output connectors (orange) and the multi-pin programmer connector are present. The serial number label (SN 0502-08178, Singer Instrumentation, Los Angeles, CA, Made in USA) is clean and fully legible. Please view our photo set — including the full Carnel Labs calibration document — and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Singer Instrumentation
Model:
NM-37/57
MPN:
NM-37/57
Secondary Model:
Stoddart NM-37/57
Type:
EMI / Field Intensity Meter
SKU:
44844
Measurement Type:
EMI / Electromagnetic Field Intensity
Frequency Range:
30 MHz – 1000 MHz (30–57, 55–105, 101–192, 186–292, 285–445, 430–620, 600–825, 800–1000 MHz bands)
Band Selection:
8 overlapping bands, 30–1000 MHz
Attenuator Range:
0, +20 (X1), -20 (X0.1), +40, +60 dB
Display:
Dual analog meters: Frequency (MHz) and Microvolt/dB
Meter Scale:
Microvolts and dB referred to 1 µV
Function Modes:
Peak, Quasi-Peak, Field Intensity, Slideback Peak, Calibrate, BFO
Audio Modes:
AM, FM
Power Supply:
115V AC, 0.5A fused; also Battery operation
Internal Power Rails:
+17.5V and -17.5V (push-to-reset circuit breakers)
Rear Outputs:
IF Output, Recorder/Penlift, Linear, Video FM, LOG, X Output, Y Output, External Scan
Rear Connectors:
Programmer (multi-pin circular), BNC outputs (orange), IEC AC inlet
Form Factor:
Benchtop
Country/Region of Manufacture:
United States
Calibration Status:
Calibrated 11/14/2012 by Carnel Labs, Canoga Park CA; Due 12/14/13
Calibration Standard:
Traceable to NIST per MIL STD 45662A/ANSI/NCSL Z540-1-1994
Serial Number (Internal):
0502-08178
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes Carnel Labs calibration certificate. Inspected, good cosmetic condition.
Condition Notes:
Singer Stoddart NM-37/57 EMI Field Intensity Meter. Inspected, good used condition. Carnel Labs calibration cert dated 11/14/2012 (NIST traceable); recalibration recommended before compliance use. Normal wear. Please contact us with questions.
