Seiko

Seiko SFT7000 SFT7300 XRF Coating Thickness Gauge System For Parts

(No reviews yet) Write a Review
SKU:
45181
MPN:
SFT7000
Condition:
Used
Availability:
Usually ships within 3-5 business days — please contact us for a shipping quote before ordering.
Weight:
385.00 LBS
Shipping:
Calculated at Checkout

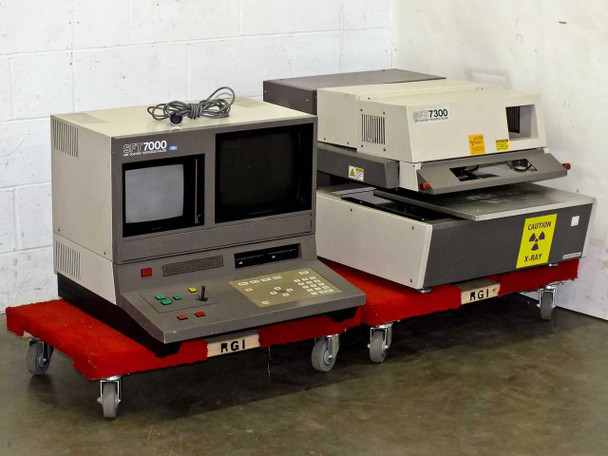

  • Seiko SFT7000 and SFT7300 XRF Coating Thickness Gauge system — full front view of both units on rolling dollies

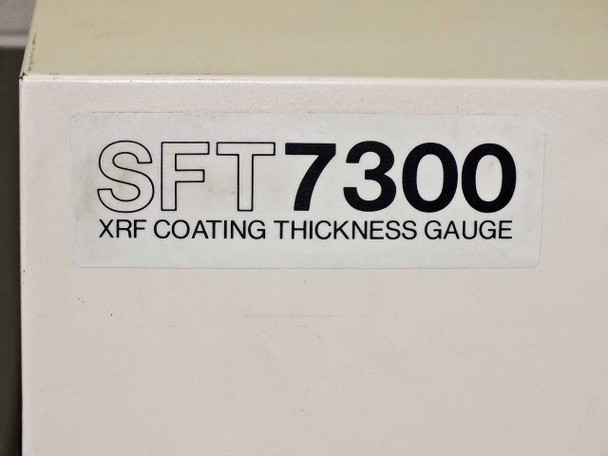

  • Seiko SFT7300 XRF Coating Thickness Gauge label closeup on top housing

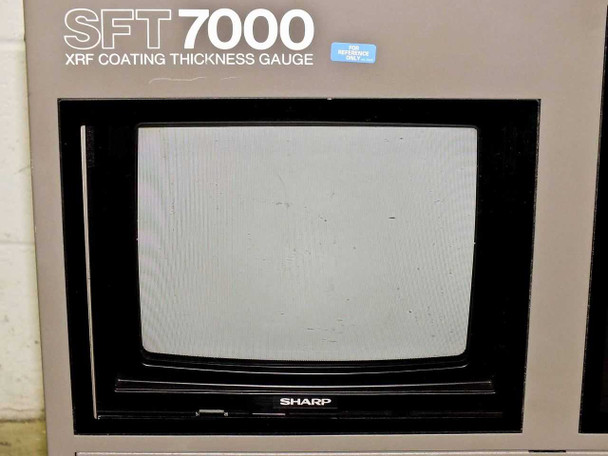

  • Seiko SFT7000 XRF Coating Thickness Gauge label and integrated Sharp CRT monitor front view

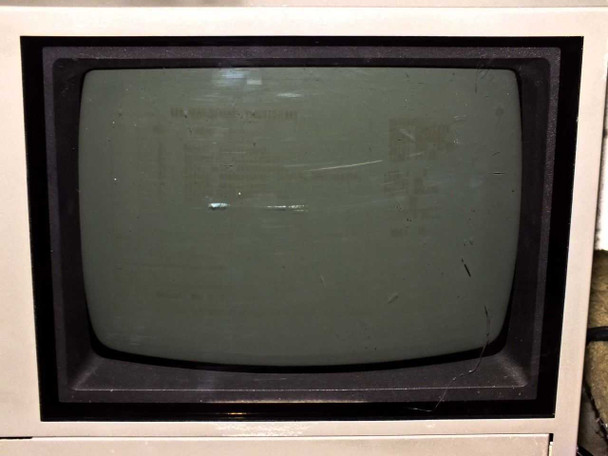

  • Seiko SFT7000 CRT monitor screen — powered off, showing surface wear and light scratches
  • Seiko SFT7000 front control panel — Z-stage and XY-stage joystick controls, keypad, MFAS/SET-UP/STATS/SYSTEM/PRINT buttons

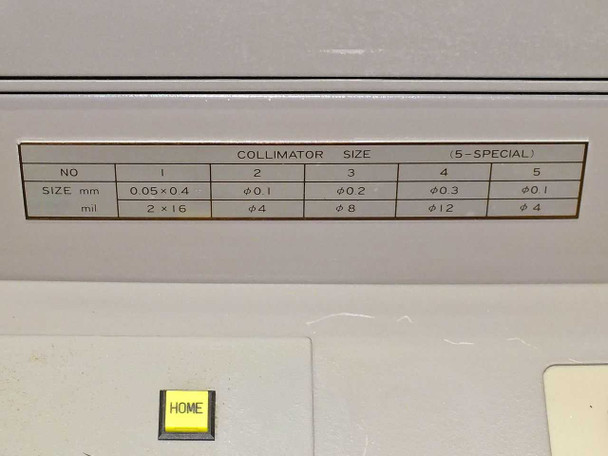

  • Seiko SFT7000 collimator size reference label — 5 positions ranging from 0.05x0.4mm to 0.1mm, with HOME button below

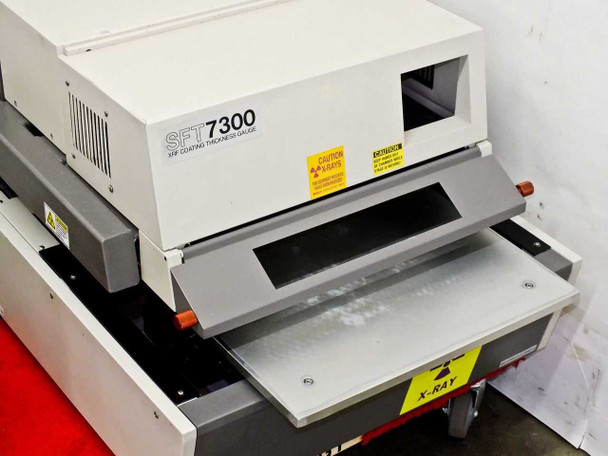

  • Seiko SFT7300 XRF gauge head — side view with sample tray extended, X-RAY caution label visible
  • Seiko SFT7300 interior — open top panel showing ribbon cables, wire harness, and internal components

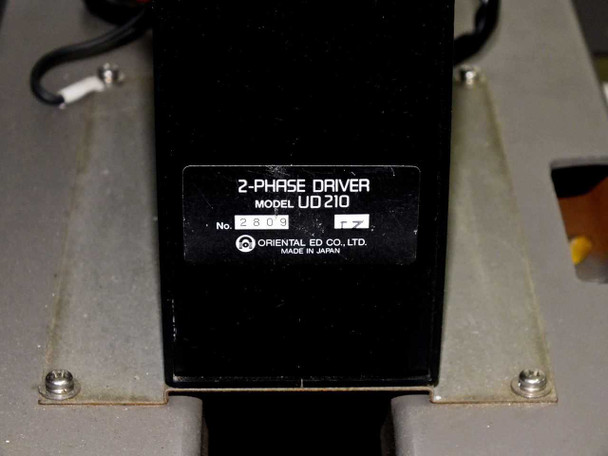

  • Oriental ED Co. 2-Phase Driver Model UD210 label — Made in Japan, serial number visible
  • Seiko SFT7300 XRF gauge head — top open, interior sample stage and drive mechanism visible, X-RAY label on tray

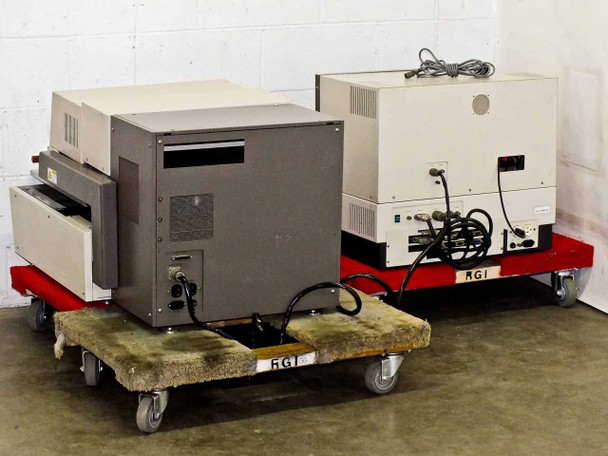

  • Seiko SFT7000 and SFT7300 — rear three-quarter view showing backs of both units on dollies

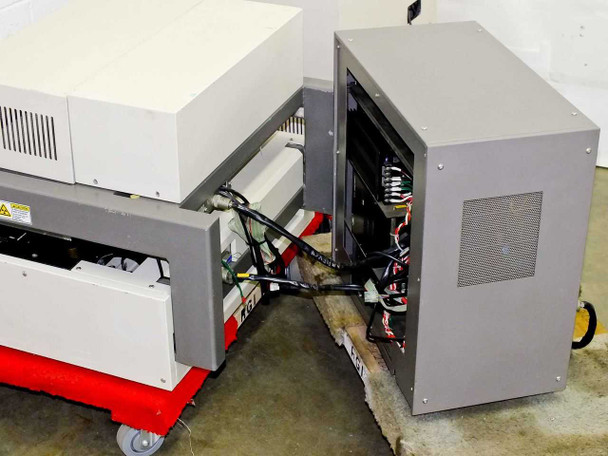

  • Seiko SFT7000 rear panel — side cabinet door open showing internal power wiring, terminal blocks, and cable bundle

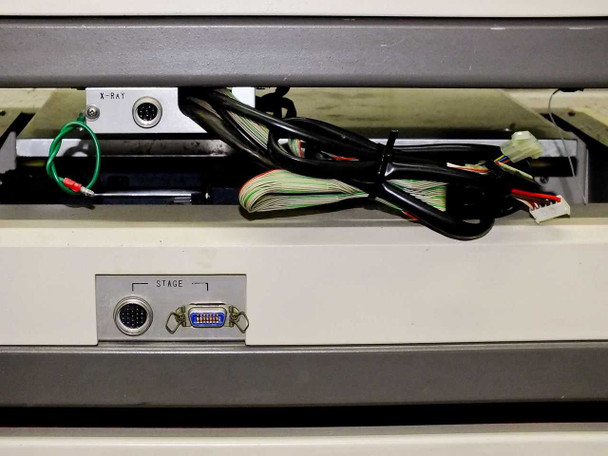

  • Seiko SFT7300 rear panel — X-RAY and STAGE circular connectors, DB15 STAGE connector, cable bundle visible
  • Seiko SFT7300 rear panel closeup — V/G/I detector binding posts, DETECTOR OUT BNC connector, X-RAY ALARM connector, fuse holder
  • Seiko SFT7000 internal electronics bay — circuit boards, 2-phase driver module, power supply, and wiring harness visible
  • Oriental ED Co. 2-Phase Driver UD215 module — installed inside SFT7000 electronics bay, closeup of front label
  • Seiko Instruments X Ray Power Protection board 159-07A — green PCB with capacitors and resistors, TS8Y17 label
  • Seiko SFT7000 internal rear cable area — large multi-pin circular military-style connectors visible
  • Seiko SFT7000 left side rear panel — ventilation grille, CONTROLLER port (partial label visible)

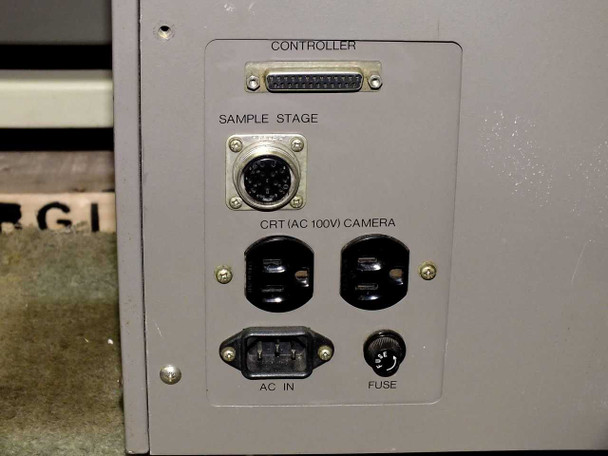

  • Seiko SFT7000 rear I/O panel — CONTROLLER DB25, SAMPLE STAGE circular connector, CRT AC 100V outlets, AC IN IEC inlet, FUSE

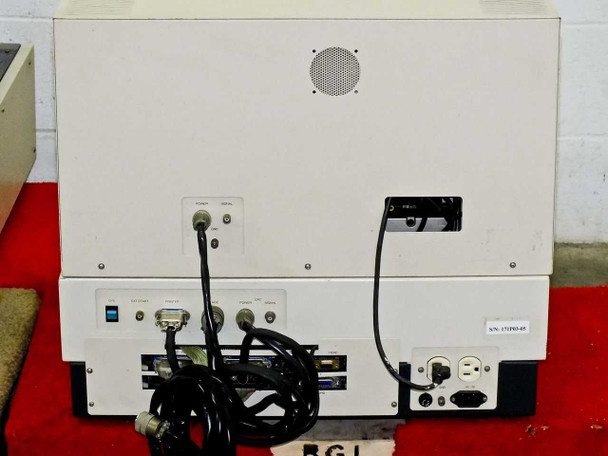

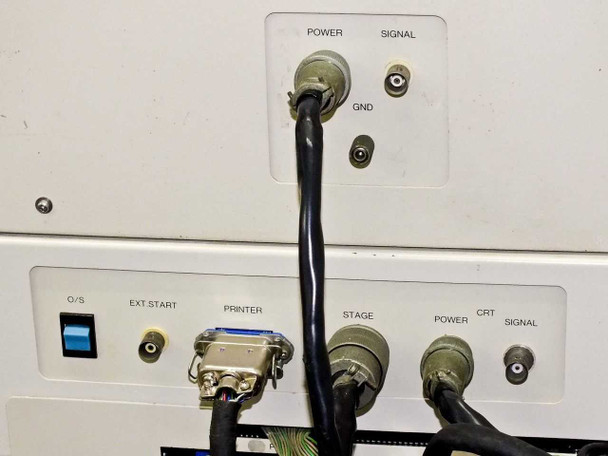

  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
  • Seiko SFT7000 XRF Coating Thickness Gauge with SFT7300 Monitor -AS-IS
$1,200.00
Was: $2,400.00
Current Stock: 1

Sold Out

Description

Seiko SFT7000 SFT7300 XRF Coating Thickness Gauge System For Parts

Two-unit X-Ray Fluorescence (XRF) coating thickness measurement system consisting of the SFT7000 controller unit with integrated Sharp CRT monitor and the SFT7300 XRF gauge head. Measures coating and plating thickness on industrial samples using X-ray fluorescence technology.

Specifications & What's Included

  • Brand: Seiko Instruments; Model: SFT7000/SFT7300
  • Measurement Type: XRF coating and plating thickness
  • Motorized XY sample stage with Oriental ED Co. 2-Phase Driver (UD210/UD215)
  • Five collimator positions: 0.05x0.4mm, 0.1mm, 0.2mm, 0.3mm
  • Integrated Sharp CRT monitor display
  • AC 100V power input; X-ray safety labels present

Applications

XRF coating thickness gauges are used in electroplating, PCB manufacturing, semiconductor processing, and thin-film applications to verify coating uniformity and measure plating thickness without sample preparation or destruction. This Seiko system was designed for laboratory and production quality control environments where non-destructive thickness measurement on various substrates is required.

Condition: For Parts or Not Working
This Seiko SFT7000 SFT7300 XRF Coating Thickness Gauge system is being sold AS-IS for parts or repair. When powered on, the SFT7000 unit beeps once but does not respond to any input. The power supply fan runs when the unit is plugged in. The system is incomplete — some components or internal parts may be missing. This is a large two-unit system; please contact us prior to purchase for a shipping quote. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Seiko Instruments
Model:
SFT7000
Secondary Model:
SFT7300
MPN:
SFT7000
Type:
XRF Coating Thickness Gauge System
SKU:
45181
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes SFT7000 controller/monitor unit and SFT7300 XRF gauge head; system is incomplete
Country/Region of Manufacture:
Japan
Measurement Technology:
X-Ray Fluorescence (XRF)
Measurement Type:
Coating / Plating Thickness
Application:
Electroplating, PCB, Semiconductor, Thin Film
Display:
Integrated Sharp CRT Monitor
Stage Type:
Motorized XY Sample Stage
Stage Driver:
Oriental ED Co. 2-Phase Driver UD210 / UD215
Collimator Sizes:
0.05x0.4mm, 0.1mm, 0.2mm, 0.3mm, 0.1mm (5 positions)
Rear Connectors (SFT7300):
X-RAY (circular), STAGE (circular + DB15), Detector Out (BNC), X-Ray Alarm
Rear Connectors (SFT7000):
CONTROLLER (DB25), SAMPLE STAGE (circular), CRT (AC 100V), AC IN, FUSE
Internal Board:
Seiko Instruments X Ray Power Protection 159-07A
Form Factor:
Freestanding Floor Console, Two-Unit System
X-Ray Warning:
Yes — X-RAY caution labels present on unit
Power Input:
AC 100V (CRT); additional AC input on SFT7000 rear panel
Condition Notes:
Seiko SFT7000 XRF Coating Thickness Gauge — AS-IS, for parts or repair. Beeps once on power-up, no input response. Fan operates. Unit is incomplete. Contact us for shipping quote before purchasing.
View AllClose

Related Products

Related Products

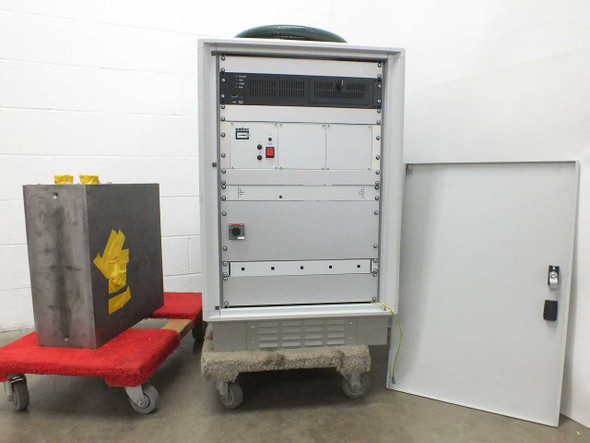

Amtec XRF 940V system front view — closed main cabinet on dolly with separate measuring head unit beside it Amtec XRF 940V main cabinet open showing internal rack-mounted electronics, control panel with red emergency stop button
