Seiko
-
Seiko SFT7000 SFT7300 XRF Coating Thickness Gauge System For Parts
Seiko
$1,200.00Was: $2,400.00Seiko SFT7000 SFT7300 XRF Coating Thickness Gauge System For PartsTwo-unit X-Ray Fluorescence (XRF) coating thickness measurement system consisting of the SFT7000 controller unit with integrated...45181- SKU:
- 45181
- Availability:
- Usually ships within 3-5 business days — please contact us for a shipping quote before ordering.
- Weight:
- 385.00 LBS
- Brand:
- Seiko Instruments
- Model:
- SFT7000
- Secondary Model:
- SFT7300
- MPN:
- SFT7000
- Type:
- XRF Coating Thickness Gauge System
- SKU:
- 45181
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes SFT7000 controller/monitor unit and SFT7300 XRF gauge head; system is incomplete
- Country/Region of Manufacture:
- Japan
- Measurement Technology:
- X-Ray Fluorescence (XRF)
- Measurement Type:
- Coating / Plating Thickness
- Application:
- Electroplating, PCB, Semiconductor, Thin Film
- Display:
- Integrated Sharp CRT Monitor
- Stage Type:
- Motorized XY Sample Stage
- Stage Driver:
- Oriental ED Co. 2-Phase Driver UD210 / UD215
- Collimator Sizes:
- 0.05x0.4mm, 0.1mm, 0.2mm, 0.3mm, 0.1mm (5 positions)
- Rear Connectors (SFT7300):
- X-RAY (circular), STAGE (circular + DB15), Detector Out (BNC), X-Ray Alarm
- Rear Connectors (SFT7000):
- CONTROLLER (DB25), SAMPLE STAGE (circular), CRT (AC 100V), AC IN, FUSE
- Internal Board:
- Seiko Instruments X Ray Power Protection 159-07A
- Form Factor:
- Freestanding Floor Console, Two-Unit System
- X-Ray Warning:
- Yes — X-RAY caution labels present on unit
- Power Input:
- AC 100V (CRT); additional AC input on SFT7000 rear panel
- Condition Notes:
- Seiko SFT7000 XRF Coating Thickness Gauge — AS-IS, for parts or repair. Beeps once on power-up, no input response. Fan operates. Unit is incomplete. Contact us for shipping quote before purchasing.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,200.00Was: $2,400.00 -
Seiko LTP5446B-C832 Thermal Print Head IF5003-02B Controller Board 120V Power
Seiko
$225.00Was: $450.00Seiko LTP5446B-C832 Thermal Print Head IF5003-02B Controller Board 120V PowerThis is a matched set of Seiko thermal printer components: the LTP5446B-C832 thermal print head mechanism, the IF5003-02B...42979- SKU:
- 42979
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Seiko Instruments
- Model:
- LTP5446B-C832
- MPN:
- LTP5446B-C832
- Secondary Model:
- IF5003-02B
- SKU:
- 42979
- Type:
- Thermal Print Head, Controller Board & Power Supply Set
- Includes:
- Thermal print head, controller board, 120V power supply
- Power Requirements:
- 120V AC
- Print Technology:
- Thermal
- Application:
- Portable thermal printer
- Condition:
- New – Pulled from unused portable printer kit
- Seller Notes:
- Set includes LTP5446B-C832 print head, IF5003-02B controller board, and matching 120V power supply
- Country/Region of Manufacture:
- Japan
- Board Part Number:
- 63 68 414/02
- Stepper Motor Voltage:
- 12V
- Condition Notes:
- Seiko LTP5446B-C832 thermal print head with IF5003-02B controller board and 120V power supply. New old stock, removed from unused portable printer kits — never put into service. All components in new condition with no signs of use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$225.00Was: $450.00 -
Seiko SII IF5003-02B Ver.A Thermal Printer Controller Board LTP5000 5VDC
Seiko
$110.00Was: $225.00Seiko SII IF5003-02B Ver.A Thermal Printer Controller Board LTP5000 5VDCController board for Seiko LTP5000 series thermal printers. Manages print operations, character rendering, and data input via...41857- SKU:
- 41857
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Seiko Instruments (SII)
- Model:
- IF5003-02B
- MPN:
- IF5003-02B
- Secondary Model:
- 3B6625484
- Hardware Revision:
- Ver. A
- PCB Designation:
- CG-2
- Type:
- Thermal Printer Controller Board
- Compatible With:
- Seiko LTP5000 Series Thermal Printers
- CPU / Processor:
- PT502P02 / PT500GA1
- Input Control Method 1:
- 8-bit parallel (modified Centronics)
- Input Control Method 2:
- Serial (TTL level)
- Character Set 1:
- IBM compatible character set
- Character Set 2:
- Japanese Kana character set
- Board Dimensions (W x D x H):
- 100 x 130 x 22 mm
- Form Factor:
- PCB / Card
- Country/Region of Manufacture:
- Japan
- Condition:
- New – Open Box (pulled from new, unused printer)
- Seller Notes:
- Board only; pulled from a new, unused LTP5000 series printer
- SKU:
- 41857
- Condition Notes:
- Seiko SII IF5003-02B thermal printer controller board, new and unused — pulled from a new, undeployed LTP5000 series printer. Never put into service. Board is in excellent physical condition with no wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$110.00Was: $225.00 -

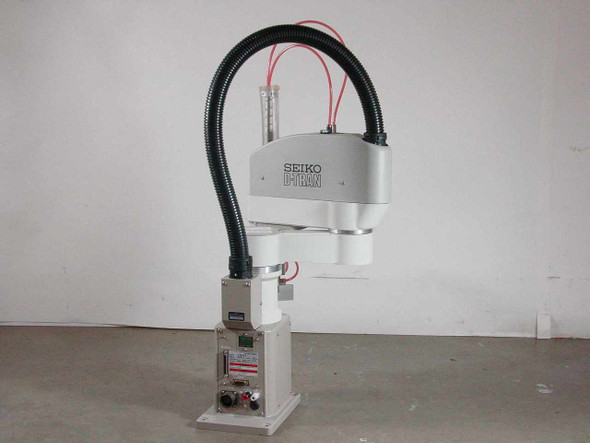

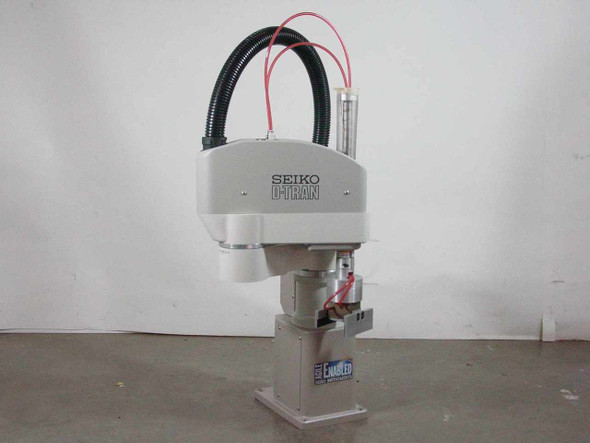

Seiko TT8450 D-Tran SCARA Robot AC Servo Robohand RP-15 End Effector No Ctrl
Seiko
$1,800.00Was: $3,600.00Seiko TT8450 D-Tran SCARA Robot AC Servo Robohand RP-15 End Effector No Ctrl The Seiko TT8450 D-Tran is a four-axis SCARA (Selective Compliance Assembly Robot Arm) robot designed for high-speed,...34760- SKU:
- 34760
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 59.00 LBS
- Brand:
- Seiko Instruments
- Model:
- TT8450
- MPN:
- TT8450
- Secondary Model:
- Robohand RP-15
- SKU:
- 34760
- Type:
- SCARA Robot Arm
- Series:
- D-Tran
- Drive Type:
- AC Servo Motor
- Number of Axes:
- 4 (T1, T2, Z, U)
- Payload Capacity:
- 4.4 to 11 lbs
- Arm Length T1 Axis:
- 8.86 in
- Arm Length T2 Axis:
- 8.86 in
- Max Speed T1 & T2 Axis:
- 166.54 in/sec
- Max Speed Z Axis:
- 39.37 in/sec
- Repeatability T1 & T2:
- ±0.0007874 in
- Repeatability Z Axis:
- ±0.0003937 in
- Repeatability U Axis:
- ±0.03°
- End Effector:
- Robohand RP-15 (Agile Enabled)
- End Effector Brand:
- Robohand Inc.
- End Effector Model:
- RP-15
- Controller Included:
- No — controller and cables not included
- Signal Connector:
- DB-25 (SIGNAL port on base)
- Tool Connector:
- DB-15 (TOOL port on base)
- Power Connector:
- Multi-pin circular connector on base
- Air Ports:
- AIR-1 and AIR-2 pneumatic ports on base
- Agile Enabled:
- Yes
- Country/Region of Manufacture:
- Japan
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes Robohand RP-15 end effector. No controller or cables included.
- Form Factor:
- Floor/Pedestal Mount
- Application:
- Pick and Place, Assembly, Semiconductor, Electronics Mfg
- Condition Notes:
- This Seiko TT8450 D-Tran SCARA Robot with Robohand RP-15 end effector has been inspected and is in good used condition. The arm, body, and pedestal base are clean and intact with no significant damage visible.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,800.00Was: $3,600.00 -
Seiko LTP5446B Switch Mode Thermal Printer Power Supply 12V DC IF5003-02B
Seiko
$80.00Was: $150.00Seiko LTP5446B Switch Mode Thermal Printer Power Supply 12V DC IF5003-02B Internal open-frame switch mode power supply designed for Seiko LTP5446B thermal printers. Supplies regulated 12V DC output...33223- SKU:
- 33223
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Seiko Instruments
- Model:
- LTP5446B
- Secondary Model:
- IF5003-02B
- MPN:
- LTP5446B
- SKU:
- 33223
- Condition:
- New – Pulled from New Unused Printer
- Seller Notes:
- Power supply only; pulled from a new, unused Seiko thermal printer.
- Form Factor:
- Internal / Open Frame
- Compatible With:
- Seiko LTP5446B Print Head, IF5003-02B Control Board
- Output Voltage:
- 12V DC
- Output Current:
- 2–3A @ 75°F
- Power Supply Type:
- Switch Mode
- Dimensions:
- 185 x 85 x 42 mm
- Input Protection:
- Fused input filter module
- Application:
- Thermal Printer Power Supply
- Output Connector:
- Multi-pin JST-style harness
- Country of Manufacture:
- Japan
- Condition Notes:
- This Seiko LTP5446B Switch Mode Thermal Printer Power Supply is in new, unused condition. It was pulled directly from a new, undeployed Seiko thermal printer and has never been put into service.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$80.00Was: $150.00
