Seiko SII IF5003-02B Ver.A Thermal Printer Controller Board LTP5000 5VDC

(No reviews yet) Write a Review
SKU:
41857
MPN:
IF5003-02B
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Seiko SII IF5003-02B Ver.A thermal printer controller board – component side showing NEC relay, capacitors, and SII silkscreen

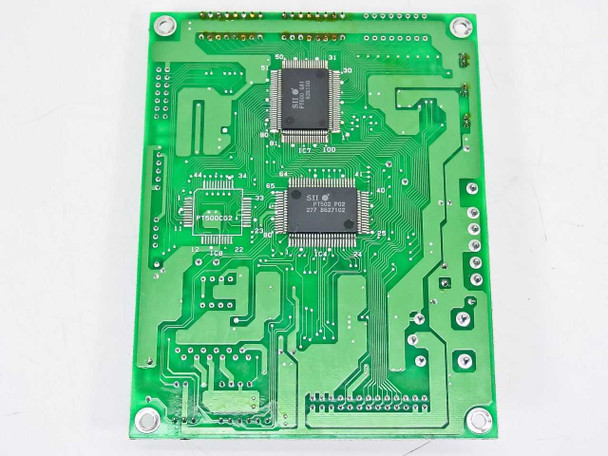

  • Seiko SII IF5003-02B – solder/reverse side showing two main SII ICs and PCB trace layout

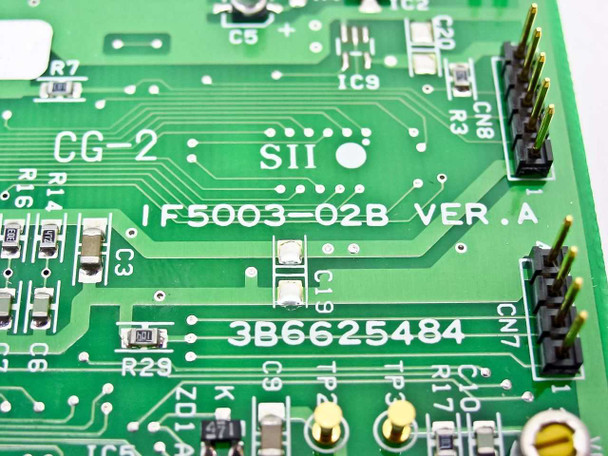

  • Seiko SII IF5003-02B Ver.A – close-up of PCB silkscreen showing model number, Ver.A, CG-2 designation, and serial number 3B6625484

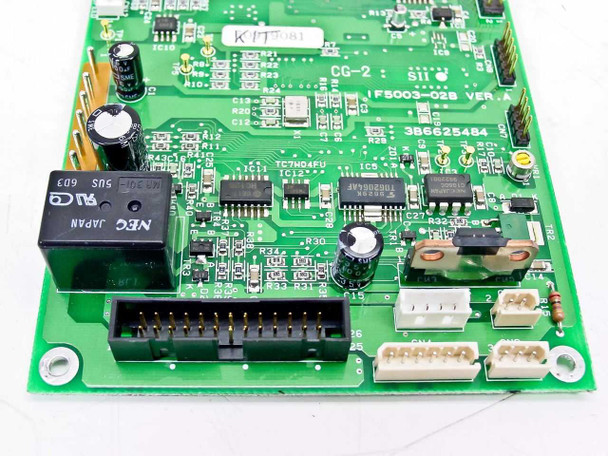

  • Seiko SII IF5003-02B – close-up of component side showing TC7HQ4FU IC, NEC relay, and board connectors

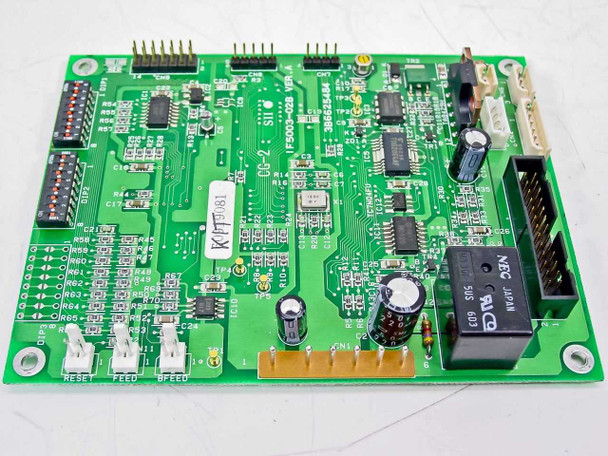

  • Seiko SII IF5003-02B – angled view of component side showing RESET, FEED, BFEED test points, parallel connector, and DIP switches

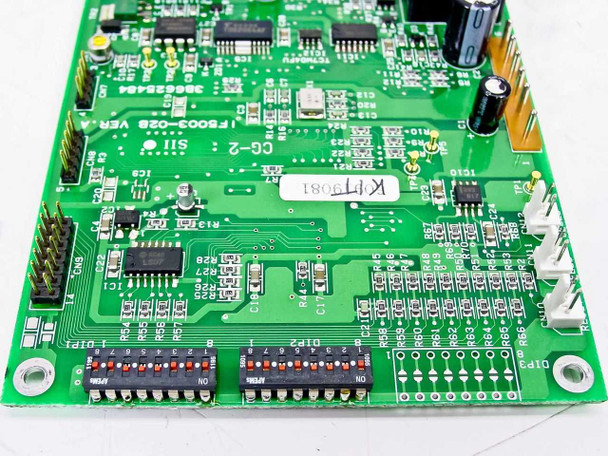

  • Seiko SII IF5003-02B – angled view of solder side showing DIP switch banks, SII main processor IC, and edge connectors

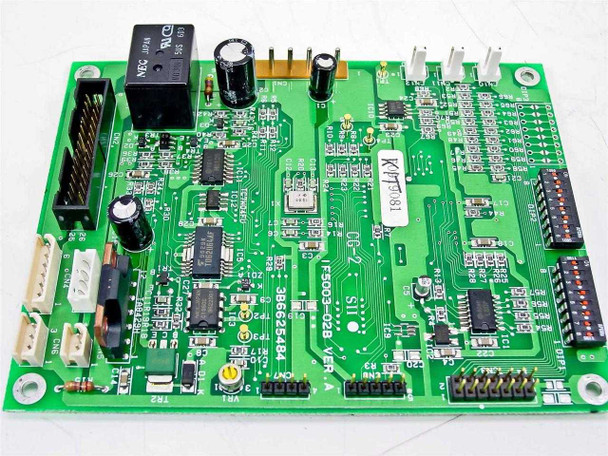

  • Seiko SII IF5003-02B – wide component-side overview showing full board layout with NEC relay, DIP switches, and all edge connectors
$110.00
Was: $225.00
Current Stock: 26

Sold Out

Description

Seiko SII IF5003-02B Ver.A Thermal Printer Controller Board LTP5000 5VDC

Controller board for Seiko LTP5000 series thermal printers. Manages print operations, character rendering, and data input via parallel or serial interfaces.

Specifications & What's Included

  • Model: IF5003-02B Ver. A (Hardware Revision A)
  • Processor: PT502P02 / PT500GA1
  • Input: 8-bit parallel (modified Centronics) and serial TTL
  • Character sets: IBM compatible and Japanese Kana
  • Operating voltage: 5VDC
  • Dimensions: 100 x 130 x 22 mm
  • Manufactured: Japan

Applications

This board was used in Seiko LTP5000 thermal printers deployed in point-of-sale systems, receipt printing, label generation, and industrial data logging. The LTP5000 series supported both parallel and serial host connections, making it compatible with legacy computer systems and industrial controllers through the 1990s and 2000s. The board handles font rendering and communication protocols required for thermal print head control.

Condition: Open Box
This Seiko SII IF5003-02B thermal printer controller board is new and unused. It was pulled from a new, undeployed LTP5000 series printer and has never been put into service. The board is in excellent physical condition with no signs of use, wear, or handling damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Seiko Instruments (SII)
Model:
IF5003-02B
MPN:
IF5003-02B
Secondary Model:
3B6625484
Hardware Revision:
Ver. A
PCB Designation:
CG-2
Type:
Thermal Printer Controller Board
Compatible With:
Seiko LTP5000 Series Thermal Printers
CPU / Processor:
PT502P02 / PT500GA1
Input Control Method 1:
8-bit parallel (modified Centronics)
Input Control Method 2:
Serial (TTL level)
Character Set 1:
IBM compatible character set
Character Set 2:
Japanese Kana character set
Operating Voltage:
5VDC
Board Dimensions (W x D x H):
100 x 130 x 22 mm
Form Factor:
PCB / Card
Country/Region of Manufacture:
Japan
Condition:
New – Open Box (pulled from new, unused printer)
Seller Notes:
Board only; pulled from a new, unused LTP5000 series printer
SKU:
41857
Condition Notes:
Seiko SII IF5003-02B thermal printer controller board, new and unused — pulled from a new, undeployed LTP5000 series printer. Never put into service. Board is in excellent physical condition with no wear.
View AllClose
