Noran

Noran Instruments 960H-1SPS EDS X-Ray Spectrometer Detector 138 eV Resolution

(No reviews yet) Write a Review
SKU:
44244
MPN:
960H-1SPS
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
20.00 LBS
Shipping:
Calculated at Checkout

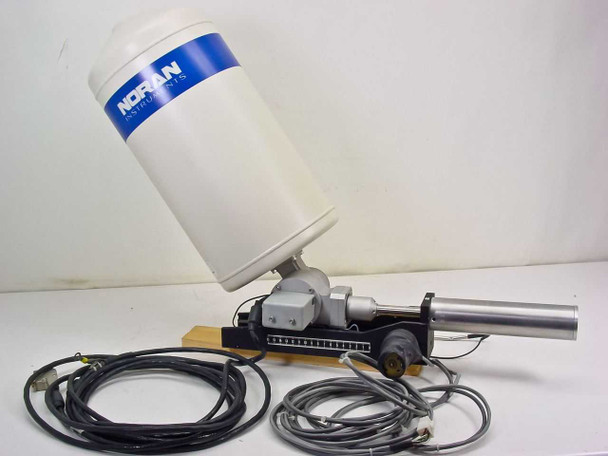

  • Noran Instruments 960H-1SPS EDS X-ray spectrometer detector – full assembly view with LN2 dewar, motorized stage, and cables

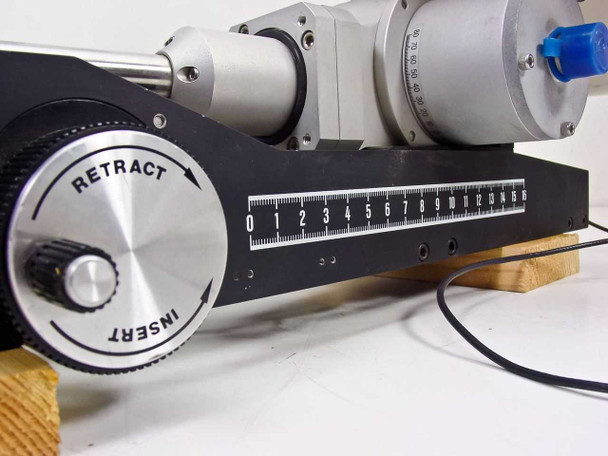

  • Noran 960H-1SPS detector – close-up of linear insert/retract stage showing 0–16 mm graduated scale and retract knob

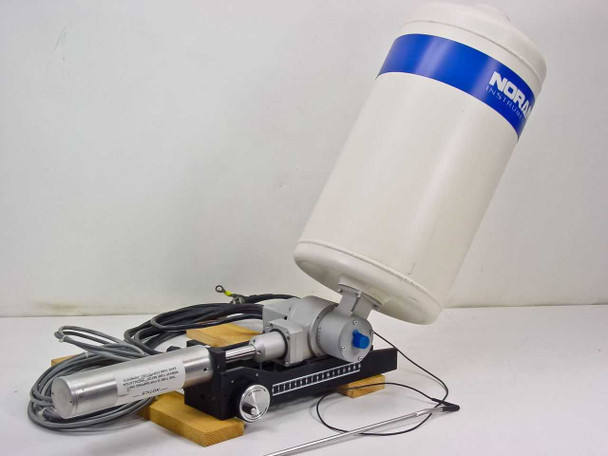

  • Noran 960H-1SPS EDS detector – three-quarter view showing LN2 dewar, aluminum detector body, and attached cables
  • Noran 960H-1SPS – detector body label showing safety warning; cables and motorized stage visible

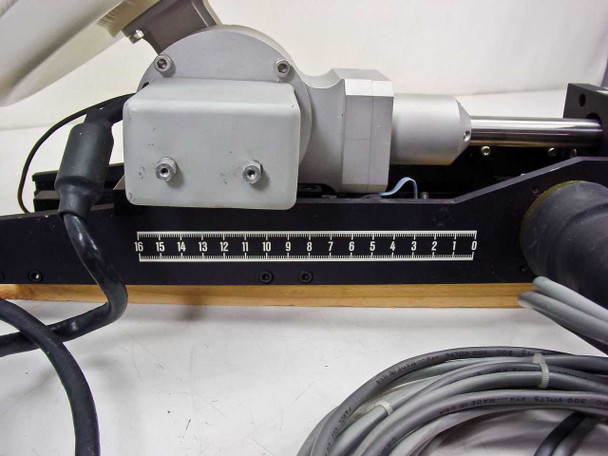

  • Noran 960H-1SPS – opposite-end view of motorized stage showing drive motor housing and cable routing
  • Noran 960H-1SPS model label – Model No. 960H-1SPS, Serial No. 1015, Specified Resolution 138, Noran Instruments Inc., Made in USA
  • Noran Instruments logo close-up – blue and white label on LN2 dewar cryostat body

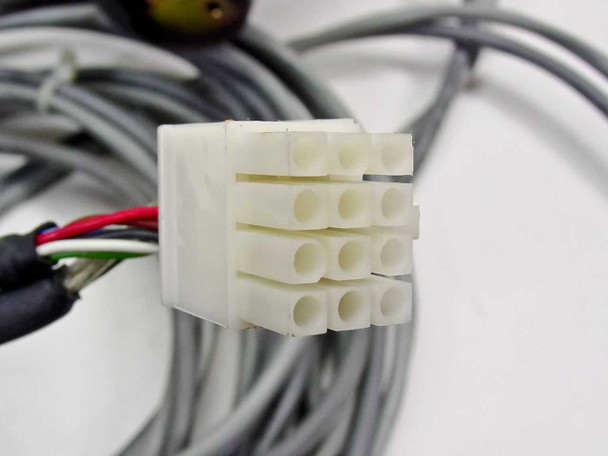

  • Noran 960H-1SPS – close-up of multi-pin connector on signal cable (12-position Molex-style connector)

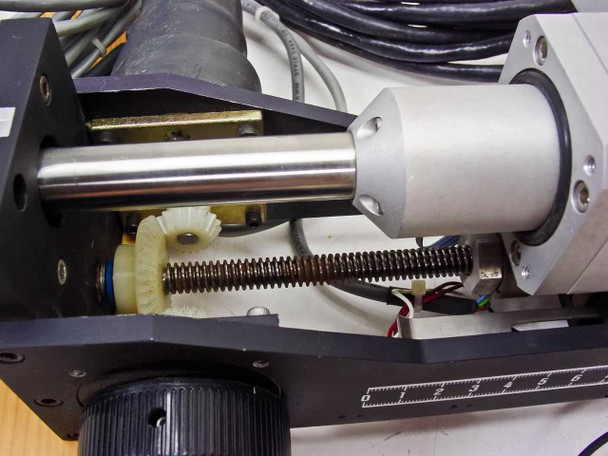

  • Noran 960H-1SPS – internal view of motorized lead-screw linear drive mechanism and worm gear
  • Noran 960H-1SPS – DB-9 (9-pin D-sub) signal cable connector close-up

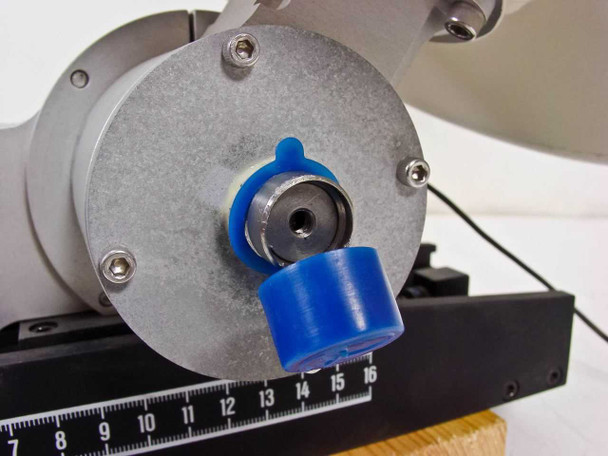

  • Noran 960H-1SPS – close-up of rotary tilt/angle adjuster with blue end cap on detector snout

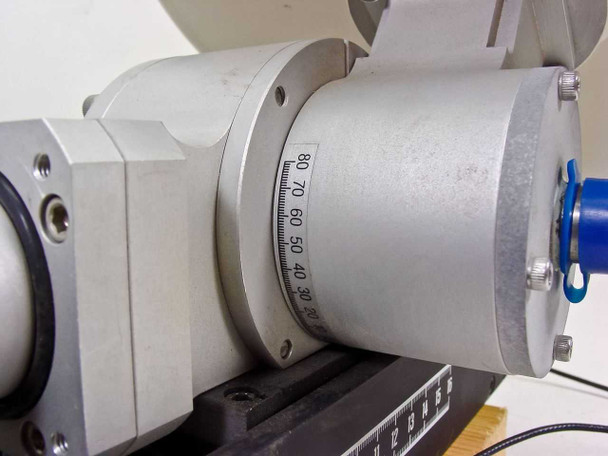

  • Noran 960H-1SPS – graduated rotary scale on detector body showing angular position markings (approx. 30–90 degrees range)
  • Noran 960H-1SPS – side view showing lead-screw spring return mechanism and cable attachment at detector base
  • Noran 960H-1SPS – label on drive motor housing showing Bias: -800V and Heater: 0 settings
  • Noran 960H-1SPS – interior view looking into LN2 dewar showing detector crystal housing (green-black color)

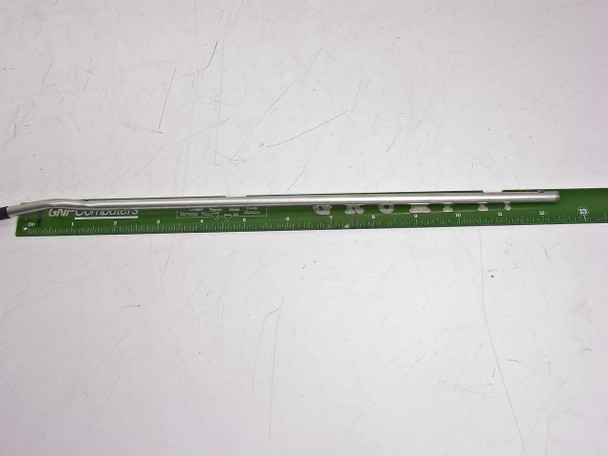

  • Noran 960H-1SPS – thin aluminum probe/snout tube accessory shown alongside ruler (approximately 12 inches length)
  • Noran 960H-1SPS – close-up of thin aluminum probe tube end, open-bore, shown next to ruler at approximately 12-inch mark
$2,200.00
Was: $4,400.00
Current Stock: 1

Sold Out

Description

Noran Instruments 960H-1SPS EDS X-Ray Spectrometer Detector 138 eV Resolution

Energy dispersive X-ray spectrometer (EDS) detector for elemental analysis on electron microscopy instruments. Features 138 eV resolution, integrated LN2 cryostat, and motorized linear positioning stage.

Specifications & What's Included

  • Model: 960H-1SPS
  • Resolution: 138 eV
  • Bias Voltage: -800V
  • Linear Travel: 0–16 mm motorized stage with knob control
  • Rotation: Graduated scale, 30–90 degrees
  • Integrated LN2 dewar (white cylindrical Noran cryostat)
  • DB-9 signal connector with multi-conductor cables included
  • Probe tube accessory included
  • Made in United States

Applications

Used for SEM and EPMA elemental analysis and X-ray microanalysis. Compatible with scanning electron microscopes, electron probe microanalyzers, and other electron beam instruments equipped with EDS ports. Provides point and area analysis of sample composition during high-magnification examination.

Condition: Used
This Noran Instruments 960H-1SPS EDS X-ray spectrometer detector has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The LN2 dewar body is clean with no visible cracks or damage. The motorized linear stage, lead-screw drive, and retract/insert knob all appear intact. The detector snout, rotary tilt adjuster, and graduated scales are present and undamaged. Signal cables with multi-pin and DB-9 connectors are included, along with a thin probe tube accessory. Normal light handling marks are present on the aluminum surfaces. The unit is sold as found without LN2 or additional accessories beyond what is shown. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Noran Instruments
Model:
960H-1SPS
MPN:
960H-1SPS
Type:
Energy Dispersive X-Ray Spectrometer (EDS) Detector
SKU:
44244
Specified Resolution:
138 eV
Detector Type:
EDS / EDX (Energy Dispersive X-Ray)
Bias Voltage:
-800V
Heater Setting:
0
Linear Travel Scale:
0–16 mm (graduated insert/retract rail)
Rotation Scale:
Graduated rotary scale, approx. 30–90 degrees range visible
Cryostat / Dewar:
Integrated LN2 dewar (white cylindrical Noran cryostat)
Included Cables:
Multi-conductor signal cables with multi-pin connector included
Connector Type:
DB-9 (9-pin D-sub) signal cable connector
Drive Mechanism:
Motorized lead-screw linear stage with retract/insert knob
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes multi-conductor signal cables and a thin probe tube accessory
Application:
SEM / EPMA elemental analysis; x-ray microanalysis
Compatible With:
SEM, EPMA, and electron beam instruments with EDS port
Condition Notes:
Noran Instruments 960H-1SPS EDS X-ray spectrometer detector. Inspected, in good used condition; pulled from a working environment where it was in active use. LN2 dewar, motorized stage, cables, and probe tube included. Normal surface wear.
