Princeton Gamma-Tech

Princeton Gamma-Tech PGT PRISM60 OPP024-6048 X-Ray Detector -600VDC Bias

(No reviews yet) Write a Review
SKU:
44248
MPN:
PGT IMIX
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
40.00 LBS
Shipping:
Calculated at Checkout

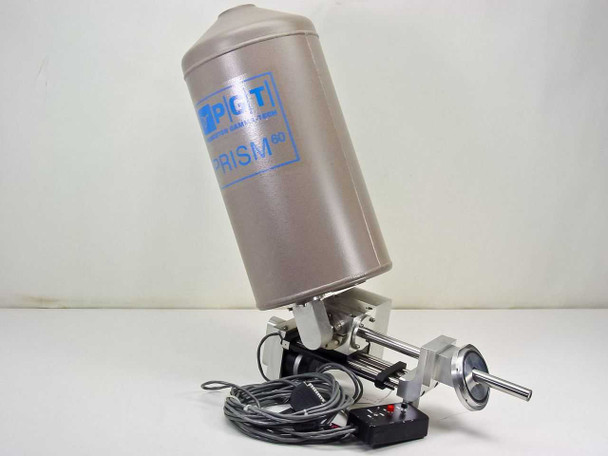

  • Princeton Gamma-Tech PGT PRISM60 EDS X-ray detector on motorized positioning stage, left side view showing detector body and control cable
  • PGT PRISM60 EDS X-ray detector full assembly, right side view showing motorized stage, stepper motor, and control box with cable

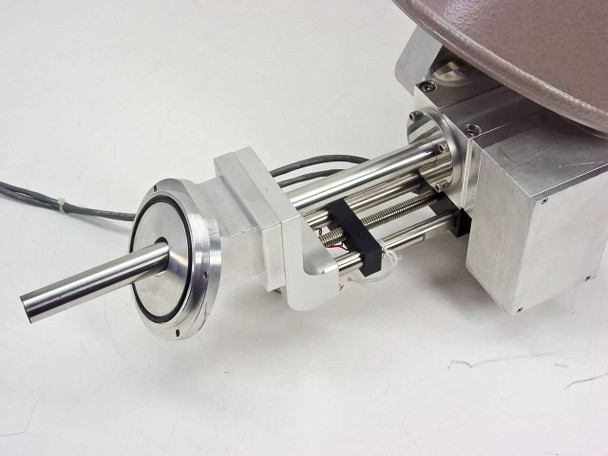

  • Close-up of PGT PRISM60 motorized linear positioning stage with stainless steel rails, lead screw, and detector mount assembly

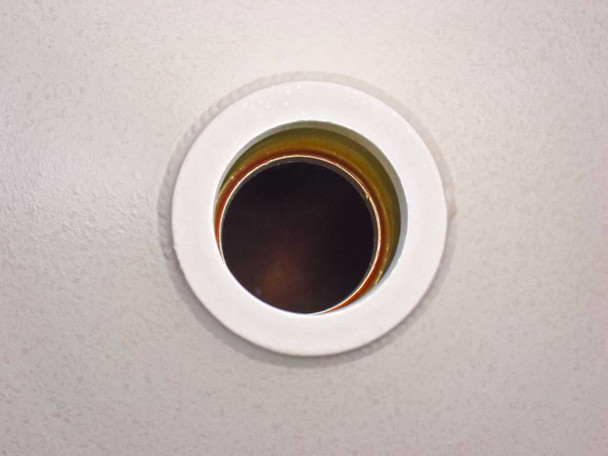

  • Top-down view of PGT PRISM60 detector snout aperture showing circular opening with amber/brown window — detector entry port

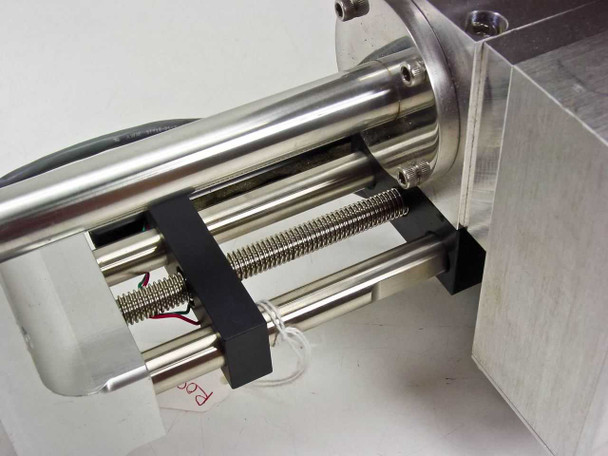

  • Close-up of PGT PRISM60 motorized stage stainless steel rails, lead screw, and wiring harness with red paper tag visible
  • Underside view of PGT PRISM60 positioning stage showing stepper motor with adjustment screw and cable harness wiring
  • Close-up of PGT PRISM60 detector snout flange and cylindrical body showing machined aluminum construction and O-ring seal

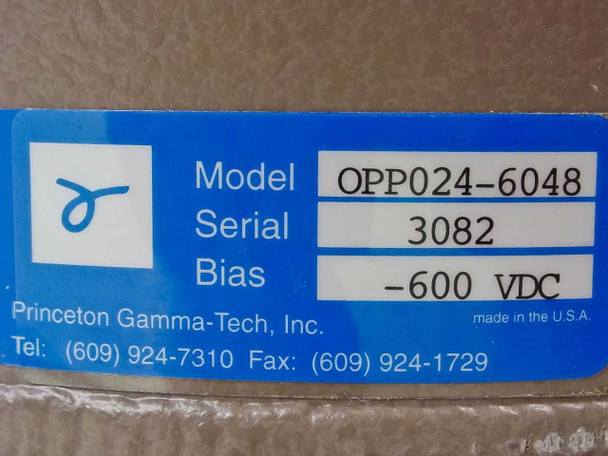

  • PGT PRISM60 OPP024-6048 rating label showing Model OPP024-6048, Serial 3082, Bias -600 VDC, Princeton Gamma-Tech Inc.
  • PGT Princeton Gamma-Tech PRISM60 logo decal on detector body showing PGT brand mark and PRISM 60 model designation
  • PGT PRISM60 preamplifier/stage assembly label showing Model SA-0358TRI, Serial 355, with D-Sub connector visible

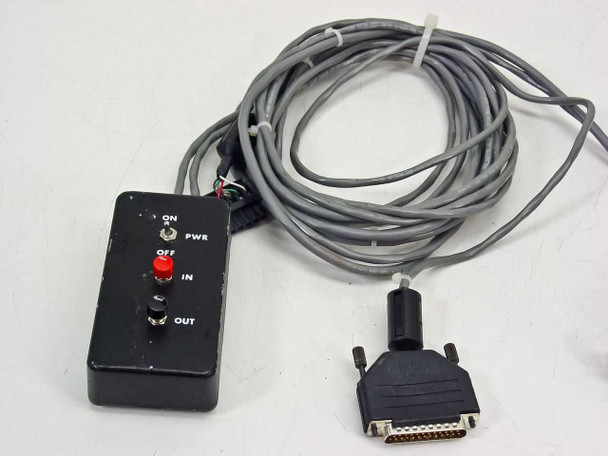

  • PGT PRISM60 control box with power cable and DB25 connector — front shows PWR toggle switch, red IN button, and OUT toggle

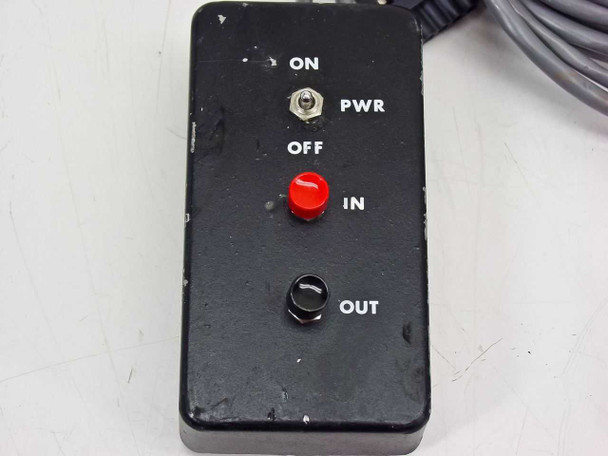

  • Close-up of PGT PRISM60 control box front panel showing ON/OFF PWR toggle, red IN indicator/button, and OUT toggle switch

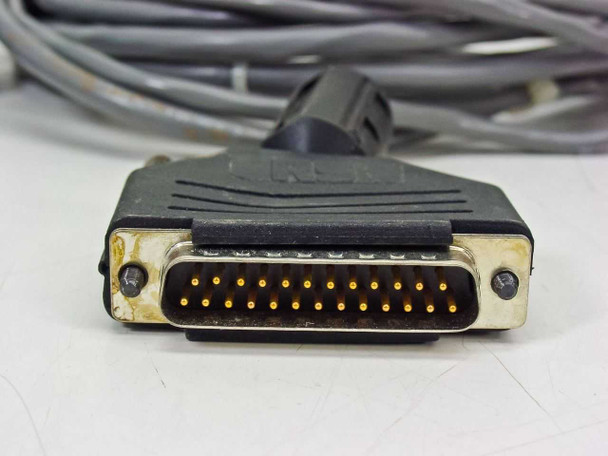

  • DB25 male connector on PGT PRISM60 control cable, showing 25-pin gold connector with strain relief housing

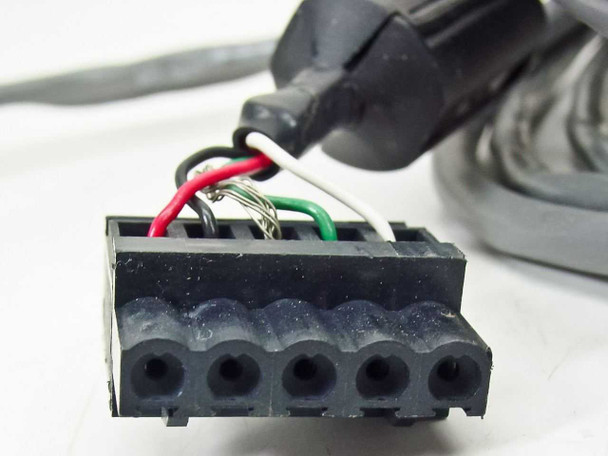

  • Close-up of PGT PRISM60 control cable multi-pin connector end showing red, green, white, and bare wire terminations
$600.00
Was: $1,200.00
Current Stock: 1

Sold Out

Description

Princeton Gamma-Tech PGT PRISM60 OPP024-6048 X-Ray Detector -600VDC Bias

Energy Dispersive Spectrometer (EDS) X-ray detector designed for elemental analysis in scanning electron microscopy and related analytical systems. Operates at -600 VDC bias voltage.

Specifications & What's Included

  • Model: PRISM60 (MPN OPP024-6048, Secondary Model SA-0358TRI)
  • Type: EDS X-Ray Detector / Energy Dispersive Spectrometer
  • Bias Voltage: -600 VDC
  • Connector: D-Sub DB25 male on control cable
  • Includes motorized positioning stage, control box with PWR/IN/OUT switches, and cable
  • Manufactured in United States

Applications

EDS detectors mount to scanning electron microscopes (SEMs) and electron microscopy systems for real-time elemental composition analysis. These systems are used in materials science, metallurgy, semiconductor inspection, and failure analysis. Compatible with IMIX analyzer systems and standard SEM platforms equipped with appropriate detector ports.

Condition: For Parts or Not Working
This Princeton Gamma-Tech PGT PRISM60 EDS X-Ray Detector (Model OPP024-6048) is being sold AS-IS for parts or repair. We were not able to test it at our facility, and it is not guaranteed functional. It includes the motorized linear positioning stage, a small control box with PWR, IN, and OUT switches, and a cable with a DB25 connector. The detector body and stage assembly appear intact with no obvious physical damage. The detector snout aperture window is visible and intact. The control box shows some scuffing and surface wear. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Princeton Gamma-Tech
Model:
PRISM60
MPN:
OPP024-6048
Secondary Model:
SA-0358TRI
SKU:
44248
Type:
EDS X-Ray Detector / Energy Dispersive Spectrometer
Bias Voltage:
-600 VDC
Detector Series:
PRISM 60
Application:
Energy Dispersive X-Ray Spectroscopy (EDS/EDX)
Compatible With:
SEM, electron microscope, IMIX analyzer systems
Connector Type:
D-Sub (DB25 male) on control cable
Country/Region of Manufacture:
United States
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes motorized positioning stage, control box with PWR/IN/OUT switches, and cable
Form Factor:
Standalone detector with motorized positioning arm
Condition Notes:
PGT PRISM60 OPP024-6048 EDS X-ray detector sold AS-IS for parts or repair. Could not be tested; no functionality guaranteed. Includes motorized stage, control box, and cable. Please contact us with questions.
View AllClose

Related Products

Related Products

Princeton Gamma-Tech PGT .8000 ImIX-PC X-Ray Microanalysis ECS Computer – right side view, floor-standing gray tower cabinet on casters with cables on top Princeton Gamma-Tech PGT .8000 ECS Computer – rear-left view showing exhaust fan, power inlet panel, and cables draped over top
Add to Cart
Quick view

Princeton Gamma-Tech PGT .8000 ImIX-PC X-Ray Microanalysis ECS Computer

Princeton Gamma-Tech

$500.00
Was: $1,000.00
Princeton Gamma-Tech PGT.8000 ImIX-PC X-Ray Microanalysis ECS ComputerEnergy Dispersive X-Ray Spectroscopy (EDS/EDX) analysis system designed for elemental composition measurement in electron...
45075
SKU:
45075
Availability:
Usually ships within 1-2 business days.
Weight:
151.00 LBS
Brand:
Princeton Gamma-Tech
Model:
PGT .8000
Secondary Model:
ImIX-PC
MPN:
.8000
SKU:
45075
Type:
X-Ray Microanalysis ECS Computer
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes internal modules, cabling, SCSI interface, and BNC detector connections
Country/Region of Manufacture:
United States
Form Factor:
Floor-Standing Tower Cabinet on Casters
Power Requirements:
115/230V AC, 10.0/5.0A, 50/60Hz
Power Supply Model:
Trimm Technologies CMN08GAM
Application:
Energy Dispersive X-Ray Spectroscopy (EDS/EDX)
Compatible With:
SEM (Scanning Electron Microscope) systems
Interface Type:
SCSI, BNC (External Detectors), REM Control
External Detector Ports:
5x BNC + EXT SYNC (rear panel)
BCI Ports:
BCI: X/Y in, V connectors (rear panel)
Internal Modules:
PGT Beam Control Interface module (Model 325B)
Internal Modules 2:
PGT module Model 427B (SN 288)
Sweep Calibration Controls:
Gain X/Offset, Gain Y/Offset (front panel)
Front Panel Controls:
Power switch, Reset, Bias On/Off, P/A Reset, Download
Status Indicators:
Green and red LEDs for Power, Bias Active
Internal Storage:
Seagate hard drive (visible internally)
Internal Drive Bays:
Multiple bays visible; includes HDD and floppy-style bay
Expansion:
Multiple ISA/proprietary expansion card slots populated
Condition Notes:
Princeton Gamma-Tech PGT .8000 ImIX-PC X-Ray Microanalysis ECS Computer powers on (fans spin, LEDs light) but full function could not be verified. Sold AS-IS for parts or repair. No functionality guarantee. Please contact us with questions.
Princeton Gamma-Tech PGT OS19-PO13 X-ray EDS detector – full assembly showing cylindrical cryostat with Omega label and aluminum XY positioning stage with probe tip PGT OS19-PO13 detector signal cable – close-up of 4-pin circular military-style connector with gold contacts
Add to Cart
Quick view

Princeton Gamma-Tech PGT OS19-PO13 X-Ray Detector -800 VDC Bias IMIX

Princeton Gamma-Tech

$750.00
Was: $1,500.00
Princeton Gamma-Tech PGT OS19-PO13 X-Ray Detector -800 VDC Bias IMIX MicroanalyzerEnergy Dispersive X-Ray Spectroscopy (EDS/EDX) detector designed for compositional analysis in electron microscopy...
38969
SKU:
38969
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Brand:
Princeton Gamma-Tech
Model:
OS19-PO13
MPN:
OS19-PO13
Secondary Model:
IMIX
Type:
X-Ray EDS Detector / Energy Dispersive Spectrometer
SKU:
38969
Bias Voltage:
-800 VDC
Detector Technology:
Energy Dispersive X-Ray Spectroscopy (EDS/EDX)
Application / Use Case:
X-ray microanalysis, SEM EDS, electron microscopy
Interface / Connectors:
BNC (Bias, Test, Output, Inhibit, Power), DB9
Connector – Signal Cable:
4-pin circular military-style connector
Positioning Assembly:
Machined aluminum XY positioning stage with lead screws
Country/Region of Manufacture:
United States
Form Factor:
Cylindrical cryostat with integrated positioning stage
Compatible System:
PGT IMIX Integrated Microanalyzer for Imaging & X-Ray
Seller Notes:
Includes detector cryostat, XY stage assembly, and signal cable
Condition:
Used – Inspected and Appears in Good Condition
Condition Notes:
Princeton Gamma-Tech PGT OS19-PO13 X-ray EDS detector inspected and in good condition. Cryostat, XY positioning stage, BNC/DB9 module, signal cable, and window assembly all present. Please contact us with any questions.

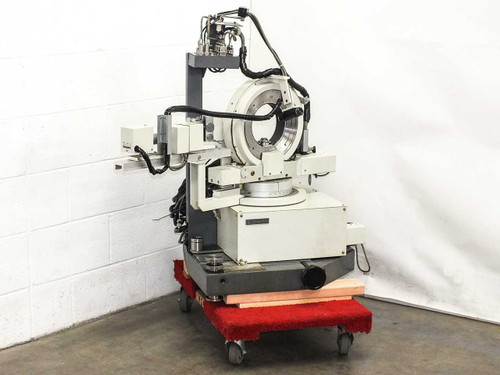

Rigaku 2561R1 Rotating X-Ray Diffractometer with 4151C6 detector — full right-side view on mobile cart Rigaku 2561R1 XRD diffractometer — full left-side view showing goniometer ring and cable bundle
