Description

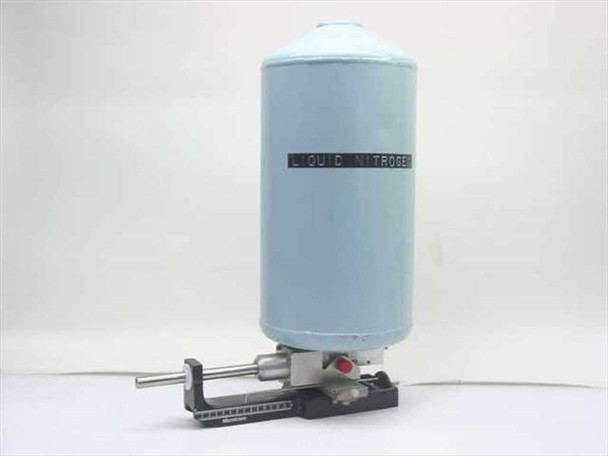

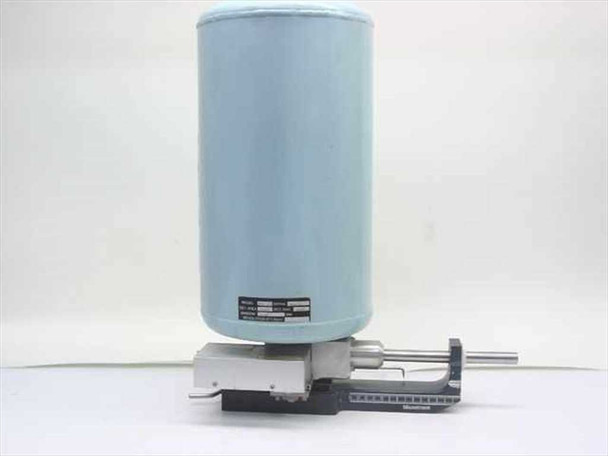

Link Systems ETEC A/S Cryogenic Si(Li) Detector LN2 Dewar 10mm² -400V Bias
Cryogenic silicon-lithium X-ray detector system designed for energy-dispersive spectroscopy (EDS) and elemental analysis. Operates with liquid nitrogen cooling and includes a preamplifier for signal conditioning.
Specifications & What's Included
- Detector area: 10mm²
- Operating bias: -400V
- Window thickness: 0.008mm
- LN2 Dewar (approximately 17.5in height, 8.5in diameter)
- OPT Pre Amp 1166 preamplifier with DB-9 connectors (H.V., P.A. Power, Output)
- Manufactured in United Kingdom
Applications
Si(Li) detectors are used in scanning electron microscopy (SEM), electron microprobe analysis, and X-ray fluorescence for elemental composition determination. This configuration supports EDS systems requiring cryogenic cooling and preamplified output signals.
Condition: For Parts or Not Working
This Link Systems ETEC A/S Cryogenic Si(Li) X-Ray Detector is being sold AS-IS for parts or repair. The unit has been visually inspected. Functionality has not been verified — the detector is not guaranteed operational and is sold without any functional warranty. The LN2 Dewar appears intact with no visible cracks or damage to the outer casing. The OPT Pre Amp 1166 preamplifier box and mounting/positioning assembly are included. The detector snout shows typical wear consistent with lab use; wiring inside the snout body is visible and intact in the photos. Buyers should evaluate all photos carefully and contact us with any technical questions prior to purchase. Please view our photo set and contact us if you have any questions.
This Link Systems ETEC A/S Cryogenic Si(Li) X-Ray Detector is being sold AS-IS for parts or repair. The unit has been visually inspected. Functionality has not been verified — the detector is not guaranteed operational and is sold without any functional warranty. The LN2 Dewar appears intact with no visible cracks or damage to the outer casing. The OPT Pre Amp 1166 preamplifier box and mounting/positioning assembly are included. The detector snout shows typical wear consistent with lab use; wiring inside the snout body is visible and intact in the photos. Buyers should evaluate all photos carefully and contact us with any technical questions prior to purchase. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Link Systems Ltd |
Model: |
ETEC A/S |
MPN: |
ETEC A/S |
Type: |
Cryogenic Si(Li) X-Ray Detector with LN2 Dewar |
SKU: |
31332 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes LN2 Dewar (approx. 17.5in tall, 8.5in dia.) and OPT Pre Amp 1166 preamplifier box |

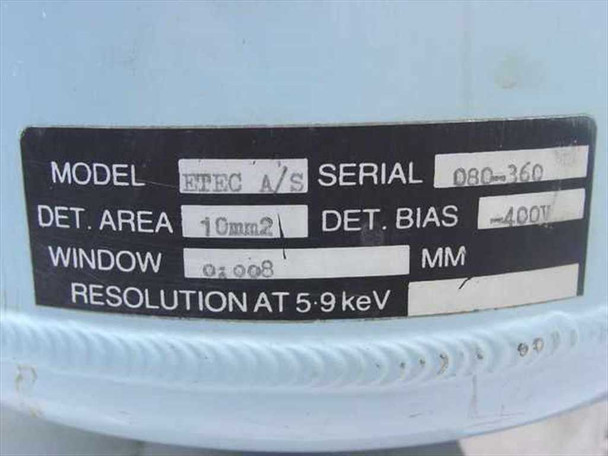

Detector Area: |
10mm² |
Detector Bias: |
-400V |
Window Size: |
0.008 MM (as labeled) |
Resolution: |
At 5.9 keV (value not fully legible on label) |
Preamplifier: |
OPT Pre Amp 1166 |
Connectors: |
H.V., P.A. Power, Output (DB-9 on preamplifier box) |
Cooling Method: |
Liquid Nitrogen (LN2) |
LN2 Dewar Height (to top): |
Approx. 17.5 in. |
LN2 Dewar Height (to seam): |
Approx. 15 in. |
LN2 Dewar Diameter: |
Approx. 8.5 in. |
Application / Use Case: |
EDS / X-ray spectrometry, SEM, electron microprobe |
Country/Region of Manufacture: |
United Kingdom |
Condition Notes: |
Link Systems ETEC A/S cryogenic Si(Li) X-ray detector sold AS-IS for parts or repair. Not tested or guaranteed functional. Visually inspected. LN2 Dewar and OPT Pre Amp 1166 included. |
